GE
Chest Freezer

Model # FCM11SRBWW Official GE freezer

Here are the diagrams and repair parts for Official GE FCM11SRBWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
R600 Drier W/ Red Cap WR87X30875
#138

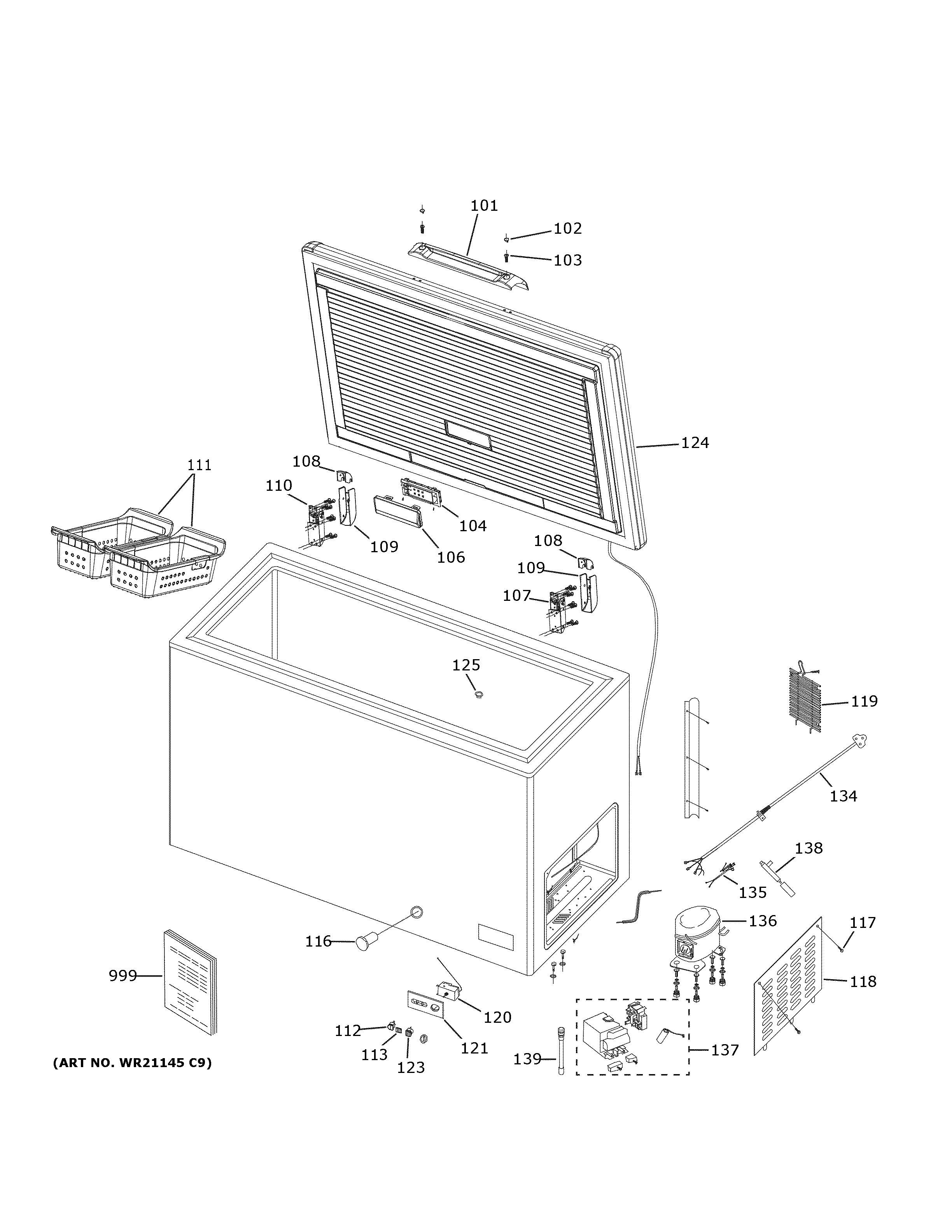

Freezer diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#139

Freezer diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Freezer Interior Drain Plug (replaces Wr02x12189) WR01X28051
#125

Freezer diagram

Freezer interior drain plug (replaces wr02x12189)

Part #WR01X28051

$8.95 |
10% OFF Phone Price : $9.95
In Stock
Thermostat WR09X27830
#120

Freezer diagram

Thermostat

Part #WR09X27830

$35.71
In Stock

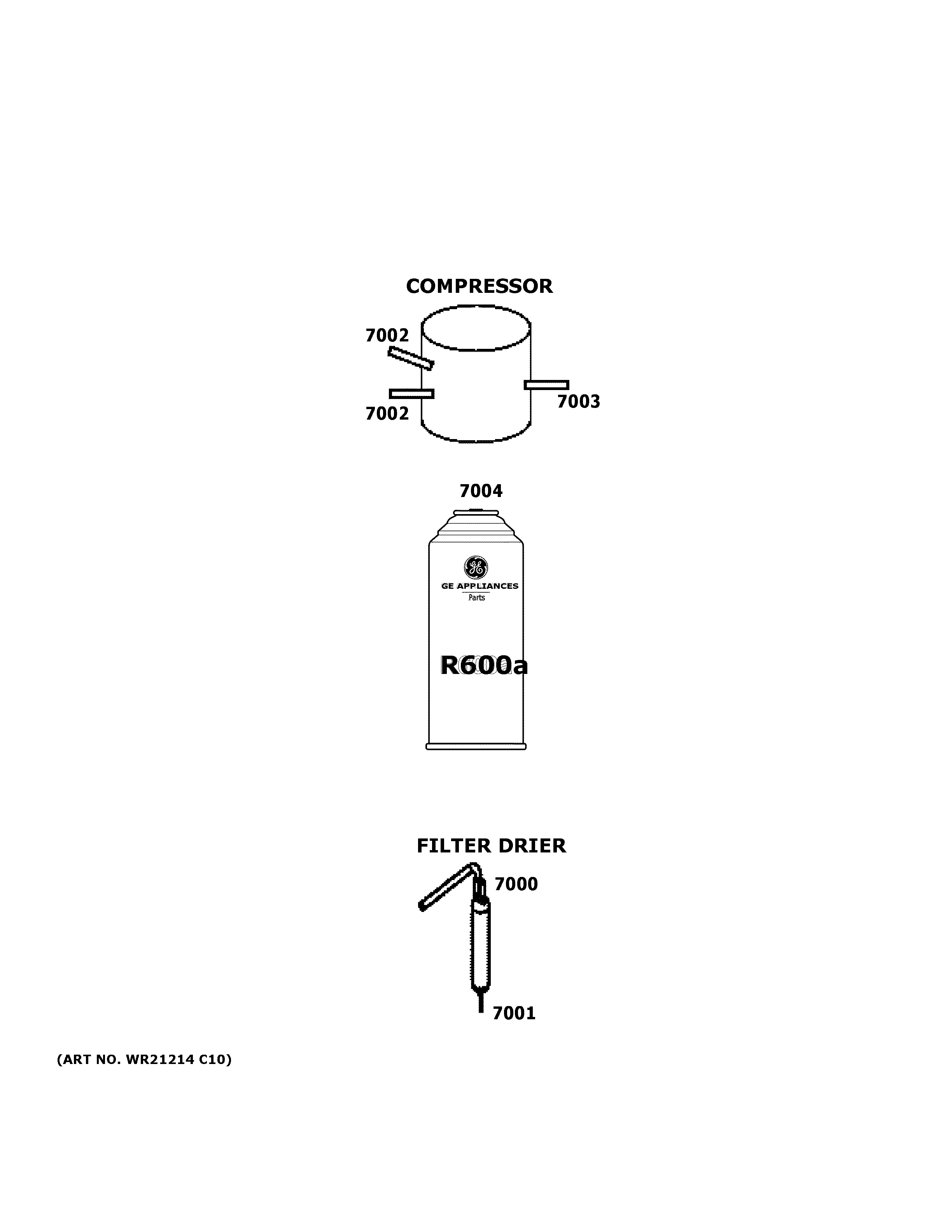

Clpg5/16-1/4 WR97X10036
#7002

Lokring connectors diagram

Clpg5/16-1/4

Part #WR97X10036

$28.31
In Stock
Freezer Door Hinge WR12X27822
#110

Freezer diagram

Freezer door hinge

Part #WR12X27822

$16.80
In Stock
Compressor Electricals WR87X32188
#137

Freezer diagram

Compressor electricals

Part #WR87X32188

Replaced by #WR87X45445

?
Manufacturer substitution
This part replaces WR87X32188. Substitute parts can look different from the original.
$76.44
In Stock
Compressor WR87X37830
#136

Freezer diagram

Compressor

Part #WR87X37830

$358.91
In Stock
Light Cover WR13X29592
#113

Freezer diagram

Light cover

Part #WR13X29592

$8.11
In Stock
White Handle WR12X38876
#101

Freezer diagram

White handle

Part #WR12X38876

$12.60
In Stock
