Model # FUF17DPGRWH Official GE freezer

Here are the diagrams and repair parts for Official GE FUF17DPGRWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

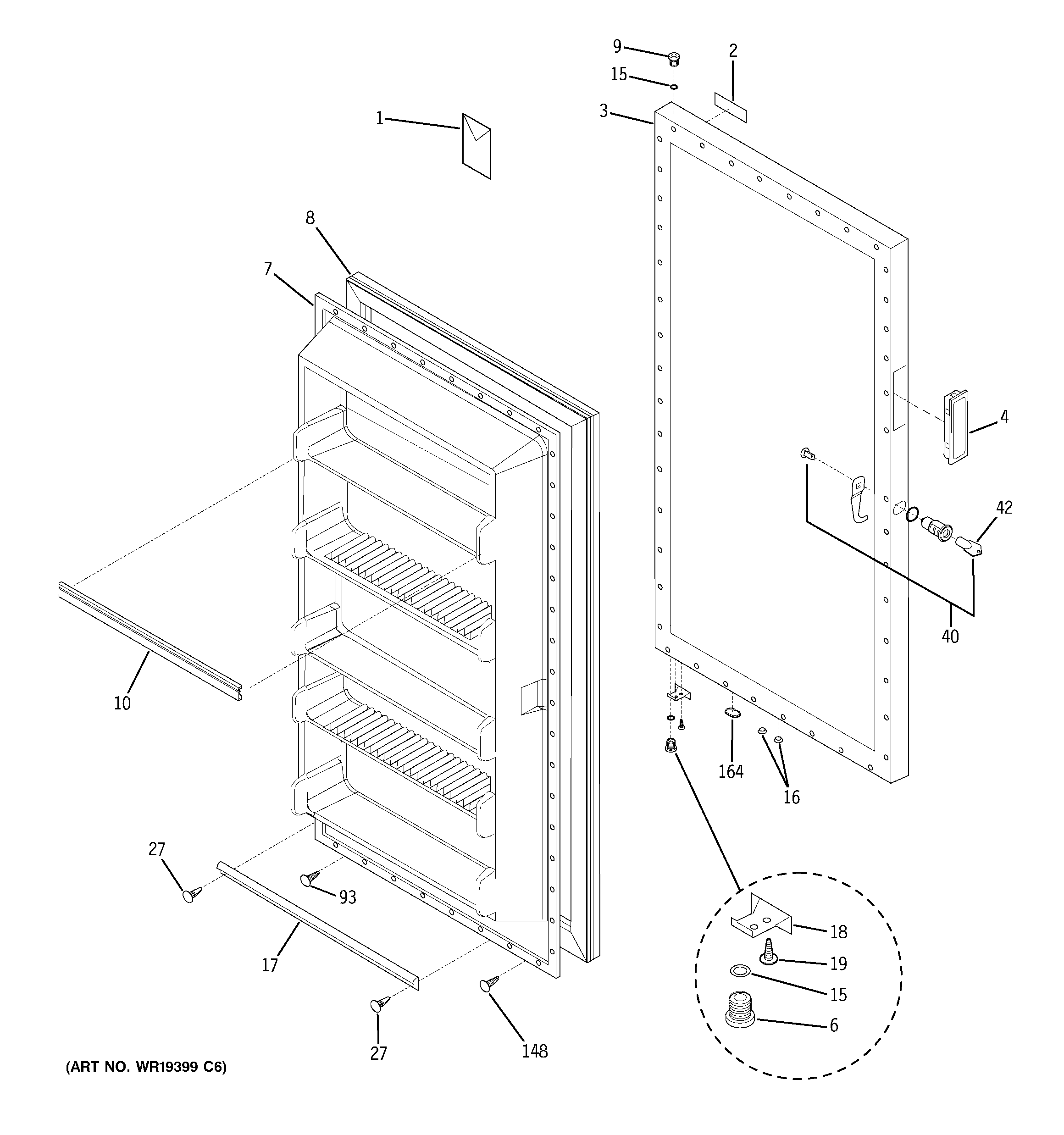

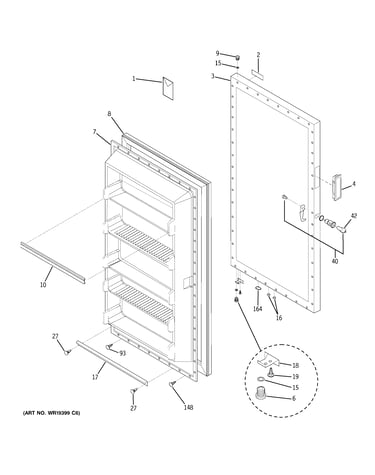

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Freezer Temperature Control Thermostat WR09X10061
#43

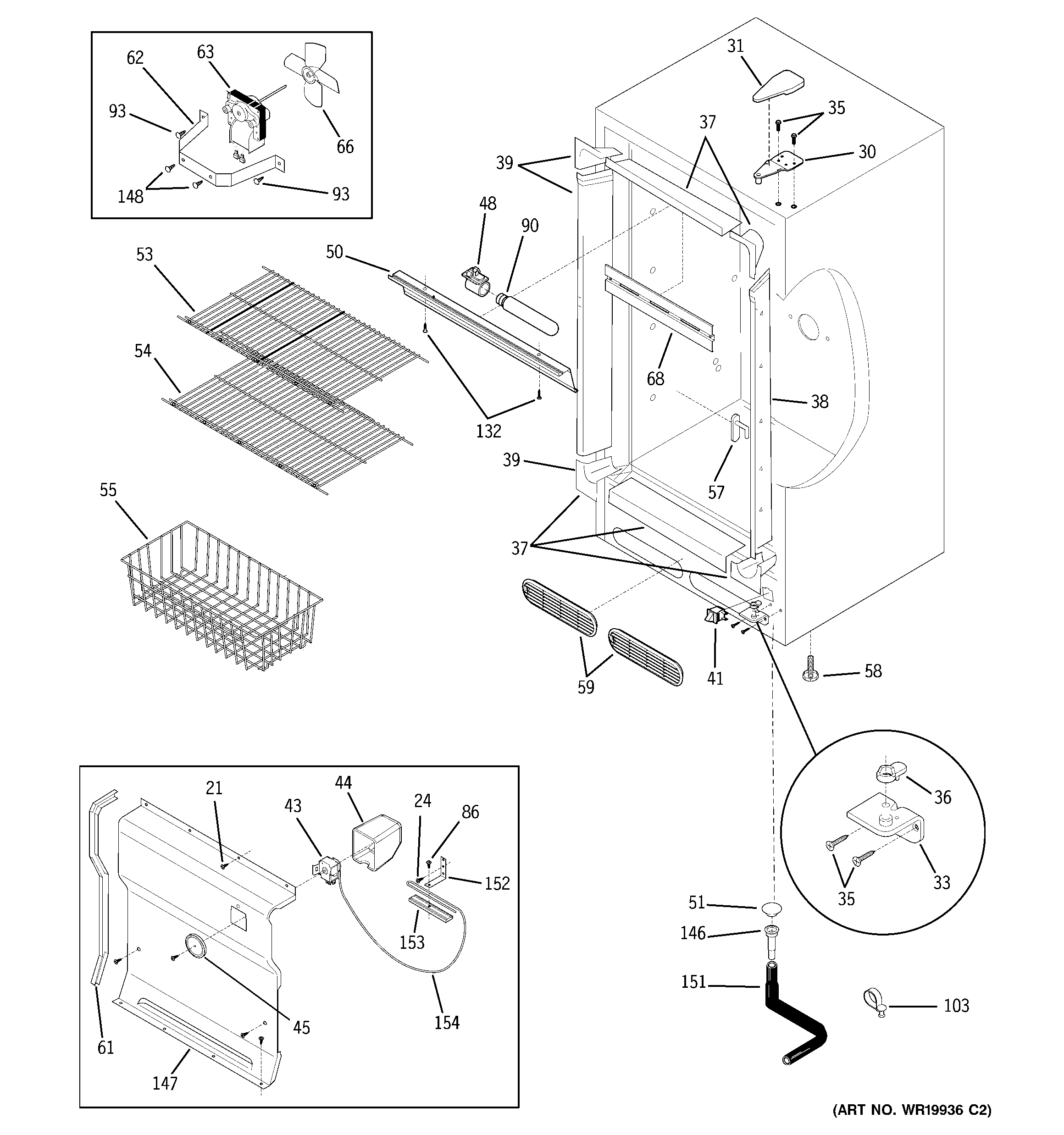

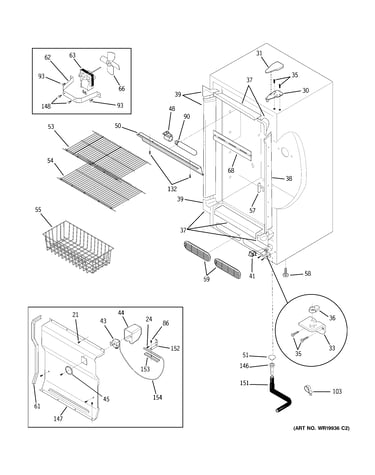

Cabinet diagram

Freezer temperature control thermostat

Part #WR09X10061

Replaced by #WR09X29511

?
Manufacturer substitution
This part replaces WR09X10061. Substitute parts can look different from the original.
$118.50 |
9% OFF Phone Price : $130.50
In Stock
Condenser WR84X5007
#100

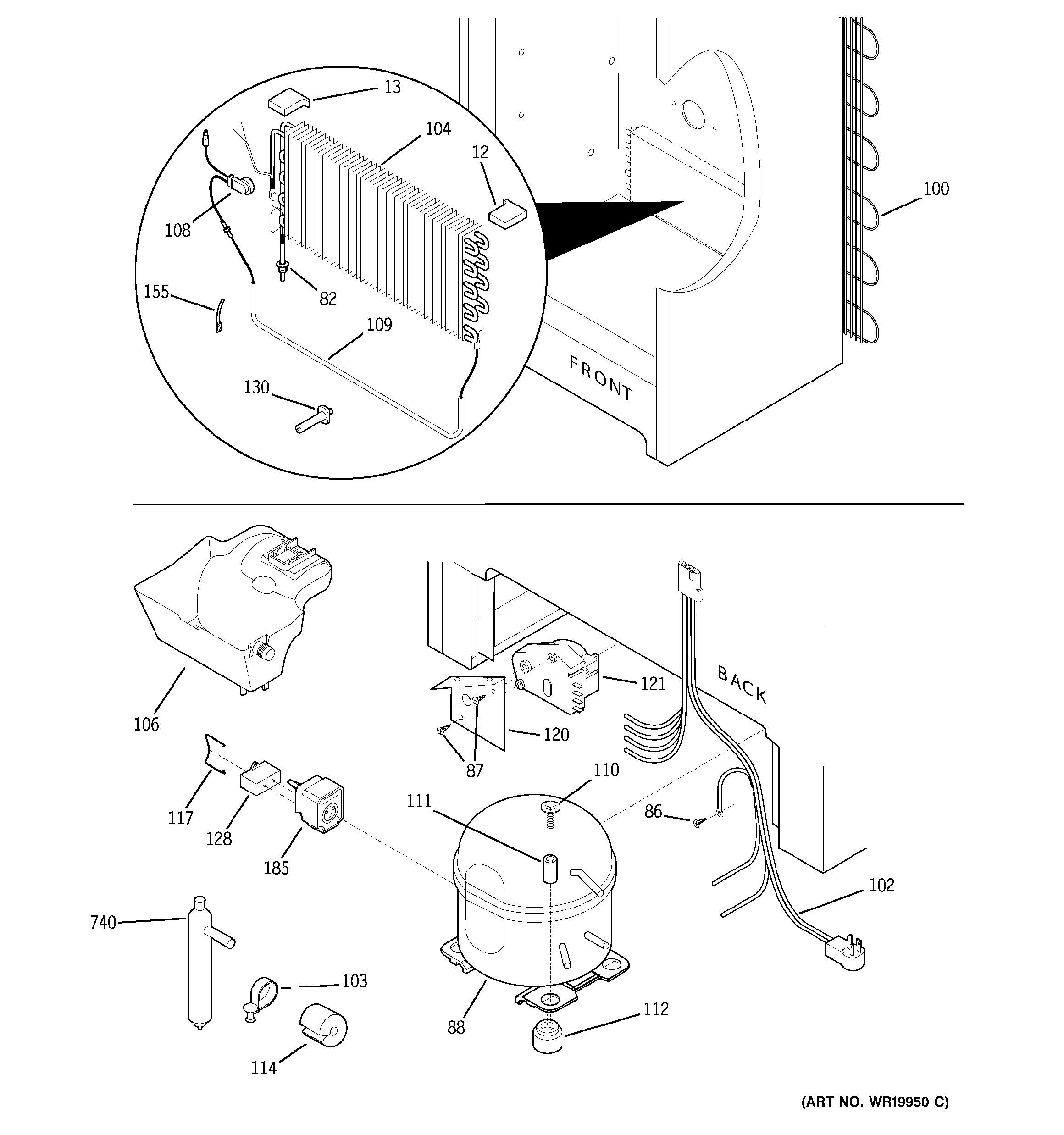

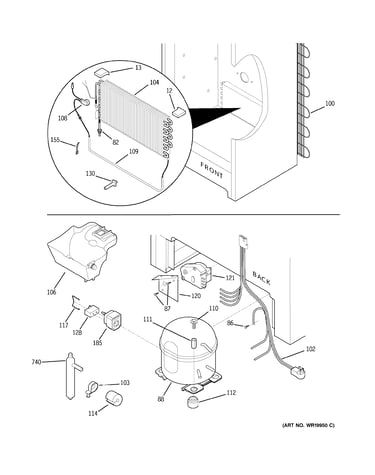

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Temperature Complete Knob WR02X10860
#45

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Strap-evap/h WR02X11458
#155

Unit parts diagram

Strap-evap/h

Part #WR02X11458

$33.20 |
15% OFF Phone Price : $39.20
In Stock
Freezer Door Switch WR23X10303
#41

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Clamp Capillary Tube WR02X11441
#153

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Freezer Evaporator Fan Blade WR60X10066
#63

Cabinet diagram

Freezer evaporator fan blade

Part #WR60X10066

The manufacturer no longer makes this part, and there's no substitute part

Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Hinge Screw WR01X10148
Hinge screw

Part #WR01X10148

Replaced by #WR01X10823

?
Manufacturer substitution
This part replaces WR01X10148. Substitute parts can look different from the original.
$32.07
In Stock
Screw WR01X5450
Screw

Part #WR01X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR01X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
