Model # 3XART745GW01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 3XART745GW01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

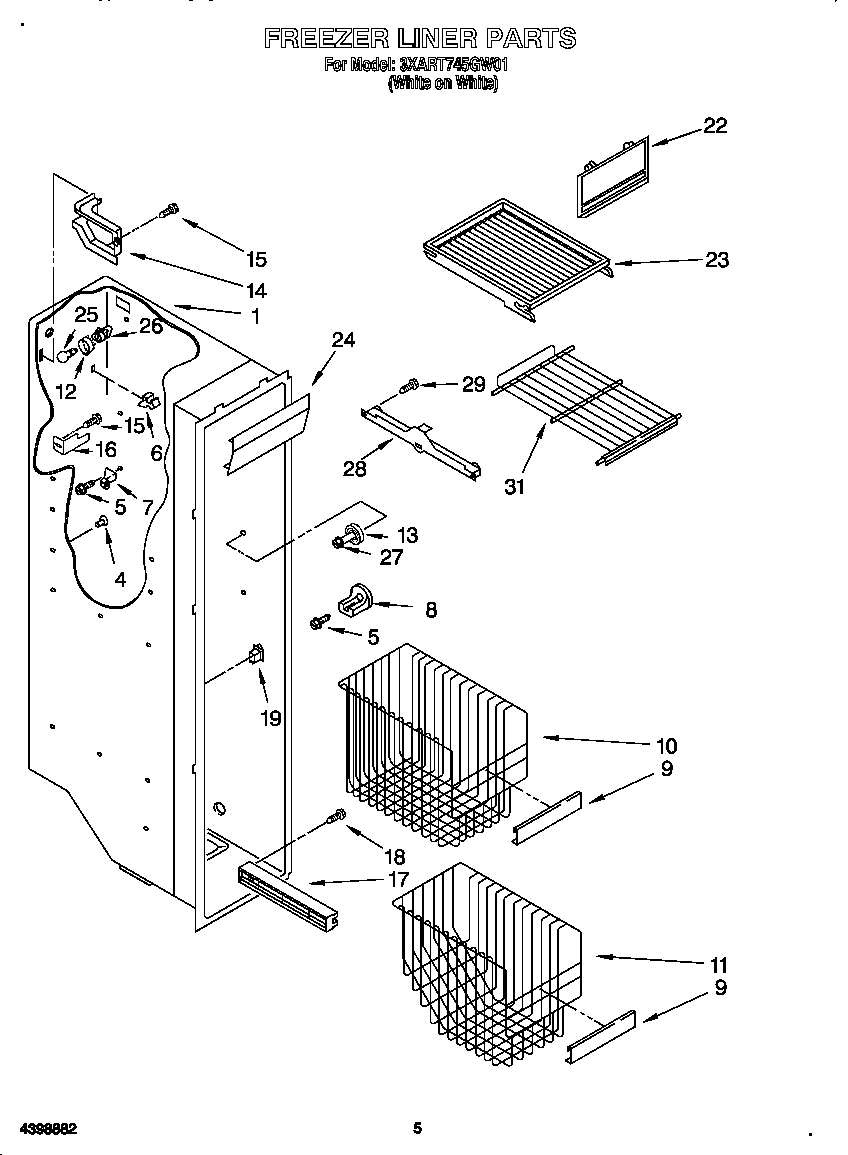

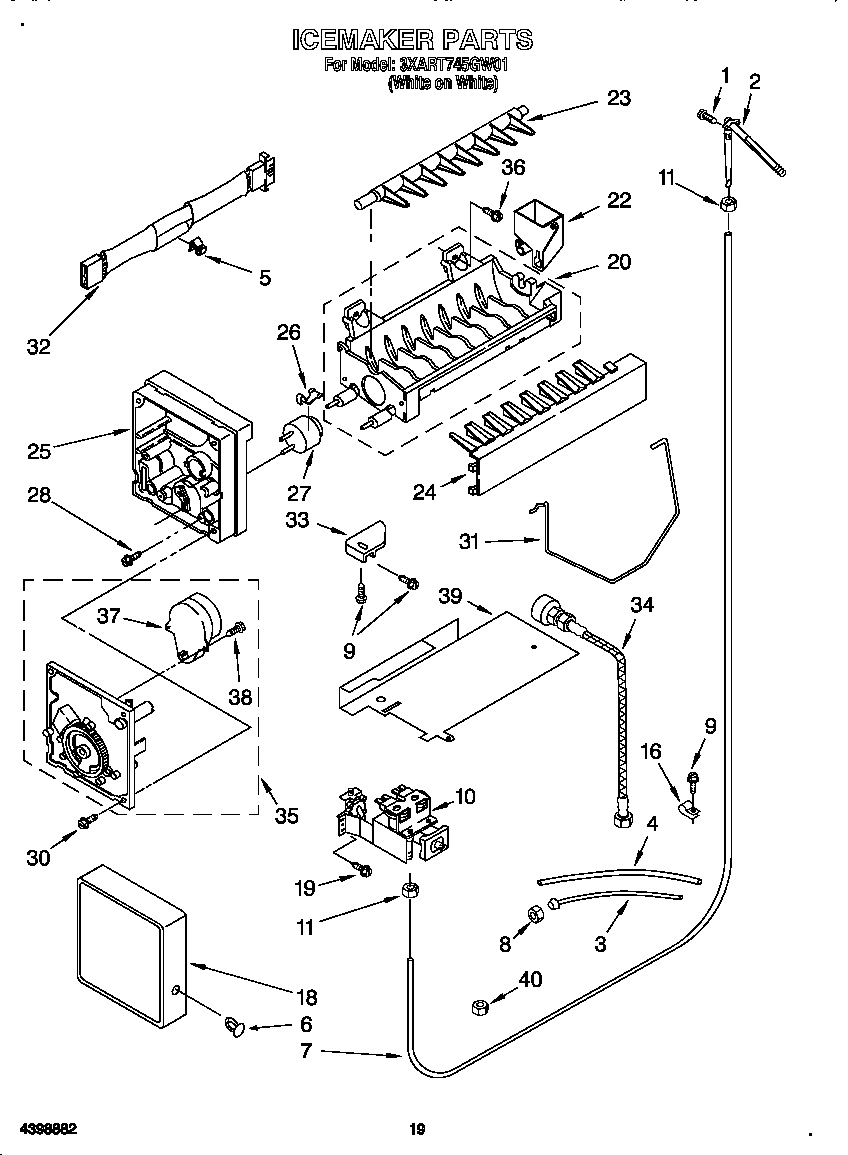

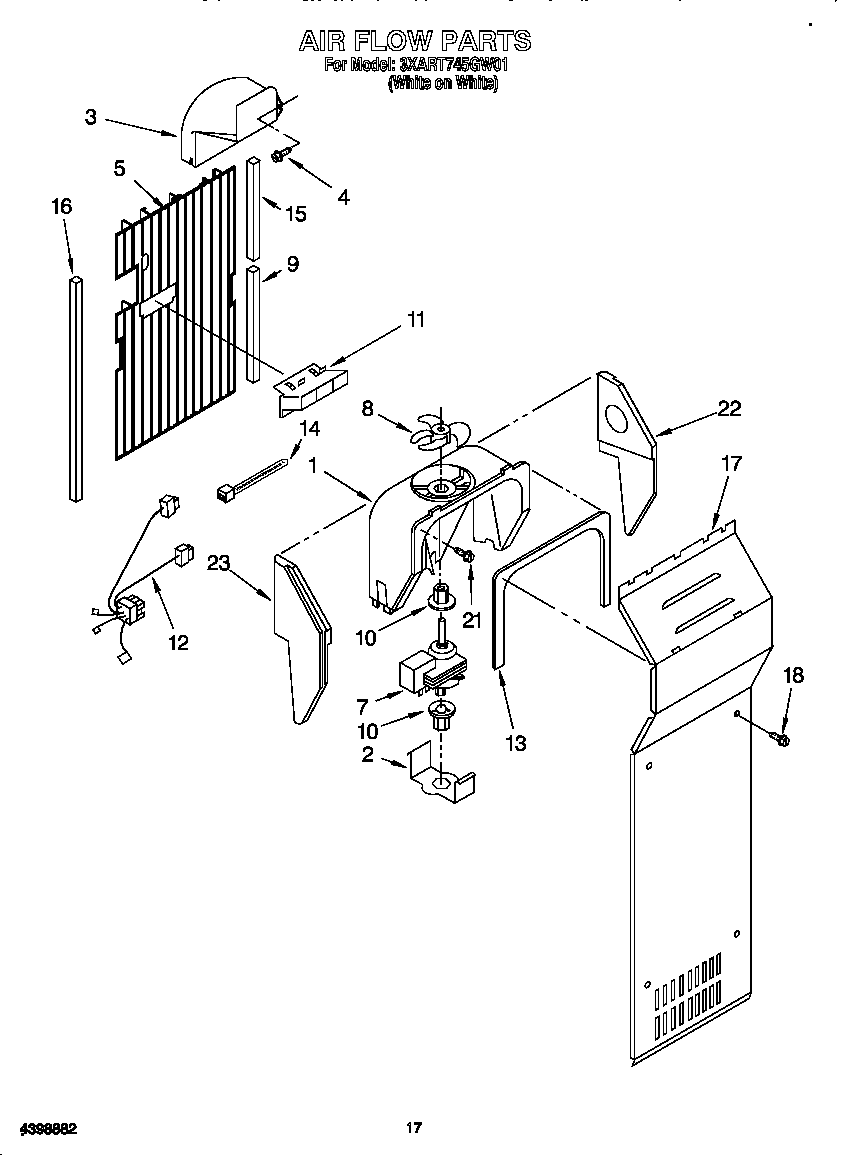

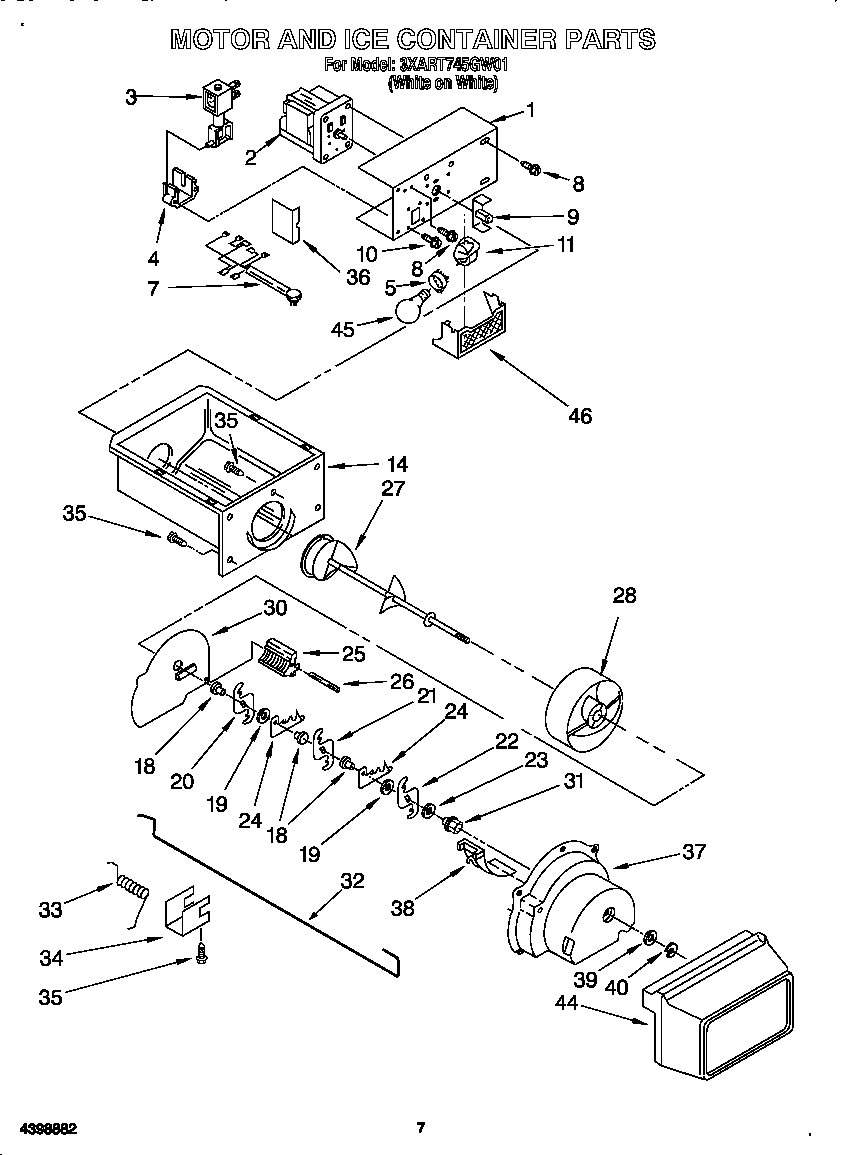

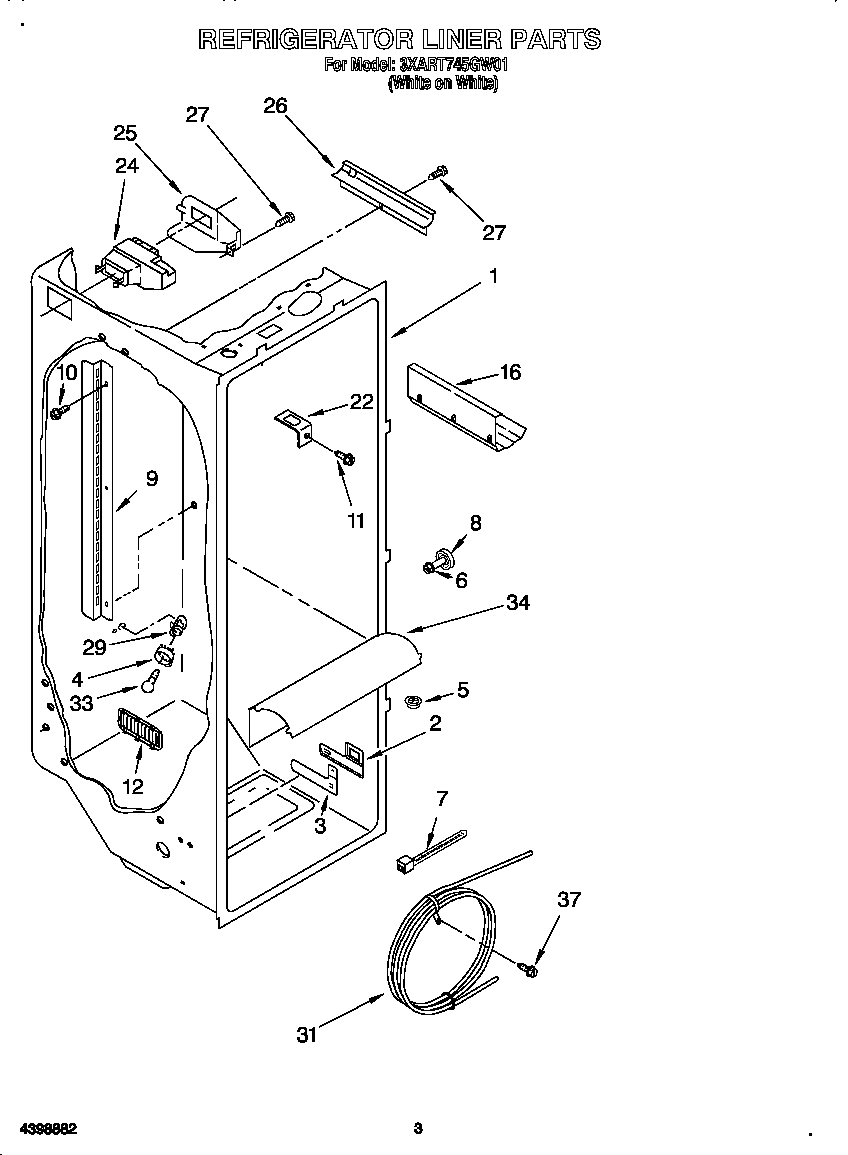

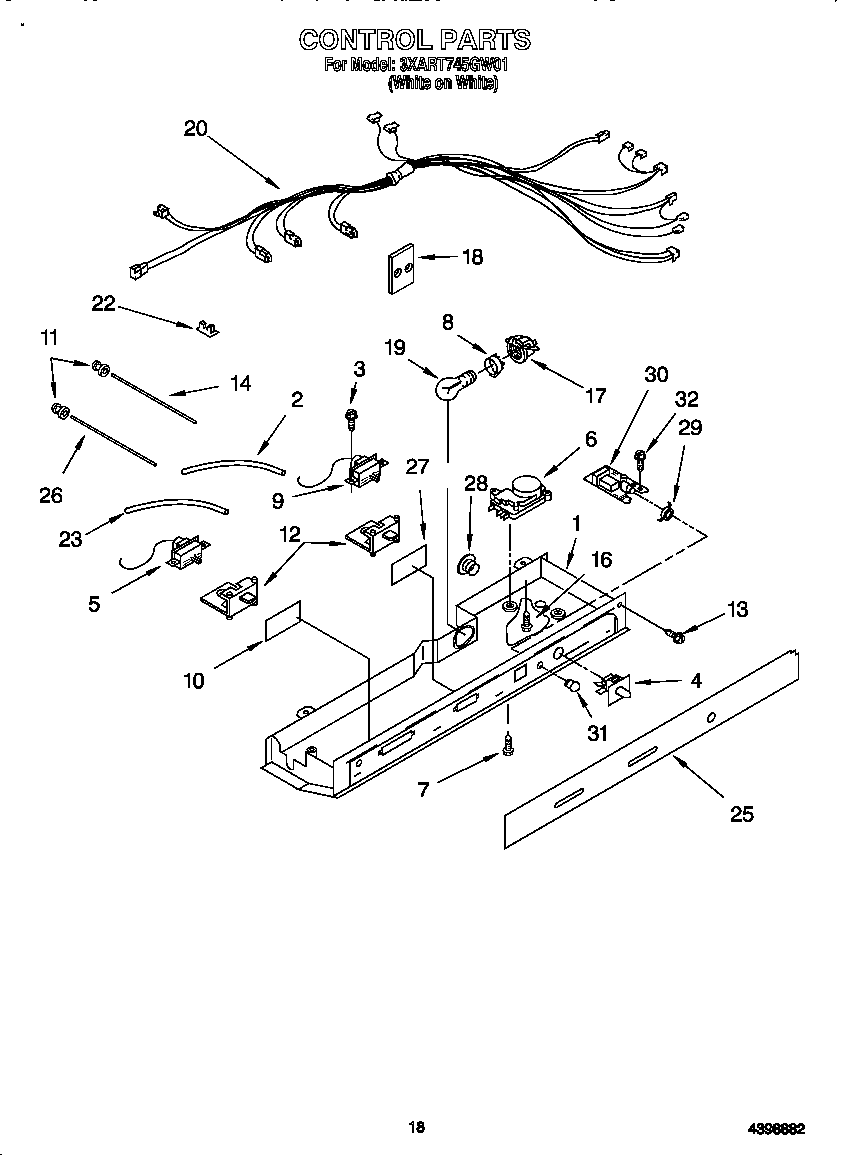

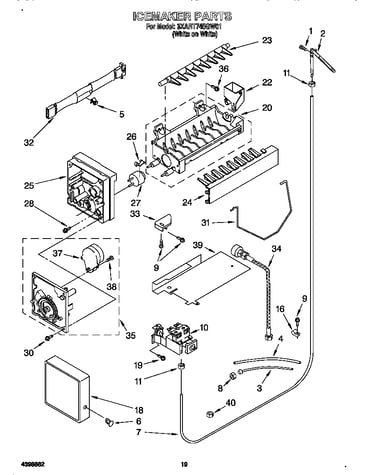

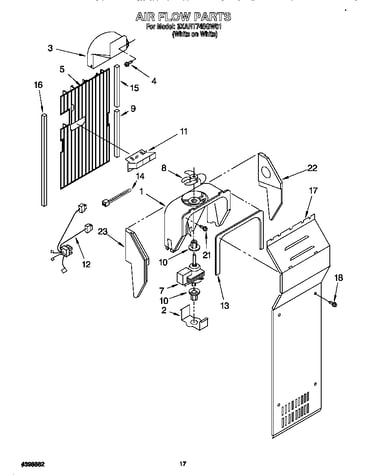

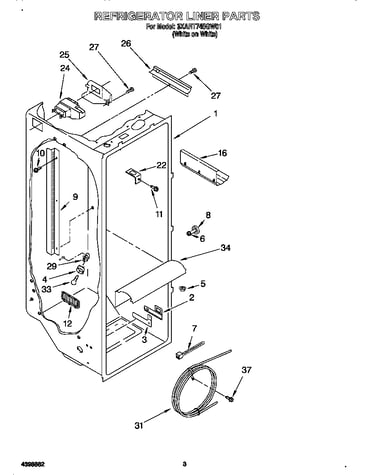

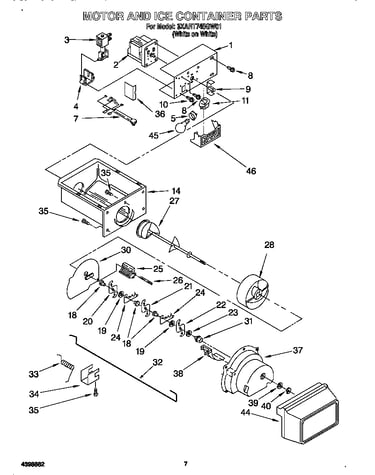

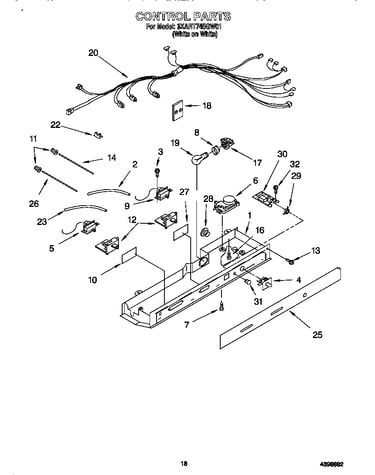

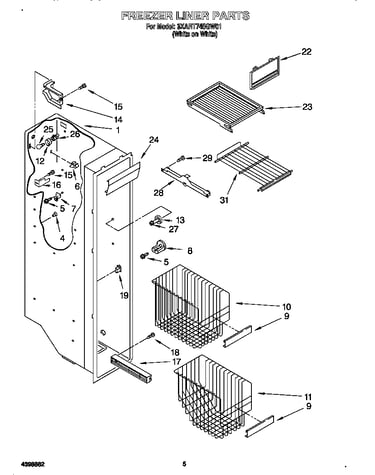

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 336 parts  |
Refrigerator Water Filter 2203220
#8

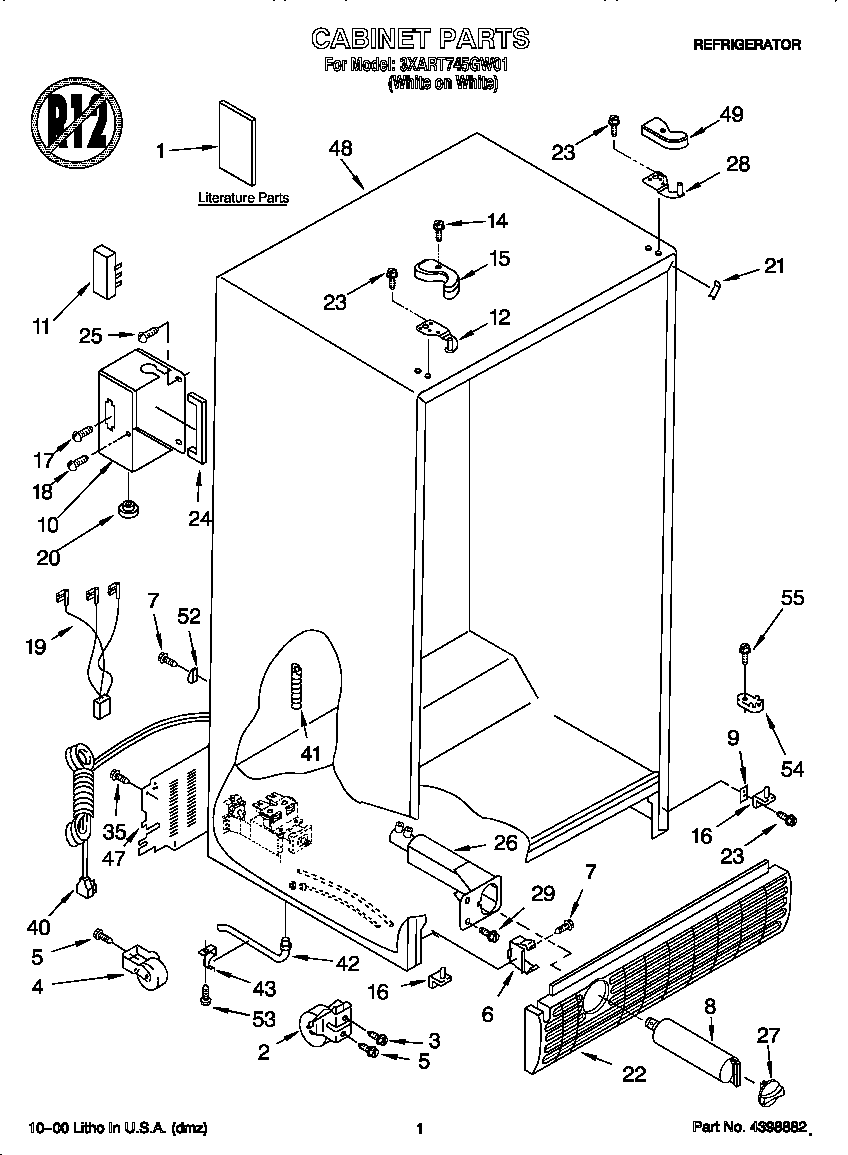

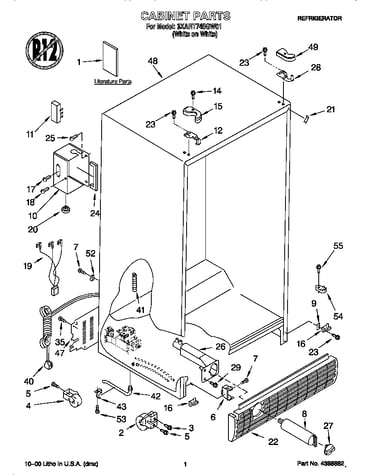

Cabinet diagram

Refrigerator water filter

Part #2203220

Replaced by #EDR5RXD1

?
Manufacturer substitution
This part replaces 2203220. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Crisper Pan 2196160
#10

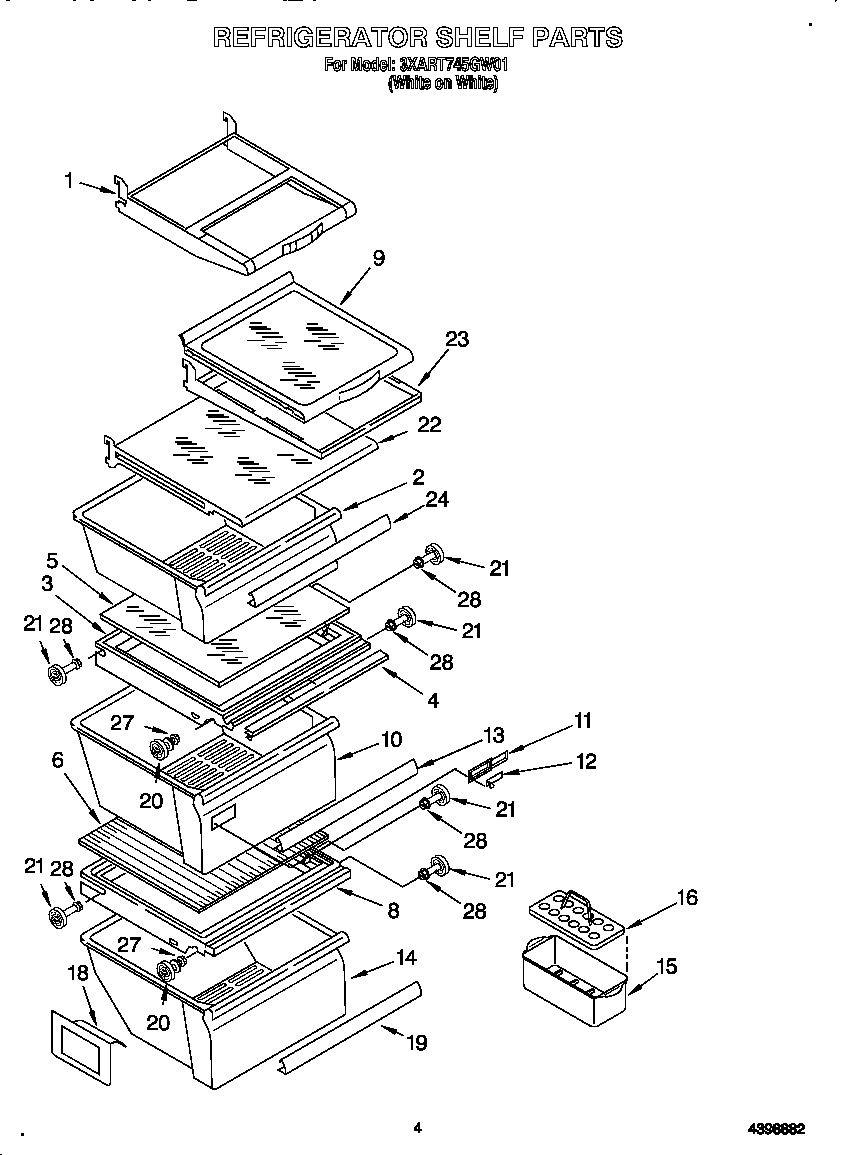

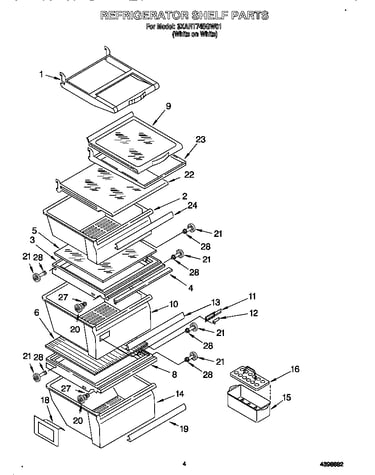

Refrigerator shelf diagram

Refrigerator crisper pan

Part #2196160

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2196160. Substitute parts can look different from the original.
BEST SELLER
$73.14 |
8% OFF Phone Price : $79.14
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

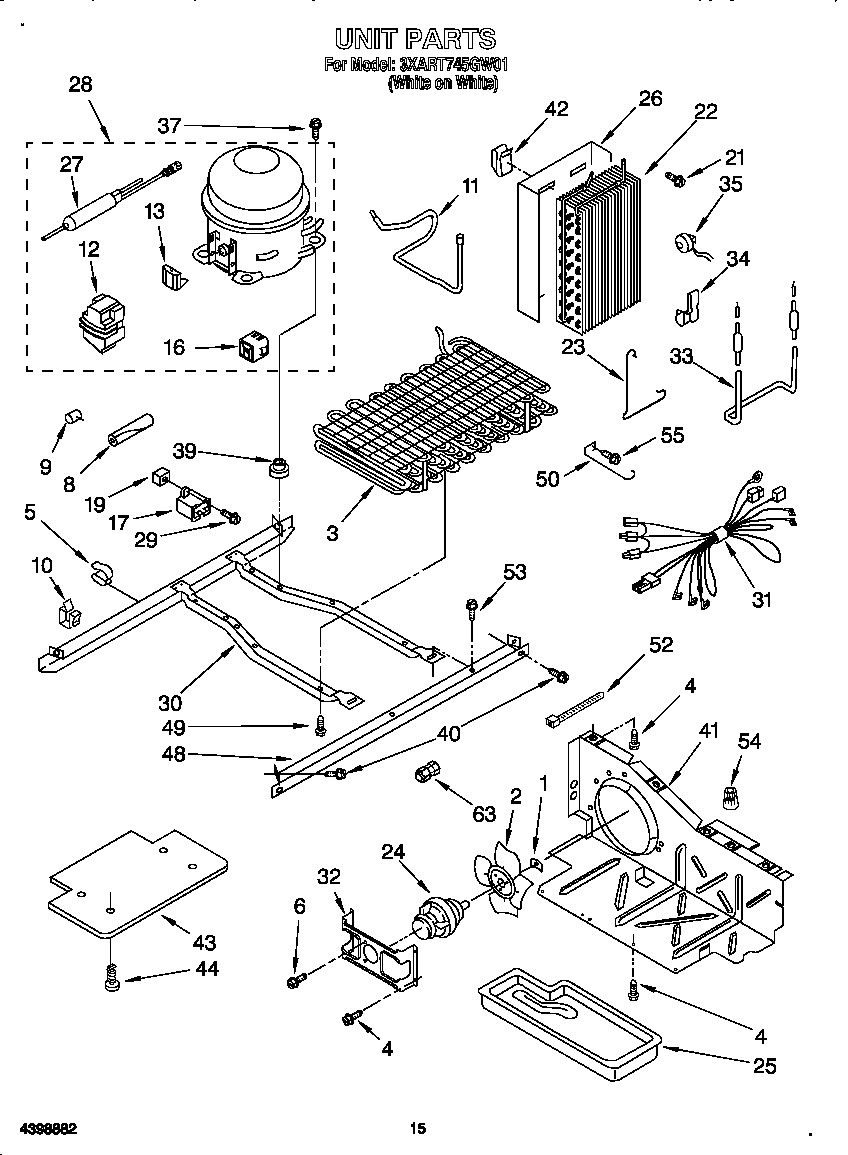

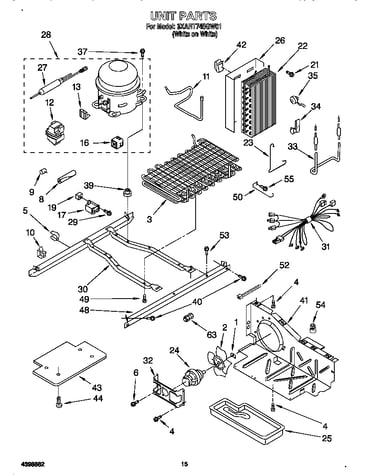

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Closer Cam 2182179
#12

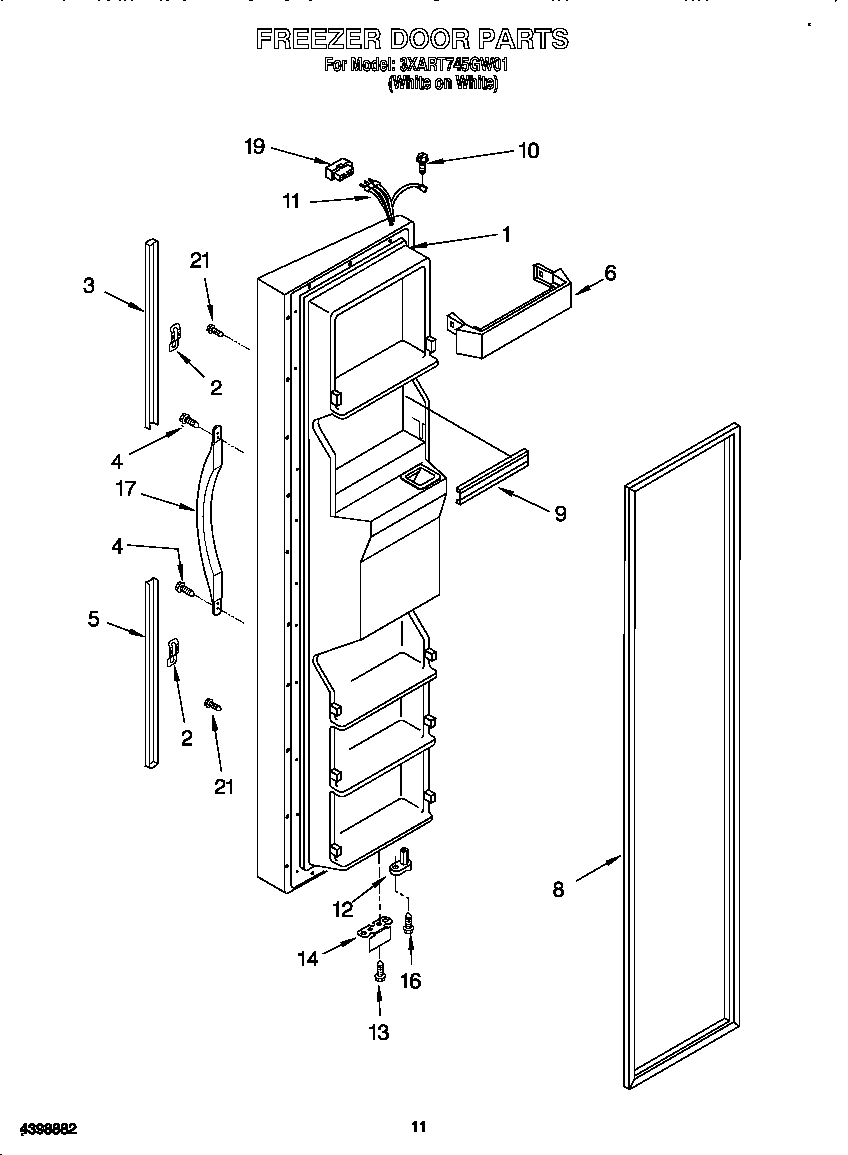

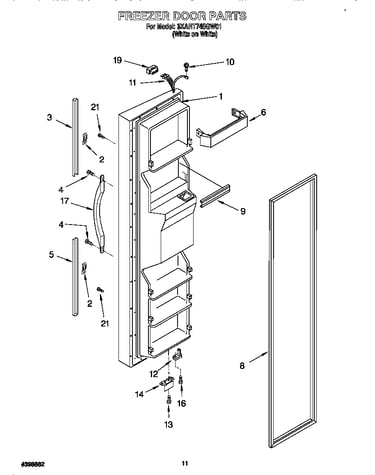

Freezer door diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Door Cam (black) 2182178
#14

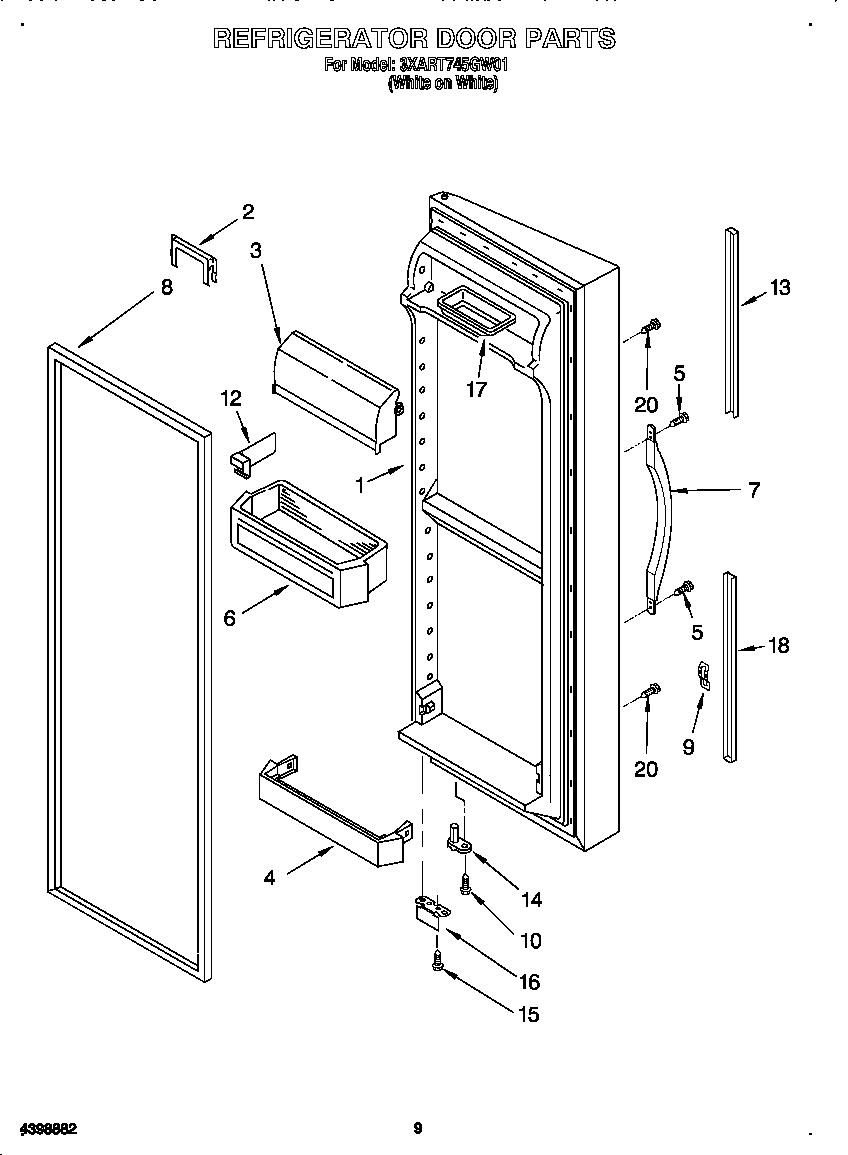

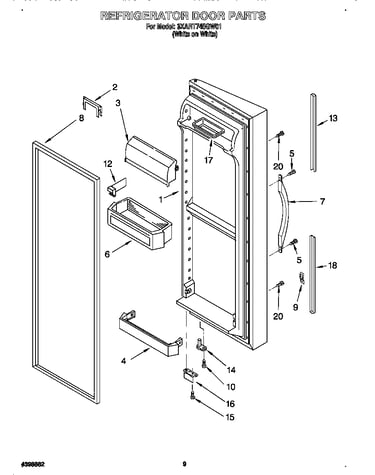

Refrigerator door diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Meat Pan 2196162
#14

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196162

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196162. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Cantilever Shelf 2179607
#6

Refrigerator door diagram

Refrigerator cantilever shelf

Part #2179607

Replaced by #WPW10321304

?
Manufacturer substitution
This part replaces 2179607. Substitute parts can look different from the original.
BEST SELLER
$36.51 |
14% OFF Phone Price : $42.51
In Stock
Refrigerator Water Filter Housing 2186443
#26

Cabinet diagram

Refrigerator water filter housing

Part #2186443

Replaced by #WP2186443

?
Manufacturer substitution
This part replaces 2186443. Substitute parts can look different from the original.
BEST SELLER
$56.47 |
10% OFF Phone Price : $62.47
In Stock
Refrigerator Door Closer Cam 2155311
#54

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Mechanism 2205686
#12

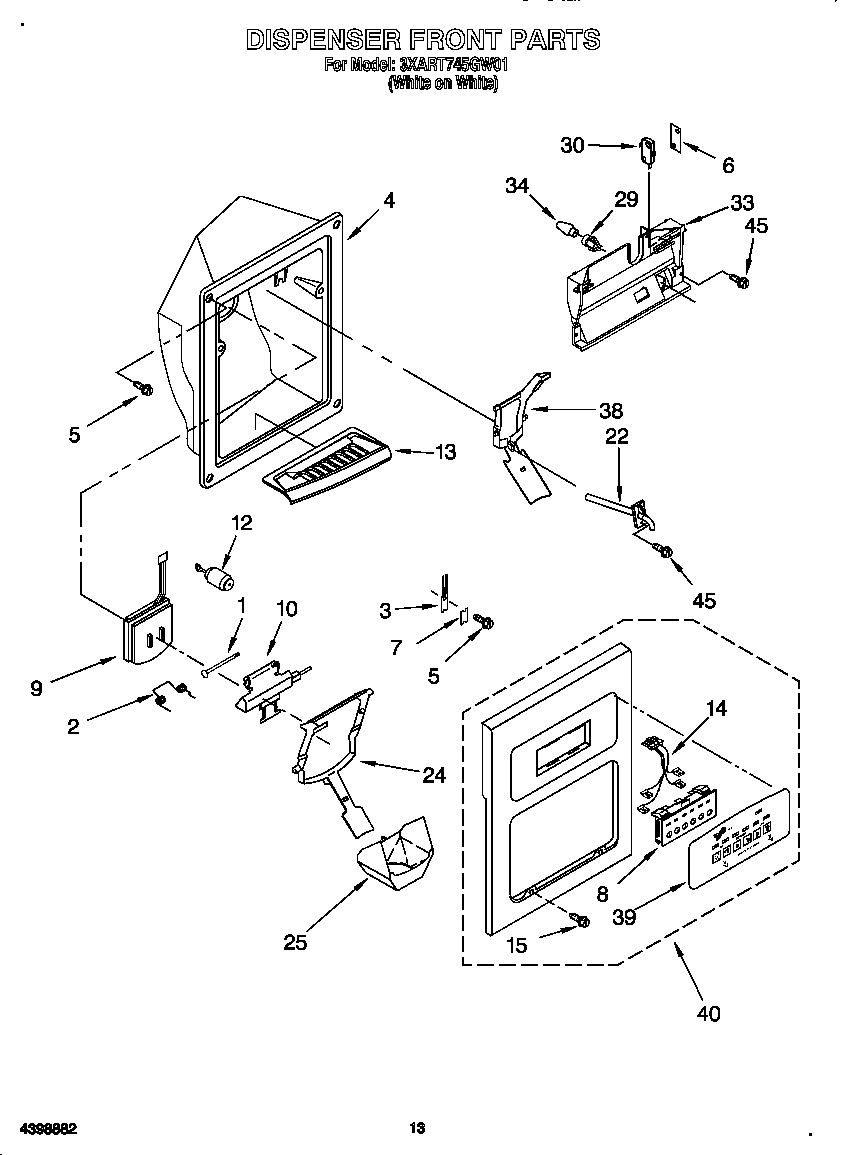

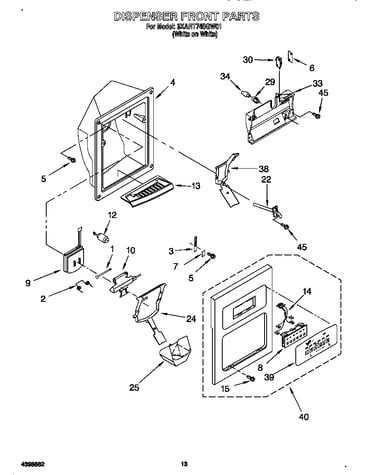

Dispenser front diagram

Refrigerator mechanism

Part #2205686

The manufacturer no longer makes this part, and there's no substitute part
