Model # 557 Official Porter Cable plate joiner

Here are the diagrams and repair parts for Official Porter Cable 557 plate joiner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

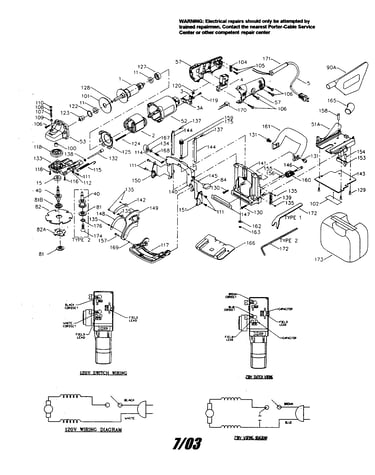

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |

Porter Cable Brass Plug 883164
#145

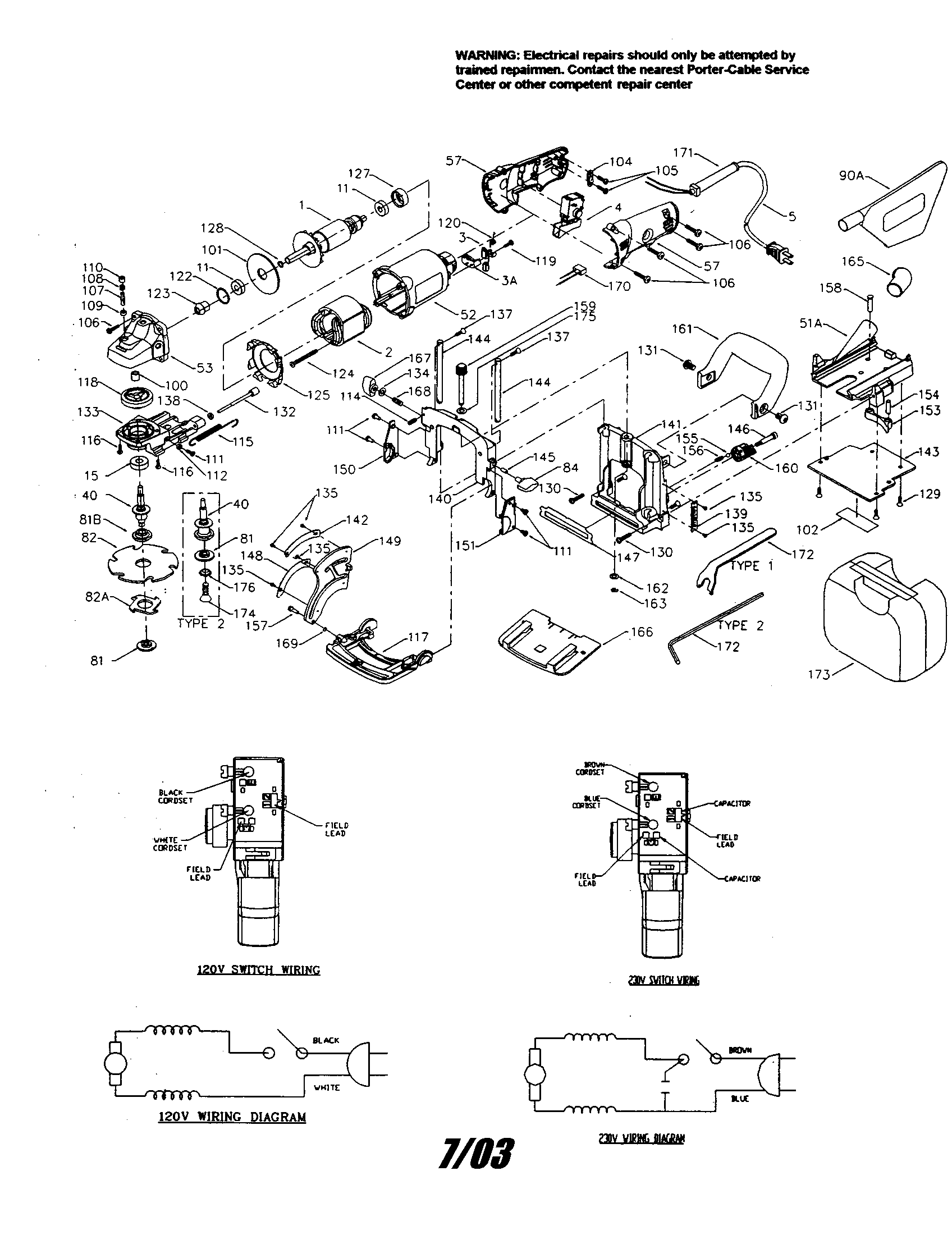

Plate joiner diagram

Porter cable brass plug

Part #883164

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Stud 889701
#168

Plate joiner diagram

Porter cable stud

Part #889701

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Handle Set 882749
#57

Plate joiner diagram

Porter cable handle set

Part #882749

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Depth Knob 883166
#160

Plate joiner diagram

Porter cable depth knob

Part #883166

The manufacturer no longer makes this part, and there's no substitute part

Screw 699255
#135

Plate joiner diagram

Screw

Part #699255

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Cover 883162
#143

Plate joiner diagram

Porter cable cover

Part #883162

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 847564
#128

Plate joiner diagram

Snap ring

Part #847564

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 887021
#107

Plate joiner diagram

Lock pin

Part #887021

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Cover 890716
#143A

Plate joiner diagram

Porter cable cover

Part #890716

The manufacturer no longer makes this part, and there's no substitute part

Retaining 697500
#163

Plate joiner diagram

Retaining

Part #697500

The manufacturer no longer makes this part, and there's no substitute part
