Model # 11088390810 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 11088390810 electric dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

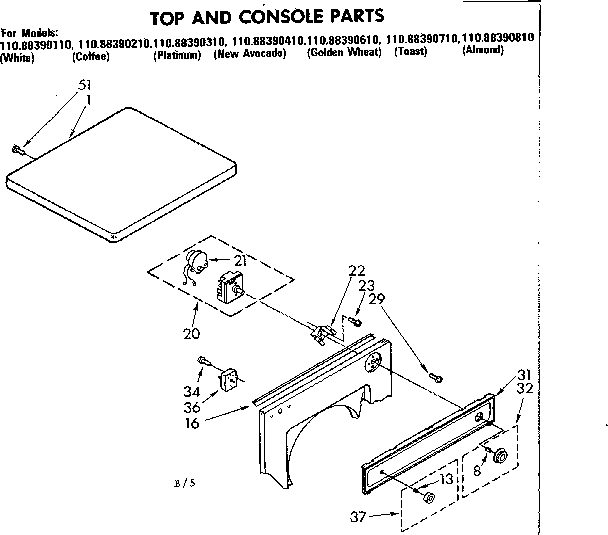

SELECT DIAGRAM
Browse Parts for11088390810 Electric Dryer
- #5

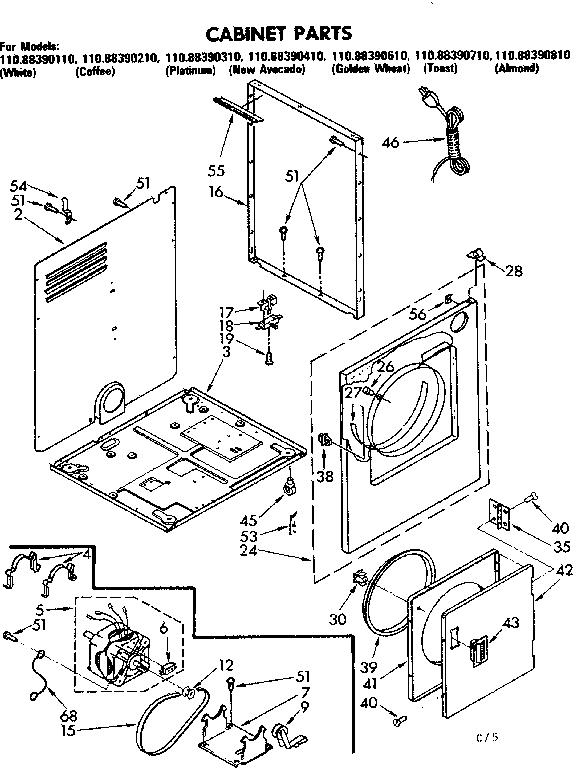

Cabinet parts diagram
MotorPart #695074
Replaced by #279827
?Manufacturer substitutionThis part replaces 695074. Substitute parts can look different from the original.$83.61 |7% OFF Phone Price : $89.61In Stock - #6
Cabinet parts diagram
SwitchPart #337351
Replaced by #279827
?Manufacturer substitutionThis part replaces 337351. Substitute parts can look different from the original.$83.61 |7% OFF Phone Price : $89.61In Stock - #30
Cabinet parts diagram
CatchPart #690081
Replaced by #279570
?Manufacturer substitutionThis part replaces 690081. Substitute parts can look different from the original.This item is not returnable$4.08 |20% OFF Phone Price : $5.08In Stock - #38
Cabinet parts diagram
StrikePart #693717
Replaced by #279570
?Manufacturer substitutionThis part replaces 693717. Substitute parts can look different from the original.This item is not returnable$4.08 |20% OFF Phone Price : $5.08In Stock - #18
Cabinet parts diagram
Dryer door switchPart #347207
Replaced by #W10820036
?Manufacturer substitutionThis part replaces 347207. Substitute parts can look different from the original.$22.08 |21% OFF Phone Price : $28.08In Stock - #34

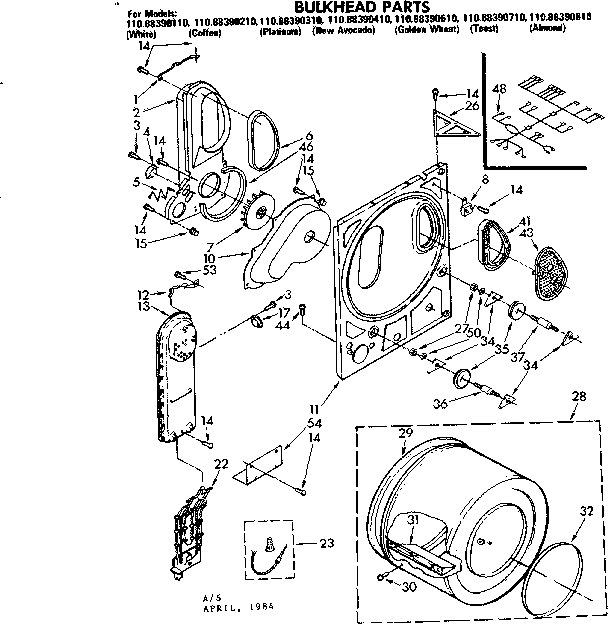

Bulkhead parts diagram
Dryer tri-ring retainerPart #690997
Replaced by #WPW10512946
?Manufacturer substitutionThis part replaces 690997. Substitute parts can look different from the original.$7.32 |12% OFF Phone Price : $8.32In Stock - #41
Bulkhead parts diagram
ScreenPart #348399
Replaced by #W10828351
?Manufacturer substitutionThis part replaces 348399. Substitute parts can look different from the original.$42.05 |12% OFF Phone Price : $48.05In Stock - #43
Bulkhead parts diagram
CoverPart #685273
Replaced by #W10828351
?Manufacturer substitutionThis part replaces 685273. Substitute parts can look different from the original.$42.05 |12% OFF Phone Price : $48.05In Stock - #6
Bulkhead parts diagram
Dryer lint screen housing foam sealPart #339956
Replaced by #WP339956
?Manufacturer substitutionThis part replaces 339956. Substitute parts can look different from the original.This item is not returnable$6.57 |13% OFF Phone Price : $7.57In Stock - #12
Cabinet parts diagram
PulleyPart #694872
Replaced by #W10837625
?Manufacturer substitutionThis part replaces 694872. Substitute parts can look different from the original.$53.86 |10% OFF Phone Price : $59.86In Stock
