Electric Water Heater

Model # EPX50DXRS Official State water heater

Here are the diagrams and repair parts for Official State EPX50DXRS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Thermostat 183534-000
#22

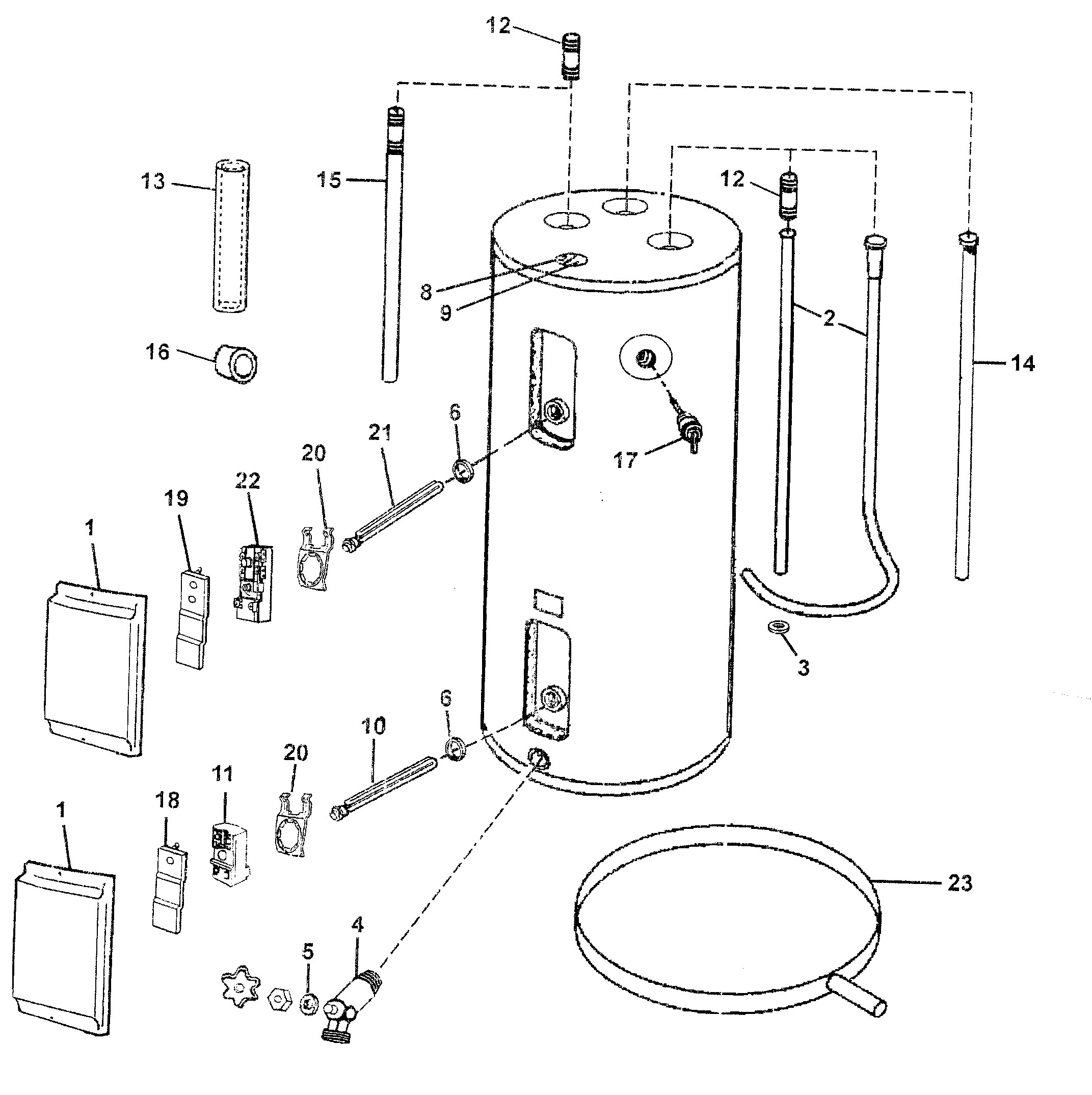

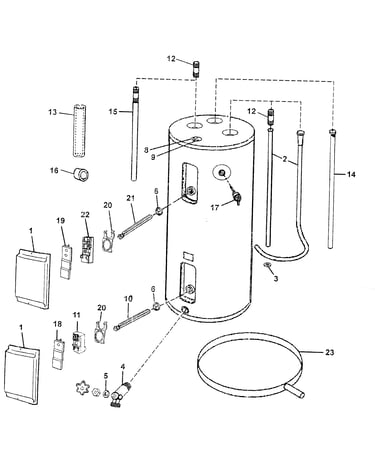

Water heater diagram

Thermostat

Part #183534-000

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 183534-000. Substitute parts can look different from the original.
