Model # WSM2780WAWAA Official GE washer/dryer

Here are the diagrams and repair parts for Official GE WSM2780WAWAA washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Dryer Belt WE12X0090
#1325

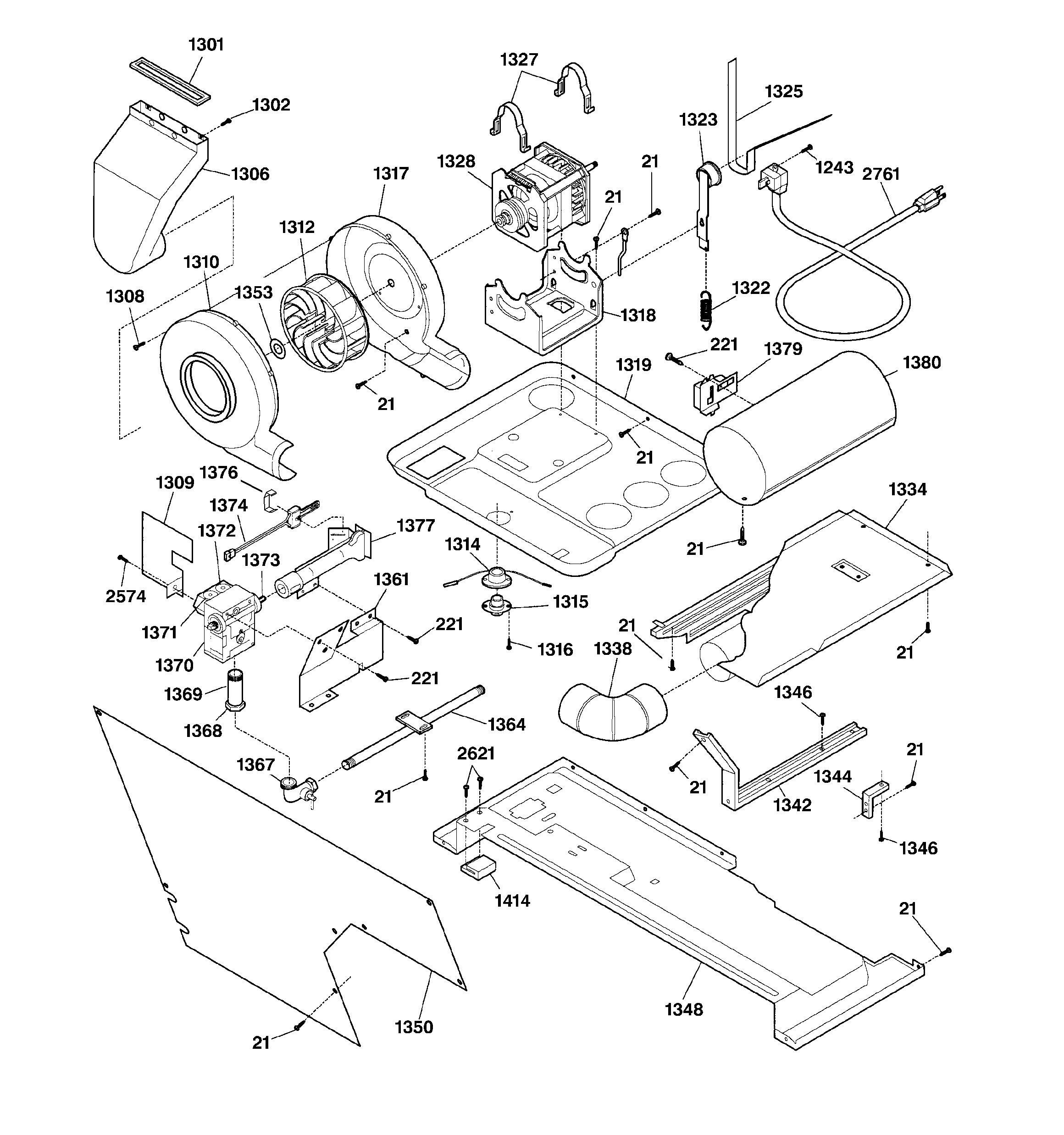

Dryer motor, blower & belt diagram

Dryer belt

Part #WE12X0090

Replaced by #WE12X10009

?
Manufacturer substitution
This part replaces WE12X0090. Substitute parts can look different from the original.
BEST SELLER
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Univ Clamp WH01X2036
#790

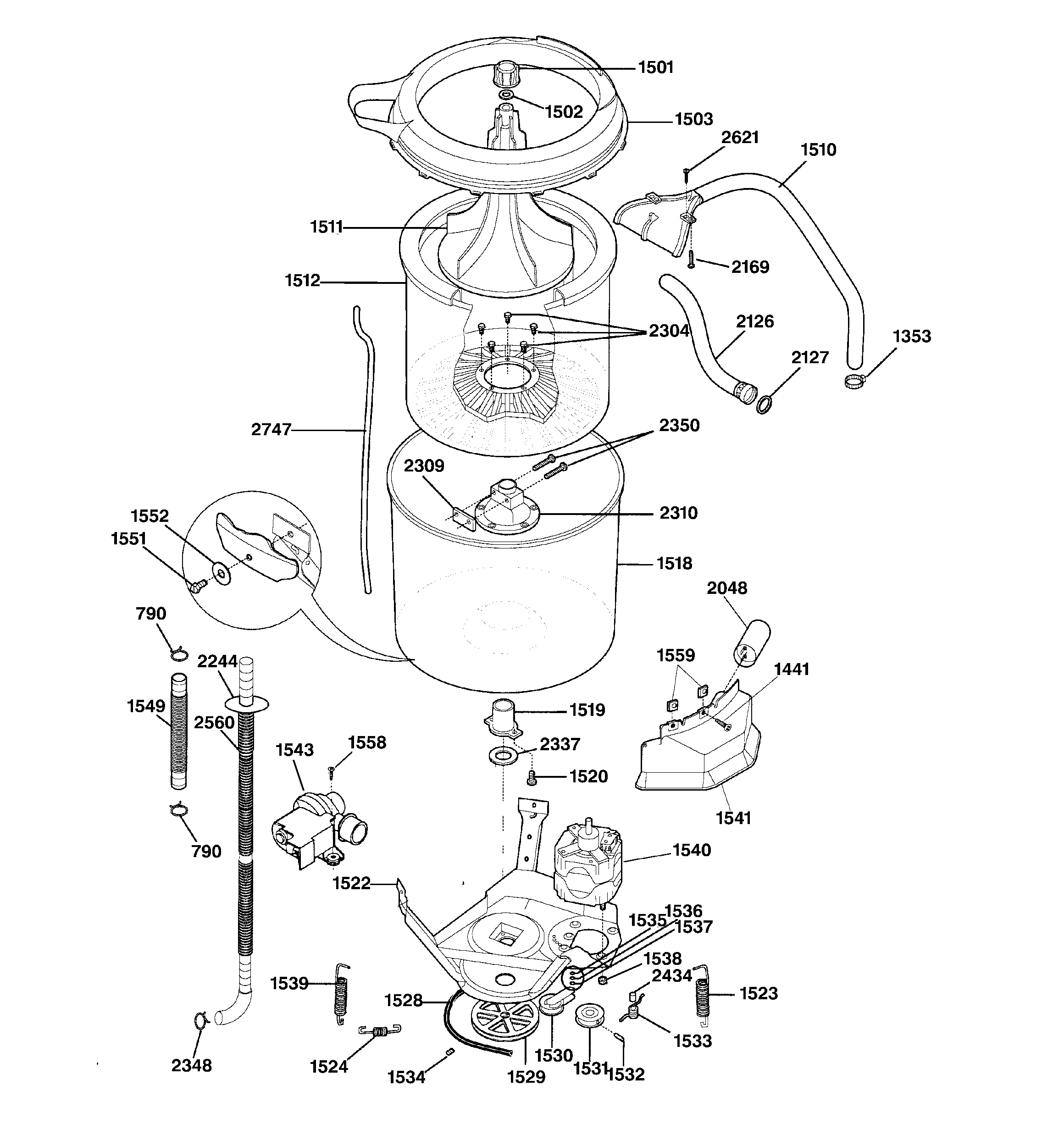

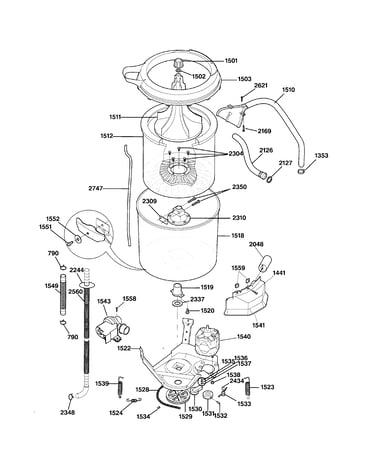

Washer motor & tub diagram

Univ clamp

Part #WH01X2036

Replaced by #WH1X2036

?
Manufacturer substitution
This part replaces WH01X2036. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Idler WE01X10077
#1323

Dryer motor, blower & belt diagram

Idler

Part #WE01X10077

Replaced by #WE03X29378

?
Manufacturer substitution
This part replaces WE01X10077. Substitute parts can look different from the original.
$82.58 |
7% OFF Phone Price : $88.58
In Stock
Laundry Center Blower Wheel WE16X0028
#1312

Dryer motor, blower & belt diagram

Laundry center blower wheel

Part #WE16X0028

Replaced by #WE16X28

?
Manufacturer substitution
This part replaces WE16X0028. Substitute parts can look different from the original.
$84.04 |
7% OFF Phone Price : $90.04
In Stock
Timer Knob WE01X10069
#1121

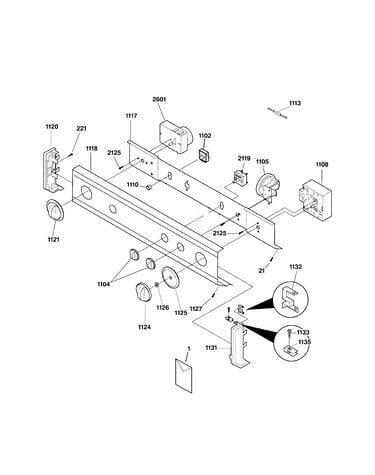

Control panel diagram

Timer knob

Part #WE01X10069

Replaced by #WE01X10160

?
Manufacturer substitution
This part replaces WE01X10069. Substitute parts can look different from the original.
$48.69 |
11% OFF Phone Price : $54.69
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

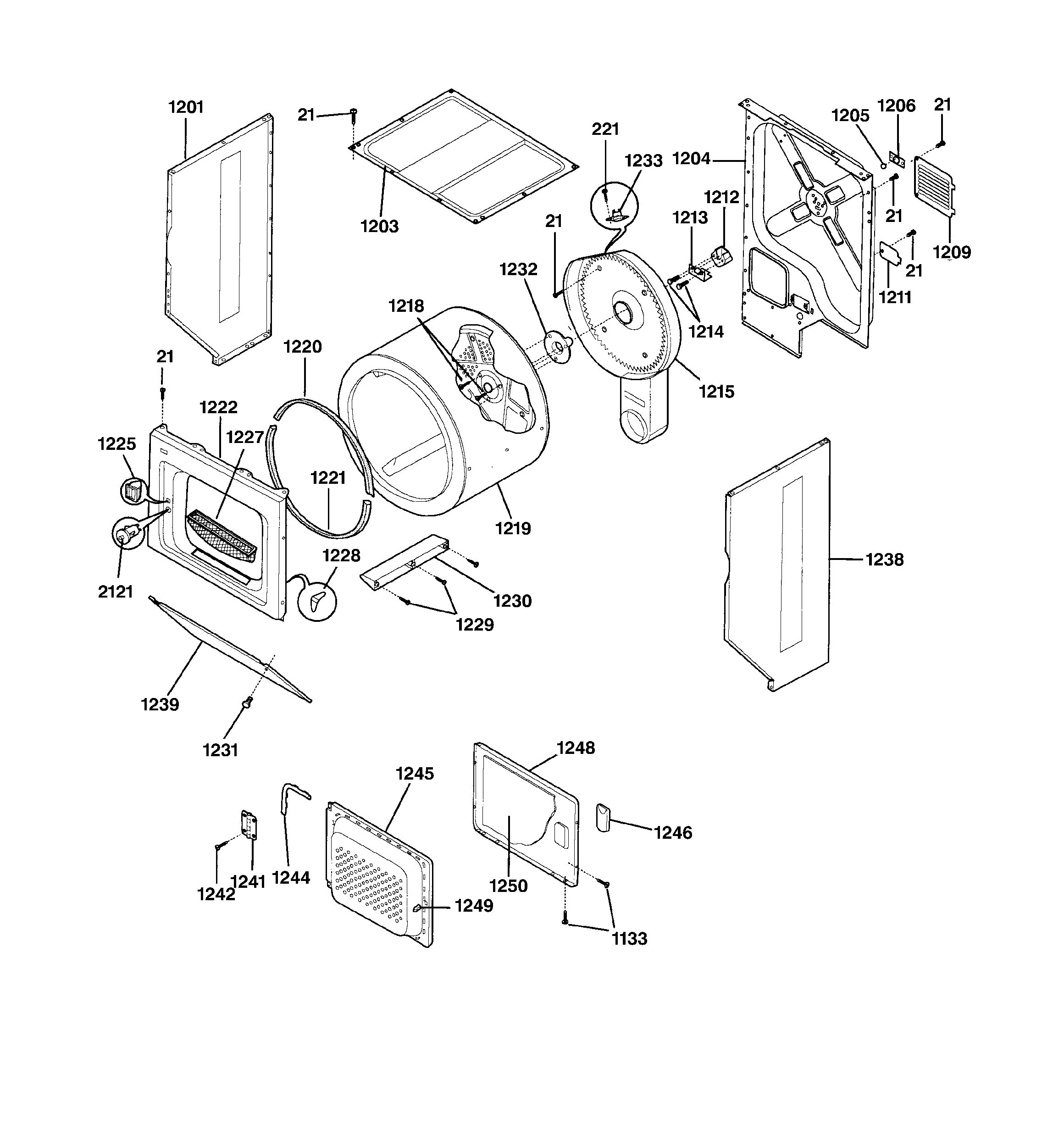

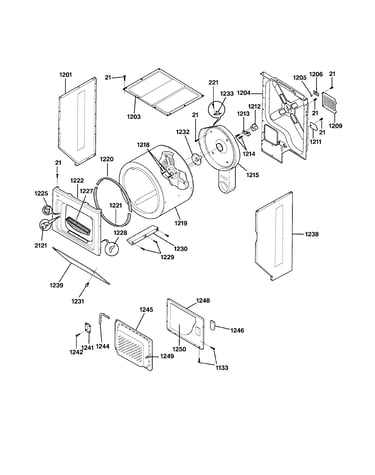

Dryer cabinet, drum & heater diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Dryer Timer WE04X10005
#2601

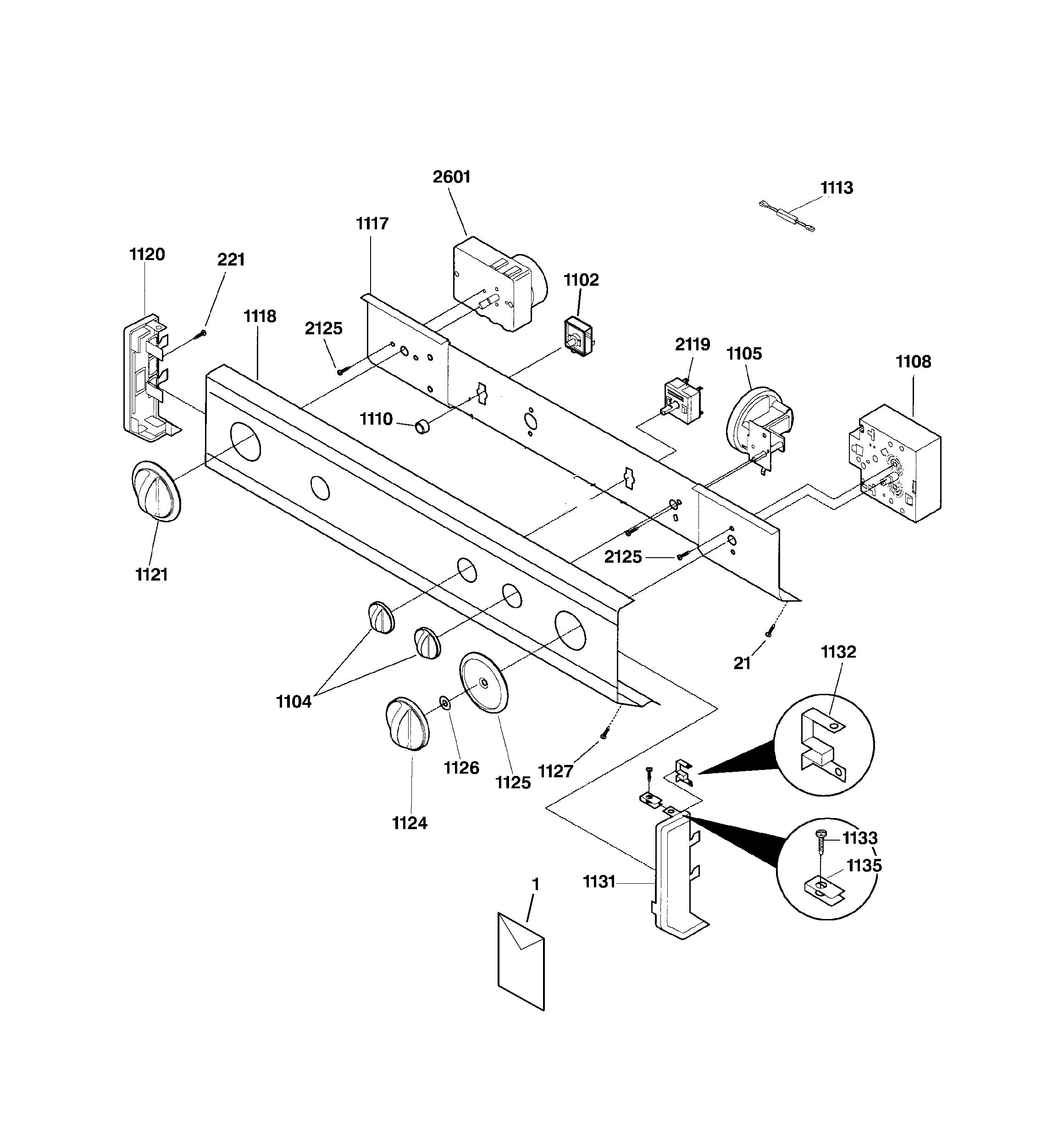

Control panel diagram

Dryer timer

Part #WE04X10005

$139.26 |
8% OFF Phone Price : $151.26
In Stock
End Cap WH42X10225
#1131

Control panel diagram

End cap

Part #WH42X10225

$93.99 |
6% OFF Phone Price : $99.99
In Stock
Washer Tub Seal Assembly WH08X10004
#1626

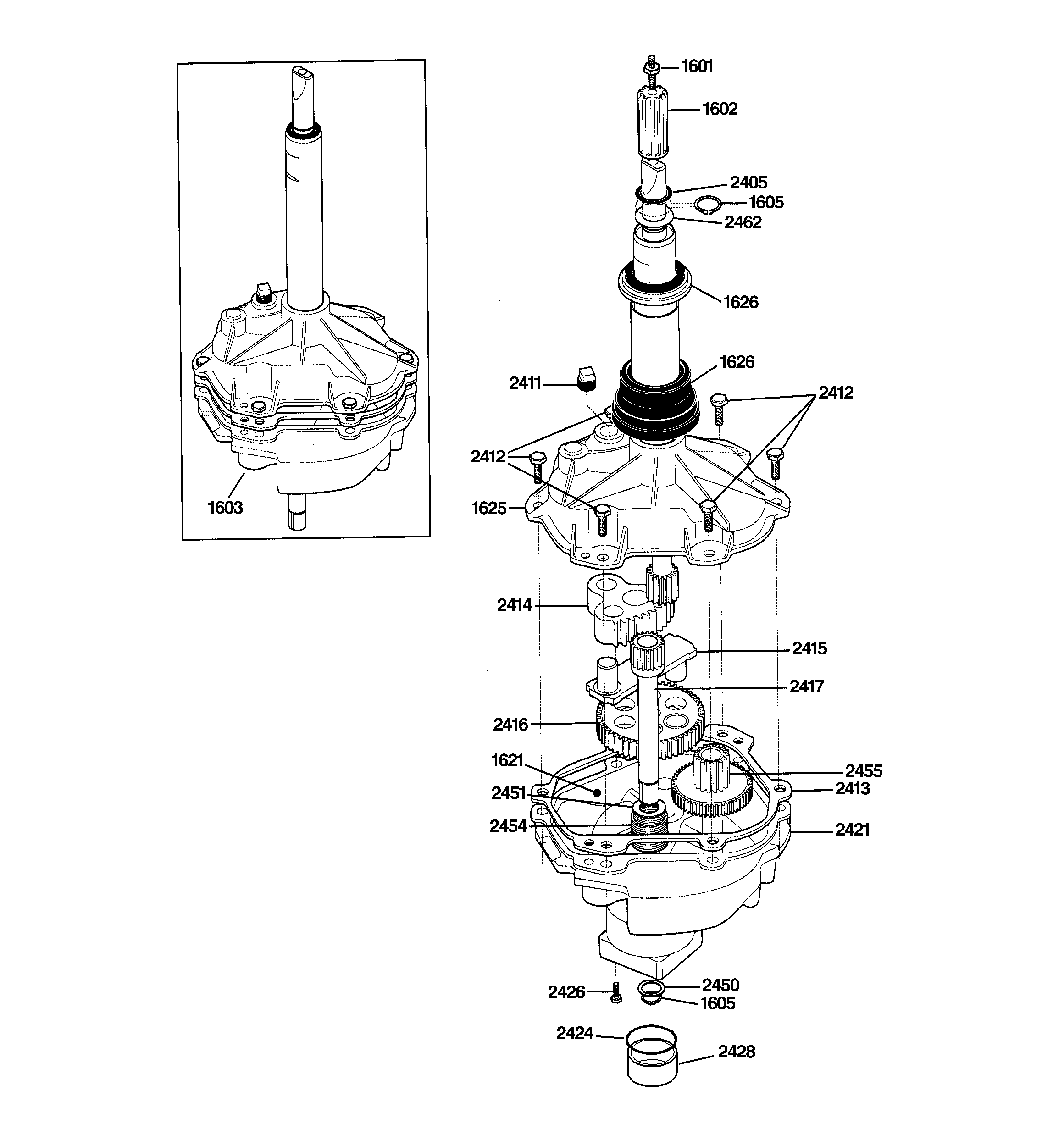

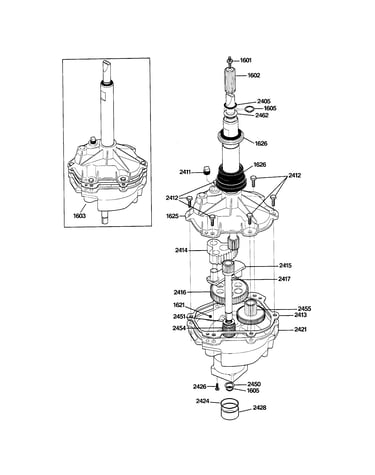

Transmission diagram

Washer tub seal assembly

Part #WH08X10004

$113.43 |
10% OFF Phone Price : $125.43
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Dryer cabinet, drum & heater diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
