Model # AZ41E09EACW4 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ41E09EACW4 zoneline air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AZ41E09EACW4 Zoneline Air Conditioner
Room Air Conditioner Control Panel Door WP71X10033
#1020

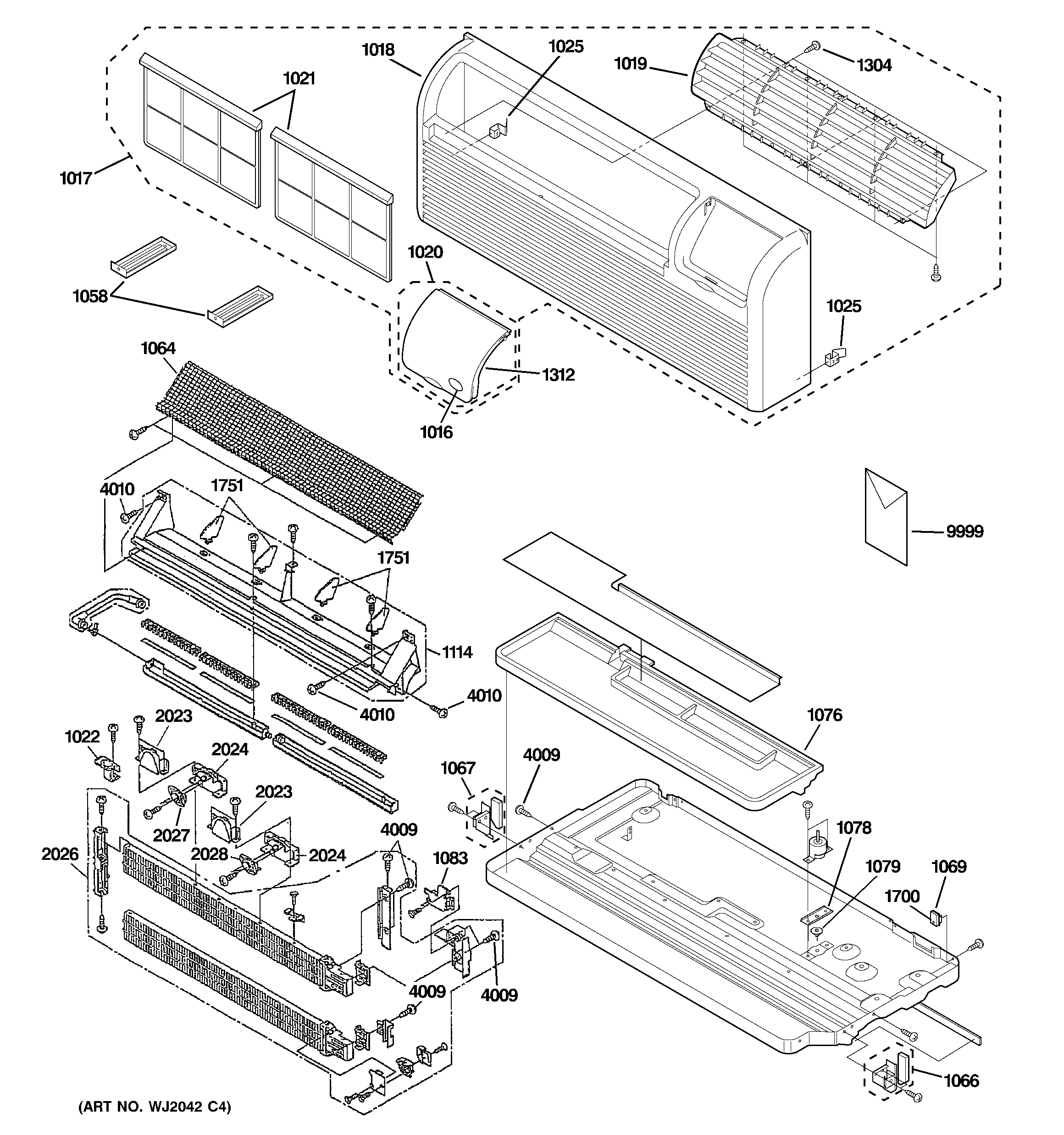

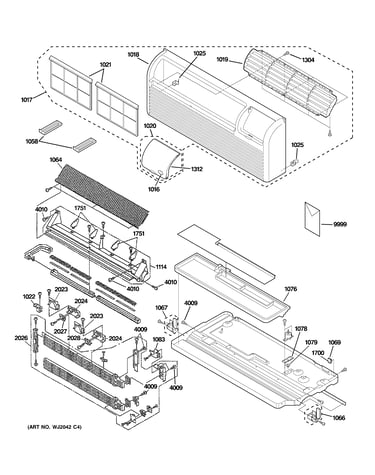

Grille, heater & base pan parts diagram

Room air conditioner control panel door

Part #WP71X10033

$22.20 |
21% OFF Phone Price : $28.20
In Stock
Control Cover WP71X10028
#1312

Grille, heater & base pan parts diagram

Control cover

Part #WP71X10028

Replaced by #WP71X10033

?
Manufacturer substitution
This part replaces WP71X10028. Substitute parts can look different from the original.
$22.20 |
21% OFF Phone Price : $28.20
In Stock
Washer WP01X10005
#1056

Motor & chassis parts diagram

Washer

Part #WP01X10005

$9.51
In Stock
Protector Hood WP03X10030
#2024

Grille, heater & base pan parts diagram

Protector hood

Part #WP03X10030

$67.62
In Stock
Capillary Tube WP56X10070
#3008

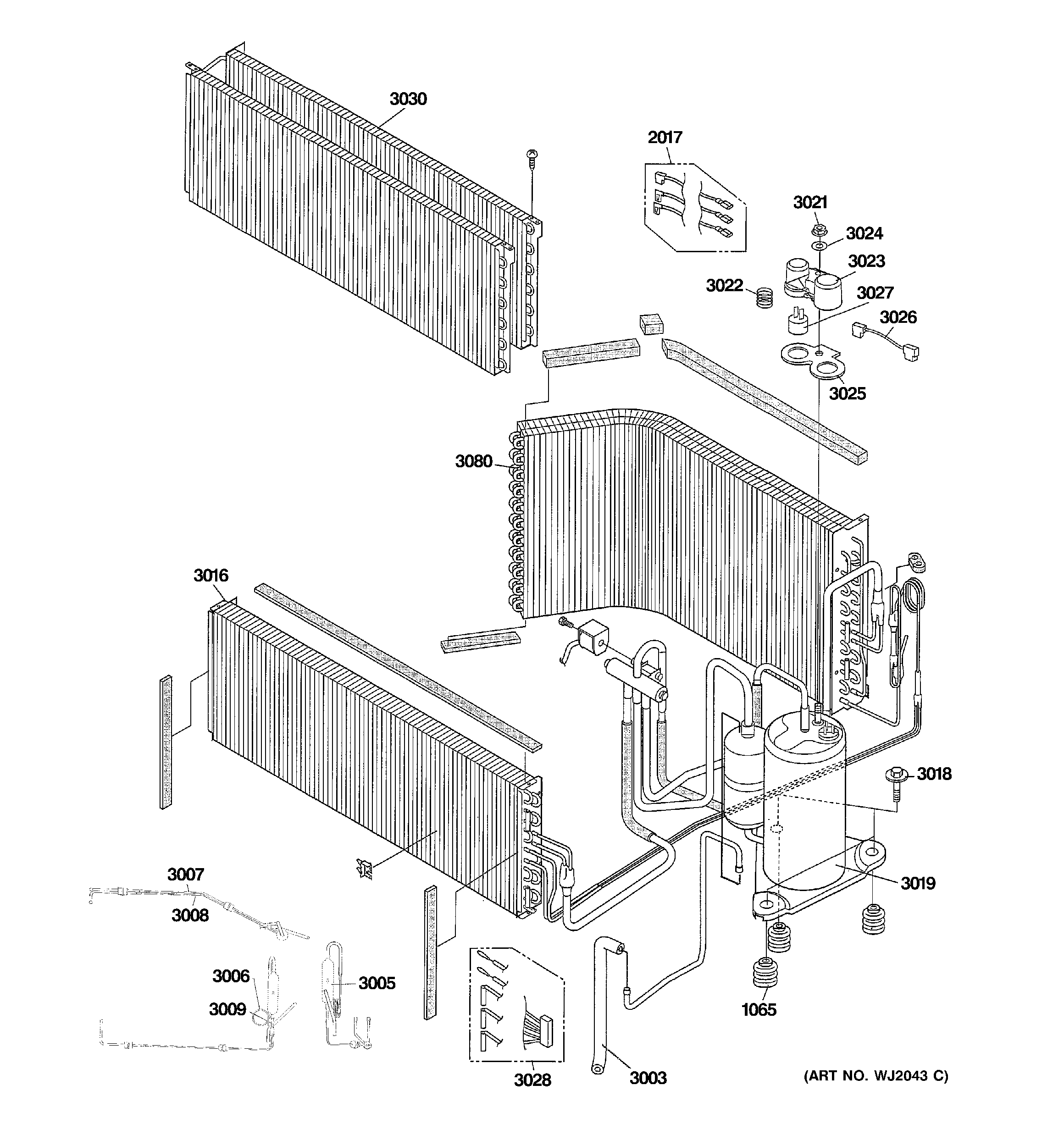

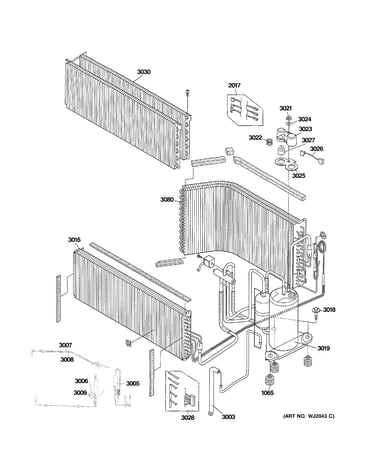

Unit parts diagram

Capillary tube

Part #WP56X10070

$12.06
In Stock
Special Screw WJ01X10392
#4010

Grille, heater & base pan parts diagram

Special screw

Part #WJ01X10392

$9.06
In Stock
Room Air Conditioner Run Capacitor WP20X10033
#2200

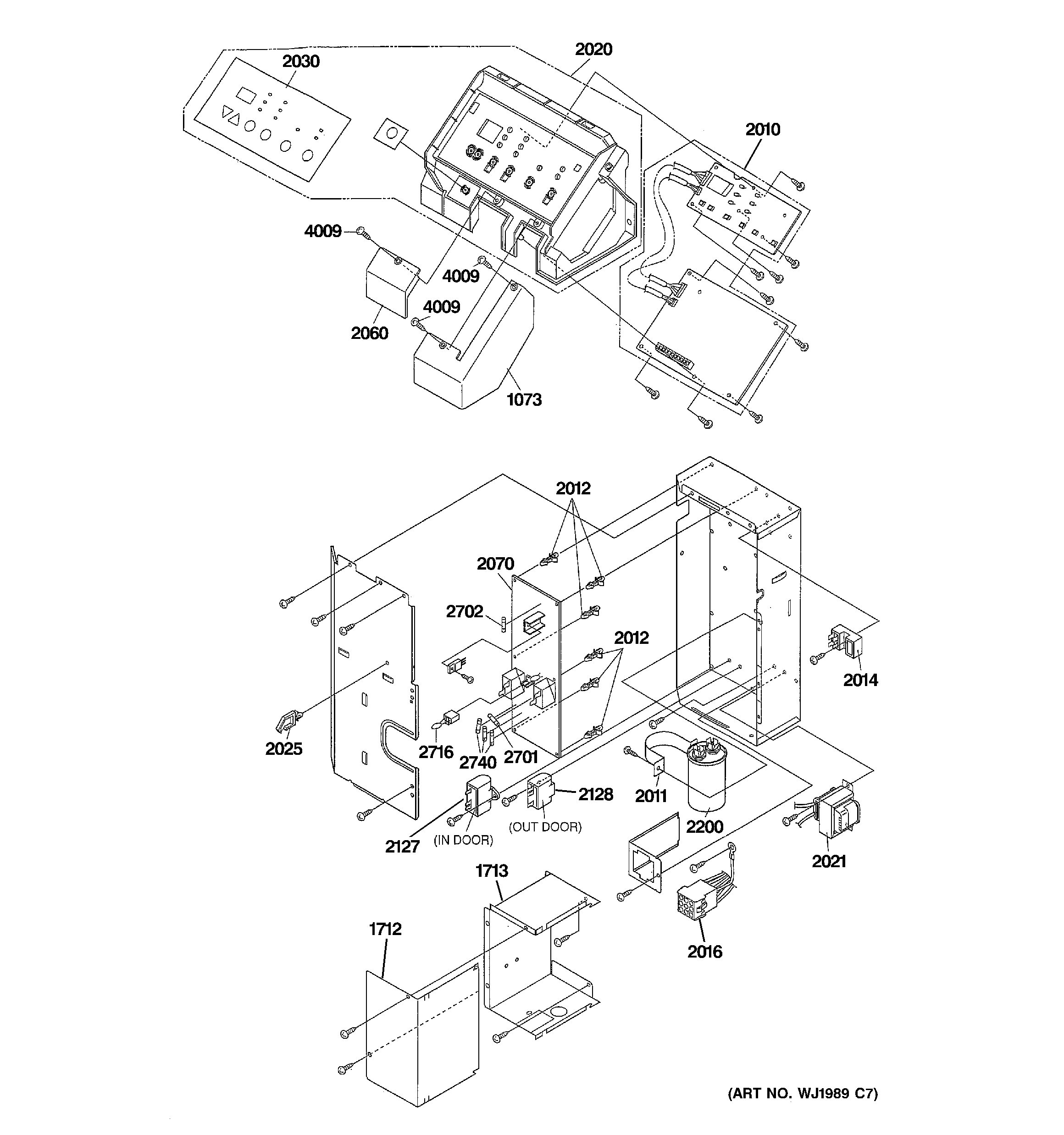

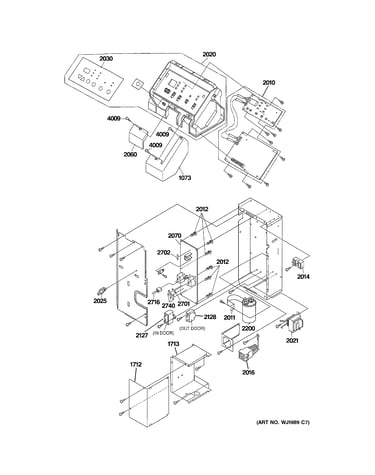

Control parts diagram

Room air conditioner run capacitor

Part #WP20X10033

$46.10 |
12% OFF Phone Price : $52.10
In Stock
Form Tube WP56X10067
#3003

Unit parts diagram

Form tube

Part #WP56X10067

$8.37
In Stock
Tap Tight Sc WP01X10026
#1304

Grille, heater & base pan parts diagram

Tap tight sc

Part #WP01X10026

$8.37
In Stock
Thermistor WP27X10072
#3028

Unit parts diagram

Thermistor

Part #WP27X10072

$37.78
In Stock
