Craftsman
Electric Walk-Behind Mower

Model # 15198834 Official Craftsman cordless mower

Here are the diagrams and repair parts for Official Craftsman 15198834 cordless mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Lawn Mower Grass Bag 211032117
#32

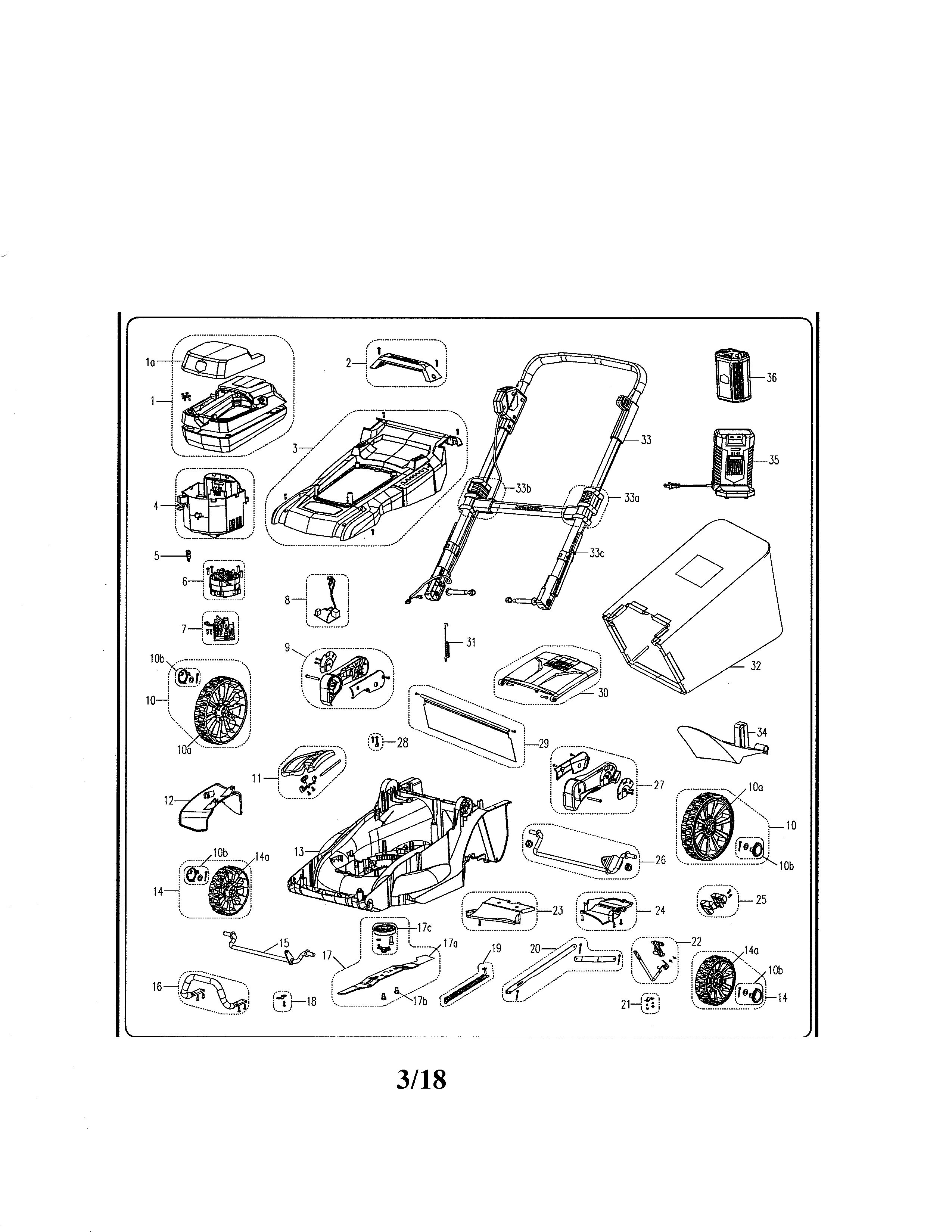

Electric mower diagram

Lawn mower grass bag

Part #211032117

$43.02
In Stock
Lawn Mower Rear Skirt 111198126
#29

Electric mower diagram

Lawn mower rear skirt

Part #111198126

This item is not returnable
$6.77
In Stock
Lawn Mower Discharge Chute Door 111198110
#11

Electric mower diagram

Lawn mower discharge chute door

Part #111198110

This item is not returnable
$5.34
In Stock
Handle Assembly (includes Keys 33a, 33b, 33c) 211032118
#33

Electric mower diagram

Handle assembly (includes keys 33a, 33b, 33c)

Part #211032118

$82.69
In Stock
Rear Wheel Assembly (235mm) (includes Keys 10a & 10b) 111198109
#10

Electric mower diagram

Rear wheel assembly (235mm) (includes keys 10a & 10b)

Part #111198109

$13.17
In Stock
Front Wheel Assembly (170mm) (includes Keys 10b & 14a) 111198113
#14

Electric mower diagram

Front wheel assembly (170mm) (includes keys 10b & 14a)

Part #111198113

$12.60
In Stock
Lawn Mower Discharge Chute 111198111
#12

Electric mower diagram

Lawn mower discharge chute

Part #111198111

This item is not returnable
$10.76
In Stock
Mulch Plug 111198130
#34

Electric mower diagram

Mulch plug

Part #111198130

This item is not returnable
$7.87
In Stock
Rear Discharge Door 211032116
#30

Electric mower diagram

Rear discharge door

Part #211032116

$13.89
In Stock
Blade Sutd (2) 111198137
#17B

Electric mower diagram

Blade sutd (2)

Part #111198137

This item is not returnable

Get free shipping with Automatic Reorder

$2.16
In Stock
