Canister Vacuum

Model # S3425--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3425--- canister vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
S3425--- Vacuum Cleaners
Thread Guard 41435018
#22

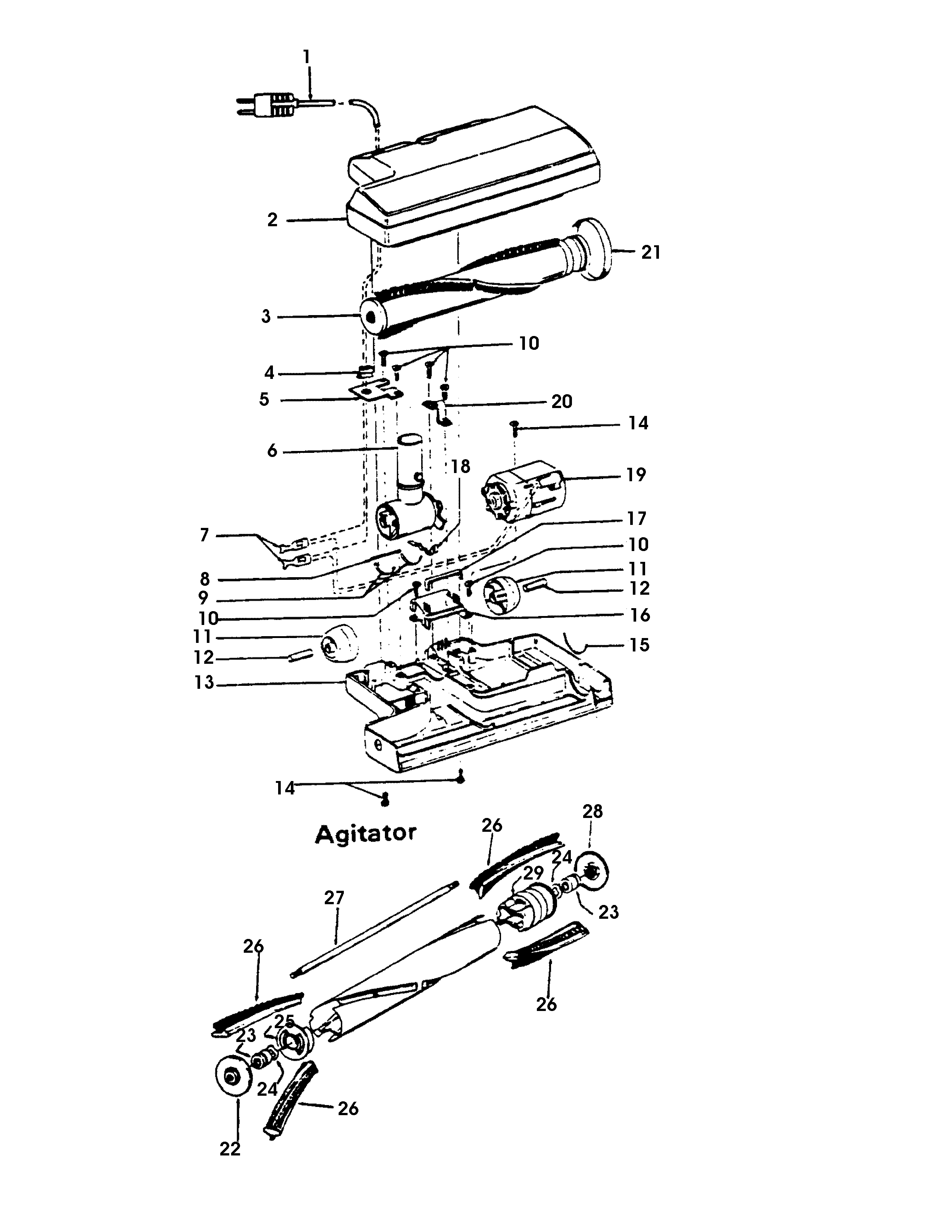

Powerednozzle, agitator diagram

Thread guard

Part #41435018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#24

Powerednozzle, agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#23

Powerednozzle, agitator diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part

Latch 36151015
#18

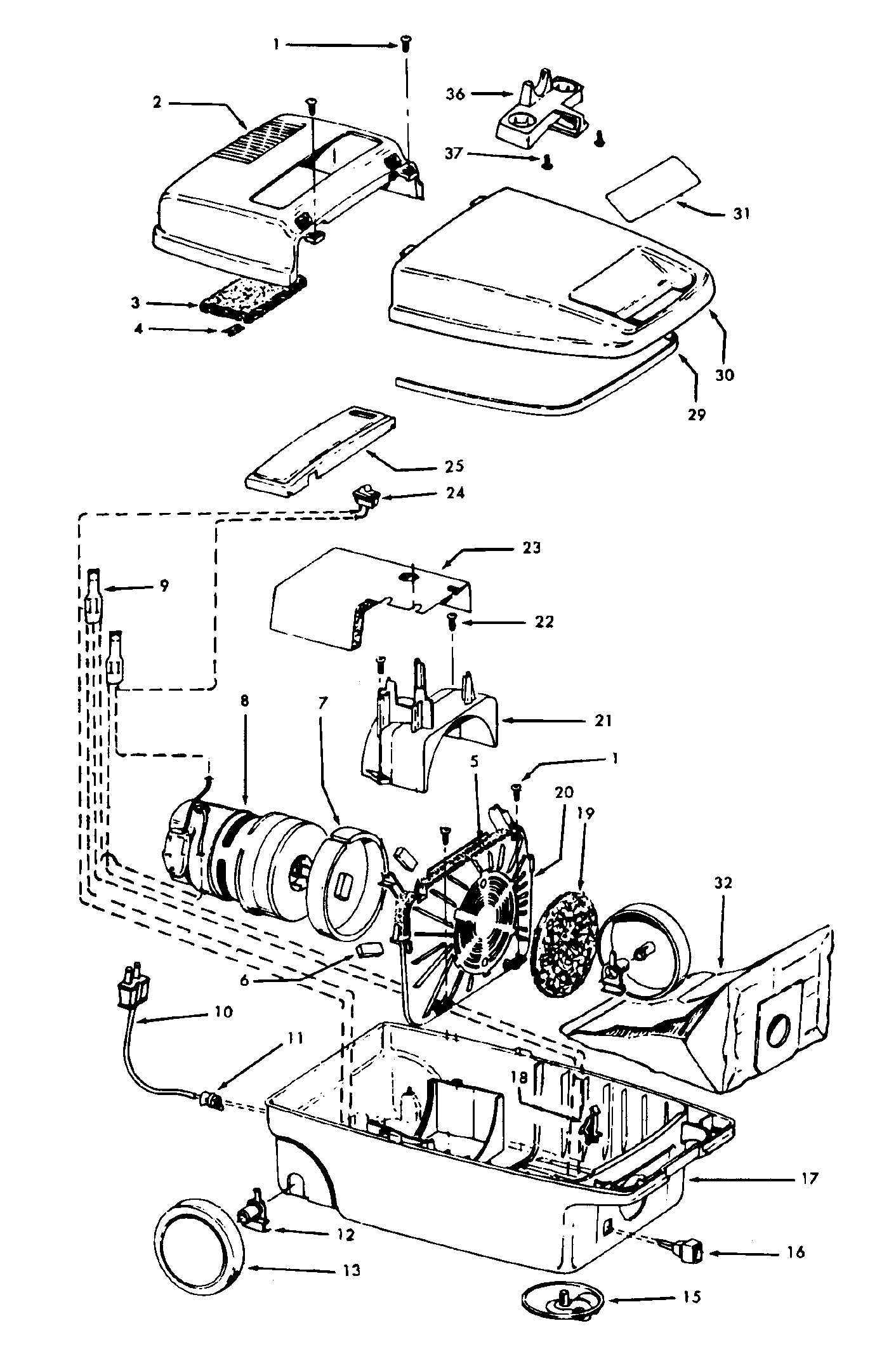

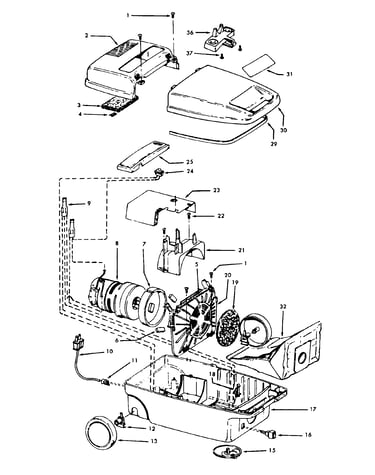

Mainhousing diagram

Latch

Part #36151015

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453052
Extension tube

Part #43453052

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Brush 48447001
#18

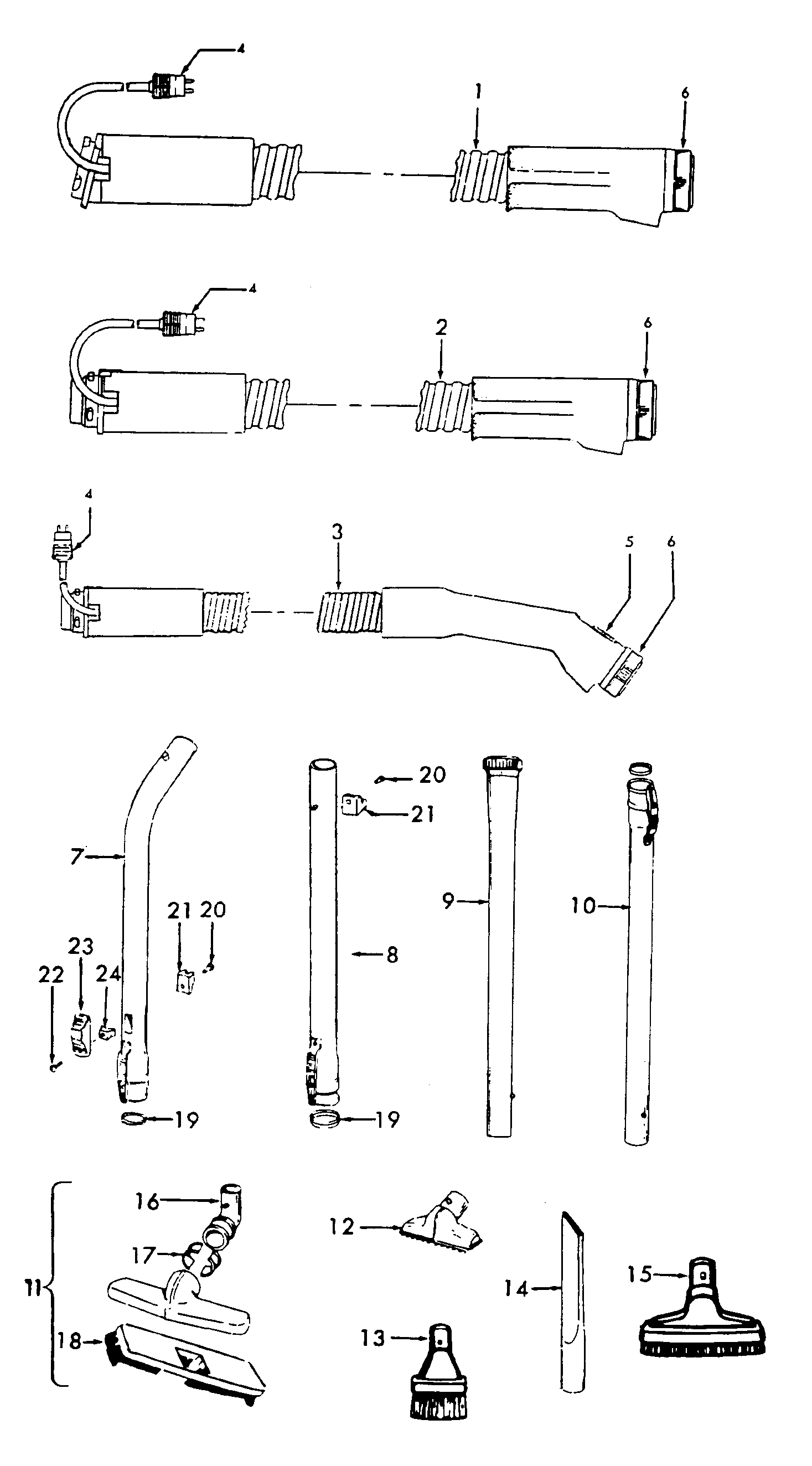

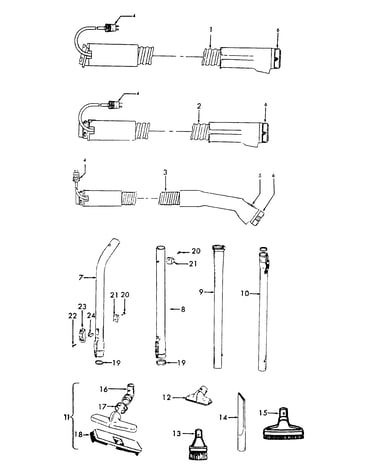

Hose, cleaningtools diagram

Kenmore vacuum brush

Part #48447001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Beater Bar Belt 38528011
#21

Powerednozzle, agitator diagram

Kenmore vacuum beater bar belt

Part #38528011

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Upholstery Nozzle 43414057
#12B

Hose, cleaningtools diagram

Kenmore vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Armature 44765171
#19A

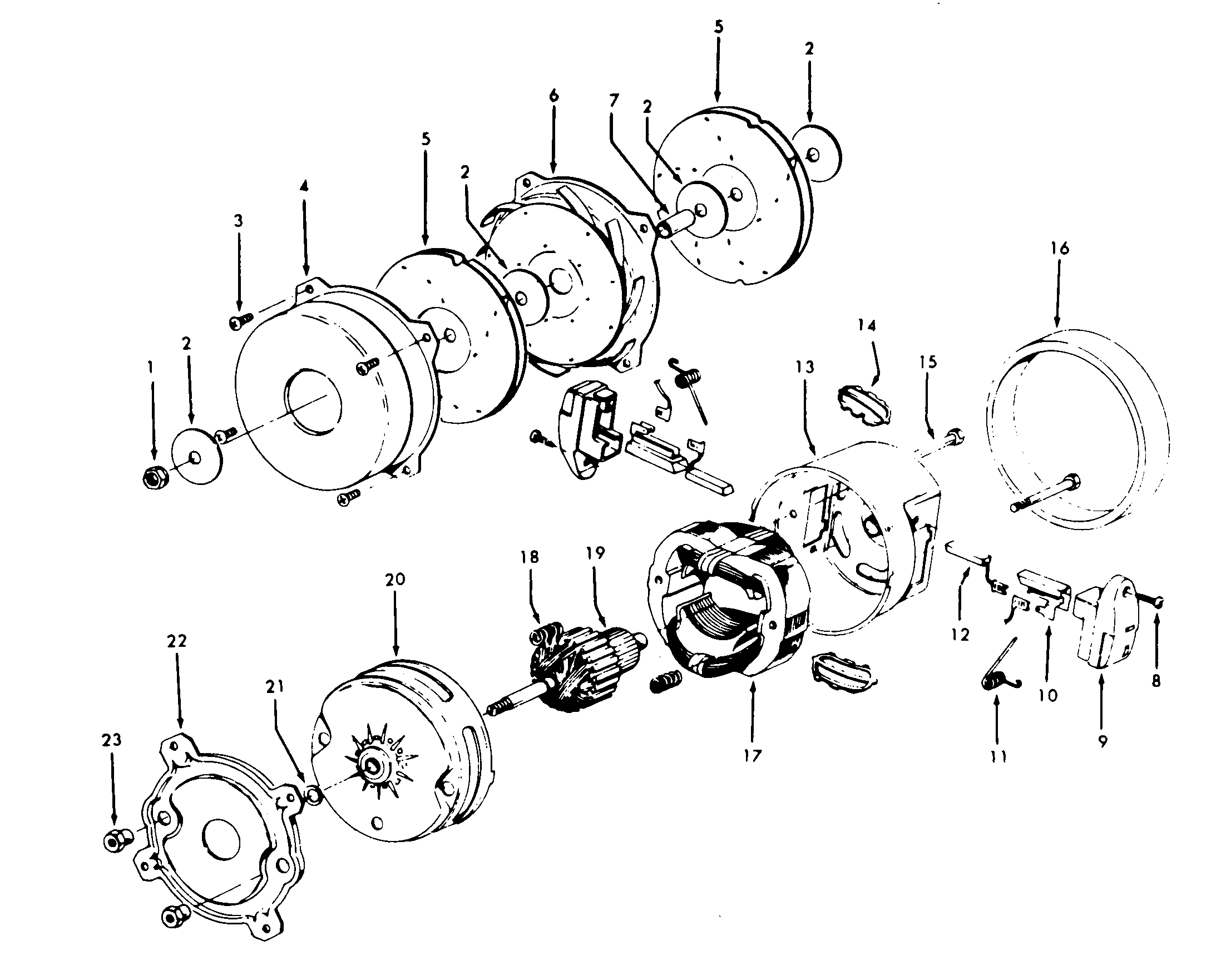

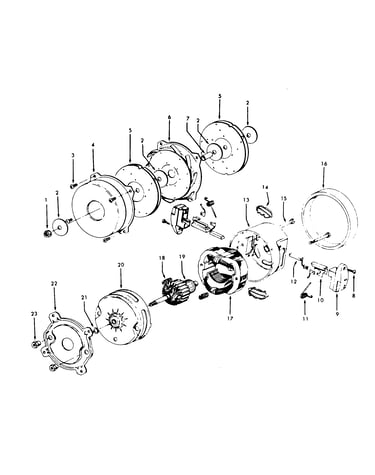

Motor assembly diagram

Armature

Part #44765171

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#6

Hose, cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part
