Frigidaire
Electric Range

Model # CFEF358EB4 Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF358EB4 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

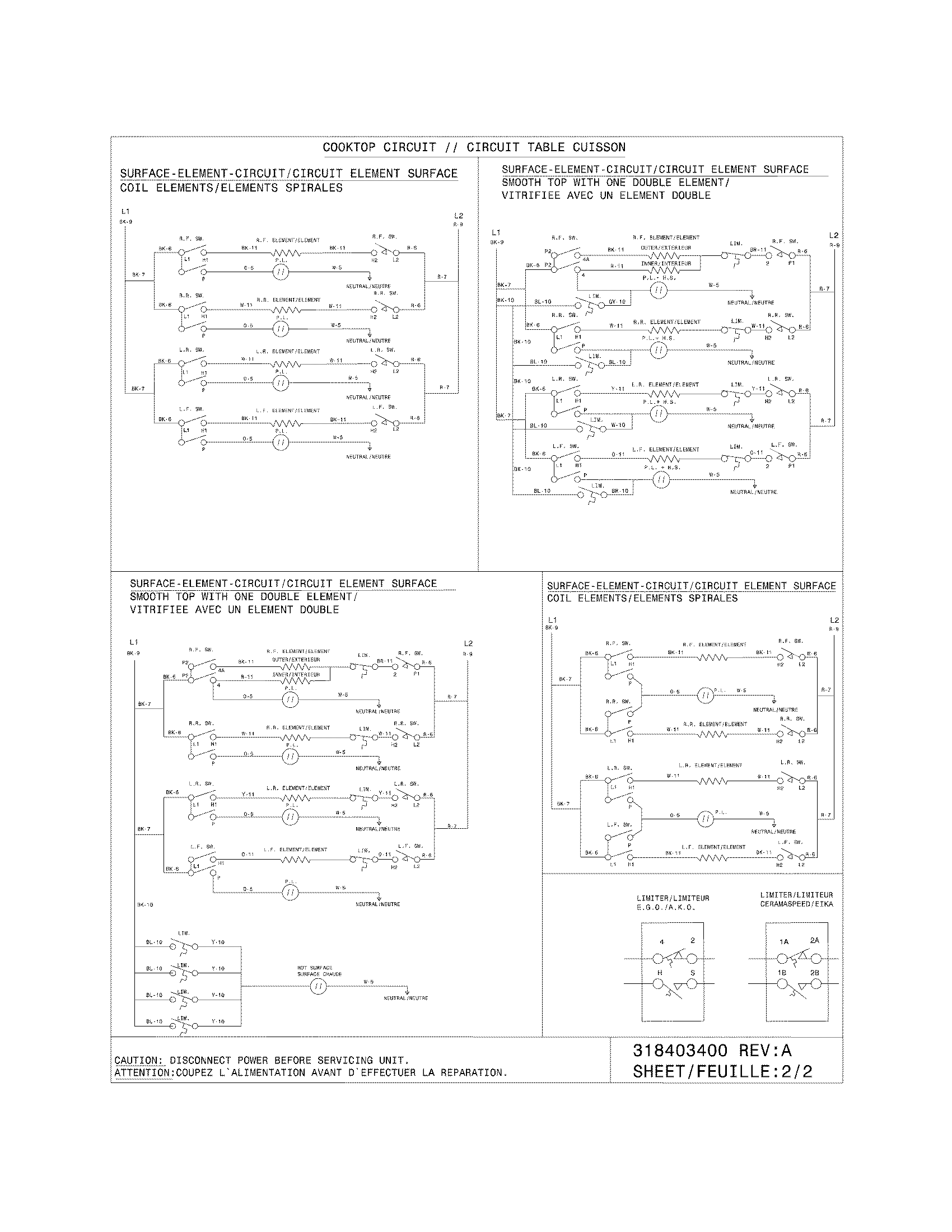

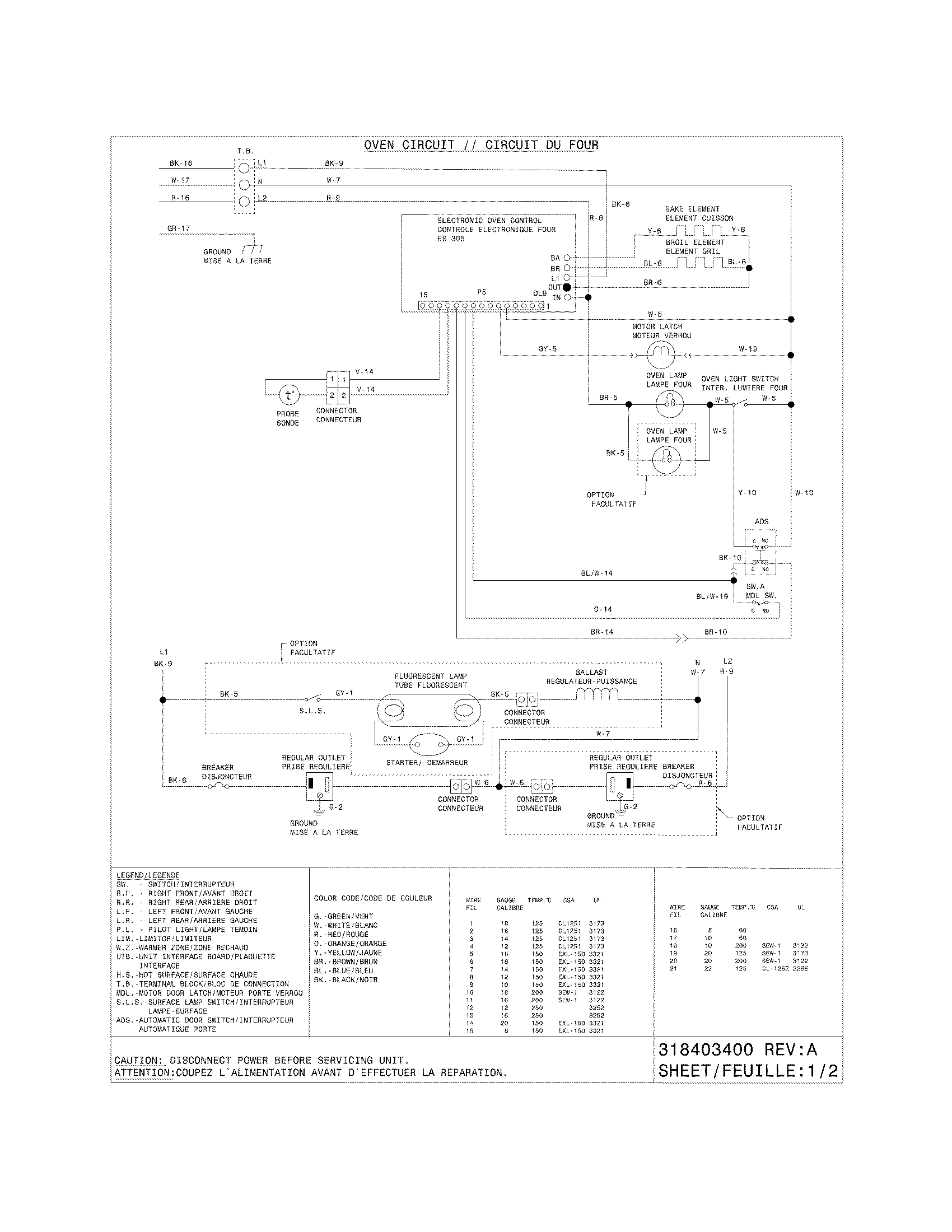

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Range Oven Light Bulb 5303013071
#15

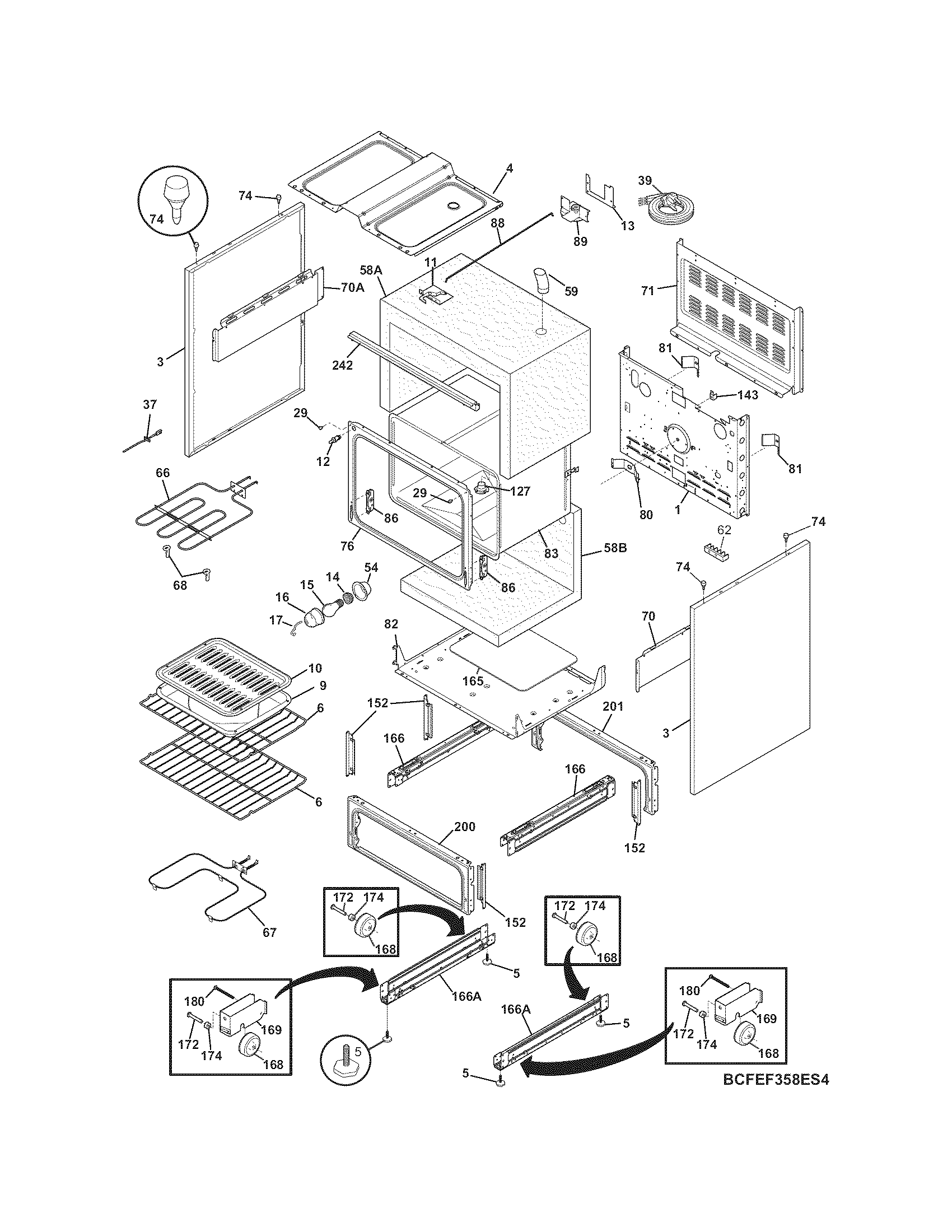

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Coil Surface Element, 6-in 316439801
#15A

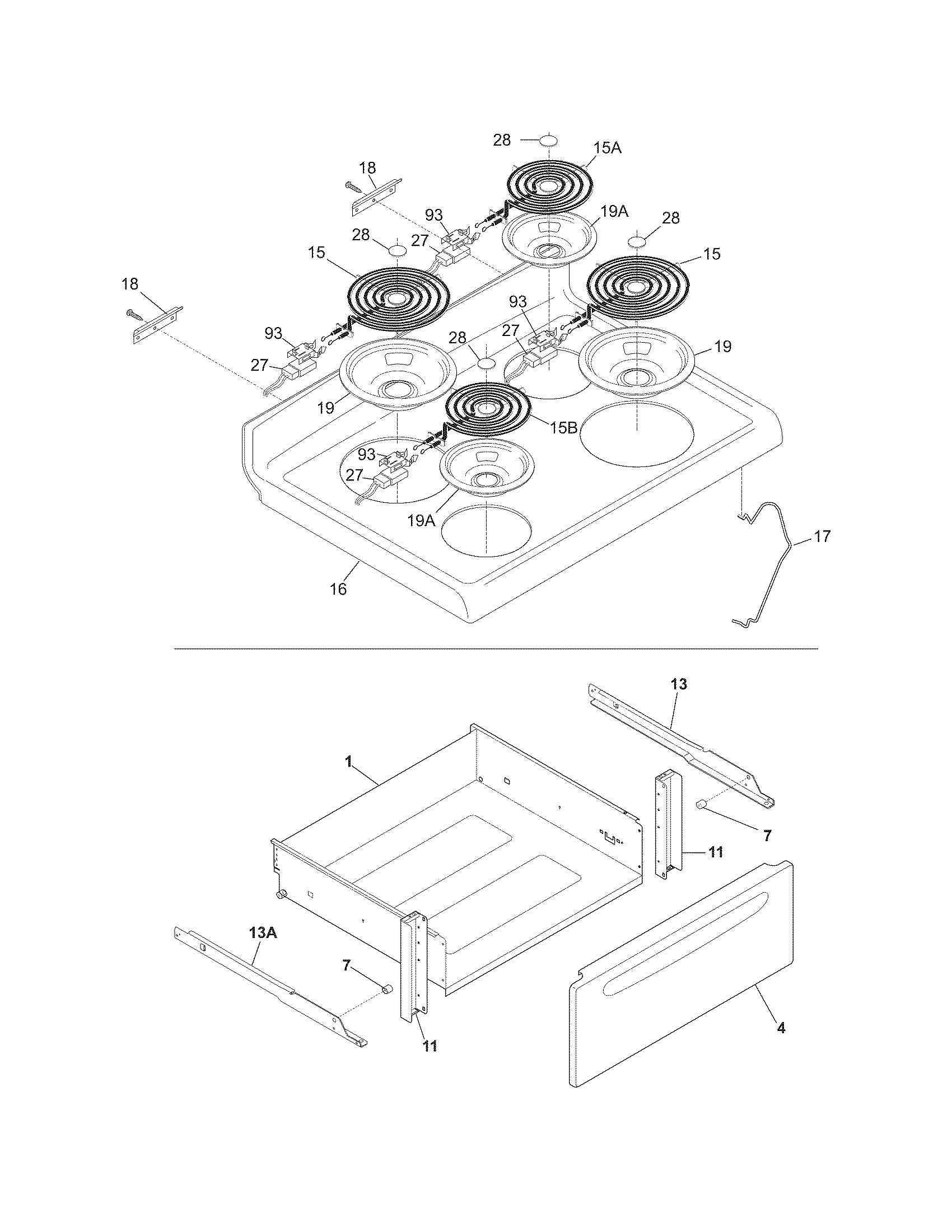

Top/drawer diagram

Range coil surface element, 6-in

Part #316439801

Replaced by #318372211

?
Manufacturer substitution
This part replaces 316439801. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Range Oven Door Inner Glass 316117500
#8

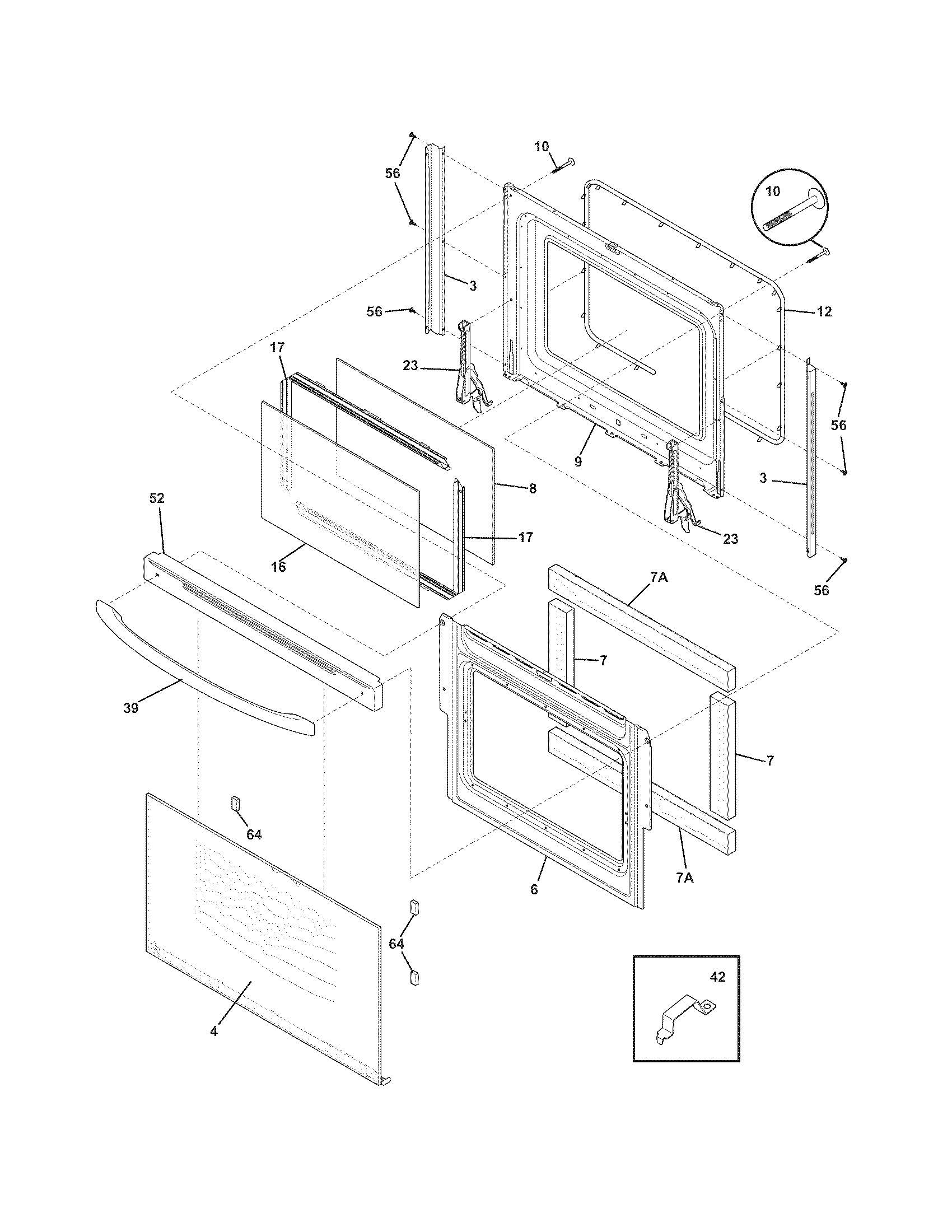

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Bake Element 318255002
#67

Body diagram

Range bake element

Part #318255002

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255002. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Overlay 318214514
#NI

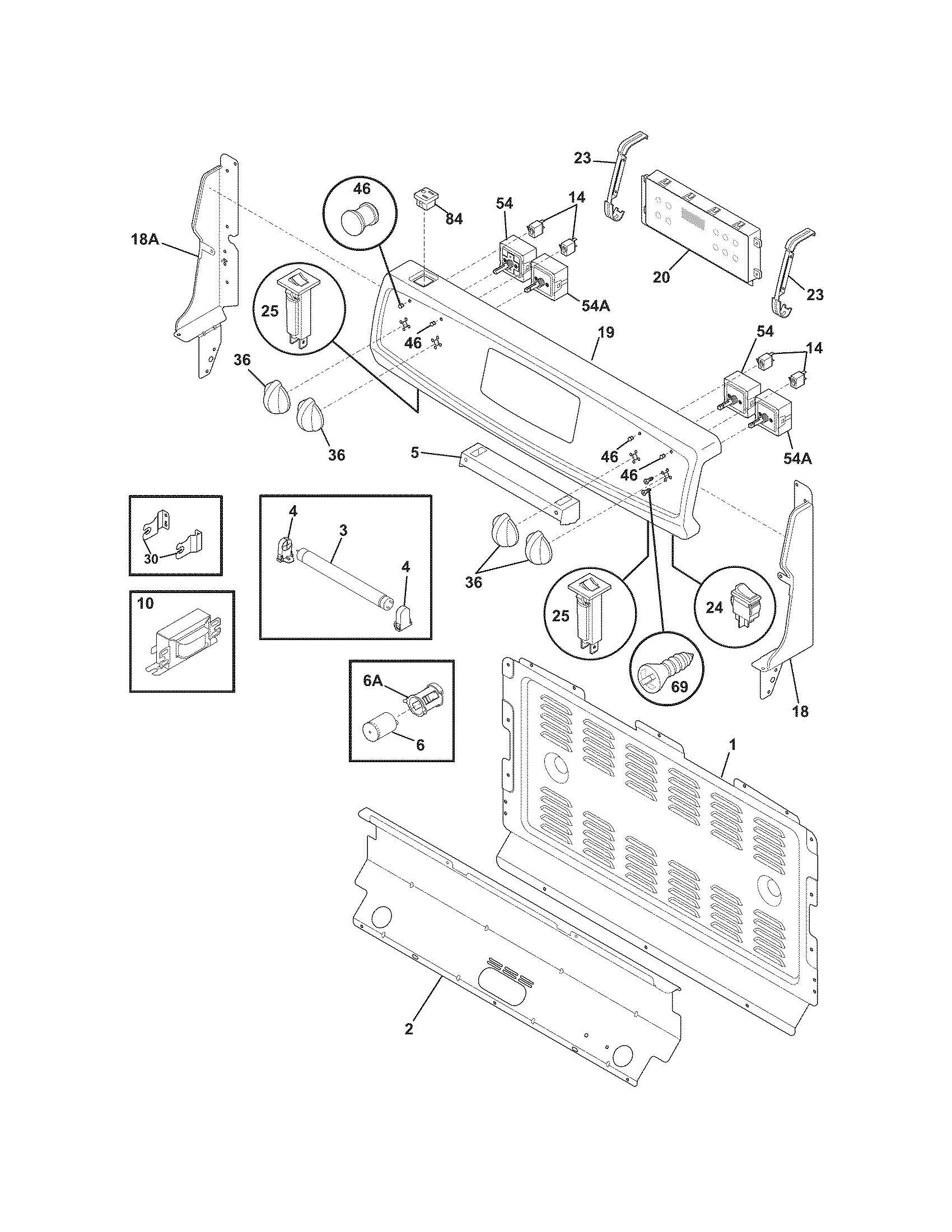

Backguard diagram

Overlay

Part #318214514

Replaced by #316419141

?
Manufacturer substitution
This part replaces 318214514. Substitute parts can look different from the original.
BEST SELLER
$37.99 |
14% OFF Phone Price : $43.99
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Pan 318067050
#19

Top/drawer diagram

Pan

Part #318067050

Replaced by #A316222301

?
Manufacturer substitution
This part replaces 318067050. Substitute parts can look different from the original.
BEST SELLER
$12.67 |
14% OFF Phone Price : $14.67
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Overlay 318214512
#NI

Backguard diagram

Overlay

Part #318214512

Replaced by #316419137

?
Manufacturer substitution
This part replaces 318214512. Substitute parts can look different from the original.
BEST SELLER
$30.22 |
17% OFF Phone Price : $36.22
In Stock
