Power Sander

Model # 315115033 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315115033 sander, as well as links to manuals and error code tables, if available.

By Schematic

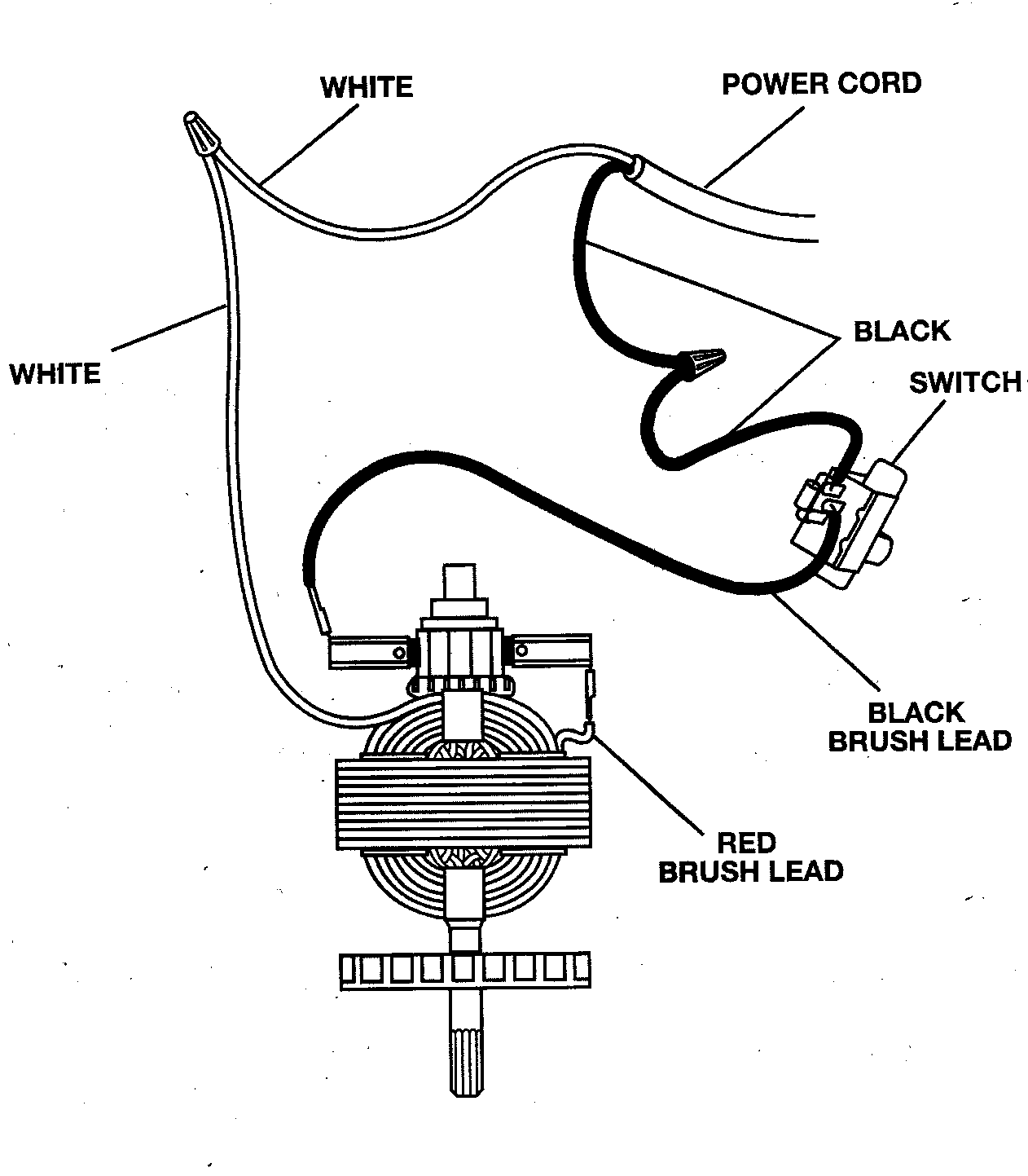

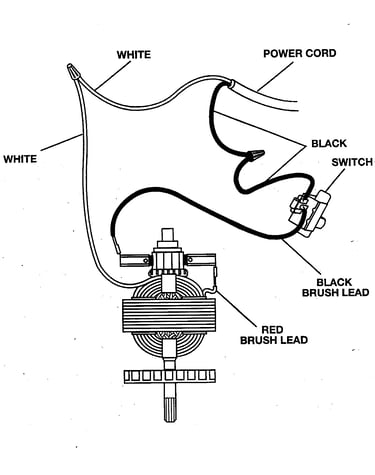

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315115033 Power Tools
Handle 300583002
#7

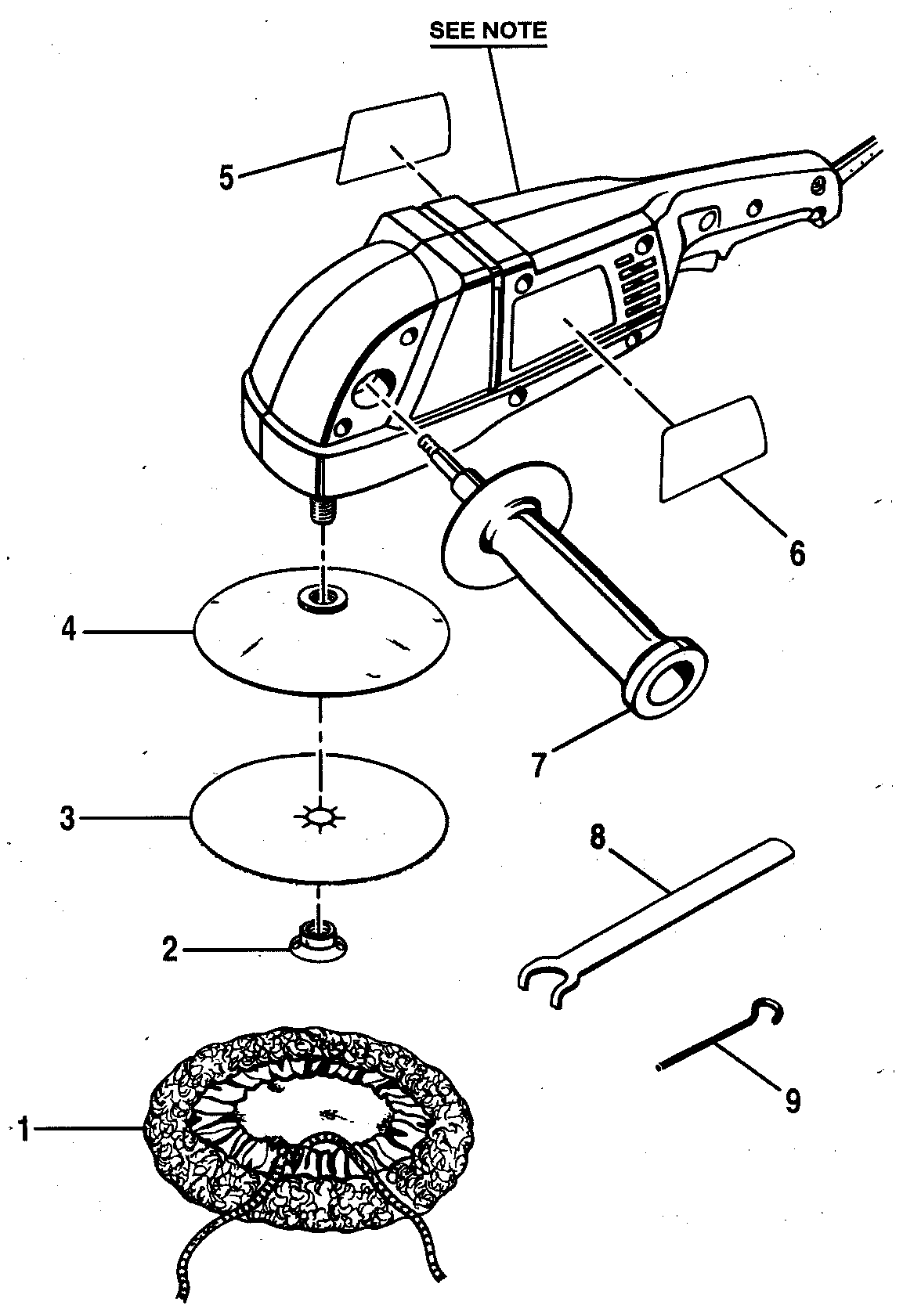

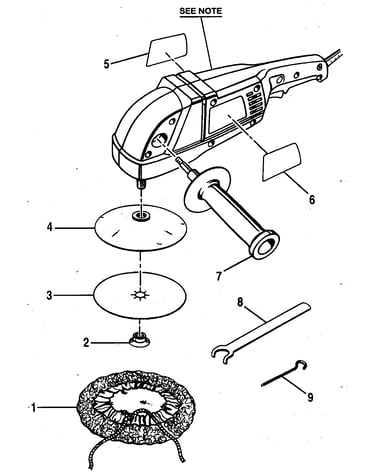

Outside parts diagram

Handle

Part #300583002

The manufacturer no longer makes this part, and there's no substitute part

Stator Pad 560658003
#30

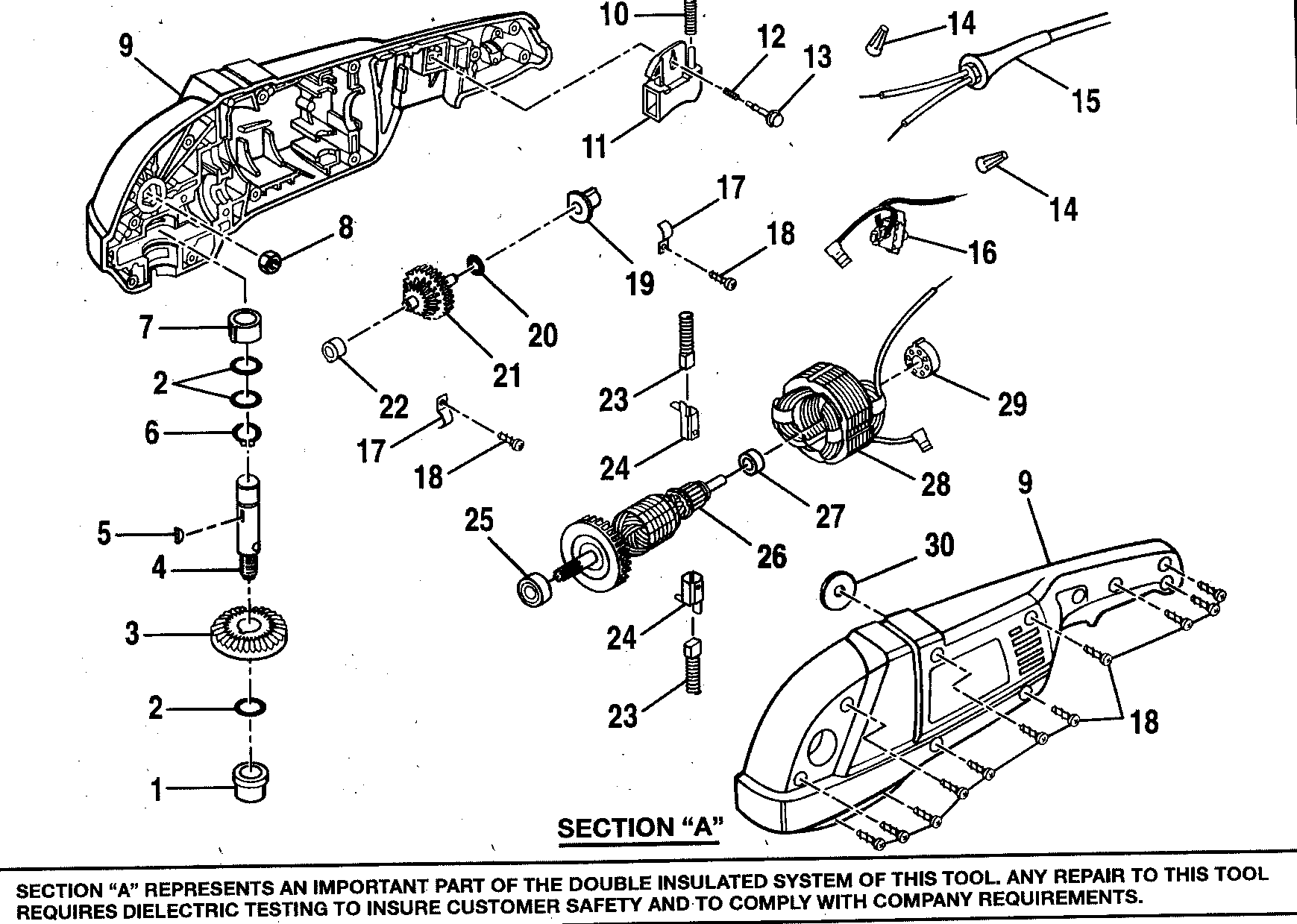

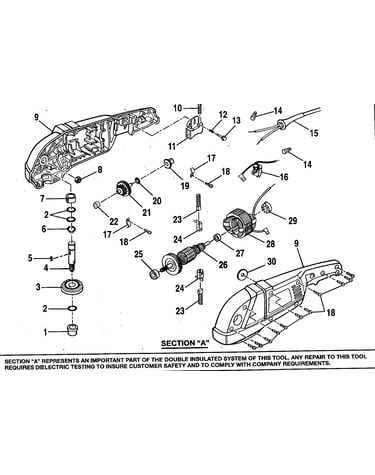

Inside parts diagram

Stator pad

Part #560658003

The manufacturer no longer makes this part, and there's no substitute part

Bearing 680947001
#22

Inside parts diagram

Bearing

Part #680947001

The manufacturer no longer makes this part, and there's no substitute part

Sander Locking Pin 630887001
#9

Outside parts diagram

Sander locking pin

Part #630887001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 630862001
#24

Inside parts diagram

Brush tube

Part #630862001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 680898001
#29

Inside parts diagram

Bearing

Part #680898001

The manufacturer no longer makes this part, and there's no substitute part

Spring 680954001
#12

Inside parts diagram

Spring

Part #680954001

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 680961001
#6

Inside parts diagram

Retaining ring

Part #680961001

The manufacturer no longer makes this part, and there's no substitute part

Logo Label 940298042
#6

Outside parts diagram

Logo label

Part #940298042

The manufacturer no longer makes this part, and there's no substitute part

Screw 660161001
#18

Inside parts diagram

Screw

Part #660161001

The manufacturer no longer makes this part, and there's no substitute part
