Model # WTW5800BC0 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool WTW5800BC0 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

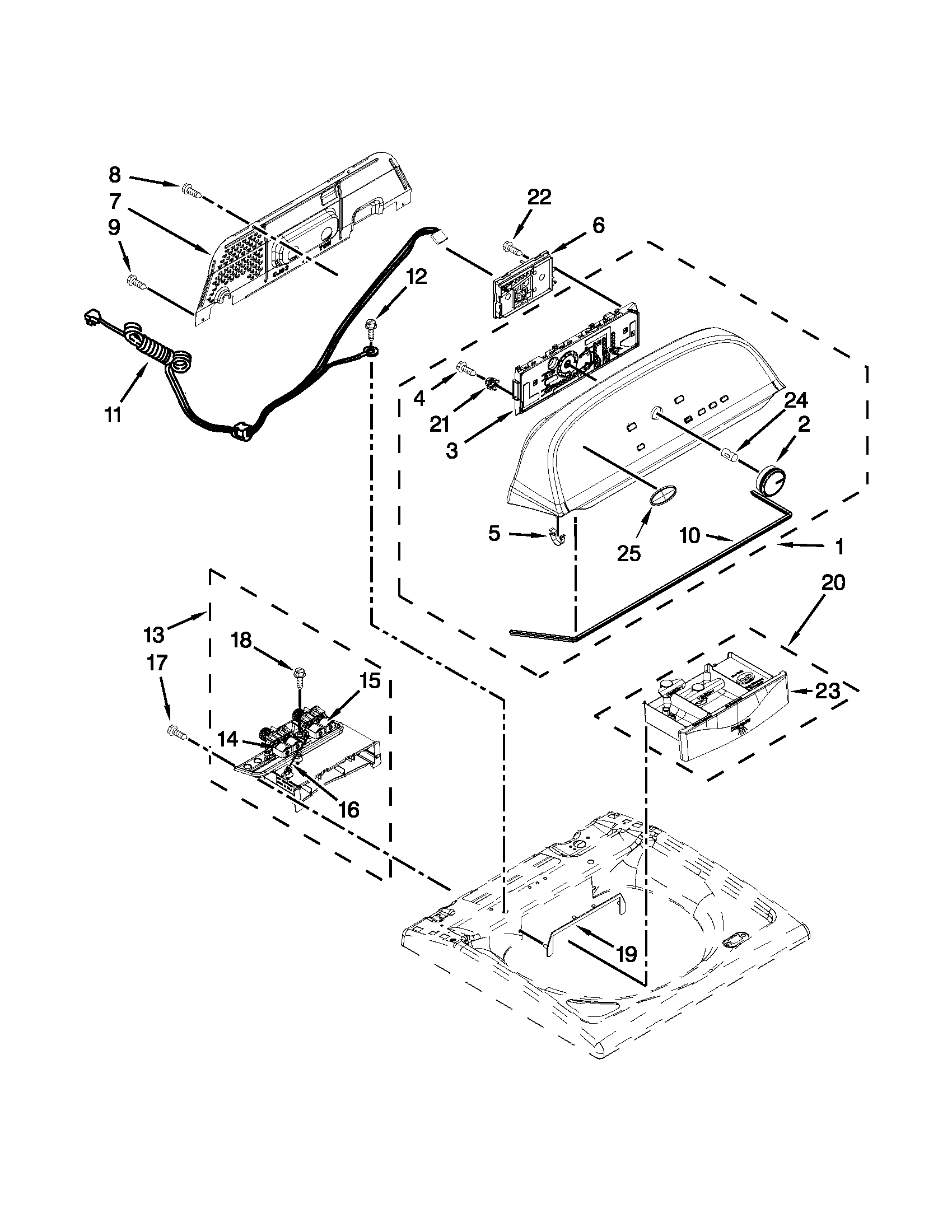

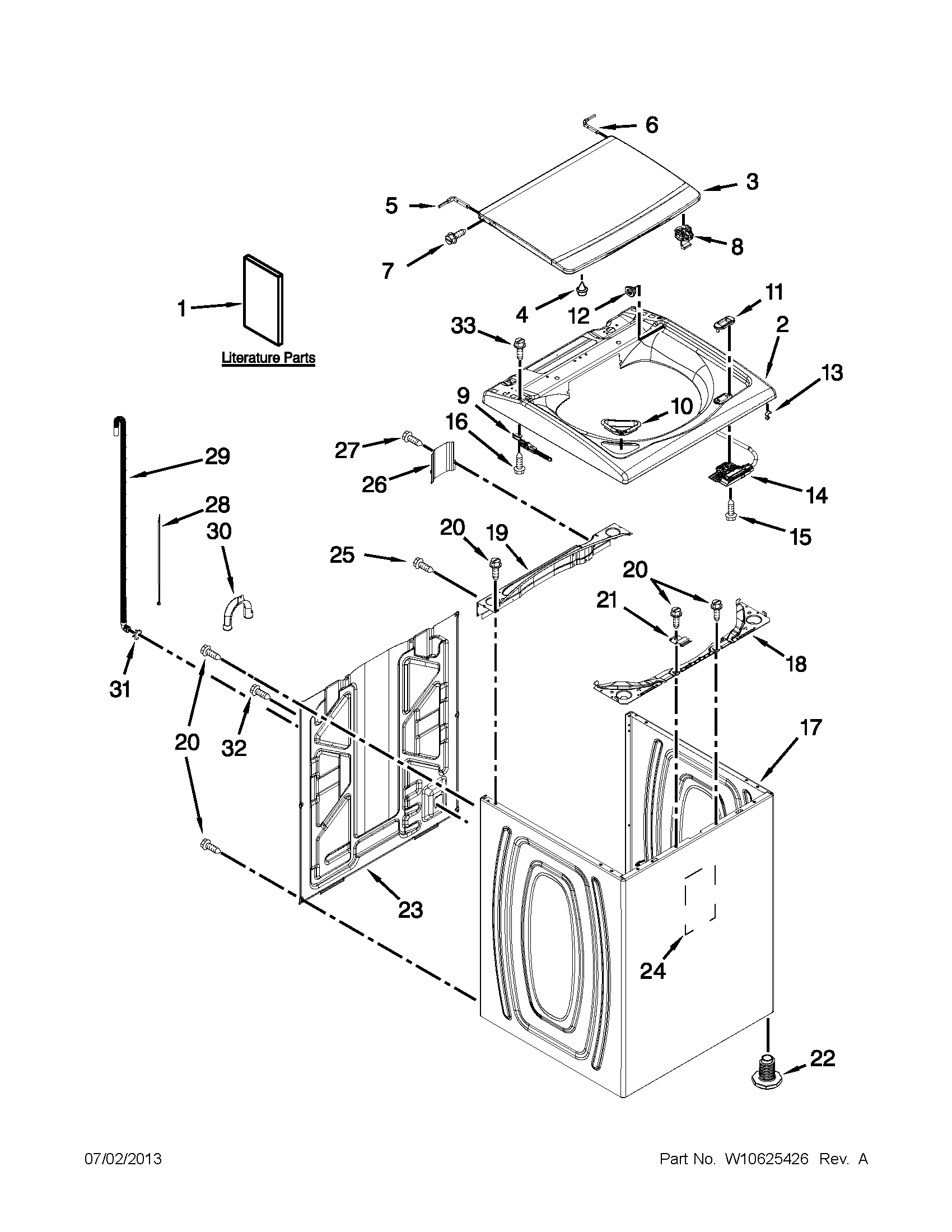

SELECT DIAGRAM
Browse Parts for
WTW5800BC0 Washer
#11

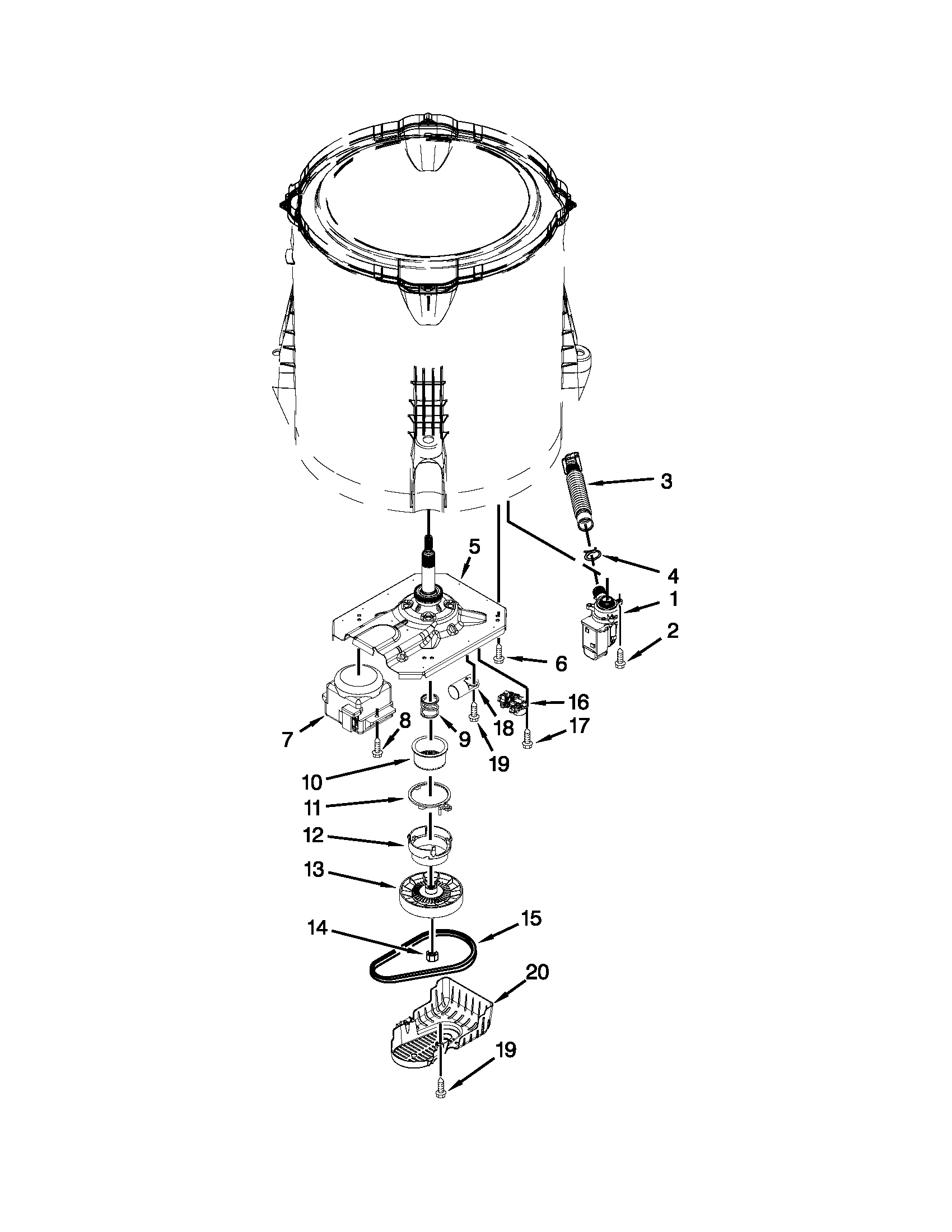

Gearcase, motor and pump parts diagram
Cam
Part #W10006353
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#9
Gearcase, motor and pump parts diagram
Spring
Part #W10006382
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006382. Substitute parts can look different from the original.
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#10
Gearcase, motor and pump parts diagram
Washer drive pulley and splutch assembly
Part #W10006352
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#12
Gearcase, motor and pump parts diagram
Cam
Part #W10006354
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#13
Gearcase, motor and pump parts diagram
Washer drive pulley
Part #W10536113
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10536113. Substitute parts can look different from the original.
$50.46 |
11% OFF Phone Price : $56.46
In Stock
#8

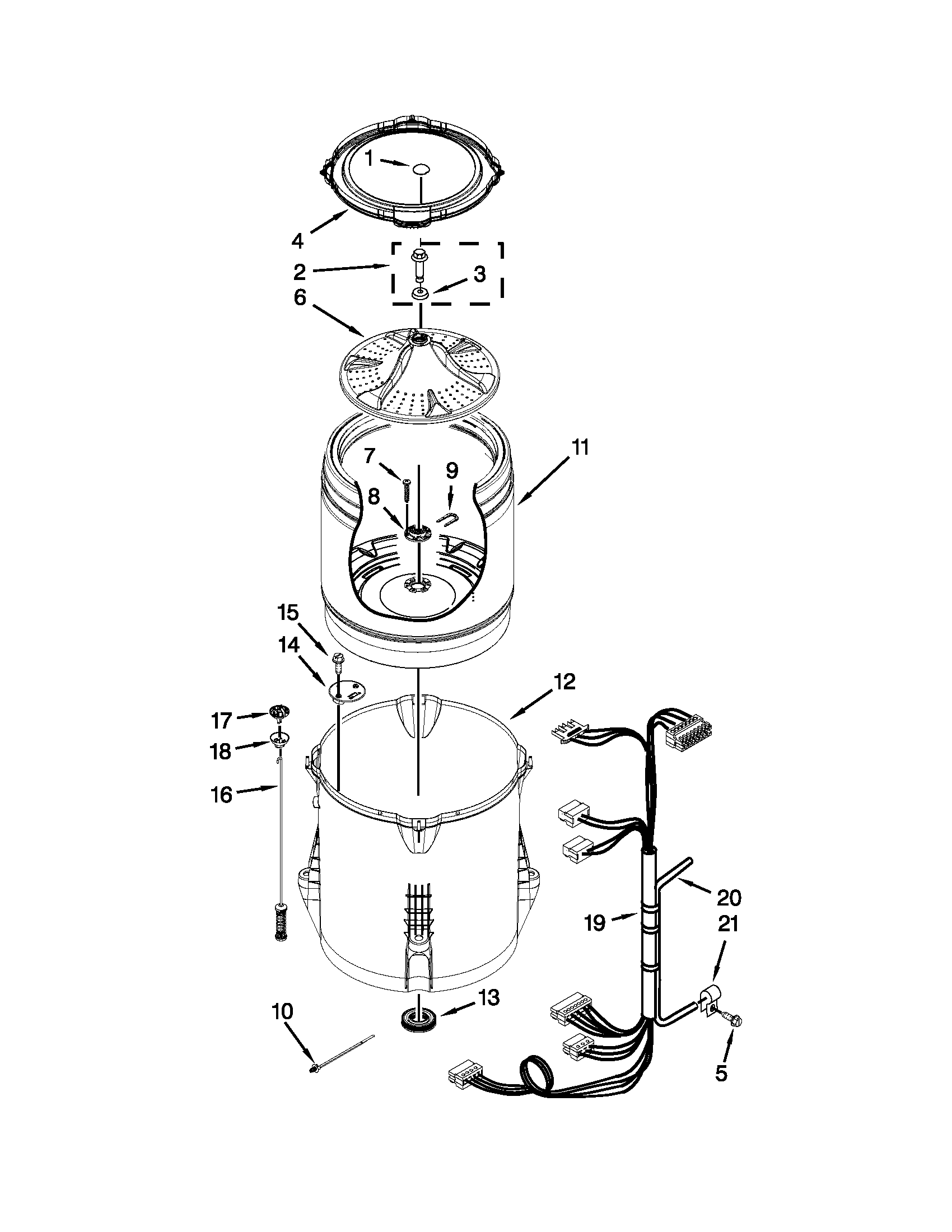

Basket and tub parts diagram
Driveblock -
Part #W10396887
Replaced by #W10528947
?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
$35.22 |
15% OFF Phone Price : $41.22
In Stock
#15
Gearcase, motor and pump parts diagram
Washer drive belt
Part #W10006384
Replaced by #WPW10006384
?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
$25.12 |
19% OFF Phone Price : $31.12
In Stock
#16
Gearcase, motor and pump parts diagram
Washer actuator
Part #W10006355
Replaced by #WPW10006355
?
Manufacturer substitution
This part replaces W10006355. Substitute parts can look different from the original.
$48.00 |
11% OFF Phone Price : $54.00
In Stock
#NI
Optional parts (not included) diagram
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
$11.89 |
14% OFF Phone Price : $13.89
In Stock
#18
Gearcase, motor and pump parts diagram
Washer start/run capacitor
Part #W10390446
Replaced by #W11395618
?
Manufacturer substitution
This part replaces W10390446. Substitute parts can look different from the original.
$56.29 |
10% OFF Phone Price : $62.29
In Stock
