Kenmore
Electric Range

Model # 79046252400 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79046252400 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

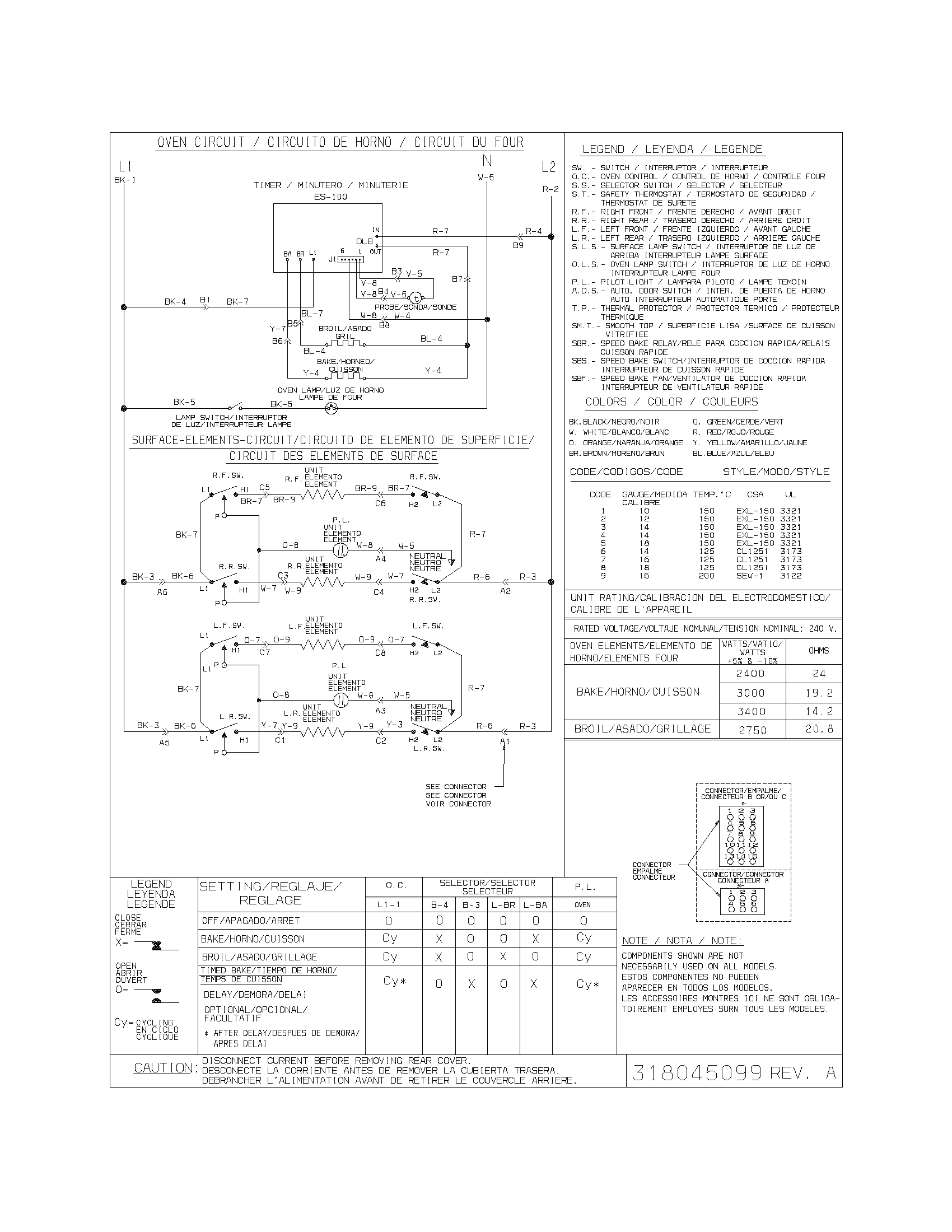

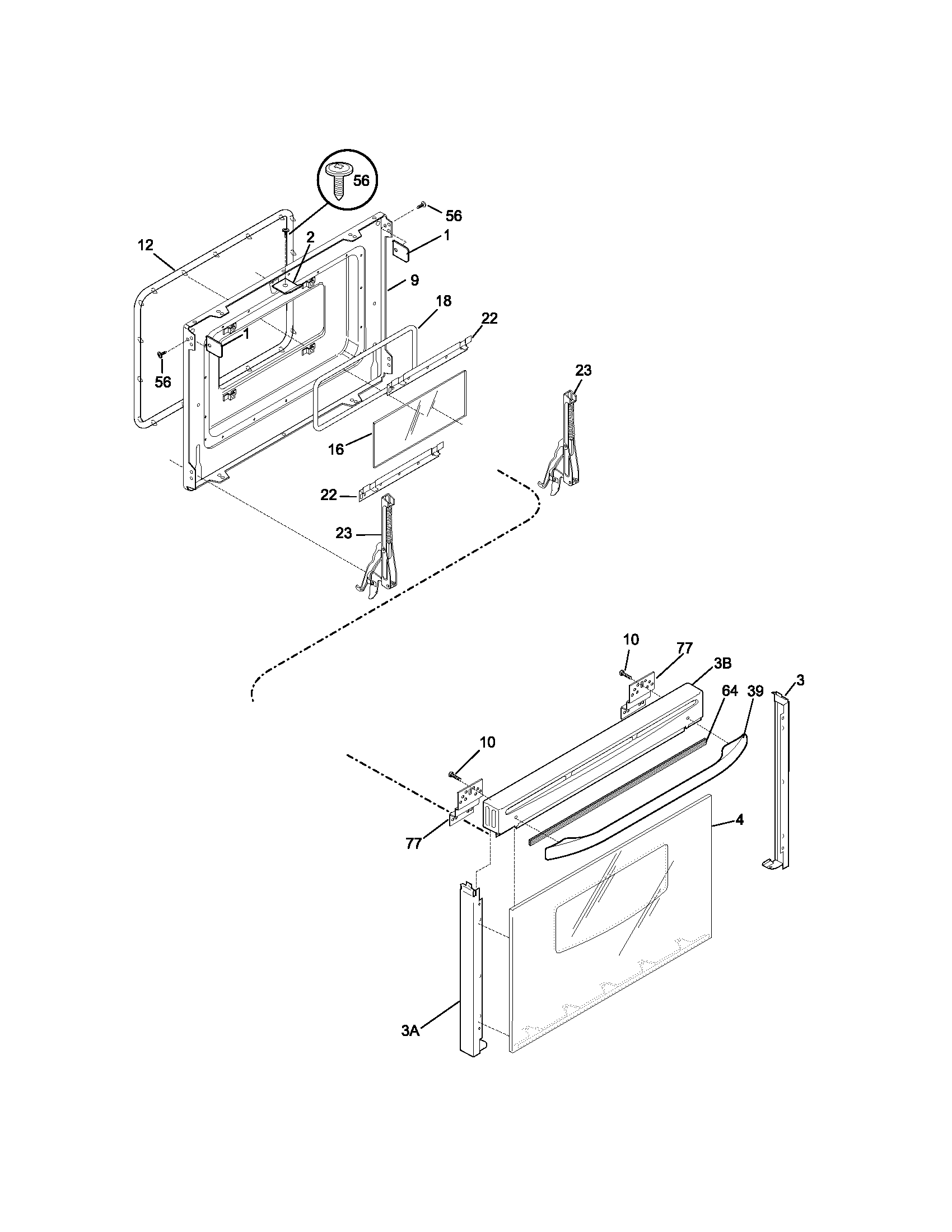

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Range Oven Light Bulb 5303013071
#15

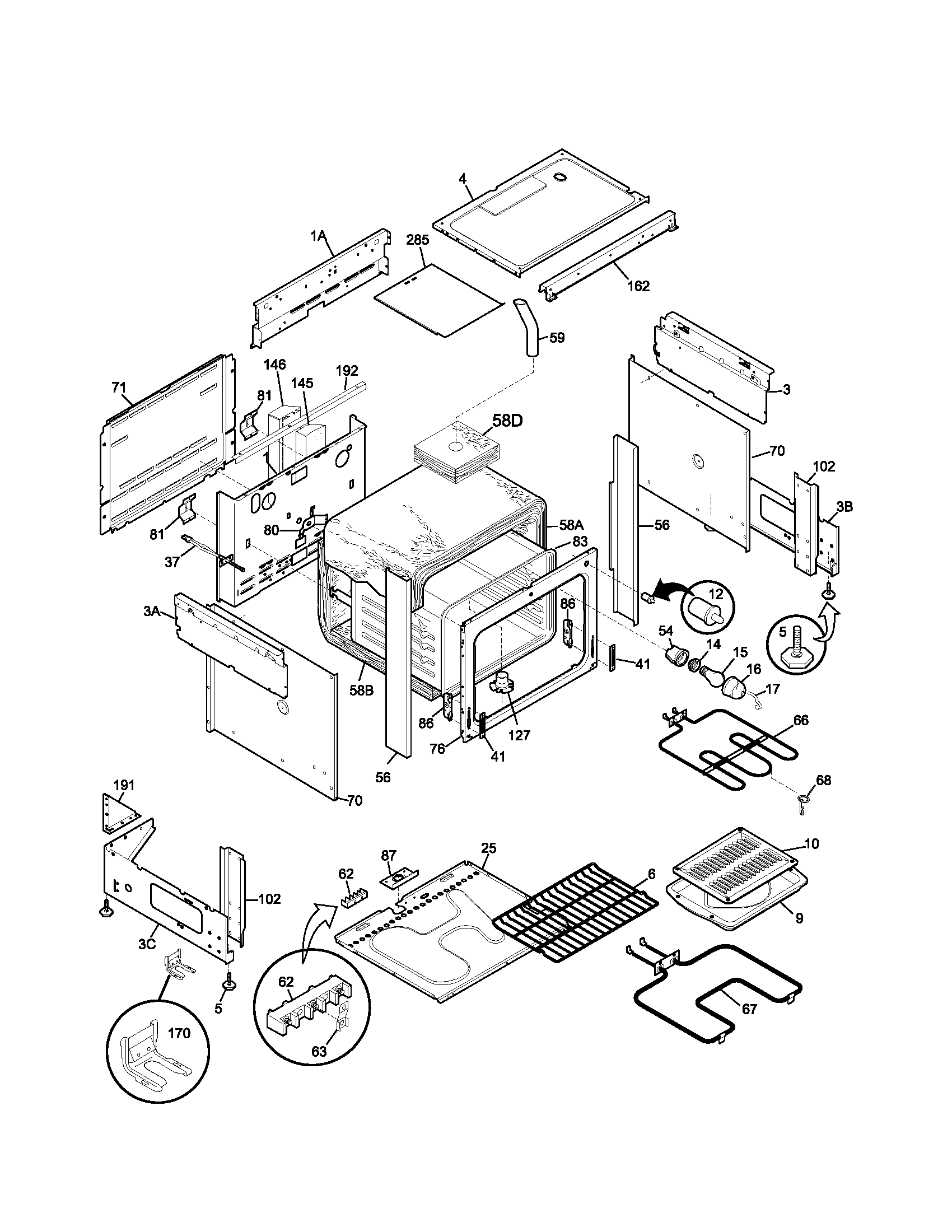

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Element 318255000
#67

Body diagram

Element

Part #318255000

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255000. Substitute parts can look different from the original.
BEST SELLER
$145.64 |
8% OFF Phone Price : $157.64
In Stock
Cooktop Surface Element 08067762
#15A

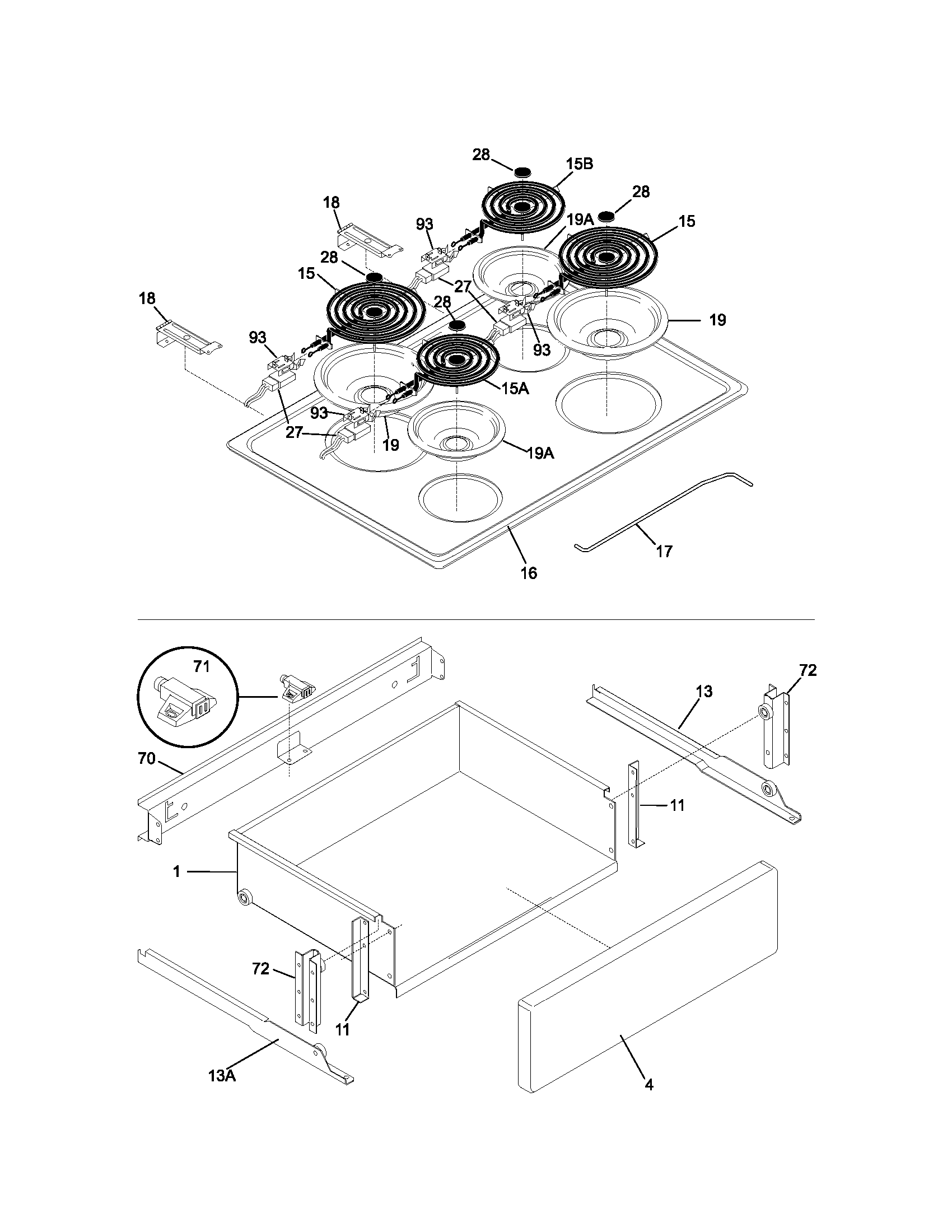

Top/drawer diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Switch 318220080
#54

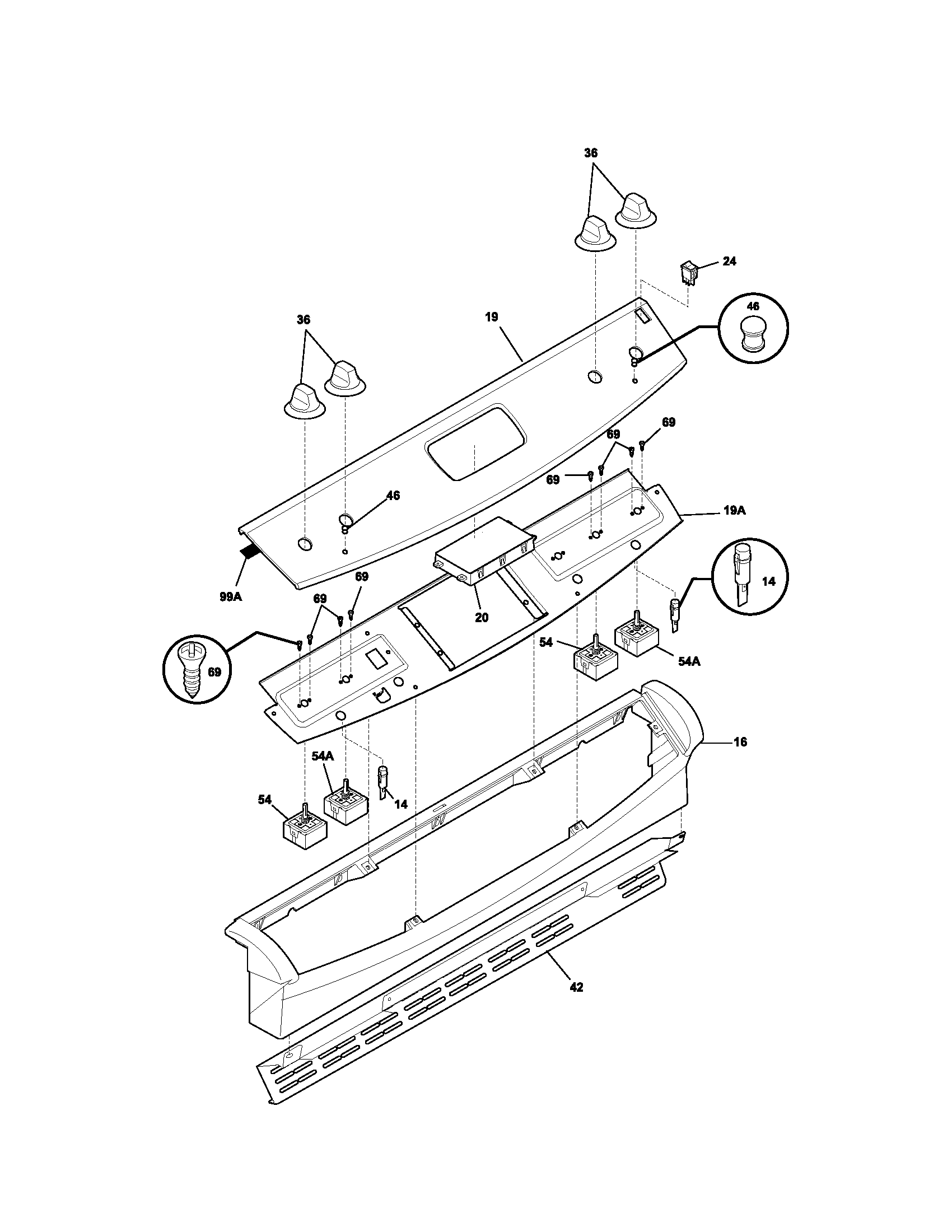

Backguard diagram

Switch

Part #318220080

Replaced by #903136-9010

?
Manufacturer substitution
This part replaces 318220080. Substitute parts can look different from the original.
BEST SELLER
$65.22 |
8% OFF Phone Price : $71.22
In Stock
Oven Switch 318220081
#54A

Backguard diagram

Oven switch

Part #318220081

Replaced by #903136-9020

?
Manufacturer substitution
This part replaces 318220081. Substitute parts can look different from the original.
BEST SELLER
$78.50 |
7% OFF Phone Price : $84.50
In Stock
Range Screw 5303323134
#69

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Rocker Switch 316005607
#24

Backguard diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Element 5304437241
#15B

Top/drawer diagram

Element

Part #5304437241

Replaced by #316439802

?
Manufacturer substitution
This part replaces 5304437241. Substitute parts can look different from the original.
$141.55 |
8% OFF Phone Price : $153.55
In Stock
Rack 318025308
#6

Body diagram

Rack

Part #318025308

Replaced by #318025314

?
Manufacturer substitution
This part replaces 318025308. Substitute parts can look different from the original.
$57.80 |
9% OFF Phone Price : $63.80
In Stock
