Majestic
Laundry Center

Model # MJ9000V Official Majestic washer/dryer

Here are the diagrams and repair parts for Official Majestic MJ9000V washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

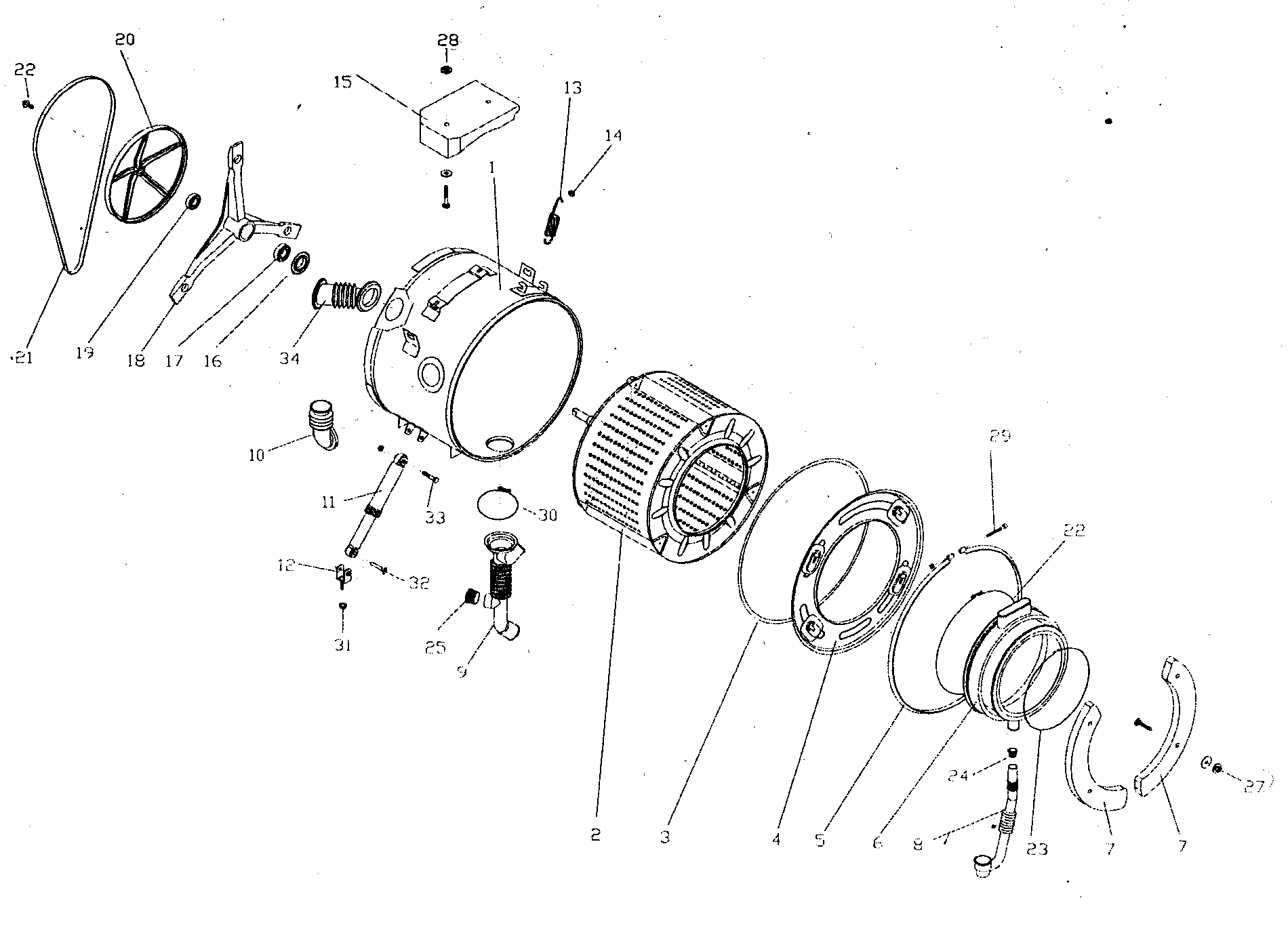

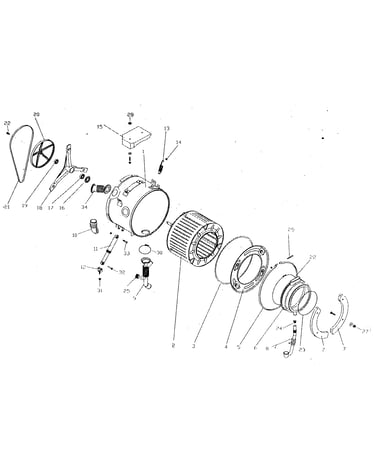

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Gasket 17-1408
#7

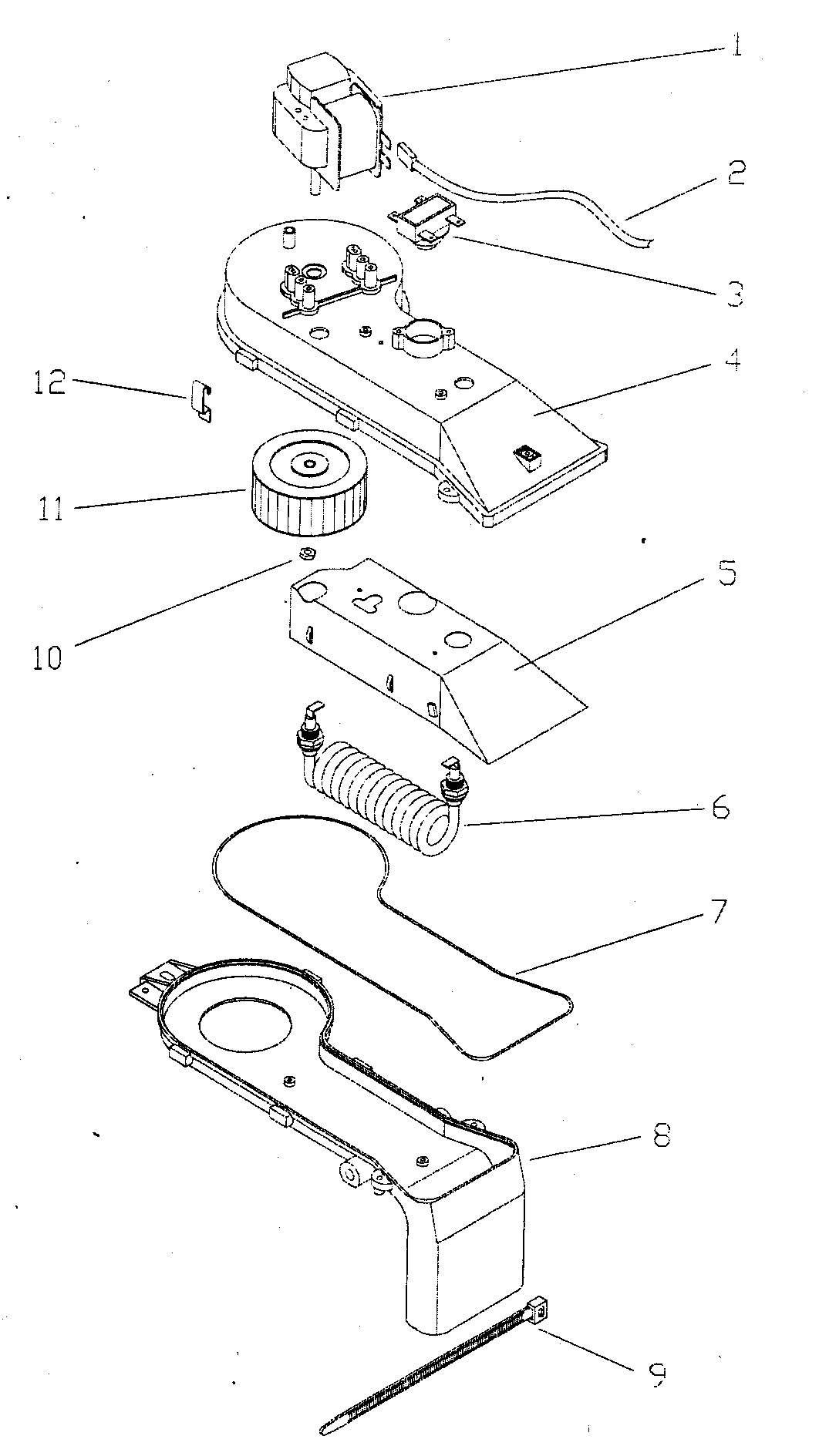

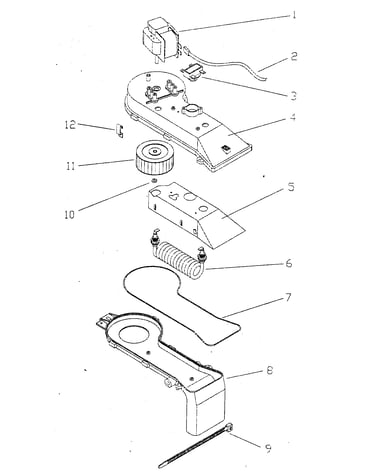

Blower diagram

Gasket

Part #17-1408

The manufacturer no longer makes this part, and there's no substitute part

Dryer Hinge 17-1309
#20

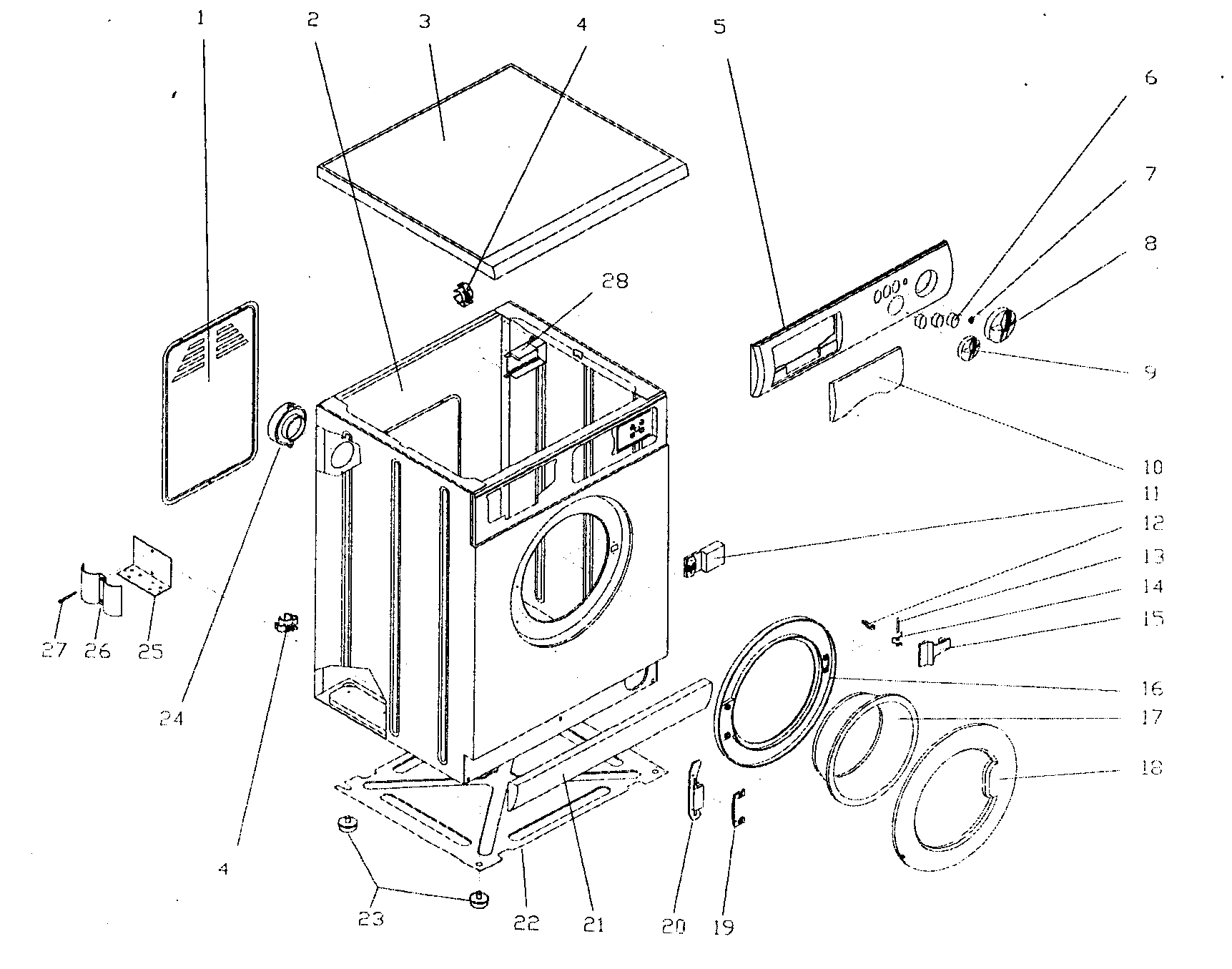

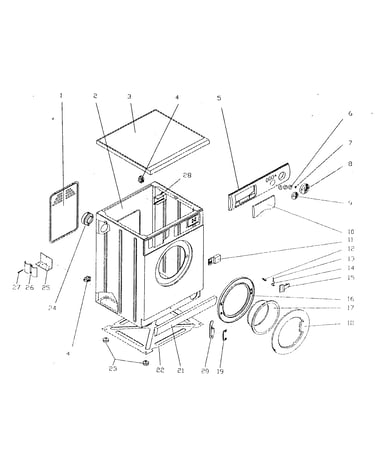

Cabinet parts diagram

Dryer hinge

Part #17-1309

The manufacturer no longer makes this part, and there's no substitute part

Motor 17-1371
#16

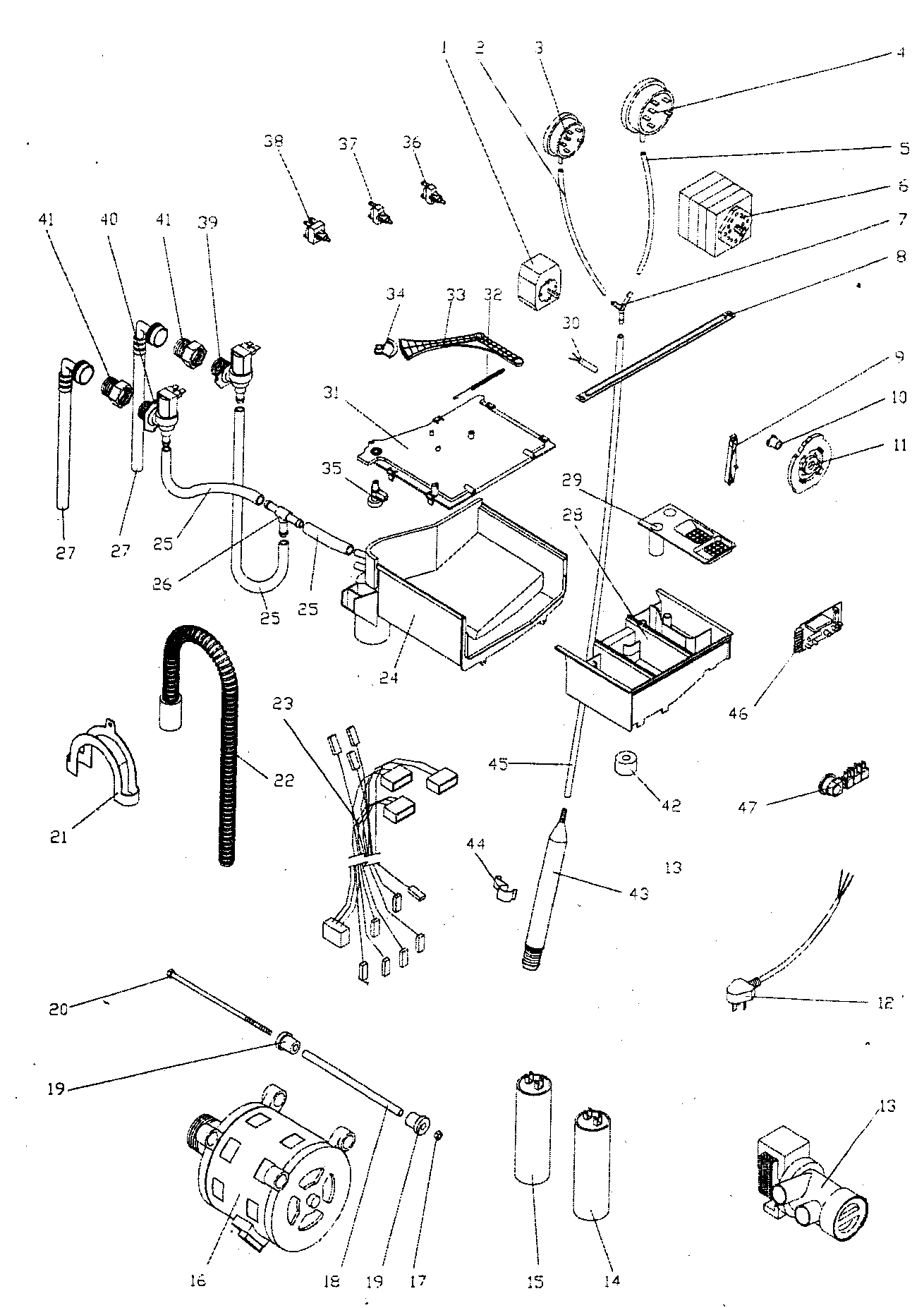

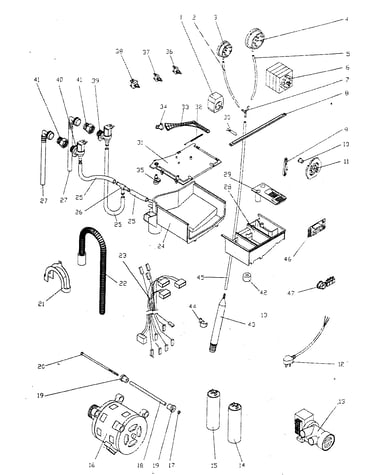

Electric parts diagram

Motor

Part #17-1371

The manufacturer no longer makes this part, and there's no substitute part

Switch 17-1392
#37

Electric parts diagram

Switch

Part #17-1392

The manufacturer no longer makes this part, and there's no substitute part

Undr Panel 17-1312
#23

Cabinet parts diagram

Undr panel

Part #17-1312

The manufacturer no longer makes this part, and there's no substitute part

Fan Nut 17-1412
#10

Blower diagram

Fan nut

Part #17-1412

The manufacturer no longer makes this part, and there's no substitute part

Washer Inlet Hose 17-1382
#27

Electric parts diagram

Washer inlet hose

Part #17-1382

The manufacturer no longer makes this part, and there's no substitute part

Device 17-1189
#11

Cabinet parts diagram

Device

Part #17-1189

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 17-1367
#12

Electric parts diagram

Ac cord

Part #17-1367

The manufacturer no longer makes this part, and there's no substitute part

Dtrg Tray 17-1383
#28

Electric parts diagram

Dtrg tray

Part #17-1383

The manufacturer no longer makes this part, and there's no substitute part
