Jenn-Air
Gas Range

Model # JGS8850BDS Official Jenn-Air gas slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JGS8850BDS gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

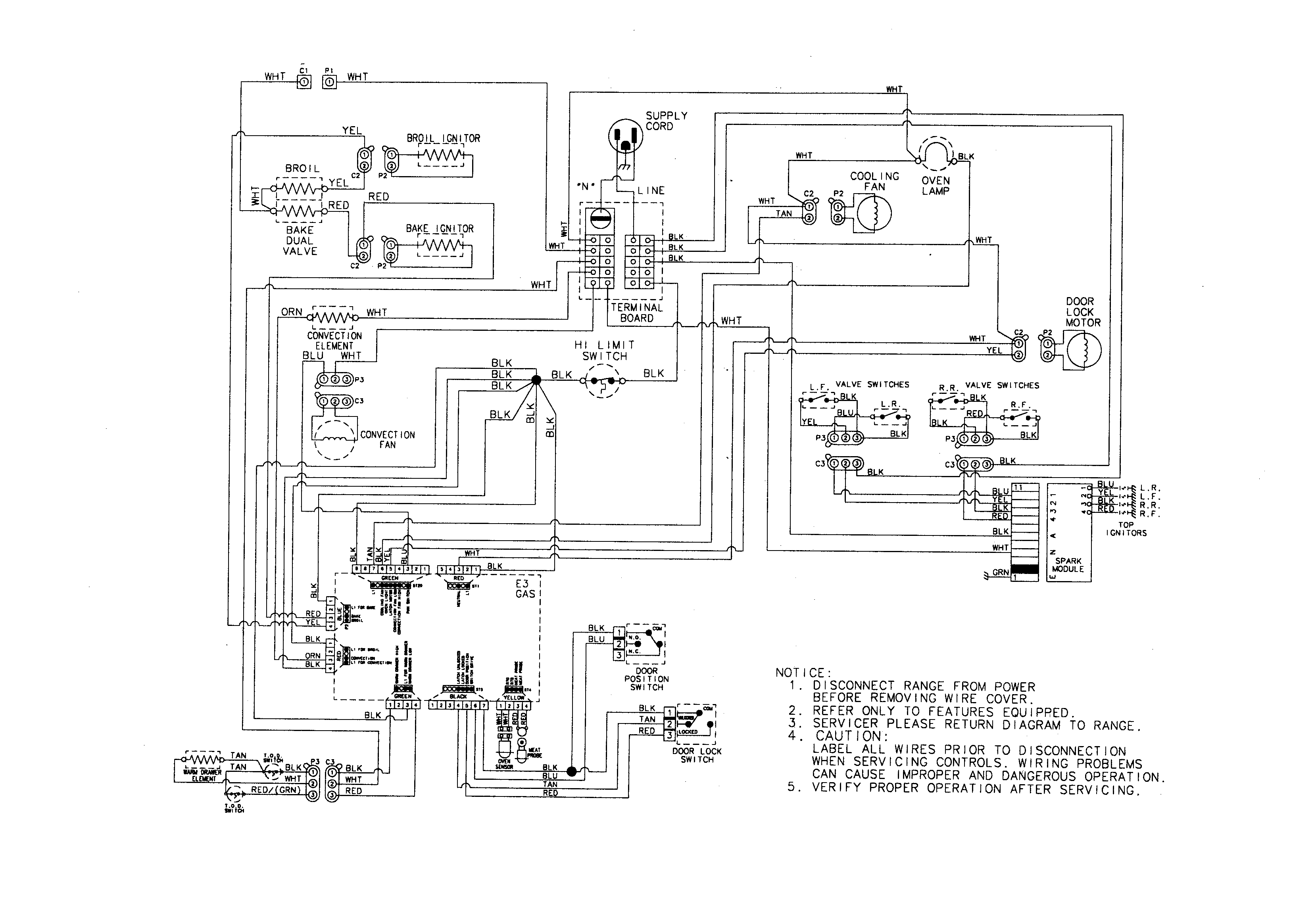

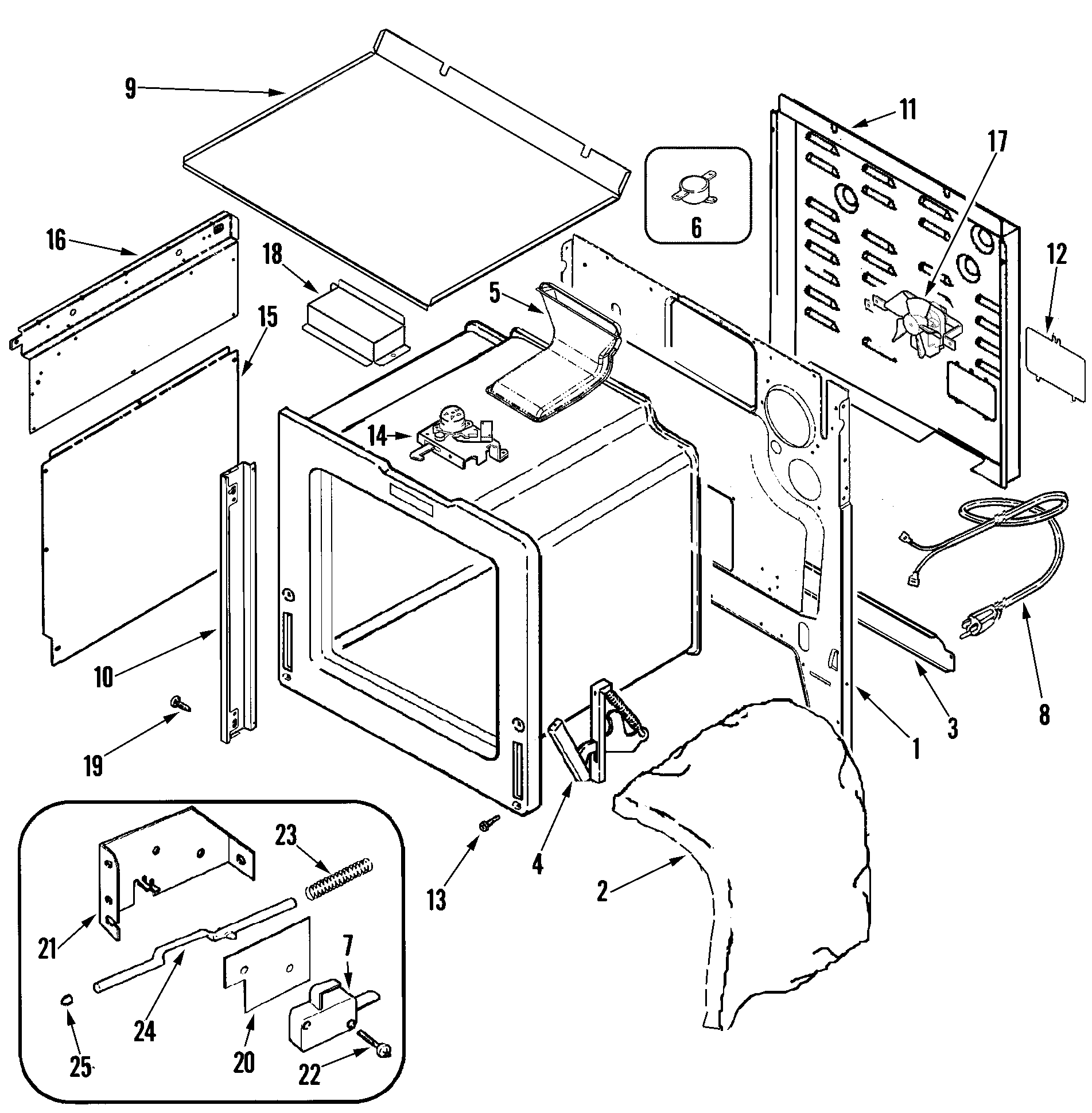

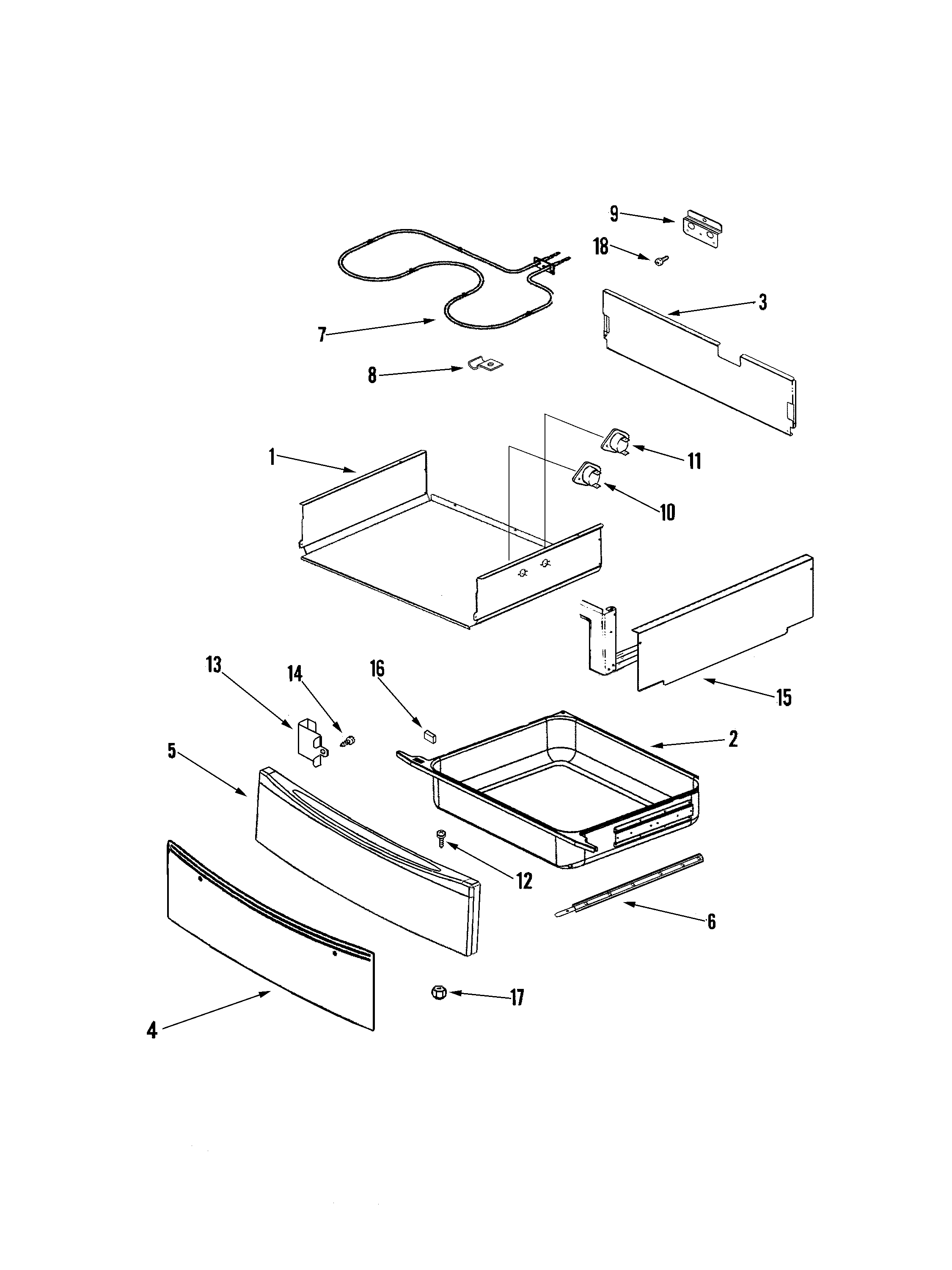

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Sealer, Rtv M0275597
#14A

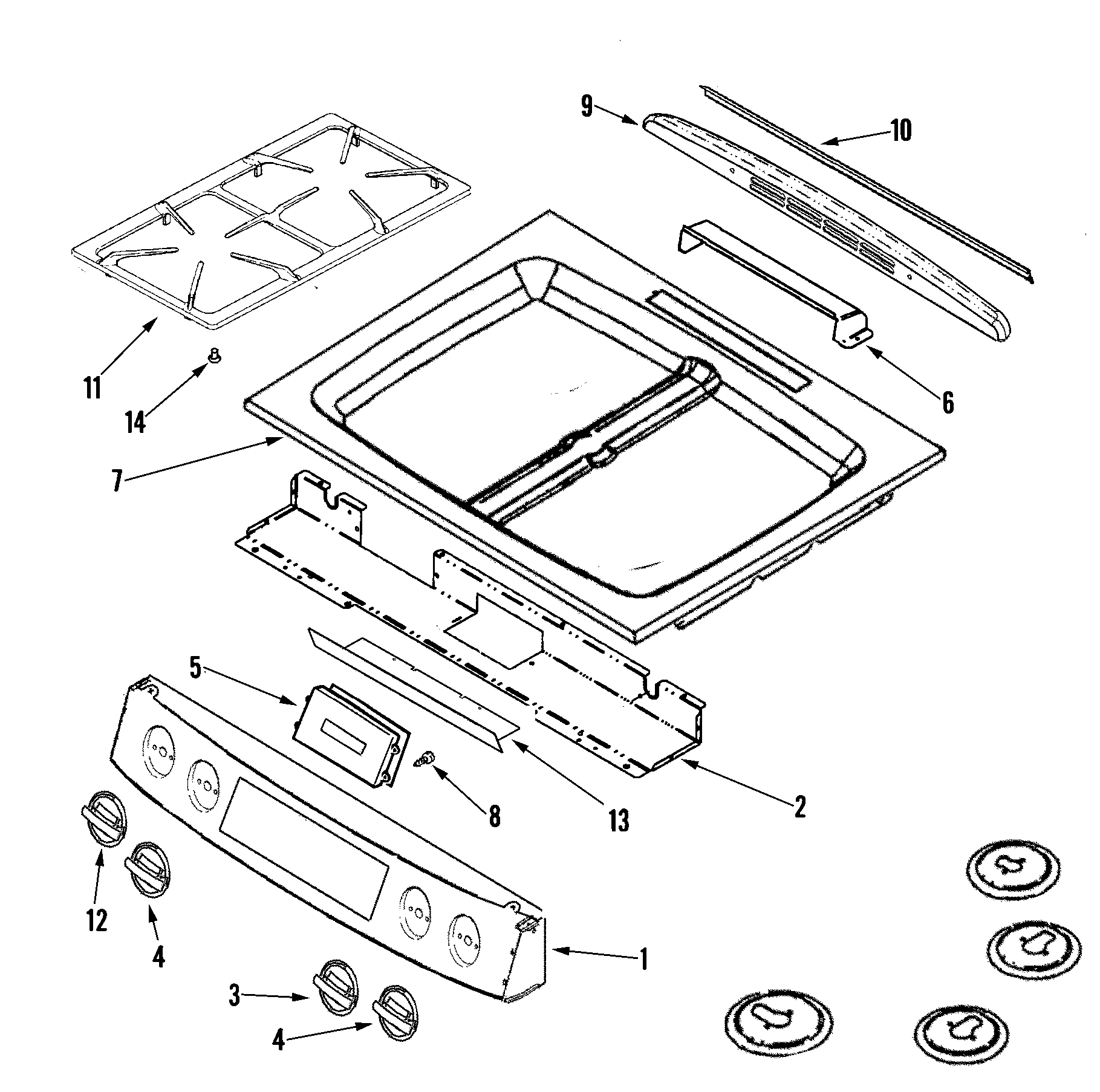

Control panel/top assembly diagram

Sealer, rtv

Part #M0275597

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275597. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Door Gasket 7201P046-60
Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Cooktop Burner Orifice And Holder, 5,000-btu 74009553
#15B

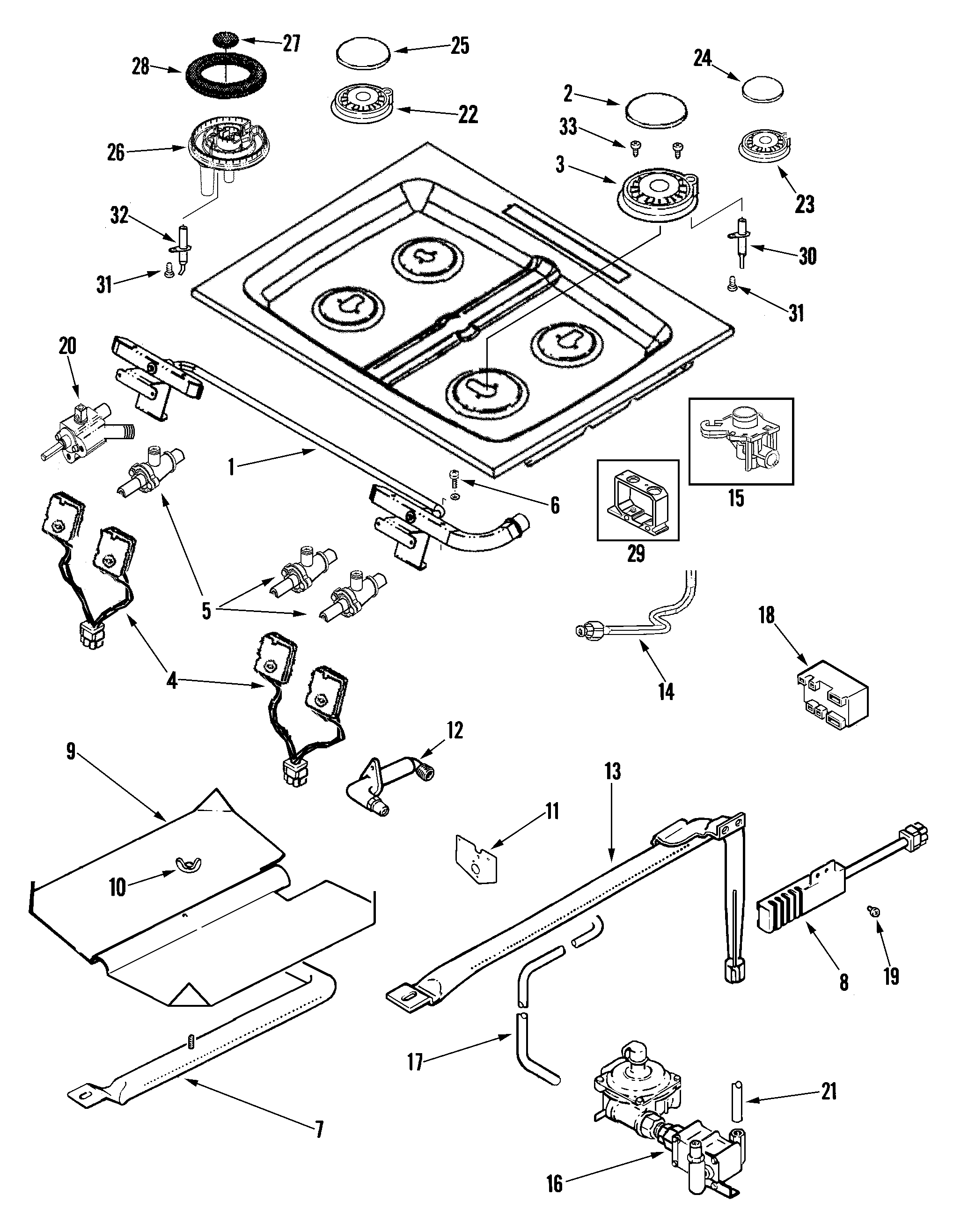

Gas controls diagram

Cooktop burner orifice and holder, 5,000-btu

Part #74009553

$37.37 |
14% OFF Phone Price : $43.37
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Range Surface Burner Base (replaces 7505p304-60) 74007734
#23

Gas controls diagram

Range surface burner base (replaces 7505p304-60)

Part #74007734

$54.79 |
10% OFF Phone Price : $60.79
In Stock
Control Panel 74011663
#1C

Control panel/top assembly diagram

Control panel

Part #74011663

Replaced by #WPW10206089

?
Manufacturer substitution
This part replaces 74011663. Substitute parts can look different from the original.
$368.43 |
$12.00 OFF Phone Price : $380.43
In Stock
Screw 74009537
#2

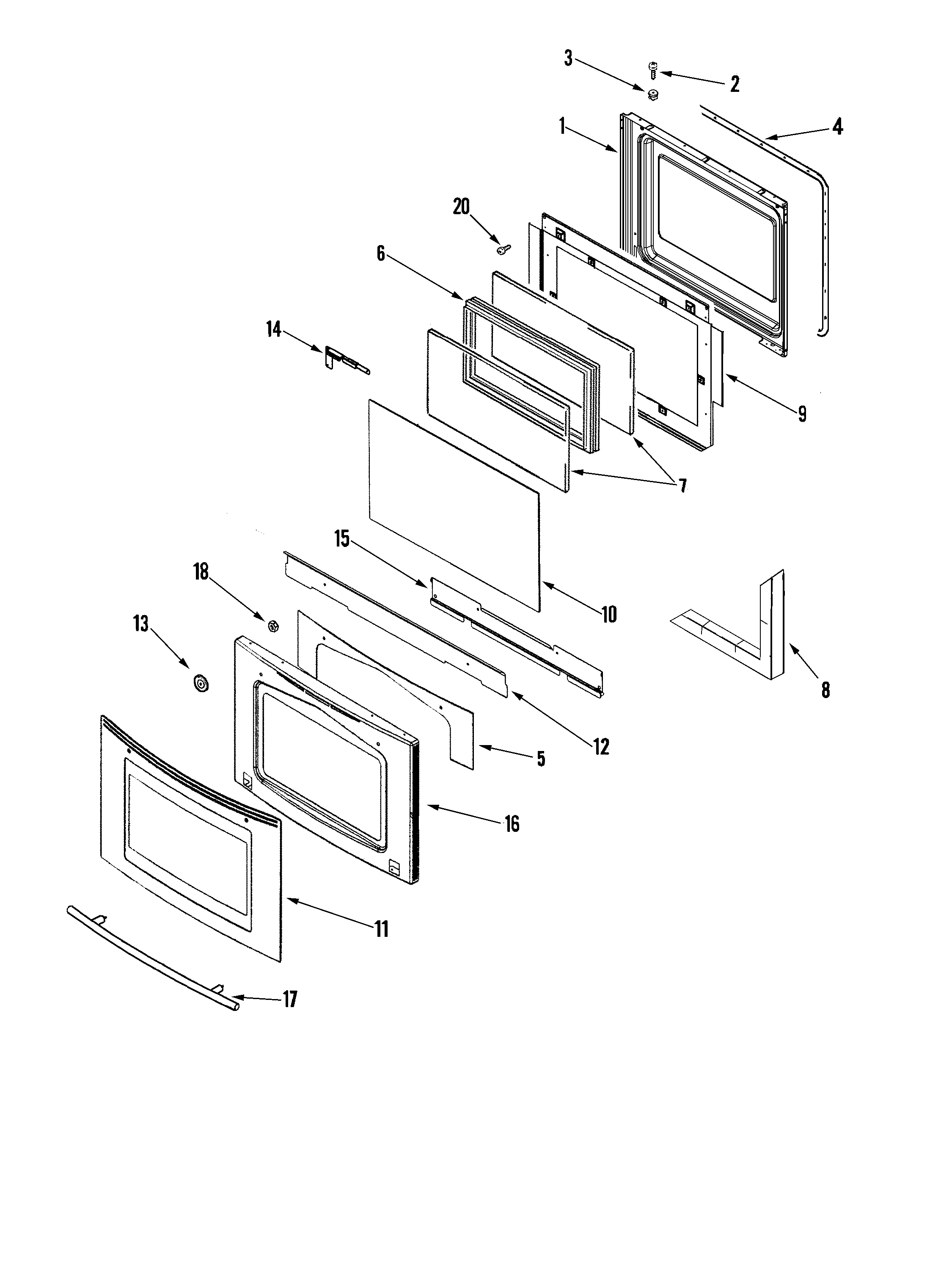

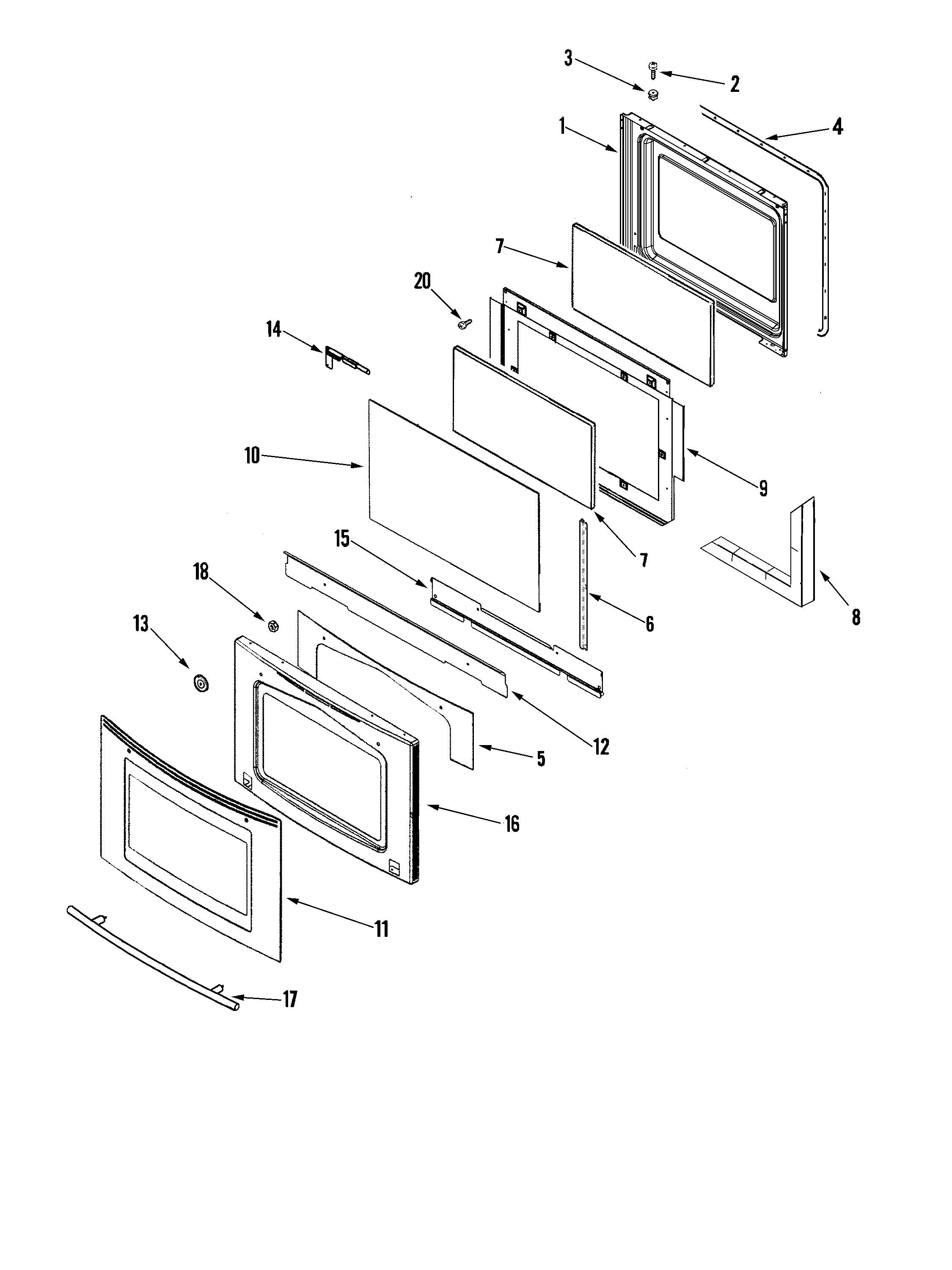

Door (ser pre 10) diagram

Screw

Part #74009537

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 74009537. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Bracket, Ant 74005564
#14

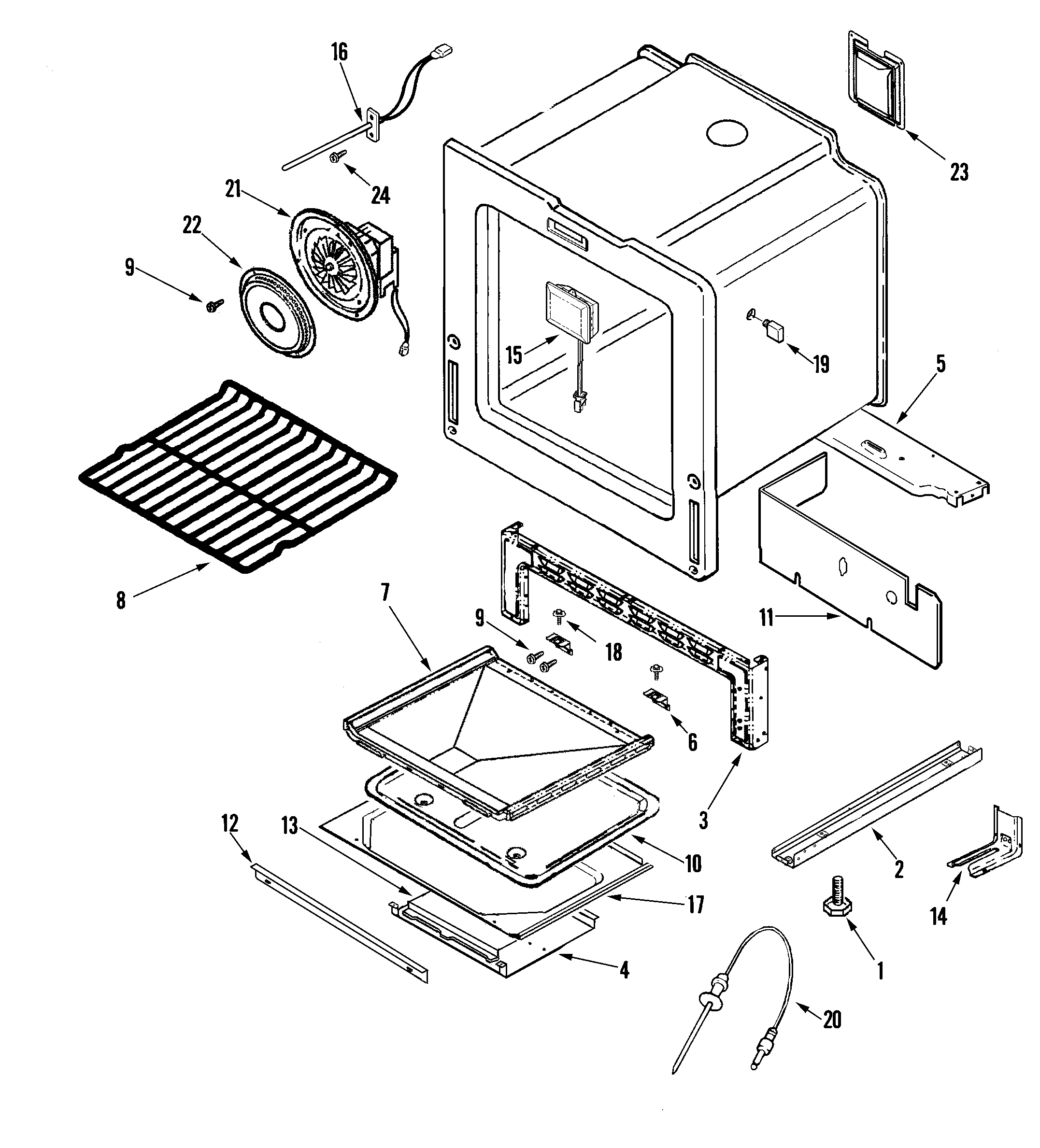

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Range Surface Burner Grate Pad 74007356
#14

Control panel/top assembly diagram

Range surface burner grate pad

Part #74007356

Replaced by #W10919249

?
Manufacturer substitution
This part replaces 74007356. Substitute parts can look different from the original.
$8.53 |
10% OFF Phone Price : $9.53
In Stock
Range Burner Control Knob 74011666
#4

Control panel/top assembly diagram

Range burner control knob

Part #74011666

Replaced by #WP74011666

?
Manufacturer substitution
This part replaces 74011666. Substitute parts can look different from the original.
This item is not returnable
$26.10 |
19% OFF Phone Price : $32.10
In Stock
