Model # E23BC79SPS5 Official Electrolux bottom-mount refrigerator

Here are the diagrams and repair parts for Official Electrolux E23BC79SPS5 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

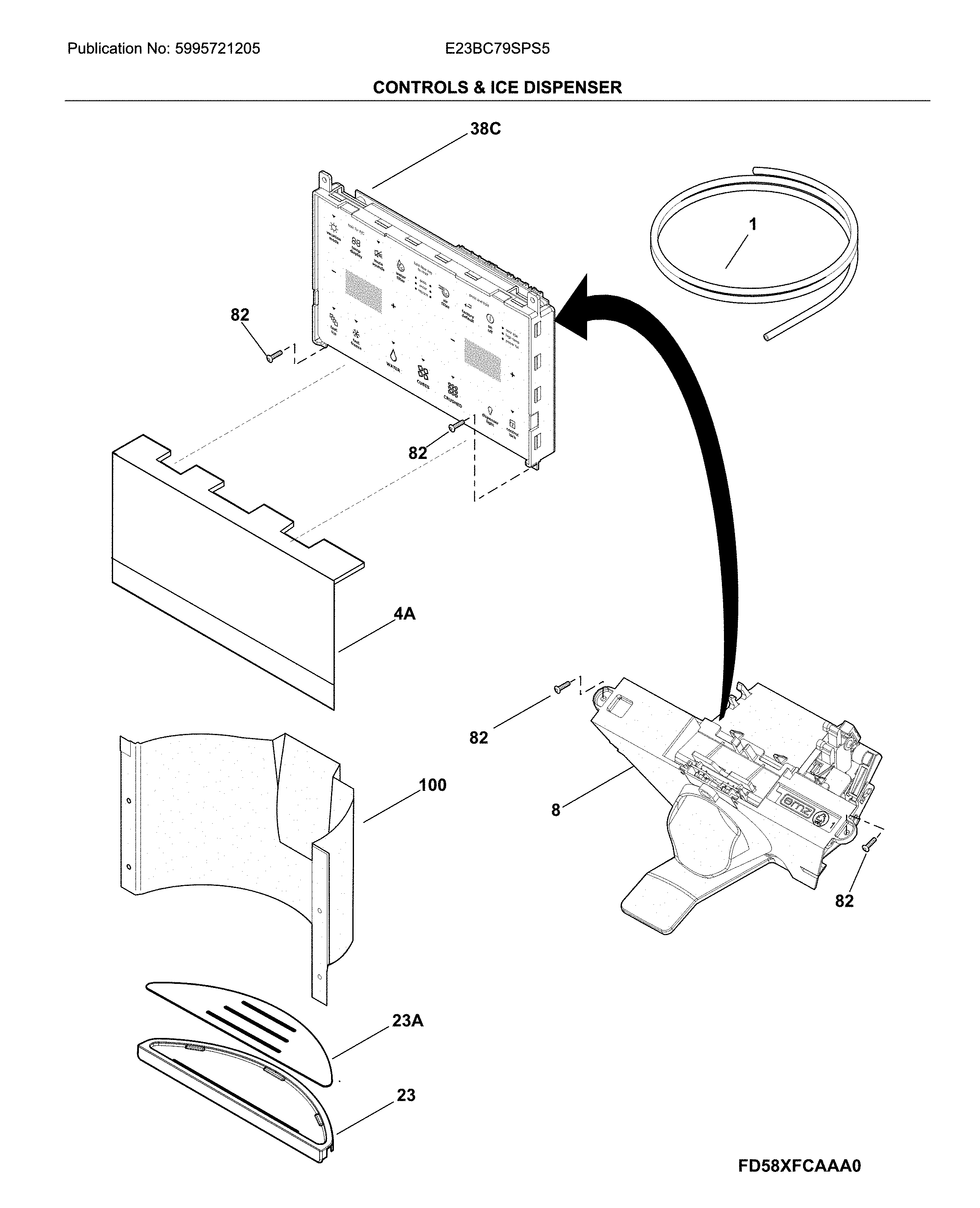

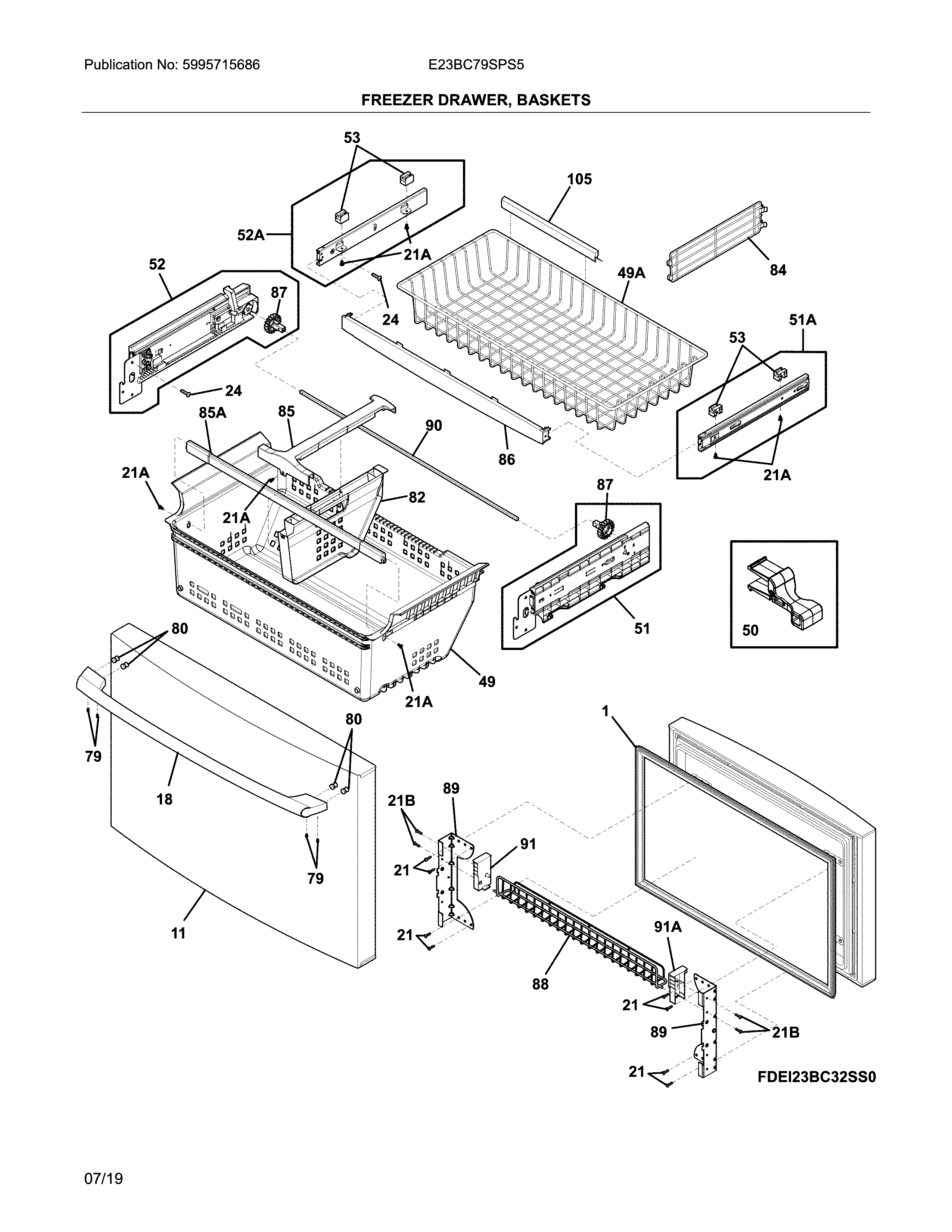

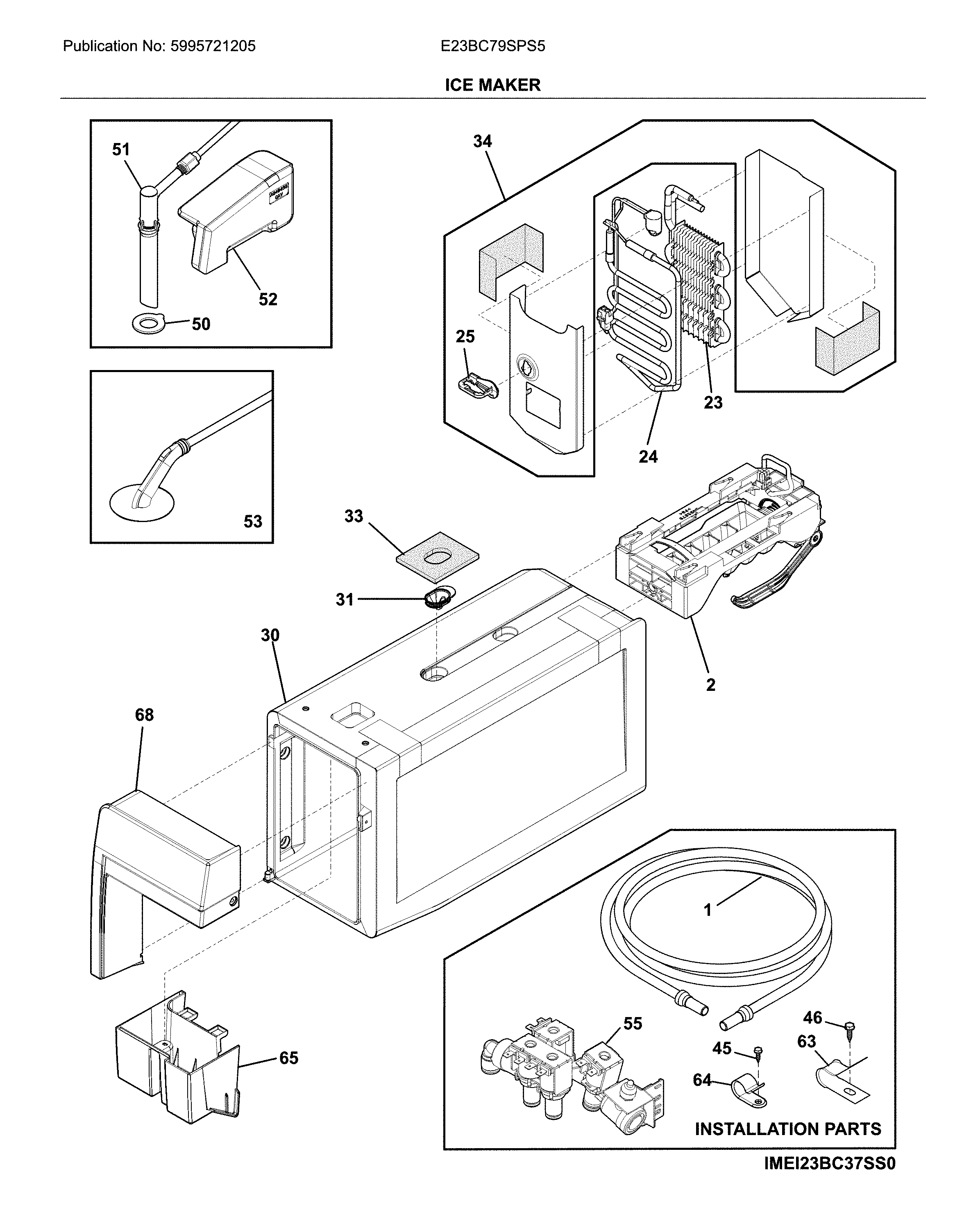

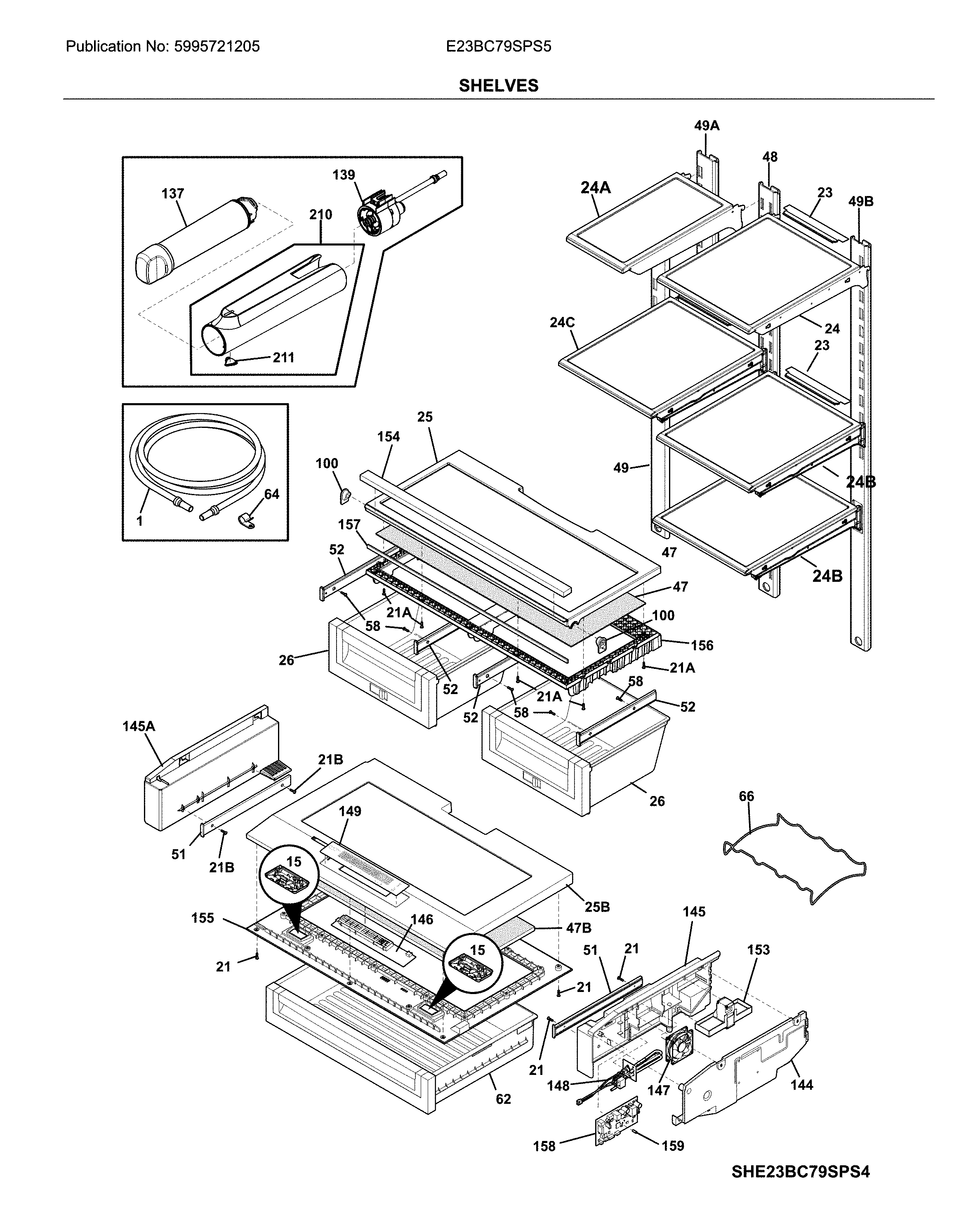

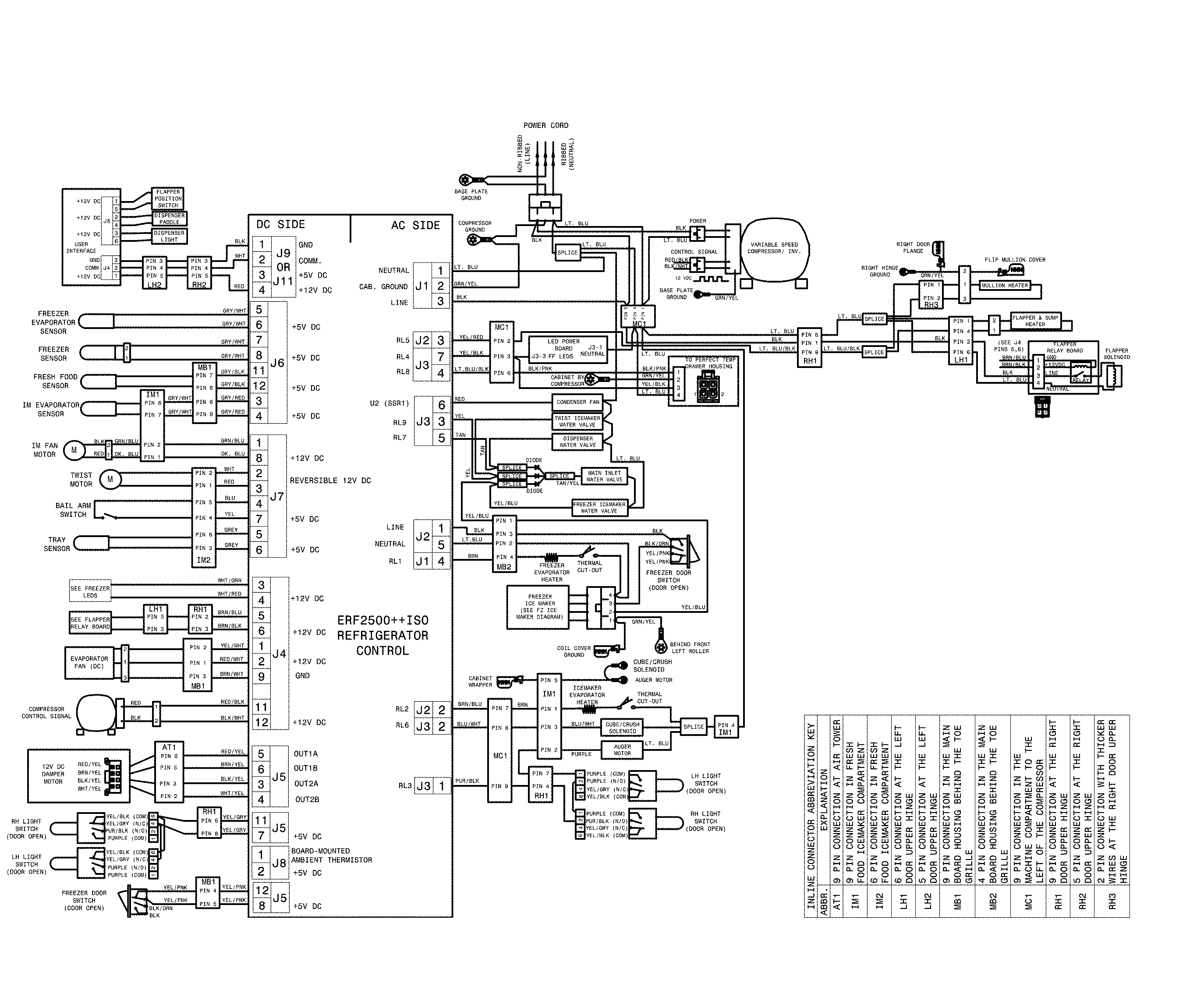

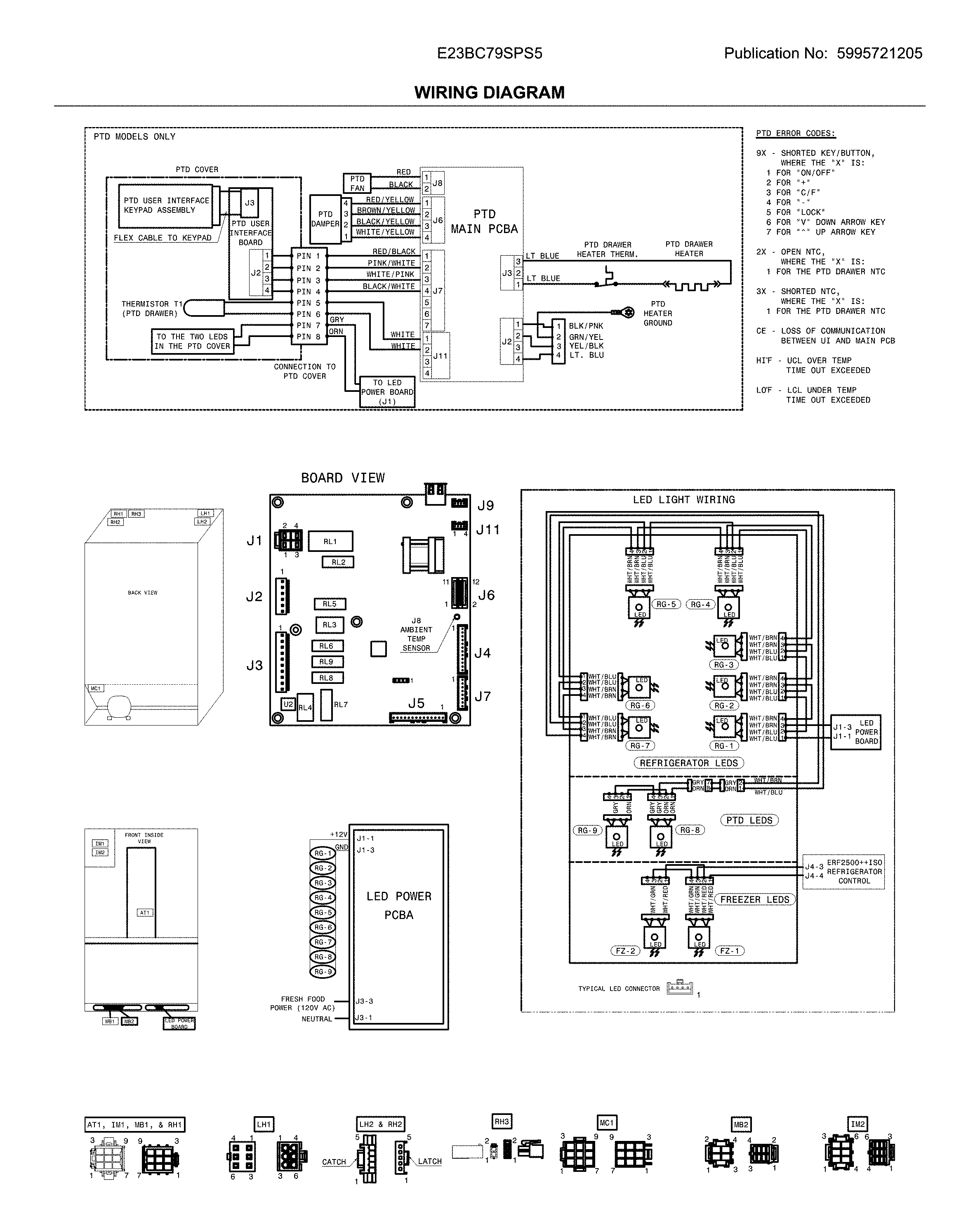

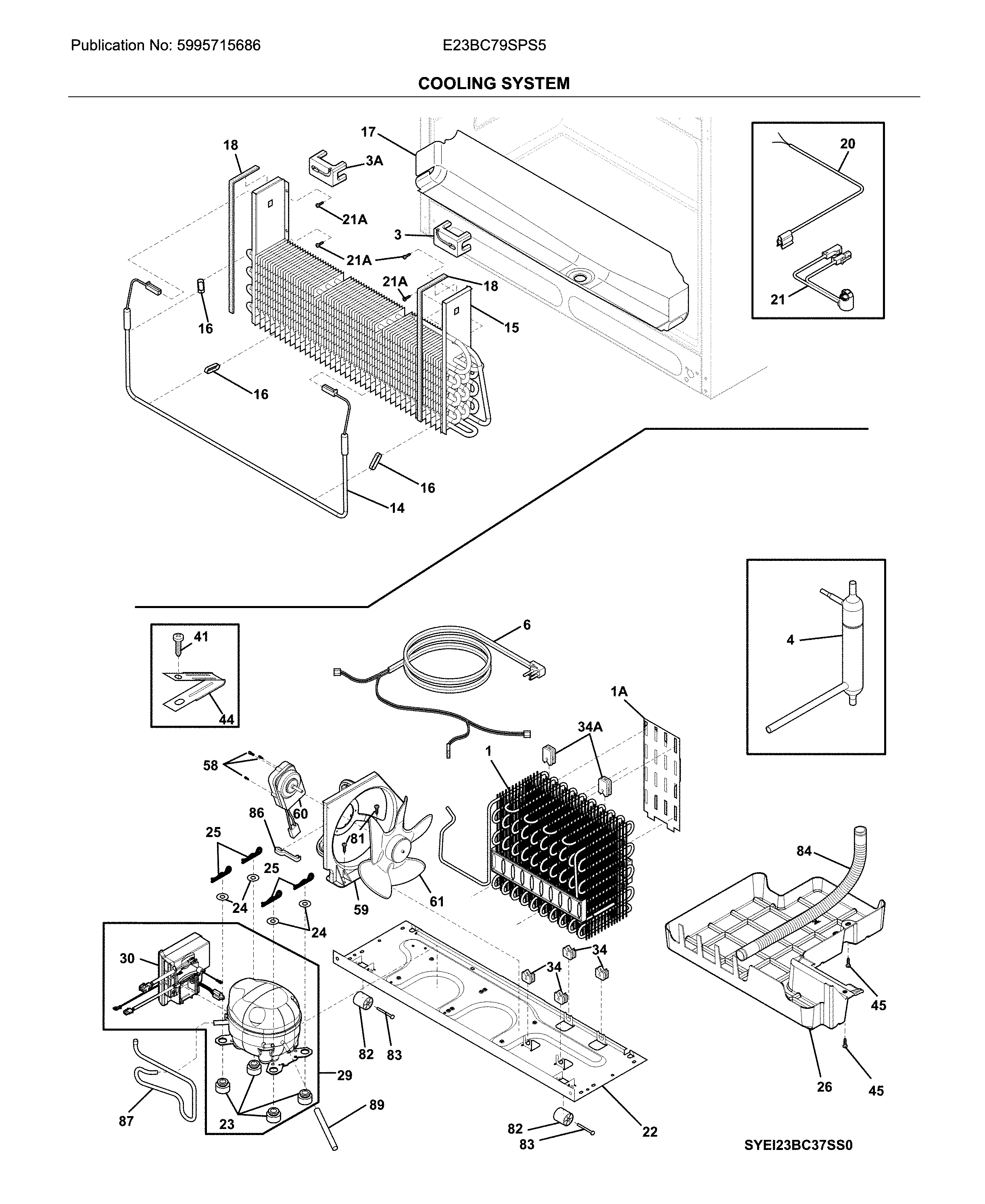

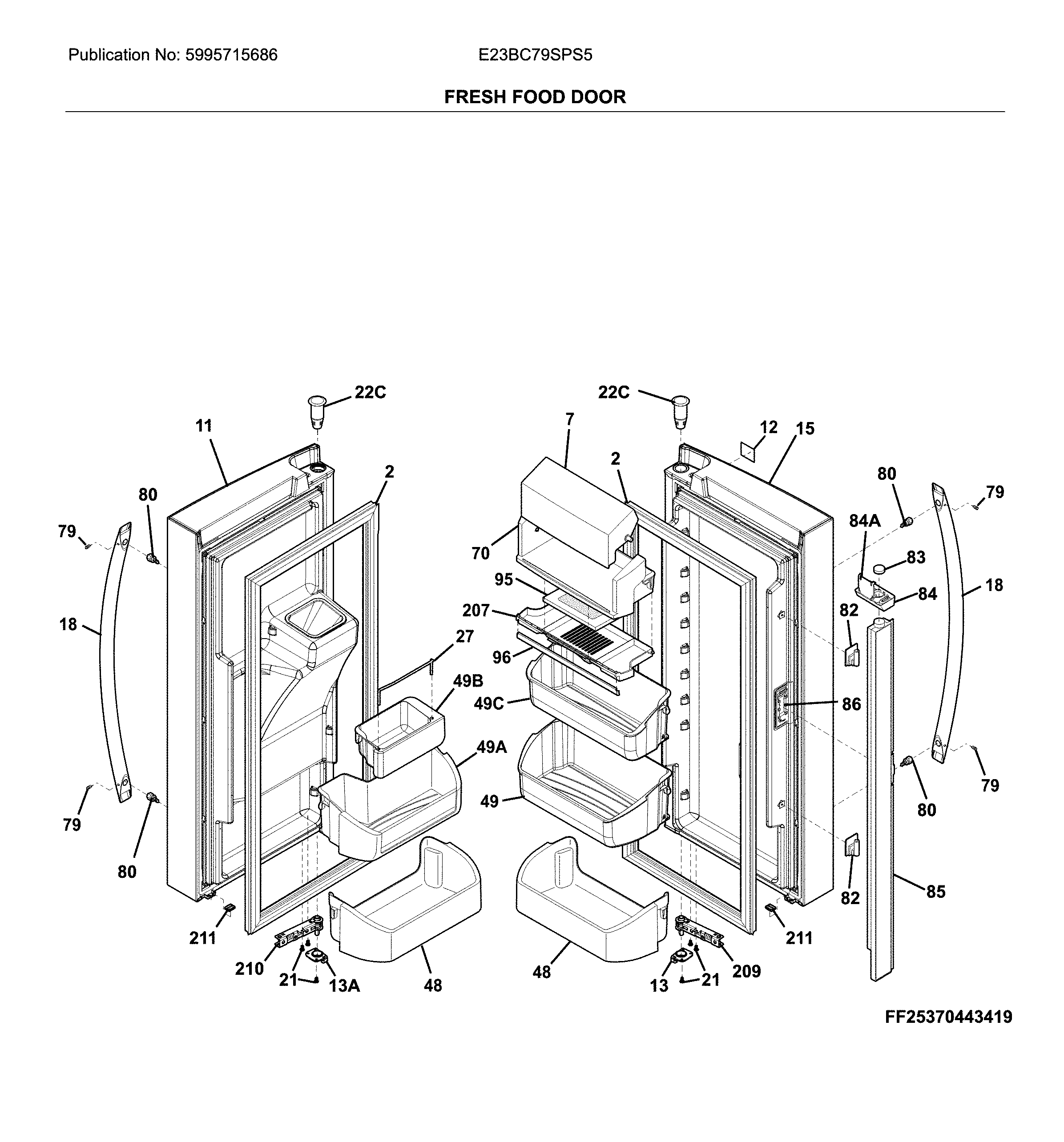

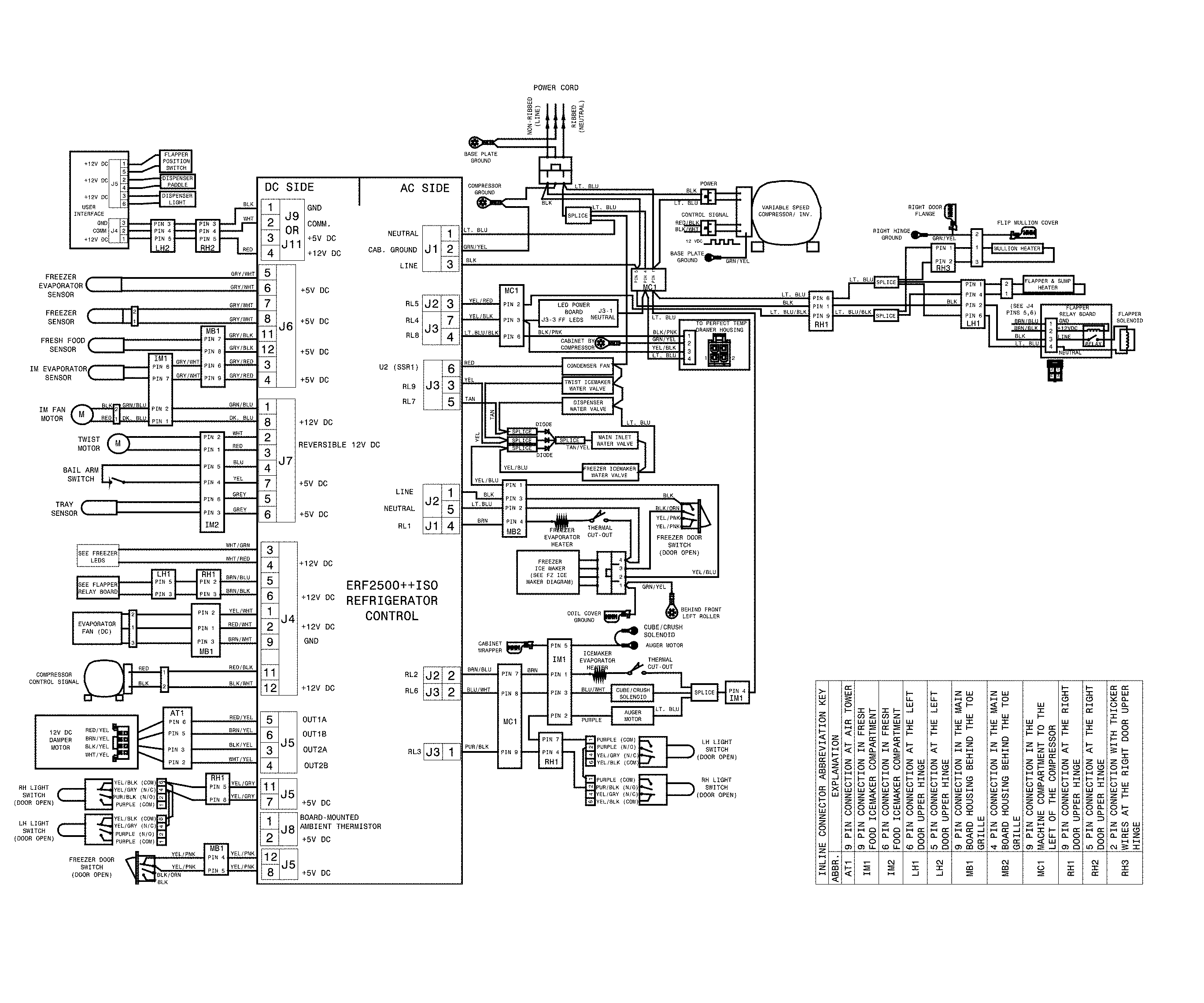

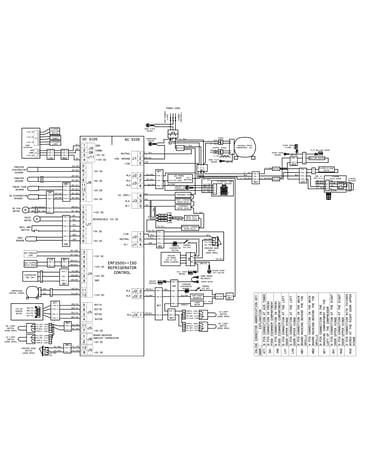

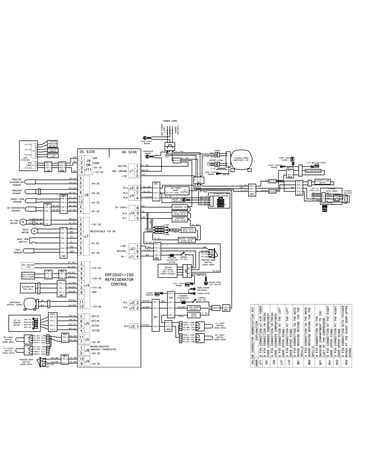

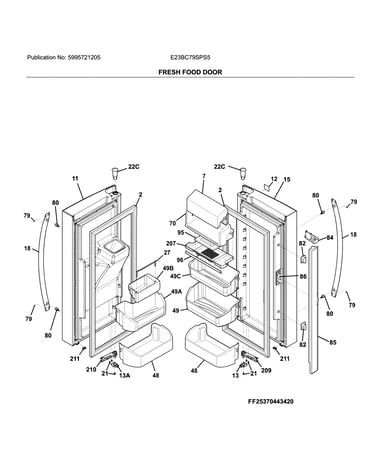

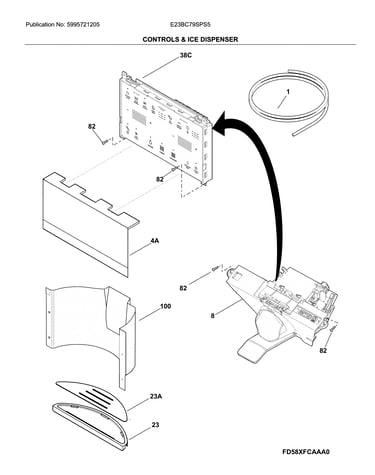

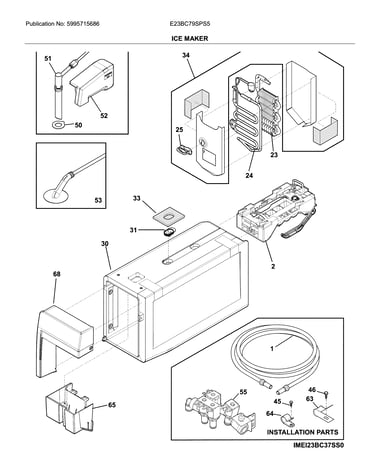

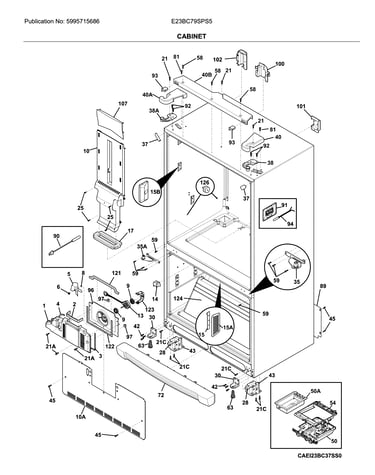

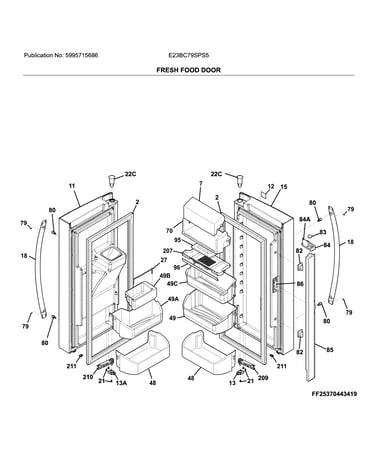

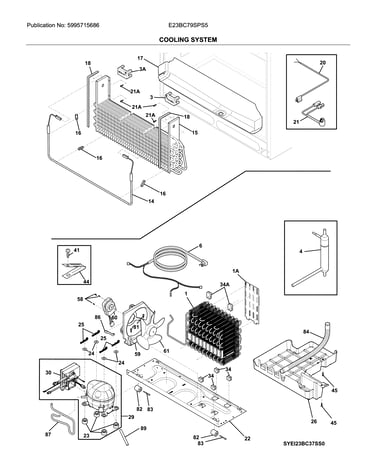

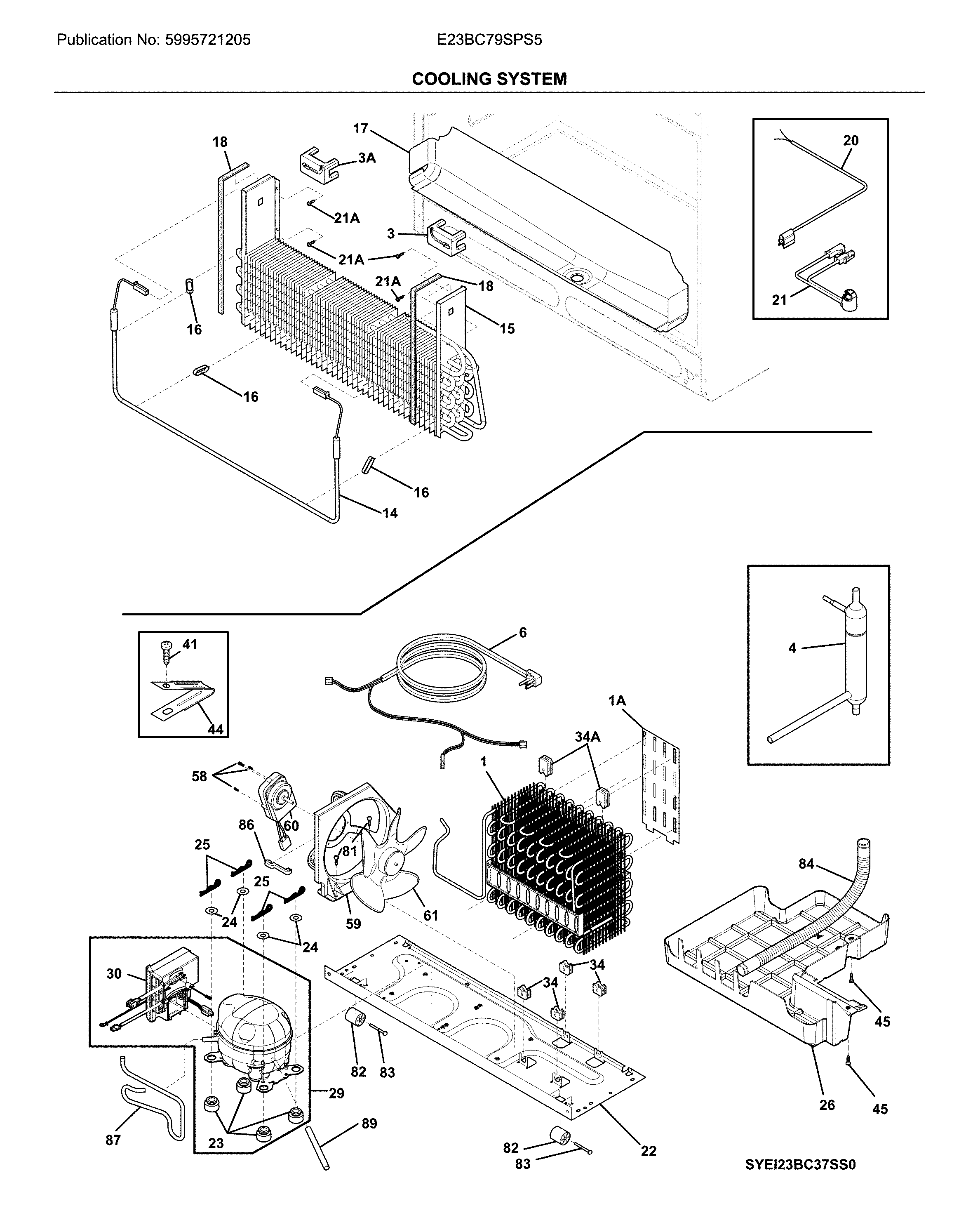

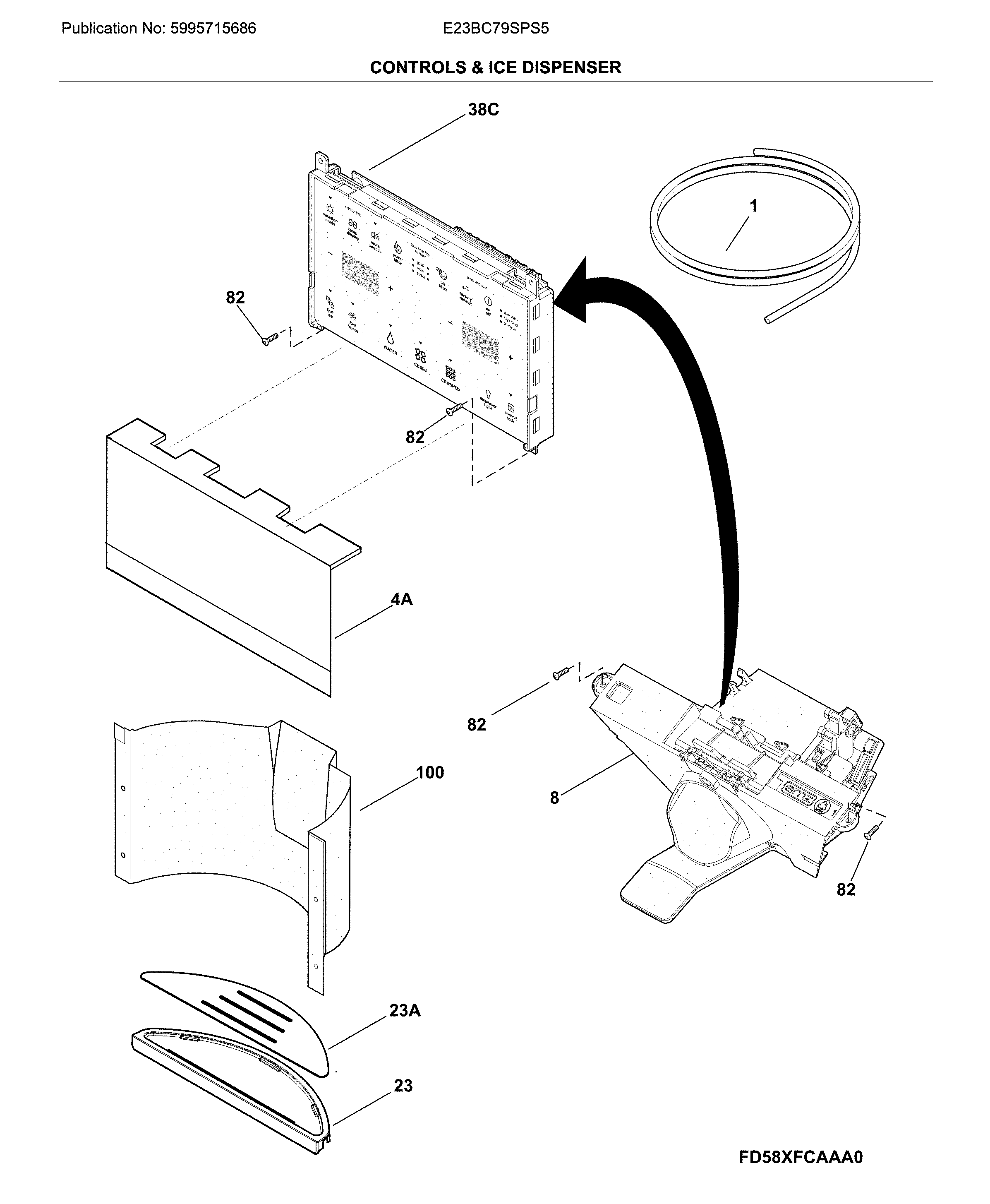

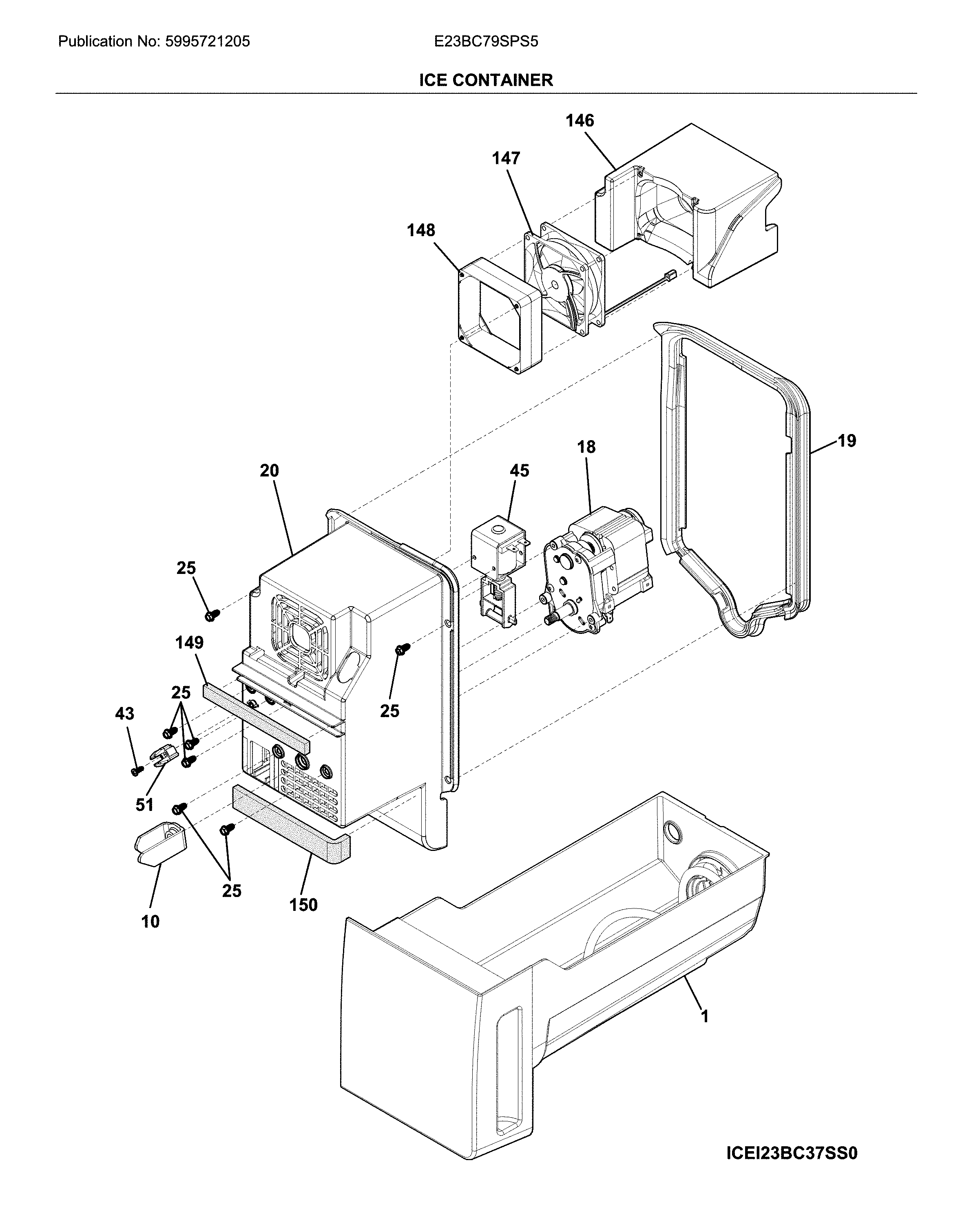

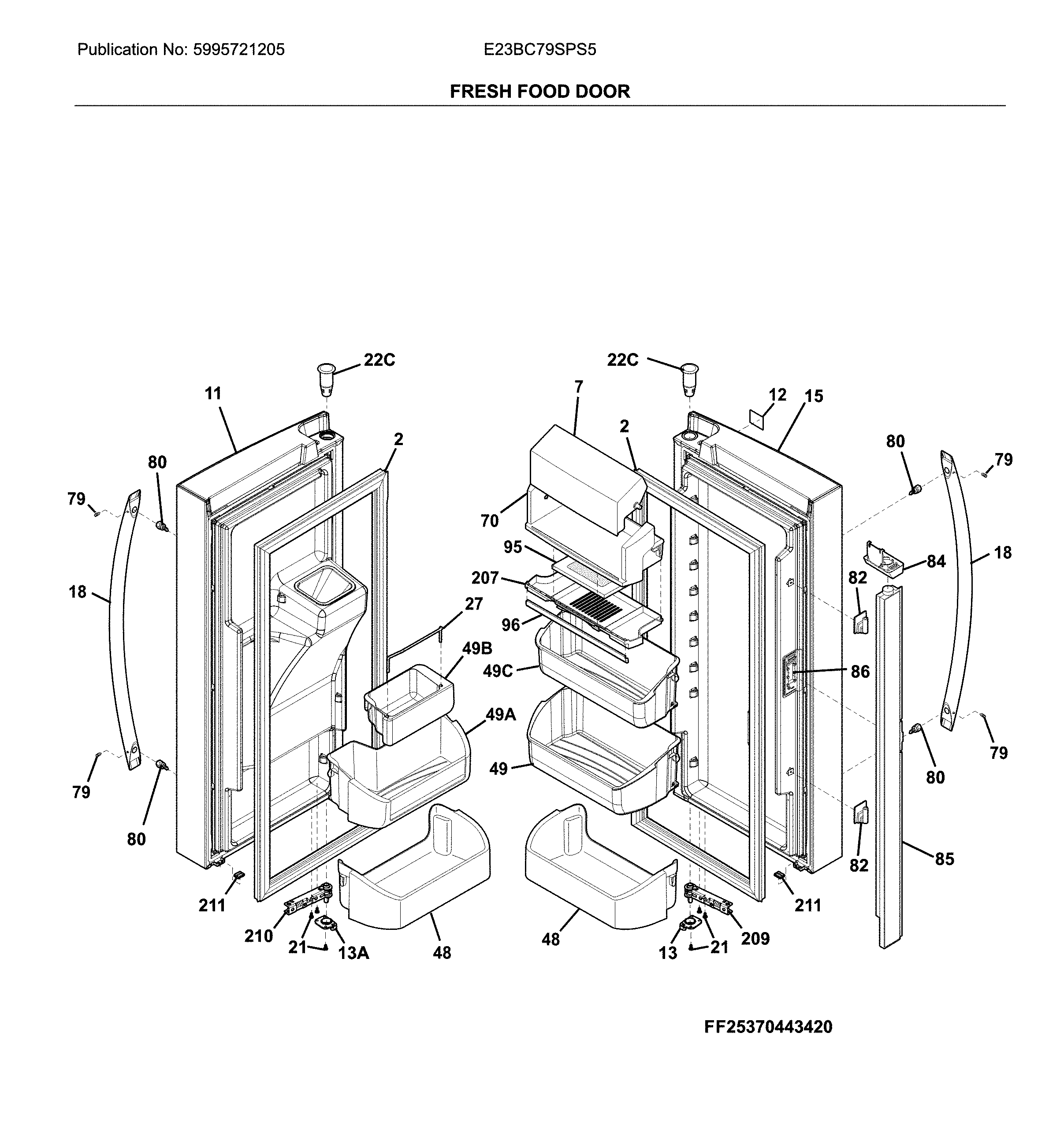

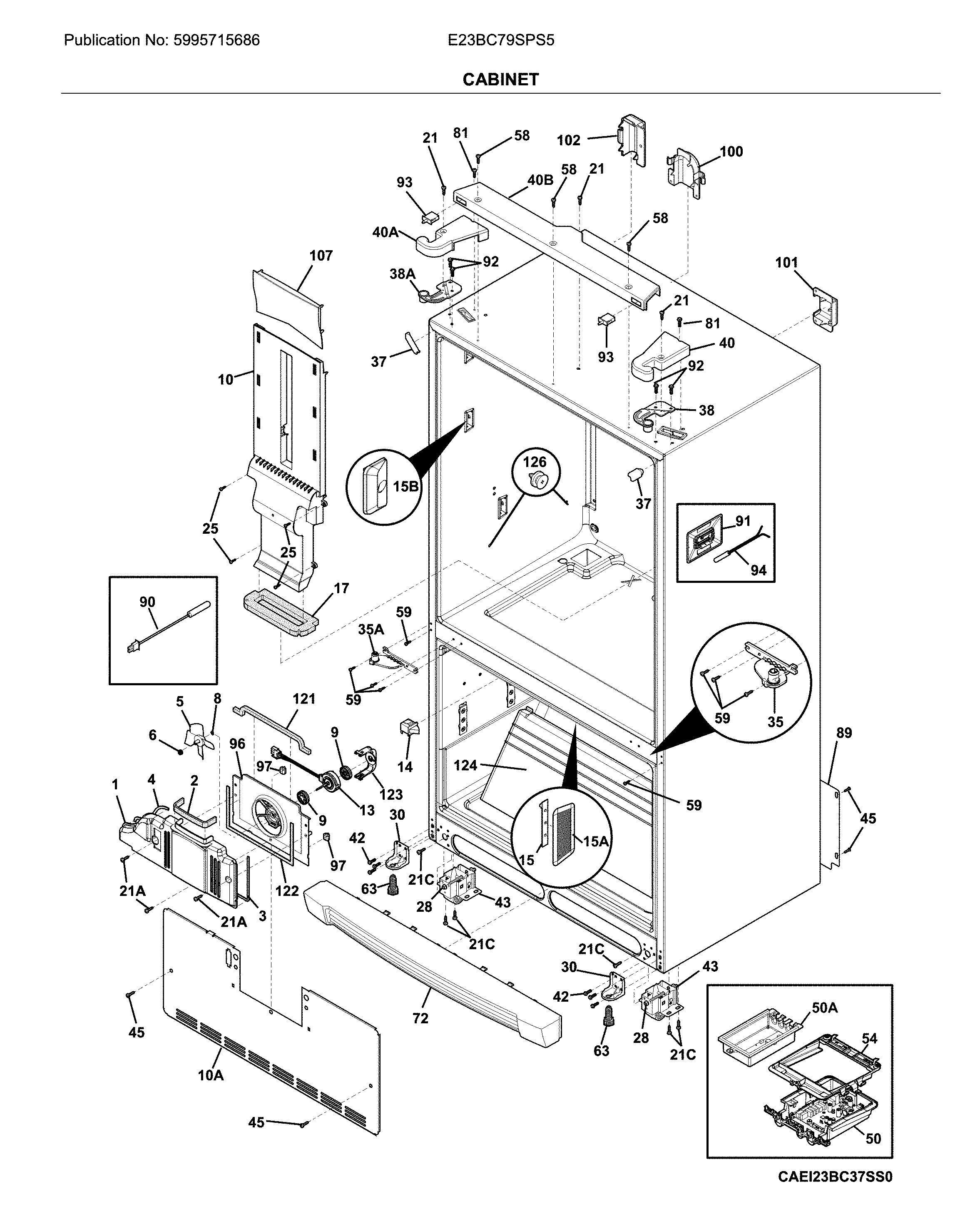

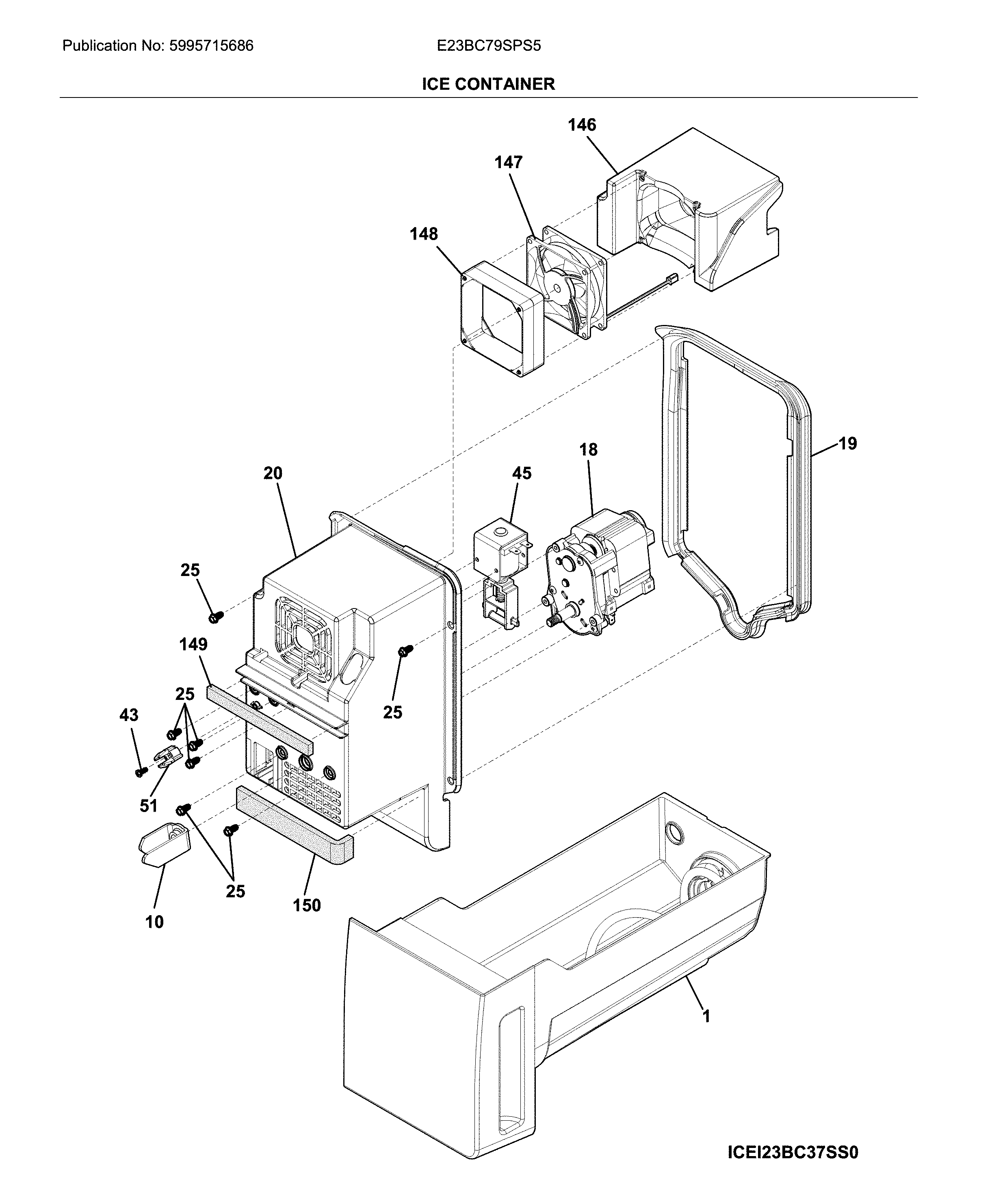

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Refrigerator Door Air Filter 242047801
Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
