Model # JKP35BM1BB Official GE wall oven
Here are the diagrams and repair parts for Official GE JKP35BM1BB wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJKP35BM1BB Wall Ovens

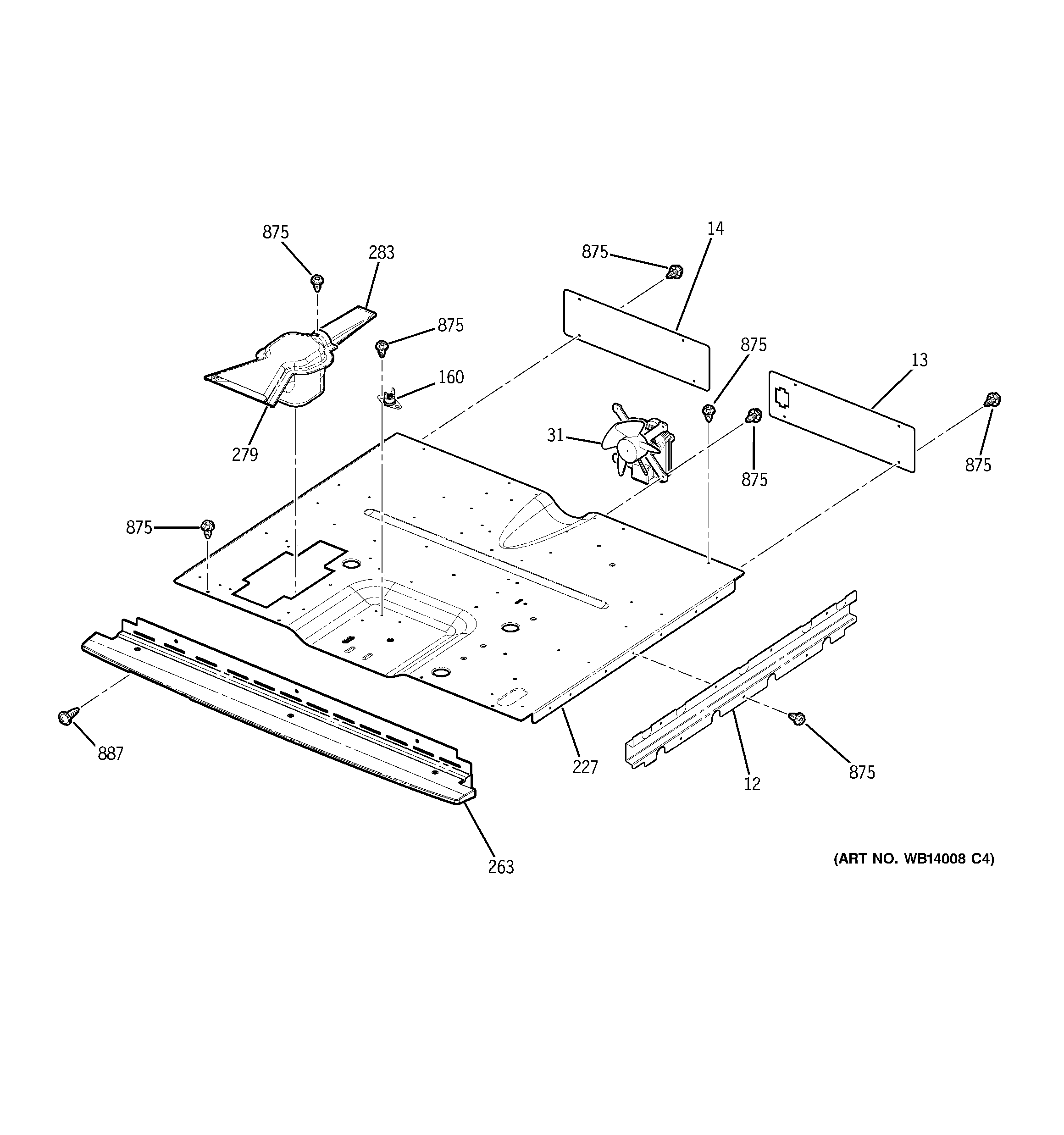

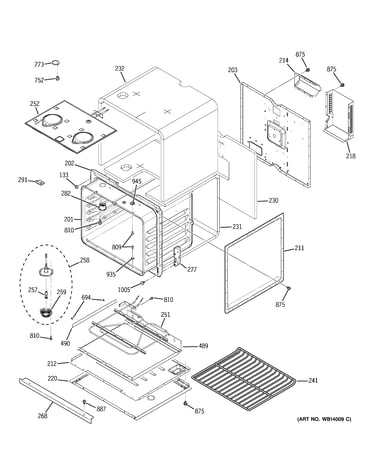

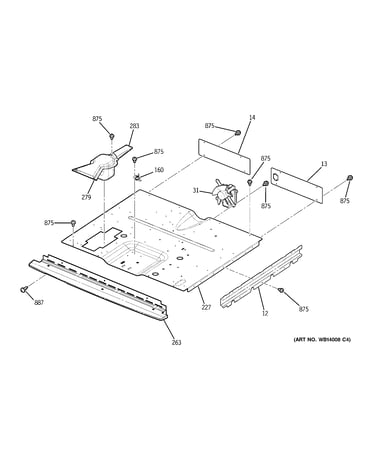

- #253

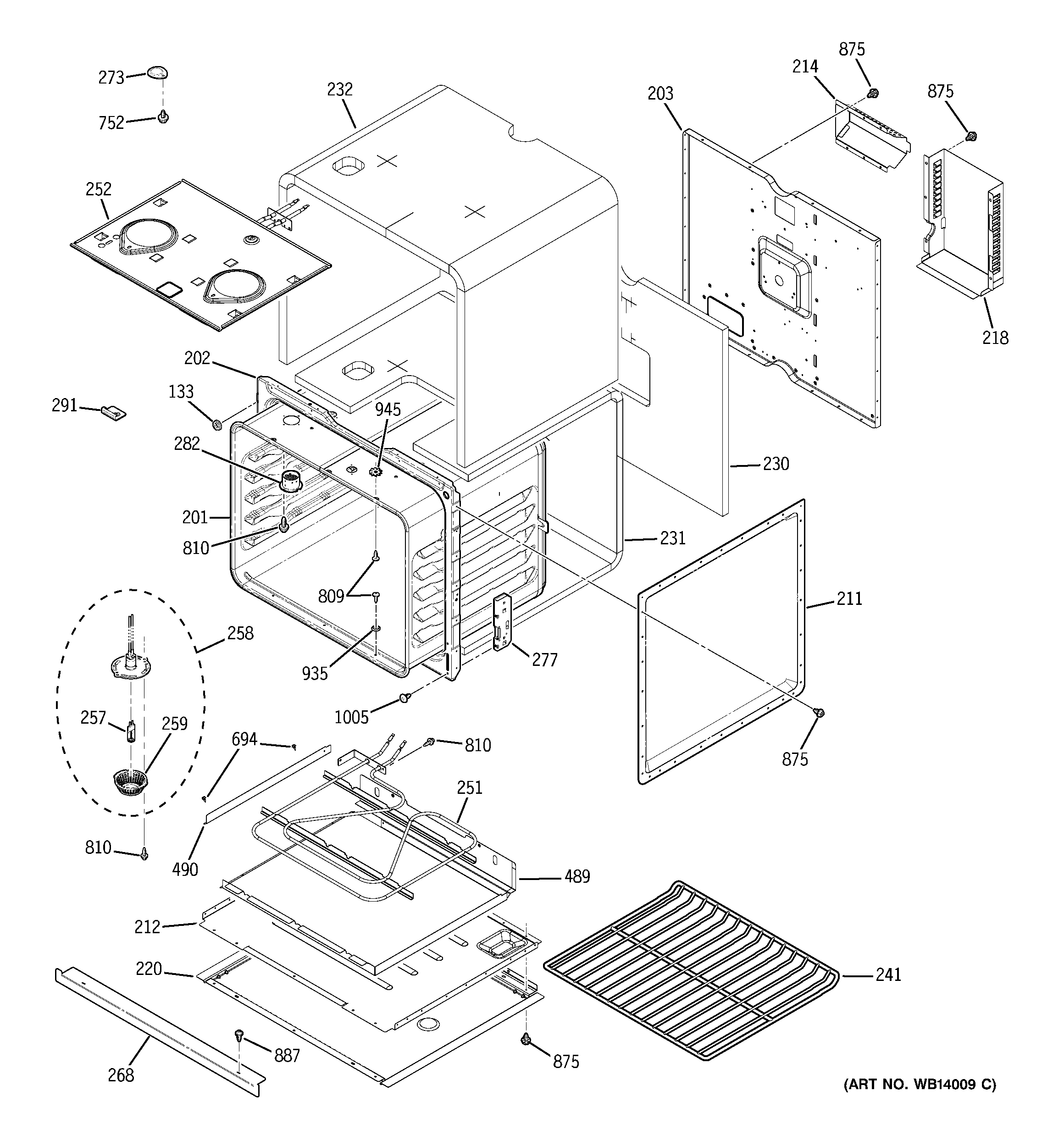

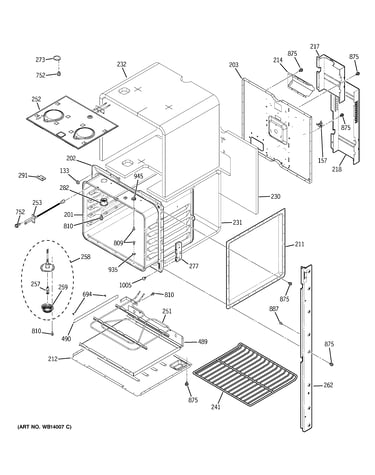

Upper oven diagram
SensorPart #WB21T10017
Replaced by #WB21X22134
?Manufacturer substitutionThis part replaces WB21T10017. Substitute parts can look different from the original.$20.60 |23% OFF Phone Price : $26.60In Stock - #157
Upper oven diagram
Wall oven high-limit thermostatPart #WB24T10081
This item is not returnable$30.47 |16% OFF Phone Price : $36.47In Stock - Cooking appliance screw, #10-32
Part #WB01T10008
This item is not returnable$9.89 |9% OFF Phone Price : $10.89In Stock - #699

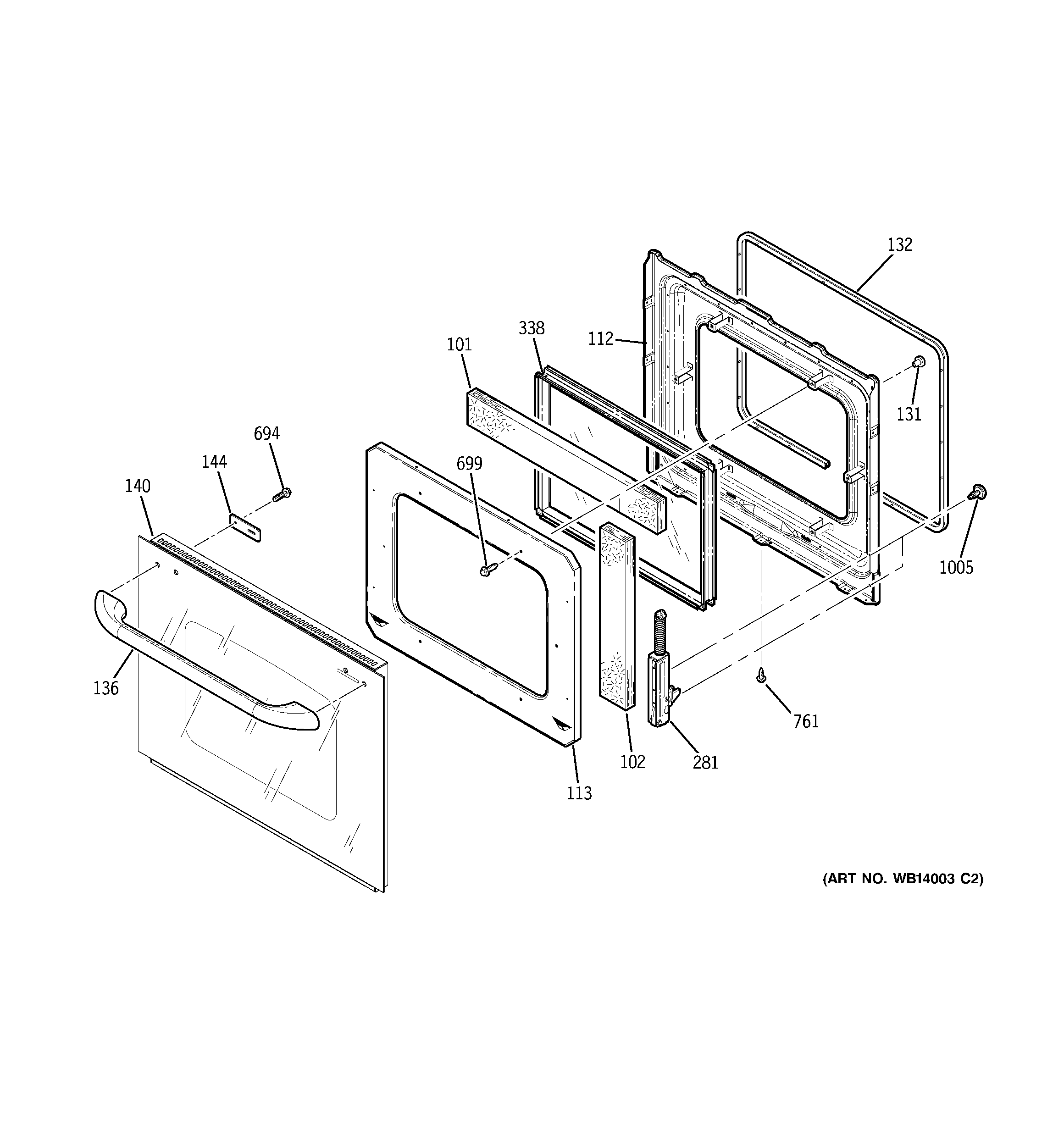

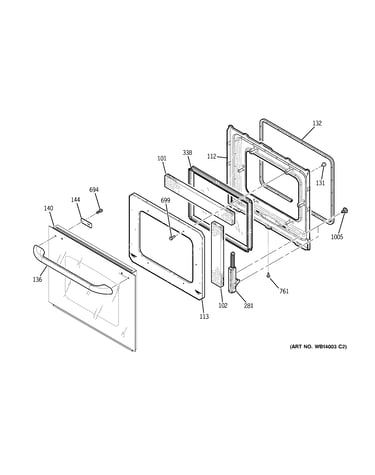

Door diagram
ScrewPart #WB01K5150
Replaced by #WB1M1
?Manufacturer substitutionThis part replaces WB01K5150. Substitute parts can look different from the original.This item is not returnable$7.17 |12% OFF Phone Price : $8.17In Stock - Screw, #10-32 x 17/32-in
Part #WB01X1253
Replaced by #WB1X1130
?Manufacturer substitutionThis part replaces WB01X1253. Substitute parts can look different from the original.$8.70 |10% OFF Phone Price : $9.70In Stock - #338
Door diagram
G.e. wall oven door middle glassPart #WB55T10086
$167.67 |7% OFF Phone Price : $179.67In Stock - #158

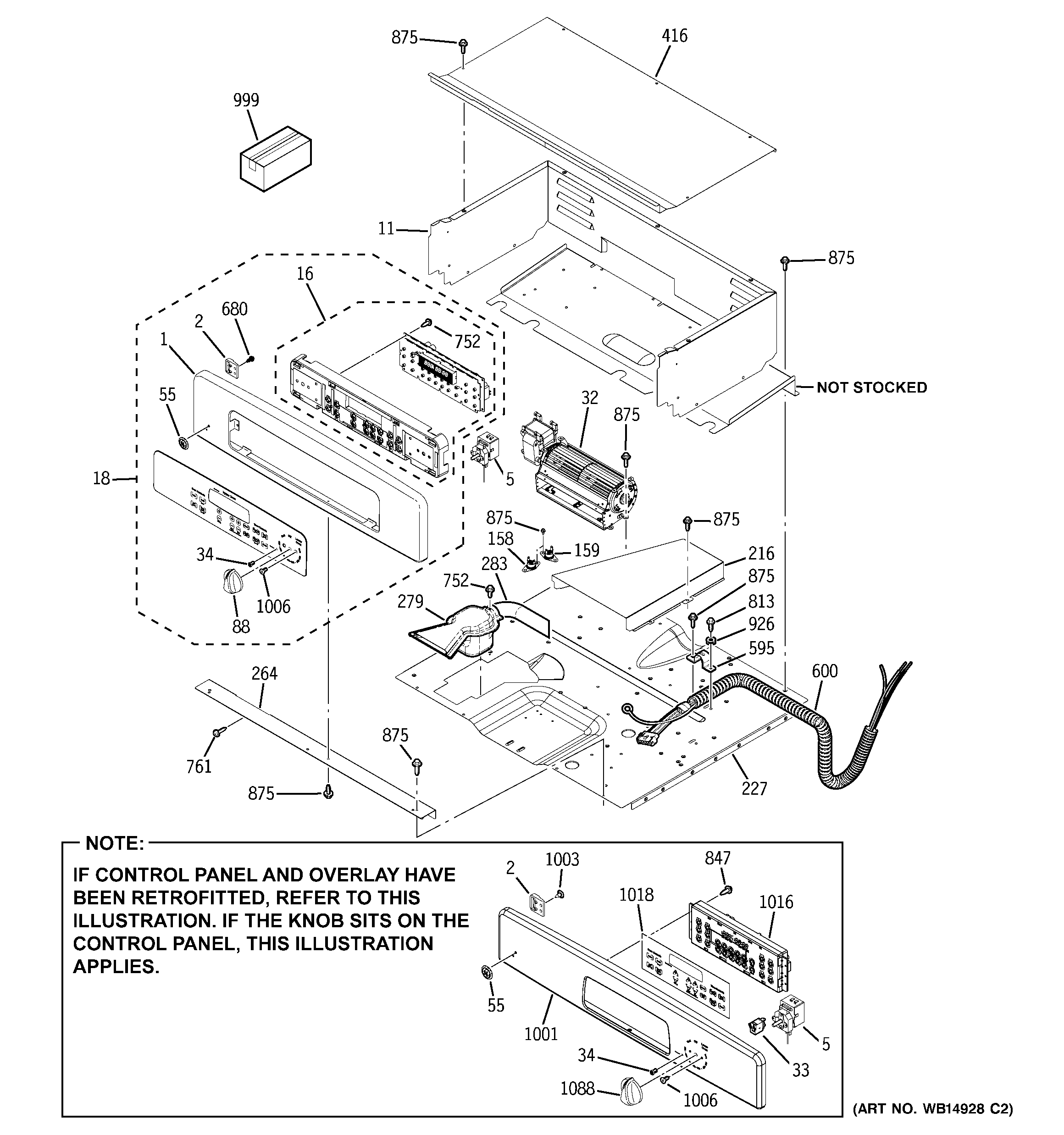

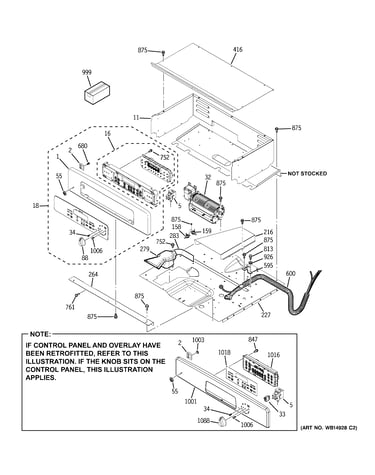

Control panel diagram
Limit bake switchPart #WB24T10080
This item is not returnable$21.64 |22% OFF Phone Price : $27.64In Stock - Halogen lamp
Part #WB25T10030
Replaced by #WB25T10096
?Manufacturer substitutionThis part replaces WB25T10030. Substitute parts can look different from the original.$52.03 |10% OFF Phone Price : $58.03In Stock - #5
Control panel diagram
Wall oven control thermostatPart #WB20T10026
$97.08 |11% OFF Phone Price : $109.08In Stock - Scr 8-18x.45
Part #WB01T10110
This item is not returnable$7.97 |11% OFF Phone Price : $8.97In Stock
