Room Air Conditioner

Model # AJCH10DCBW2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCH10DCBW2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Room Air Conditioner Control Knob WJ12X10072
#1086

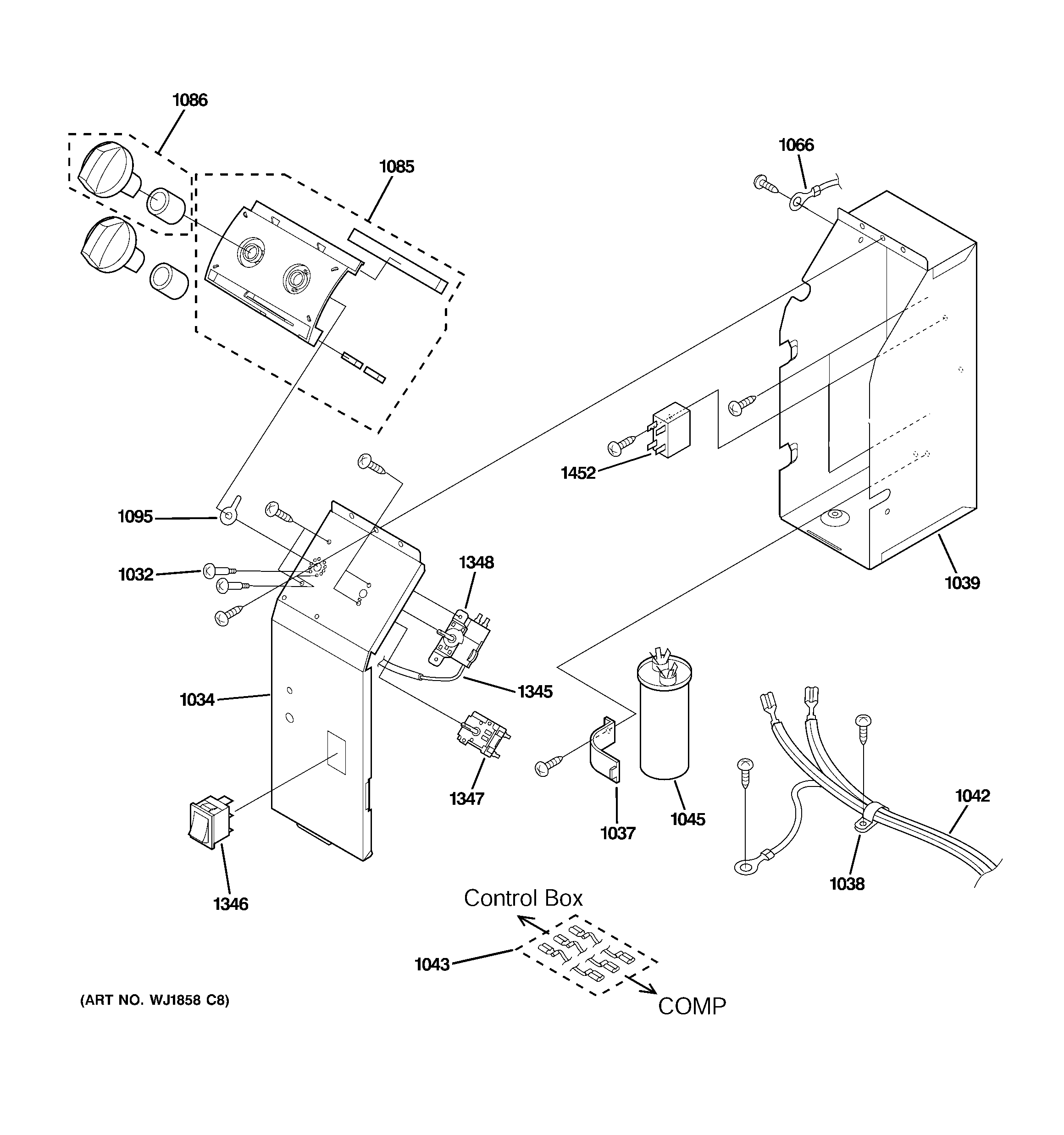

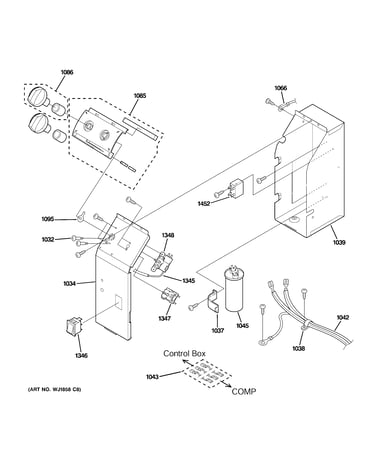

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Spacer WB02X11329
#1014

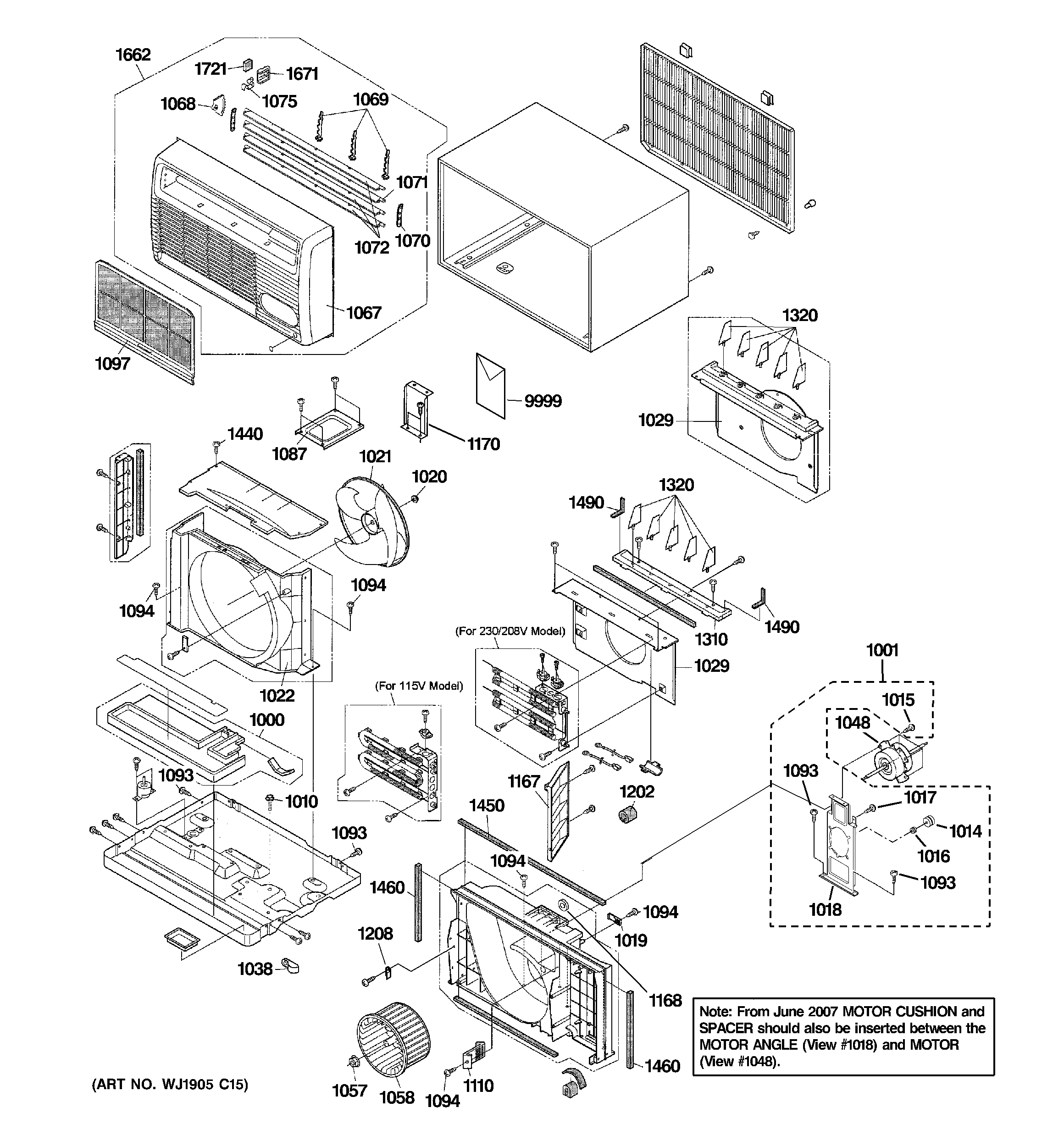

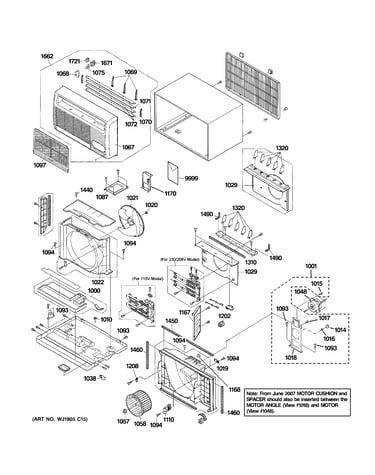

Cabinet & components diagram

Spacer

Part #WB02X11329

This item is not returnable
$2.20
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Om/ii J-mode 49-7542
#9999

Cabinet & components diagram

Om/ii j-mode

Part #49-7542

$17.99
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Power Cord WJ35X10091
#1042

Control parts diagram

Power cord

Part #WJ35X10091

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10091. Substitute parts can look different from the original.
$123.24 |
9% OFF Phone Price : $135.24
In Stock
Room Air Conditioner Indoor Fan Motor Cushion WJ01X10034
#1016

Cabinet & components diagram

Room air conditioner indoor fan motor cushion

Part #WJ01X10034

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10201
#1012

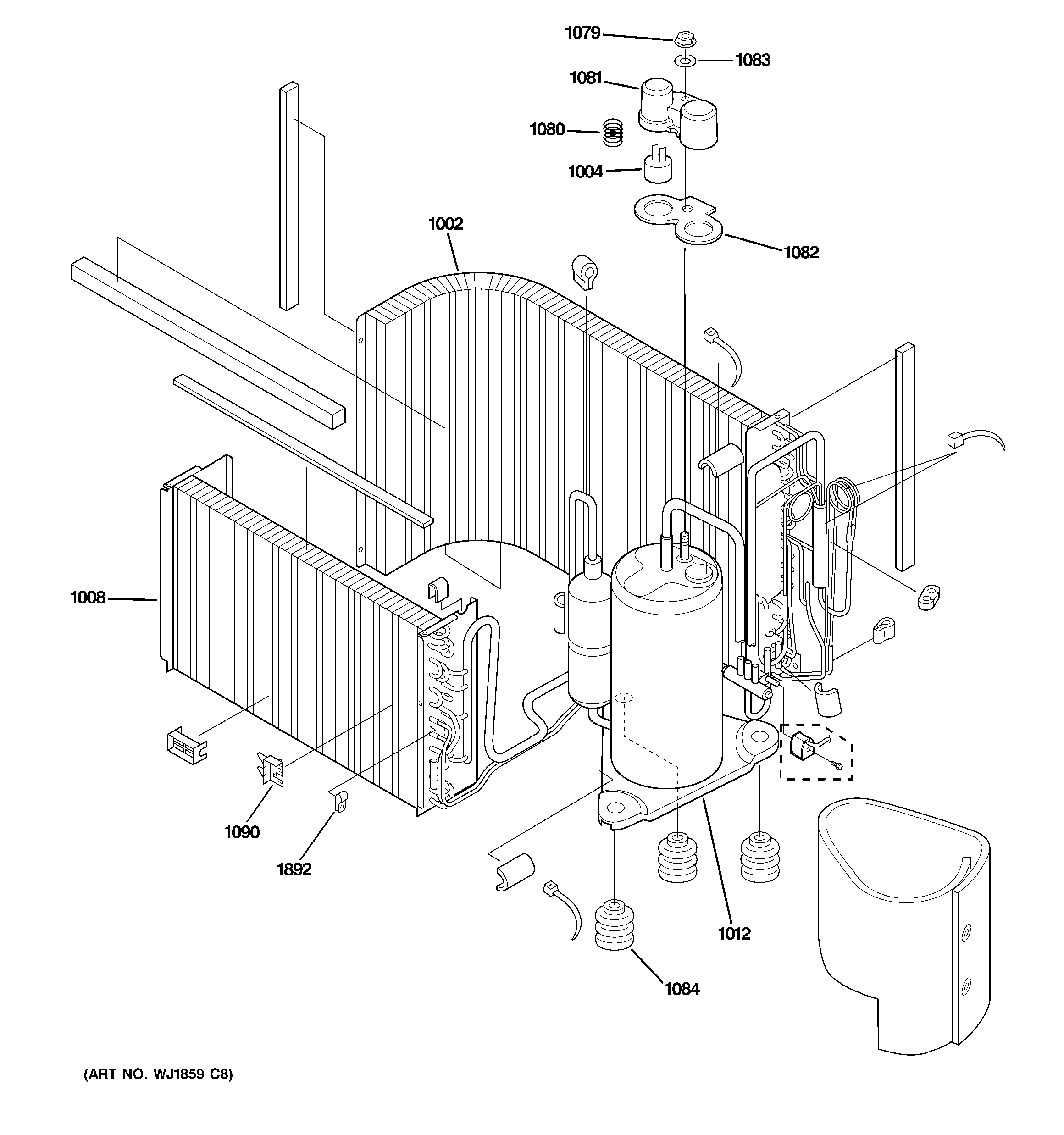

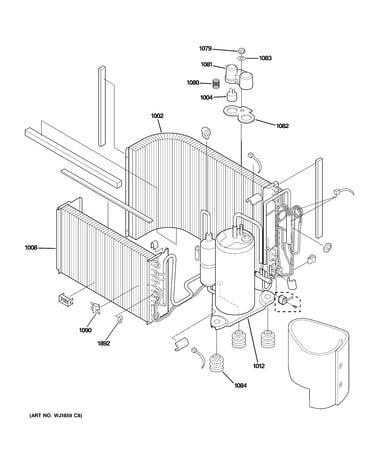

Sealed system & components diagram

Compressor

Part #WJ98X10201

The manufacturer no longer makes this part, and there's no substitute part

Special Nut WJ01X10283
#1020

Cabinet & components diagram

Special nut

Part #WJ01X10283

The manufacturer no longer makes this part, and there's no substitute part

Condenser WJ88X10166
#1002

Sealed system & components diagram

Condenser

Part #WJ88X10166

The manufacturer no longer makes this part, and there's no substitute part
