Model # 13934172410 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 13934172410 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Grill Door Beam(cart Beam) CH30173104
#38

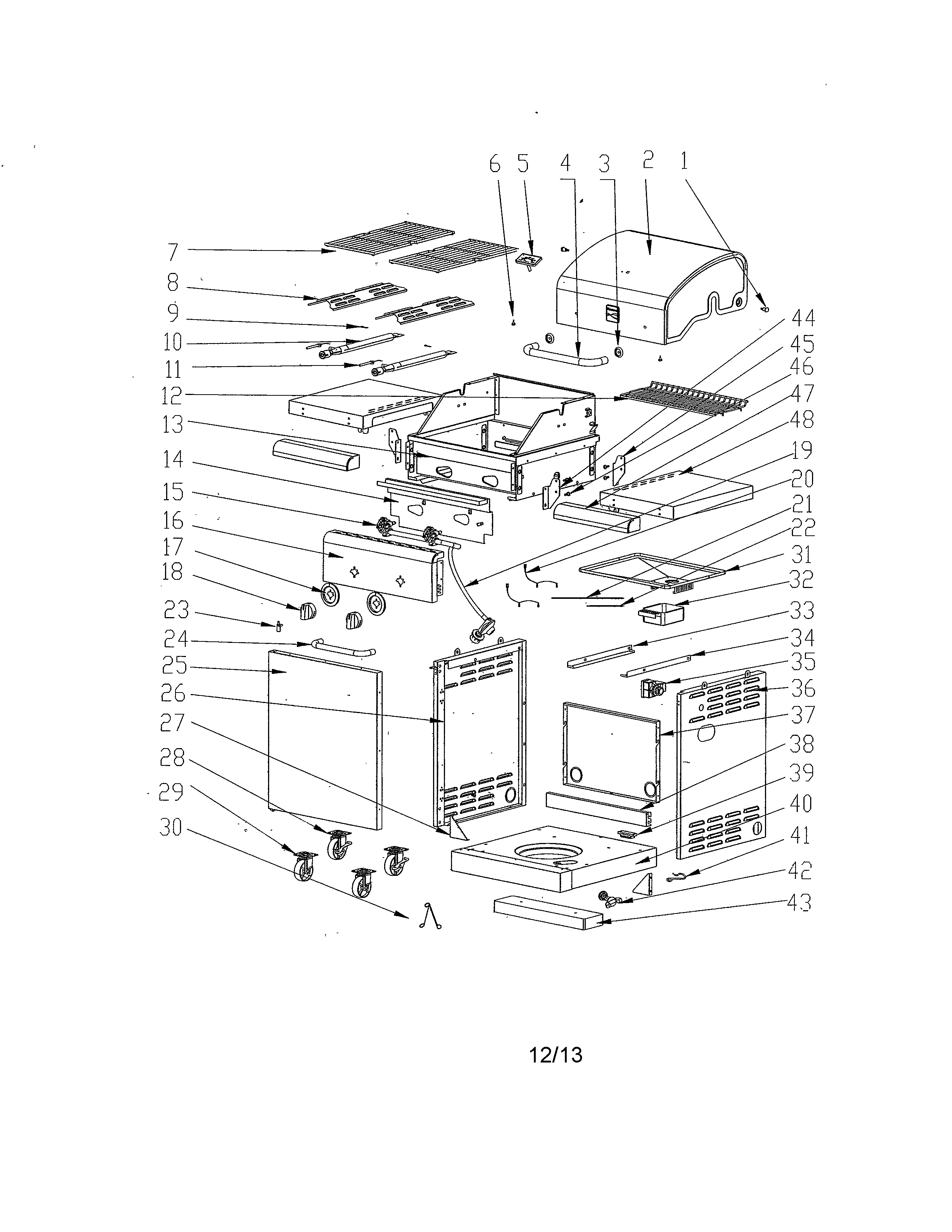

Gas grill diagram

Grill door beam(cart beam)

Part #CH30173104

The manufacturer no longer makes this part, and there's no substitute part

Grill Magnet CH30173105
#39

Gas grill diagram

Grill magnet

Part #CH30173105

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter Wire CH3017392
#21

Gas grill diagram

Gas grill igniter wire

Part #CH3017392

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Shelf Support, Left CH30173109
#44

Gas grill diagram

Gas grill side shelf support, left

Part #CH30173109

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Lid Hinge Shaft CH3017302
#1

Gas grill diagram

Gas grill lid hinge shaft

Part #CH3017302

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Caster Wheel And Brake CH3017372
#28

Gas grill diagram

Gas grill caster wheel and brake

Part #CH3017372

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Regulator And Hose CH3017390
#19

Gas grill diagram

Gas grill regulator and hose

Part #CH3017390

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Door CH3017396
#25

Gas grill diagram

Gas grill door

Part #CH3017396

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Shelf Fascia Assembly CH30173113
#47

Gas grill diagram

Gas grill side shelf fascia assembly

Part #CH30173113

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Grease Tray CH3017398
#31

Gas grill diagram

Gas grill grease tray

Part #CH3017398

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas grills

Choose a symptom to see related gas grill repairs.

View all

Why don't the burners on my gas grill get gas?

Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…

Read more

Why won't some burners light on my gas grill?

Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…

Read more

Why is my gas grill not hot enough?

Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…

Read more

What should I do about grease flare-ups in my gas grill?

Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…

Read more

Do I have to replace a broken wheel on a gas grill?

Main cause: worn wheel…

Read more
