Model # LCG771LW3 Official Frigidaire stacked laundry center

Here are the diagrams and repair parts for Official Frigidaire LCG771LW3 stacked laundry center, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for

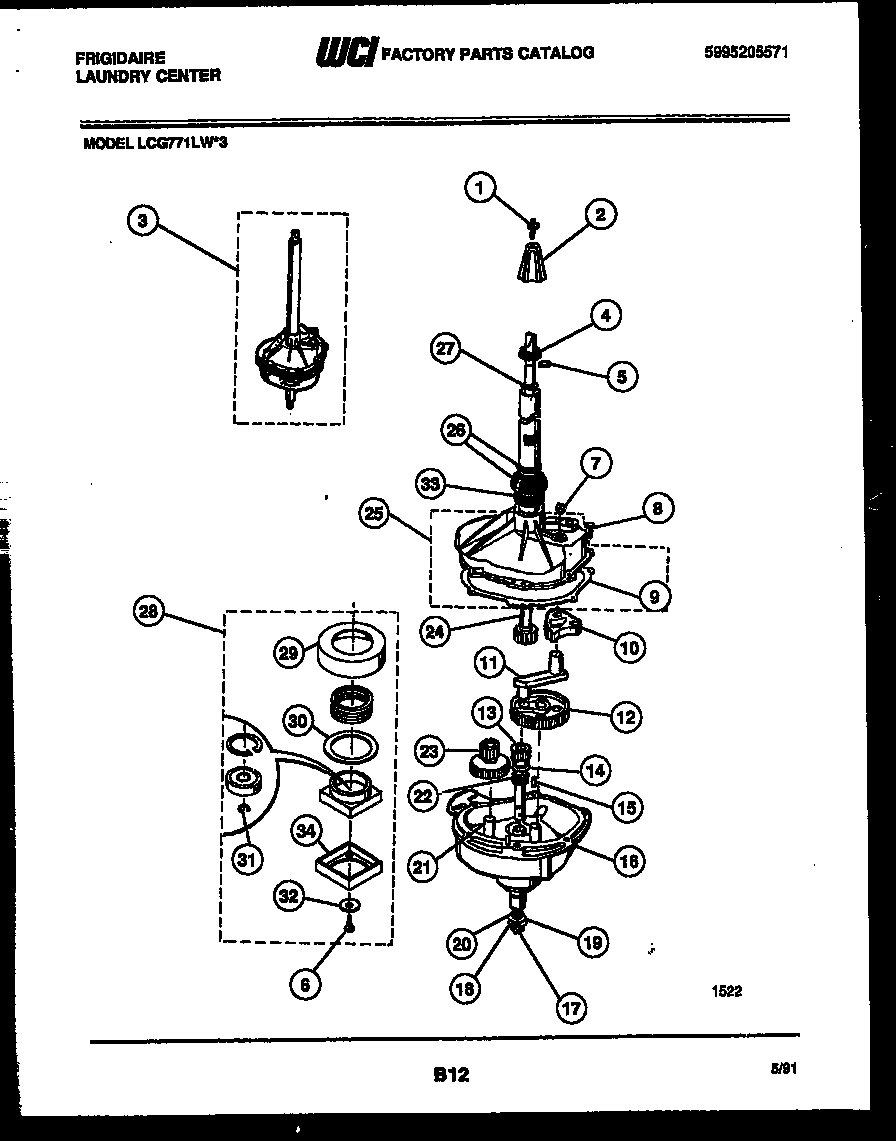

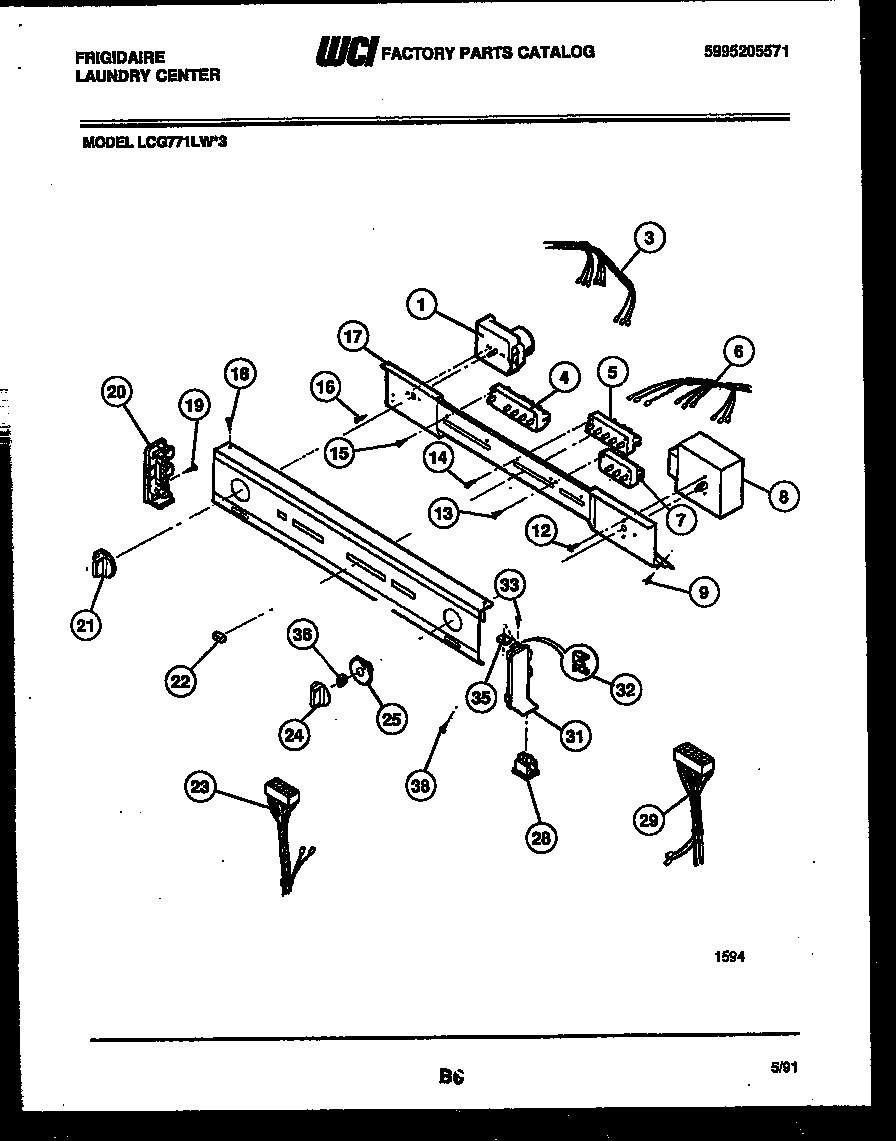

LCG771LW3 Laundry Center
Bearing 5303281008
#12

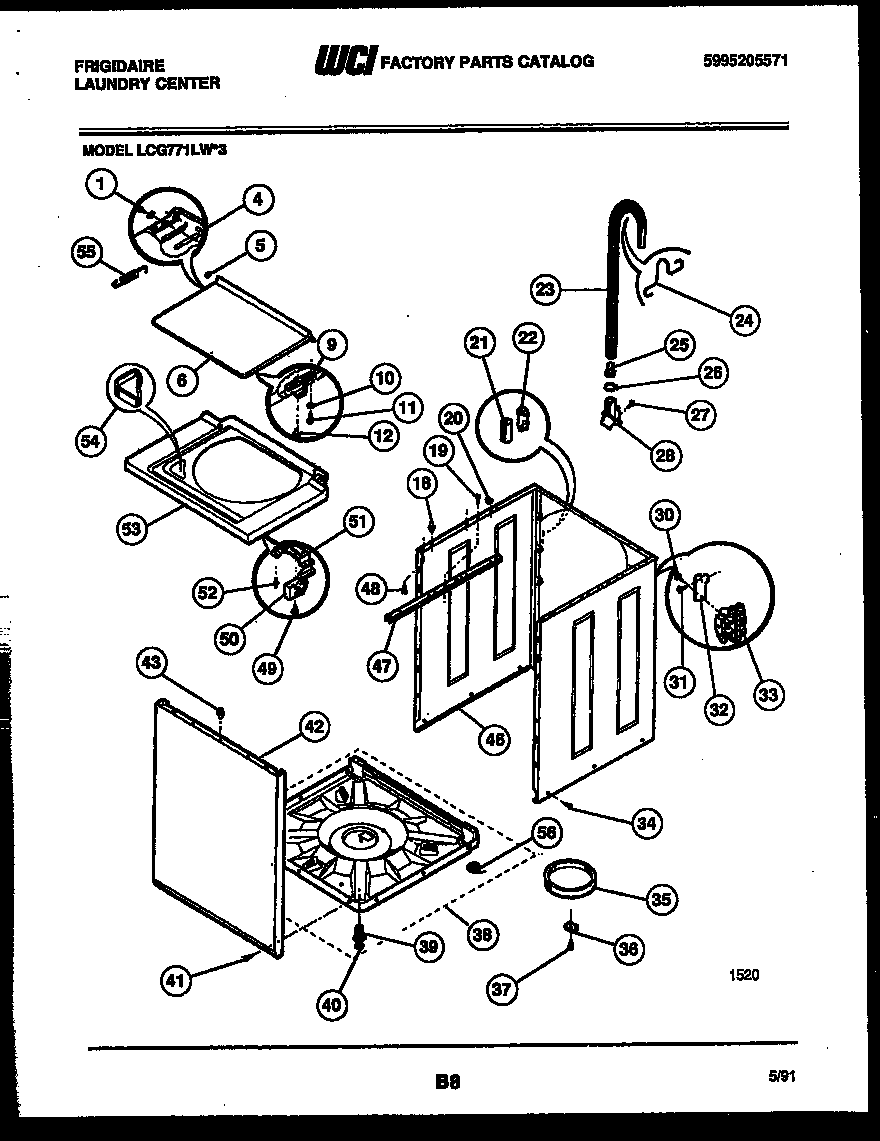

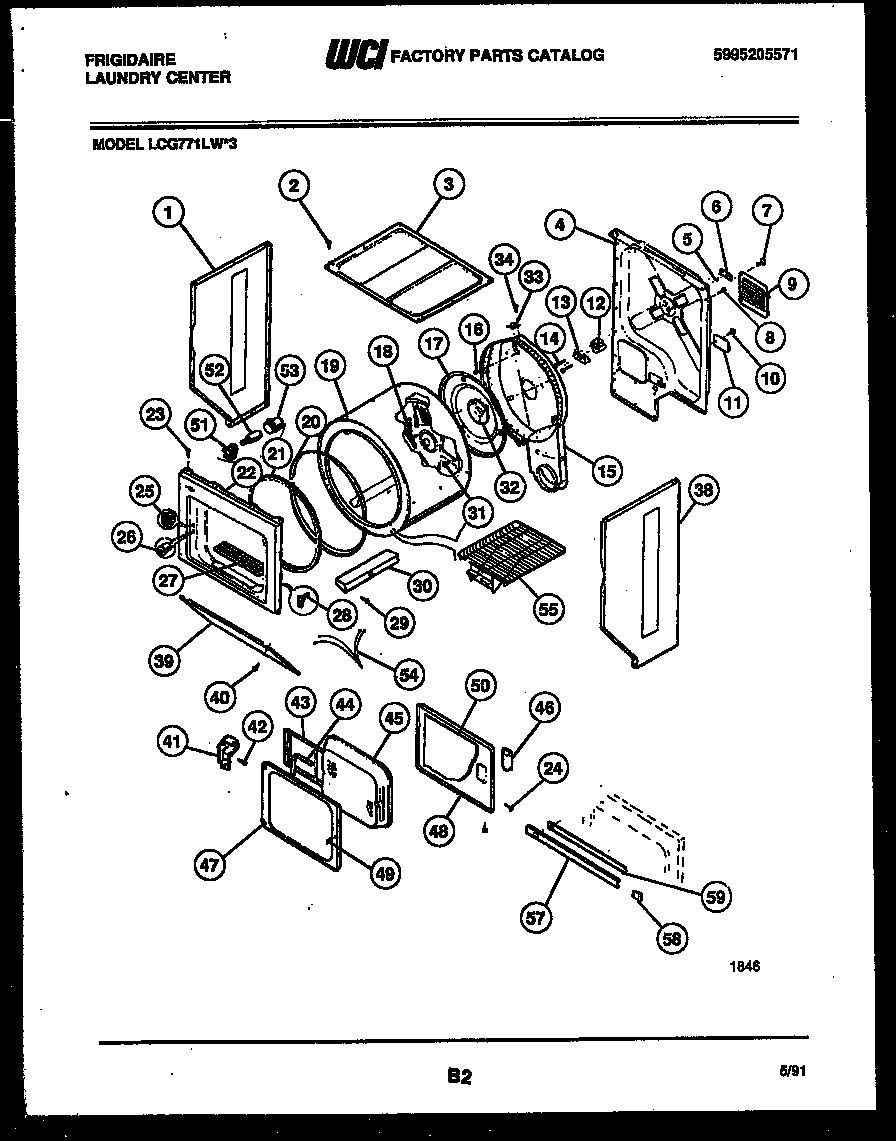

Cabinet and component parts diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
2.5 (4)
BEST SELLER
$7.37 |
12% OFF Phone Price : $8.37
In Stock
Latch 5303281055
#25

Cabinet and component parts diagram

Latch

Part #5303281055

Replaced by #131658800

?
Manufacturer substitution
This part replaces 5303281055. Substitute parts can look different from the original.
3.86 (42)
BEST SELLER
$42.30 |
12% OFF Phone Price : $48.30
In Stock
Wheel 5303212513
#12

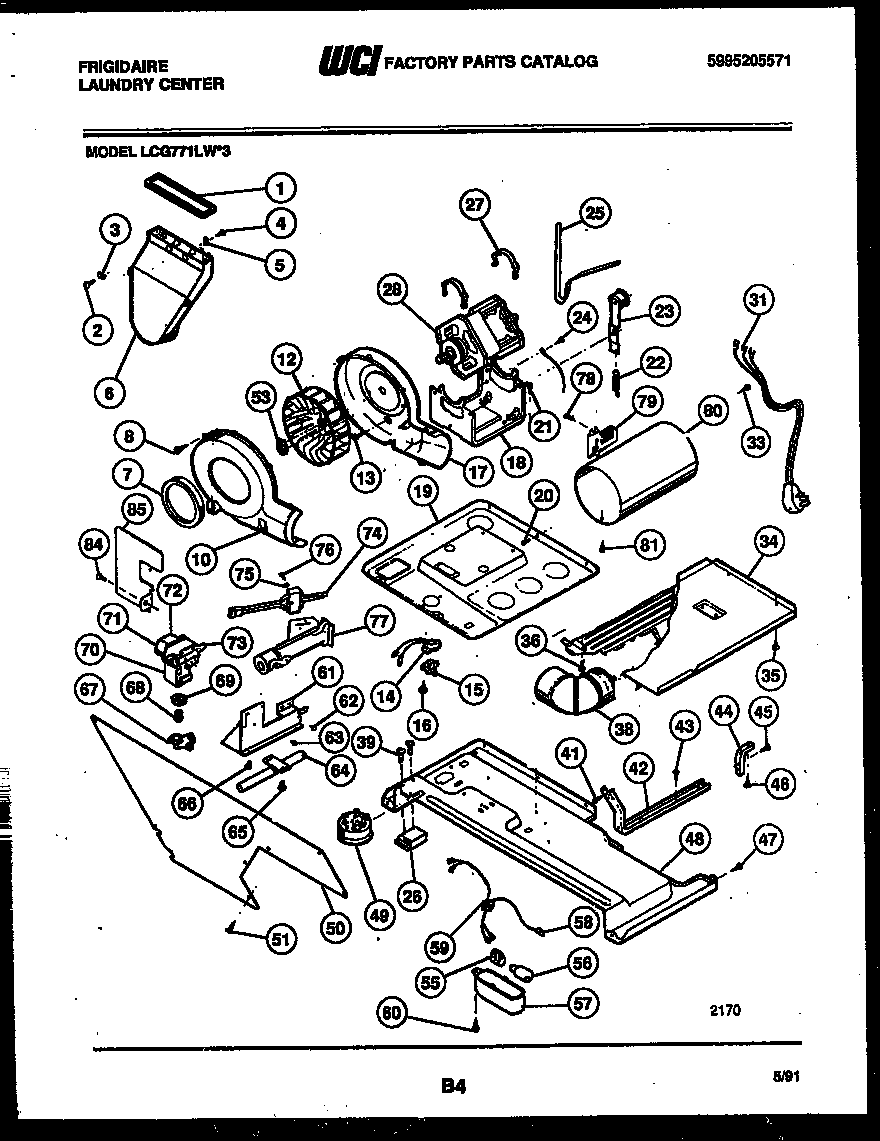

Motor, blower and cabinet parts diagram

Wheel

Part #5303212513

Replaced by #131476300

?
Manufacturer substitution
This part replaces 5303212513. Substitute parts can look different from the original.
3.67 (3)
BEST SELLER
$36.52 |
14% OFF Phone Price : $42.52
In Stock
Bracket 5303281023
#13

Cabinet and component parts diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.59 |
13% OFF Phone Price : $15.59
In Stock
Screw 5303212866
#16

Cabinet and component parts diagram

Screw

Part #5303212866

Replaced by #131168200

?
Manufacturer substitution
This part replaces 5303212866. Substitute parts can look different from the original.
2.33 (3)
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Screw 3204253
#20

Motor, blower and cabinet parts diagram

Screw

Part #3204253

Replaced by #131168200

?
Manufacturer substitution
This part replaces 3204253. Substitute parts can look different from the original.
2.33 (3)
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Screw 5303161233
Screw

Part #5303161233

Replaced by #131168200

?
Manufacturer substitution
This part replaces 5303161233. Substitute parts can look different from the original.
2.33 (3)
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Dryer Radiant Sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, F000078913, F078913-000, F78913, Fl00078913, Q000600651, Wq600651) 5303281135
#79

Motor, blower and cabinet parts diagram

Dryer radiant sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, f000078913, f078913-000, f78913, fl00078913, q000600651, wq600651)

Part #5303281135

3 (2)
BEST SELLER
$53.26 |
10% OFF Phone Price : $59.26
In Stock
Screw 5308027517
#14

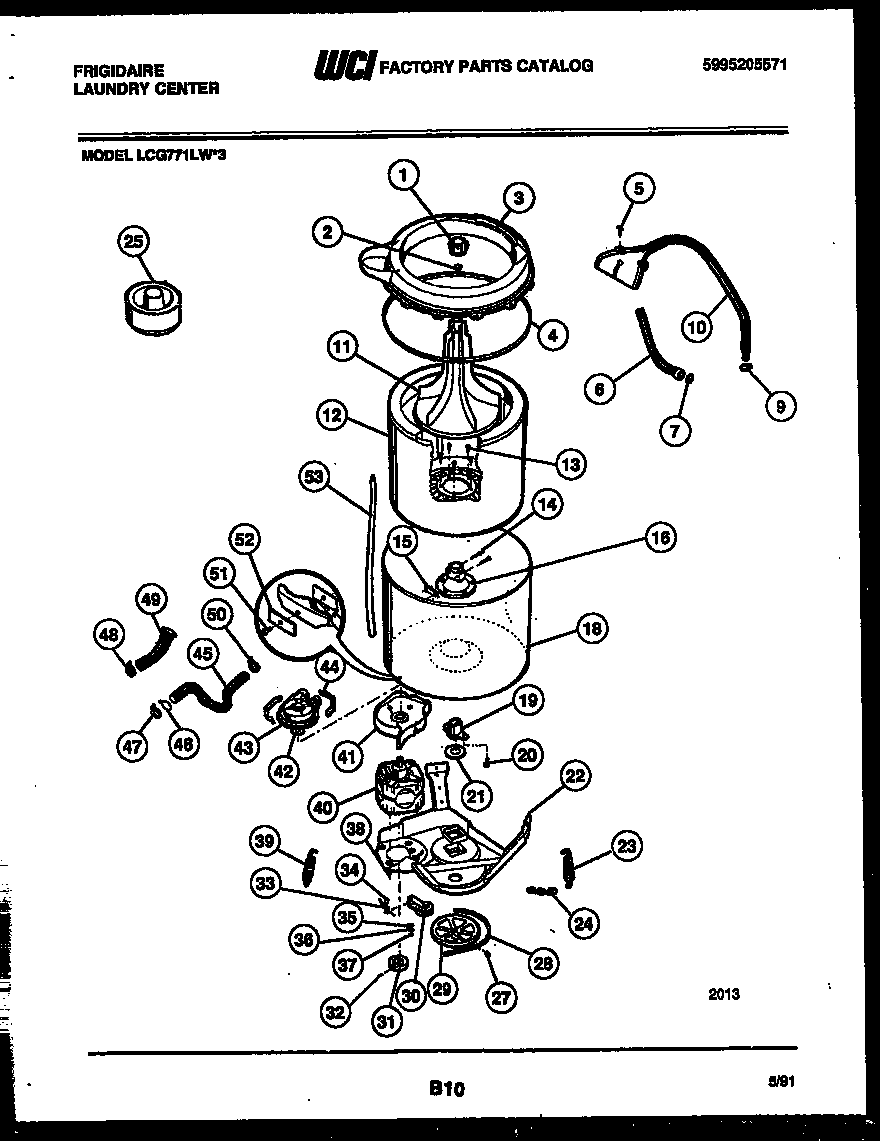

Tub detail diagram

Screw

Part #5308027517

Replaced by #137539500

?
Manufacturer substitution
This part replaces 5308027517. Substitute parts can look different from the original.
BEST SELLER
$18.08 |
10% OFF Phone Price : $20.08
In Stock
Screw 3205239
#42

Cabinet and component parts diagram

Screw

Part #3205239

Replaced by #131302800

?
Manufacturer substitution
This part replaces 3205239. Substitute parts can look different from the original.
$14.41 |
12% OFF Phone Price : $16.41
In Stock
