Model # 11076562220 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 11076562220 electric dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for11076562220 Electric Dryer
- #56

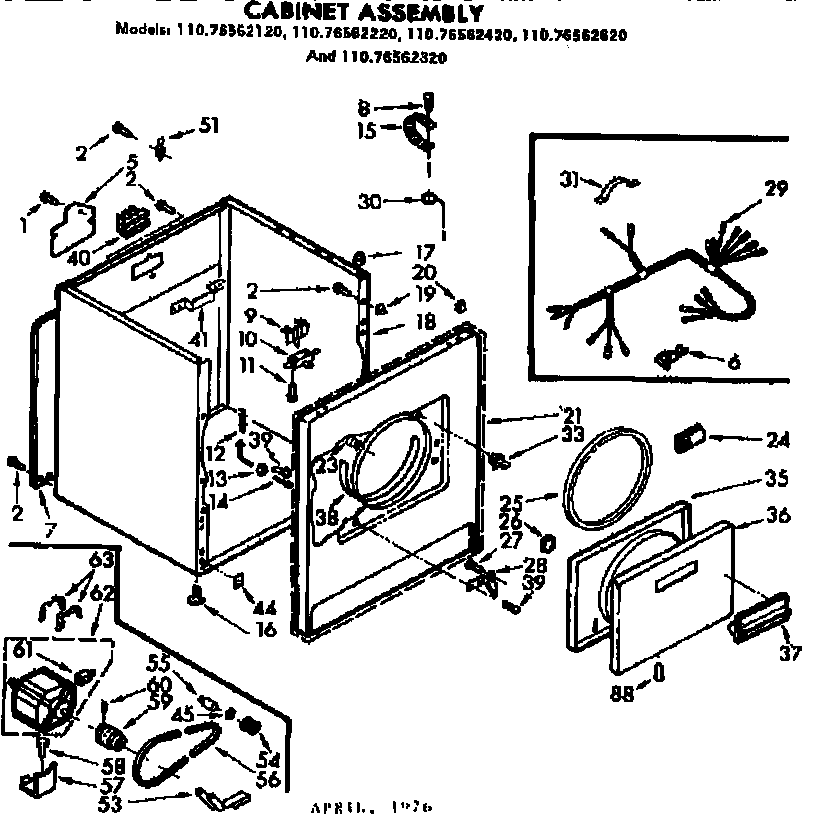

Cabinet assembly diagram
Drum beltPart #349533
Replaced by #341241
?Manufacturer substitutionThis part replaces 349533. Substitute parts can look different from the original.$9.89 |9% OFF Phone Price : $10.89In Stock - #62A
Cabinet assembly diagram
MotorPart #346744
Replaced by #279827
?Manufacturer substitutionThis part replaces 346744. Substitute parts can look different from the original.$81.17 |7% OFF Phone Price : $87.17In Stock - #61C
Cabinet assembly diagram
SwitchPart #349588
Replaced by #279827
?Manufacturer substitutionThis part replaces 349588. Substitute parts can look different from the original.$81.17 |7% OFF Phone Price : $87.17In Stock - #61A
Cabinet assembly diagram
SwitchPart #337351
Replaced by #279827
?Manufacturer substitutionThis part replaces 337351. Substitute parts can look different from the original.$81.17 |7% OFF Phone Price : $87.17In Stock - #10

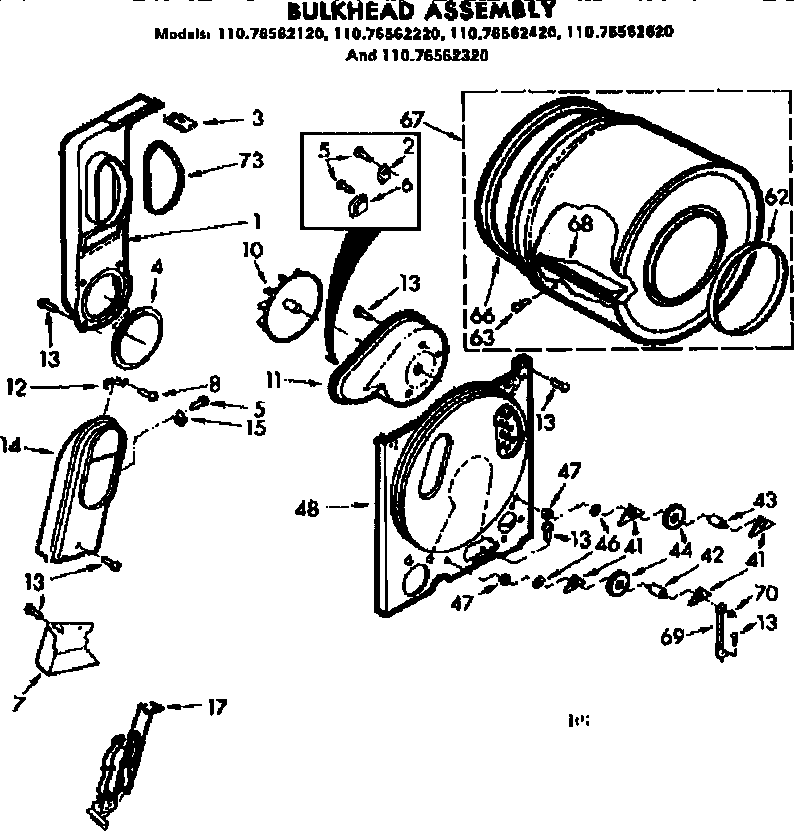

Bulkhead assembly diagram
Dryer blower wheelPart #343939
Replaced by #WP694089
?Manufacturer substitutionThis part replaces 343939. Substitute parts can look different from the original.$23.60 |20% OFF Phone Price : $29.60In Stock - #24
Cabinet assembly diagram
Door catchPart #347813
Replaced by #279570
?Manufacturer substitutionThis part replaces 347813. Substitute parts can look different from the original.This item is not returnable$4.25 |19% OFF Phone Price : $5.25In Stock - #33
Cabinet assembly diagram
Door strikePart #236876
Replaced by #279570
?Manufacturer substitutionThis part replaces 236876. Substitute parts can look different from the original.This item is not returnable$4.25 |19% OFF Phone Price : $5.25In Stock - #10
Cabinet assembly diagram
Dryer door switchPart #347207
Replaced by #W10820036
?Manufacturer substitutionThis part replaces 347207. Substitute parts can look different from the original.$21.44 |22% OFF Phone Price : $27.44In Stock - #41
Bulkhead assembly diagram
Tri-ringPart #339491
Replaced by #WPW10512946
?Manufacturer substitutionThis part replaces 339491. Substitute parts can look different from the original.$7.11 |12% OFF Phone Price : $8.11In Stock - #25A

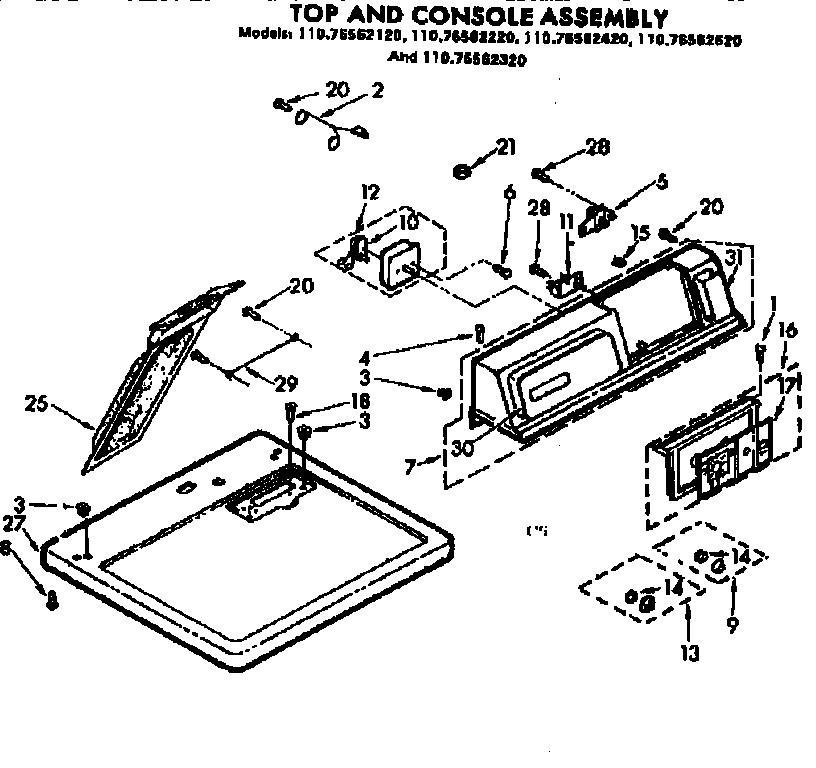

Top and console assembly diagram
ScreenPart #348855
Replaced by #W10874409
?Manufacturer substitutionThis part replaces 348855. Substitute parts can look different from the original.$40.32 |13% OFF Phone Price : $46.32In Stock
