Model # JP970BK1BB Official GE cooktop

Here are the diagrams and repair parts for Official GE JP970BK1BB cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#40

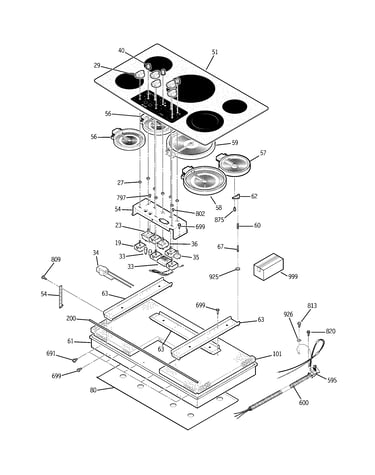

Cooktop parts diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Cooktop Indicator Light WB25T10012
#33

Cooktop parts diagram

Cooktop indicator light

Part #WB25T10012

This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Foam Tape WB06K5042
#200

Cooktop parts diagram

Foam tape

Part #WB06K5042

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB06K5042. Substitute parts can look different from the original.
$51.24 |
10% OFF Phone Price : $57.24
In Stock
Screw WB01K5150
#699

Cooktop parts diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WH02X0930
#875

Cooktop parts diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Radiant Surface Element, 6-in WB30T10043
#57

Cooktop parts diagram

Range radiant surface element, 6-in

Part #WB30T10043

$230.10 |
5% OFF Phone Price : $242.10
In Stock
Brkt Hold Dn WB02K5328
#54

Cooktop parts diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw WB01X1261
#813

Cooktop parts diagram

Screw

Part #WB01X1261

Replaced by #WB1X1261

?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Buzzer WB08T10031
#34

Cooktop parts diagram

Buzzer

Part #WB08T10031

Replaced by #WB08T10038

?
Manufacturer substitution
This part replaces WB08T10031. Substitute parts can look different from the original.
$67.09 |
8% OFF Phone Price : $73.09
In Stock
Cooktop Main Top Seal (replaces Wb02x11333) WB06T10007
#200

Cooktop parts diagram

Cooktop main top seal (replaces wb02x11333)

Part #WB06T10007

$32.79 |
15% OFF Phone Price : $38.79
In Stock
