Kenmore
Room Air Conditioner

Model # 58075050500 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075050500 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#3-C

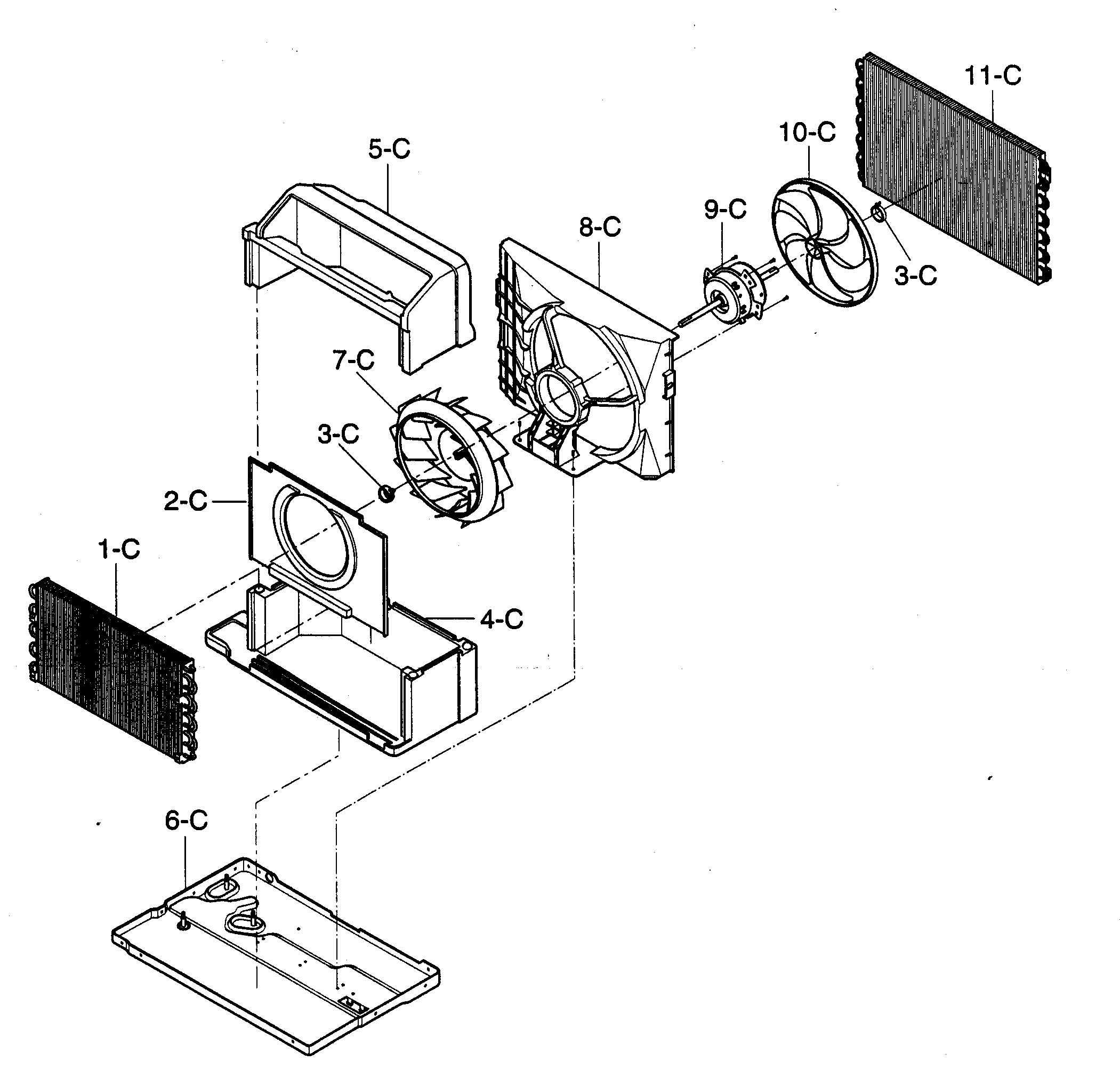

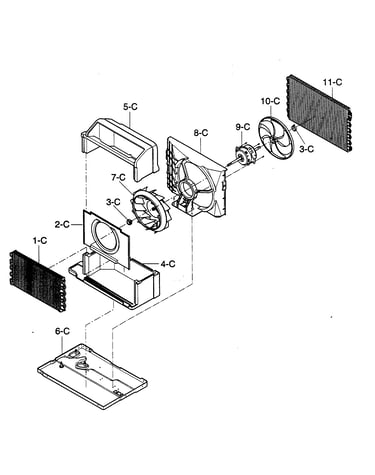

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Window Lock Bracket 4810A30113A
#3-E

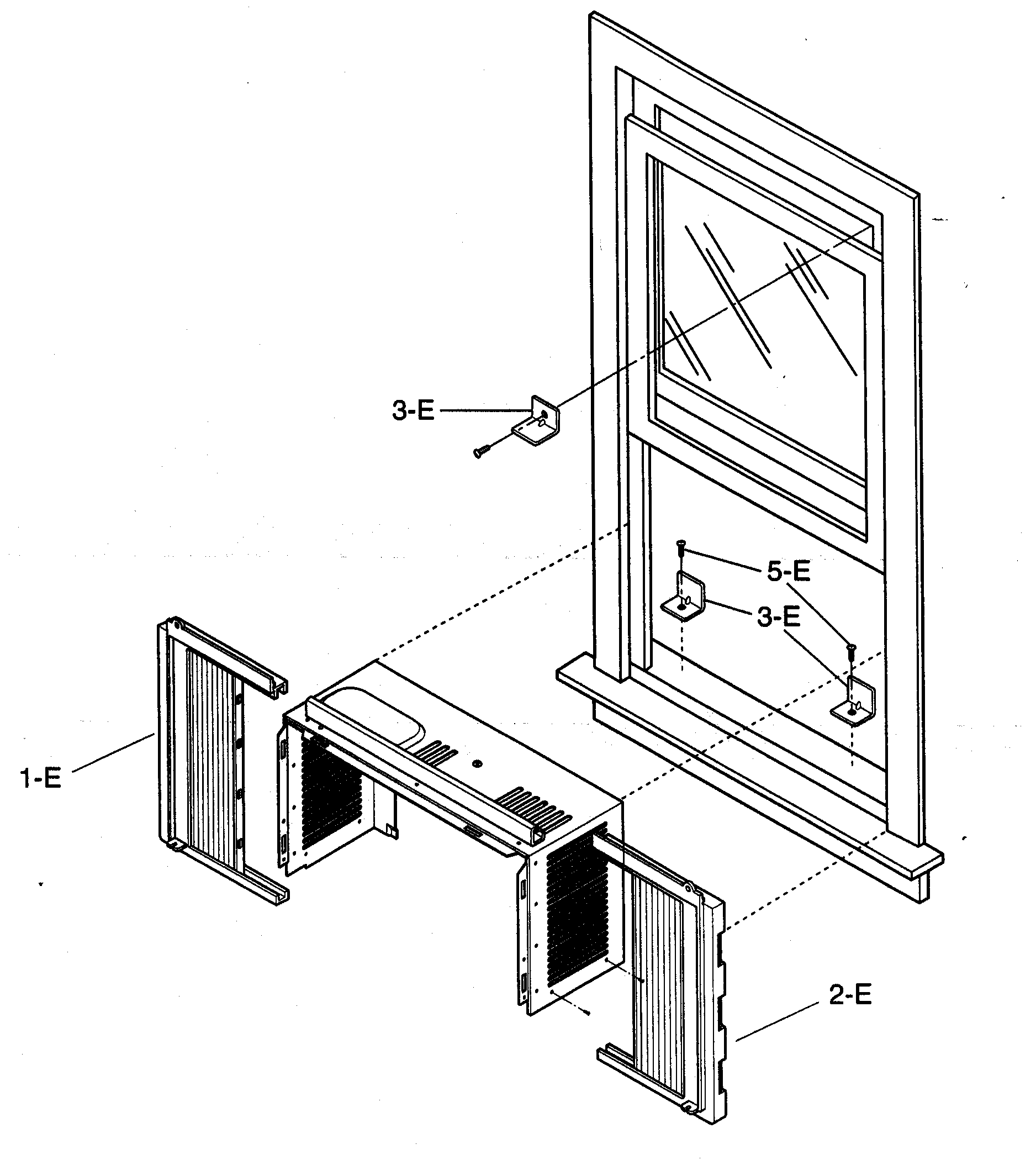

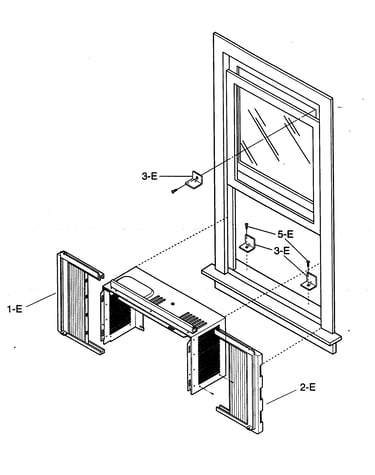

Installation kit assy diagram

Room air conditioner window lock bracket

Part #4810A30113A

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Friedrich Room Air Conditioner Fan Motor Capacitor (replaces 6120ar2359v) 0CZZA20005B
#11-B

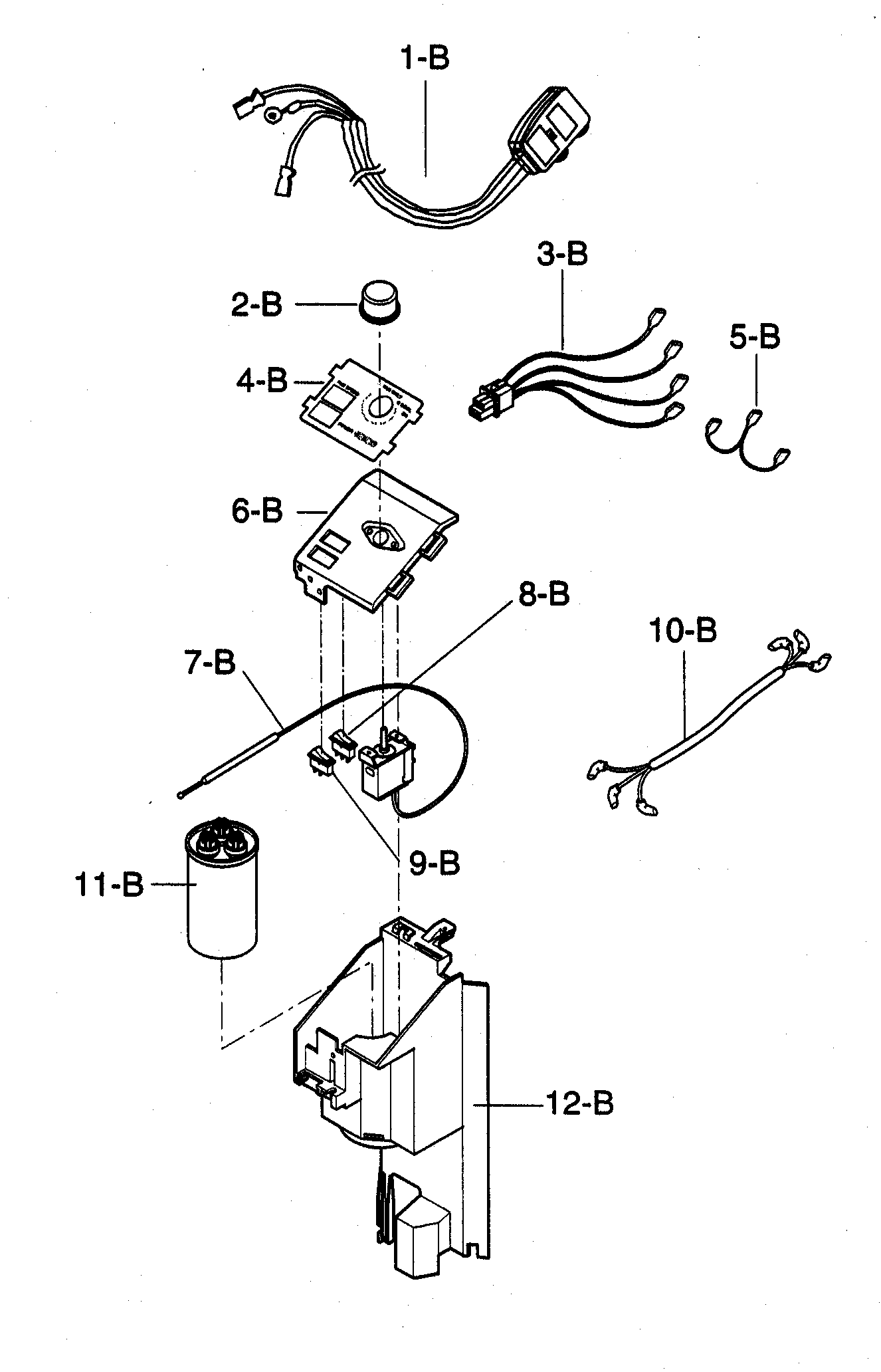

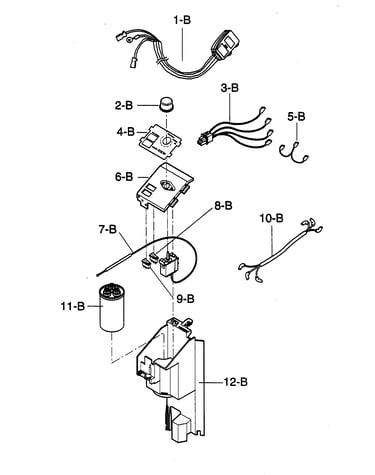

Control box assy diagram

Friedrich room air conditioner fan motor capacitor (replaces 6120ar2359v)

Part #0CZZA20005B

$29.57 |
17% OFF Phone Price : $35.57
In Stock
Curtain 3211A20010A
#1-E

Installation kit assy diagram

Curtain

Part #3211A20010A

Replaced by #AET74151701

?
Manufacturer substitution
This part replaces 3211A20010A. Substitute parts can look different from the original.
$46.62
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#9-D

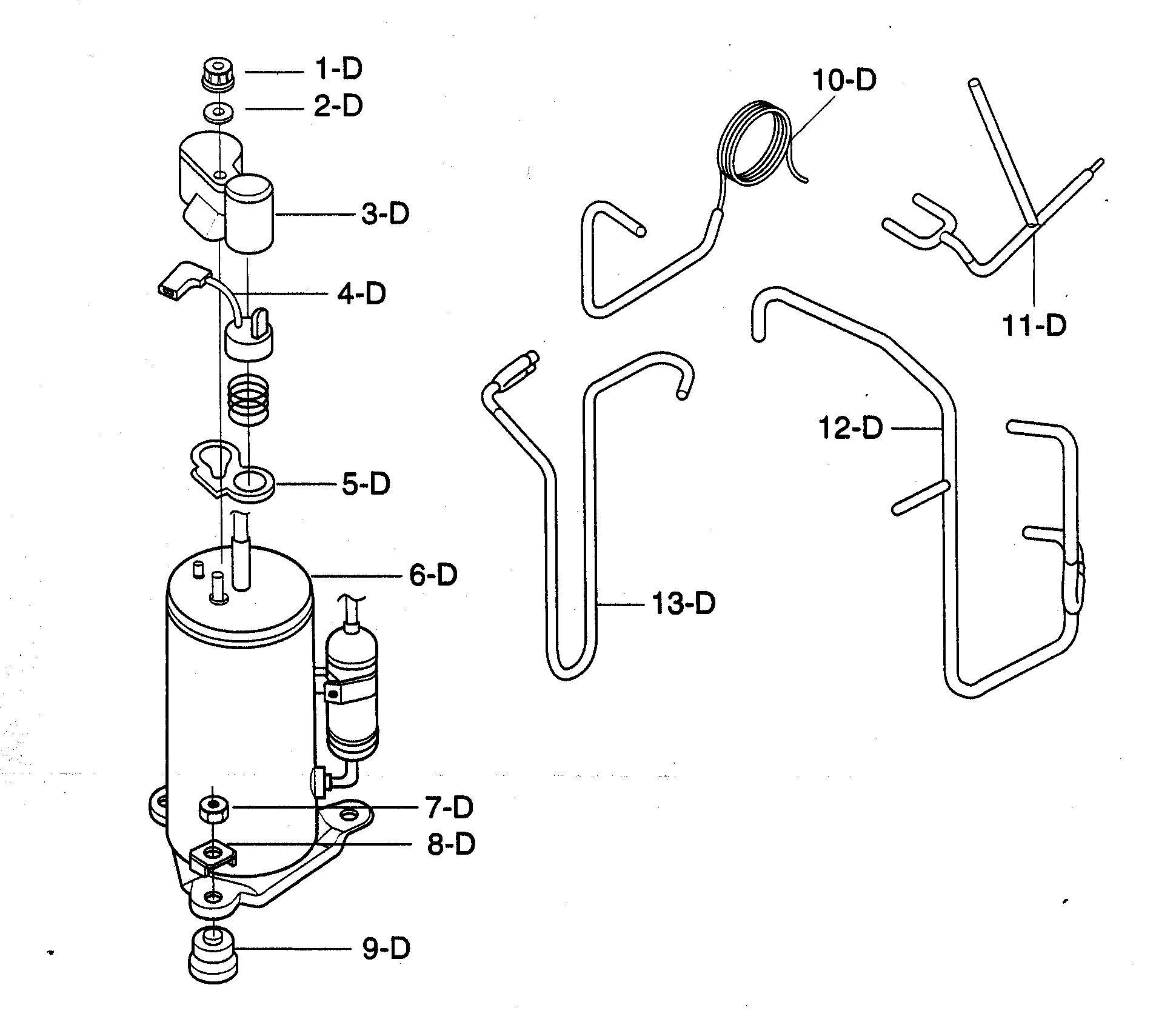

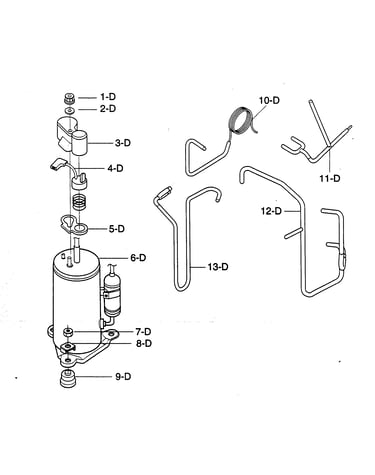

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Accordion Rail, Upper (replaces 4974a30066a) 4974A30066B
#8-A

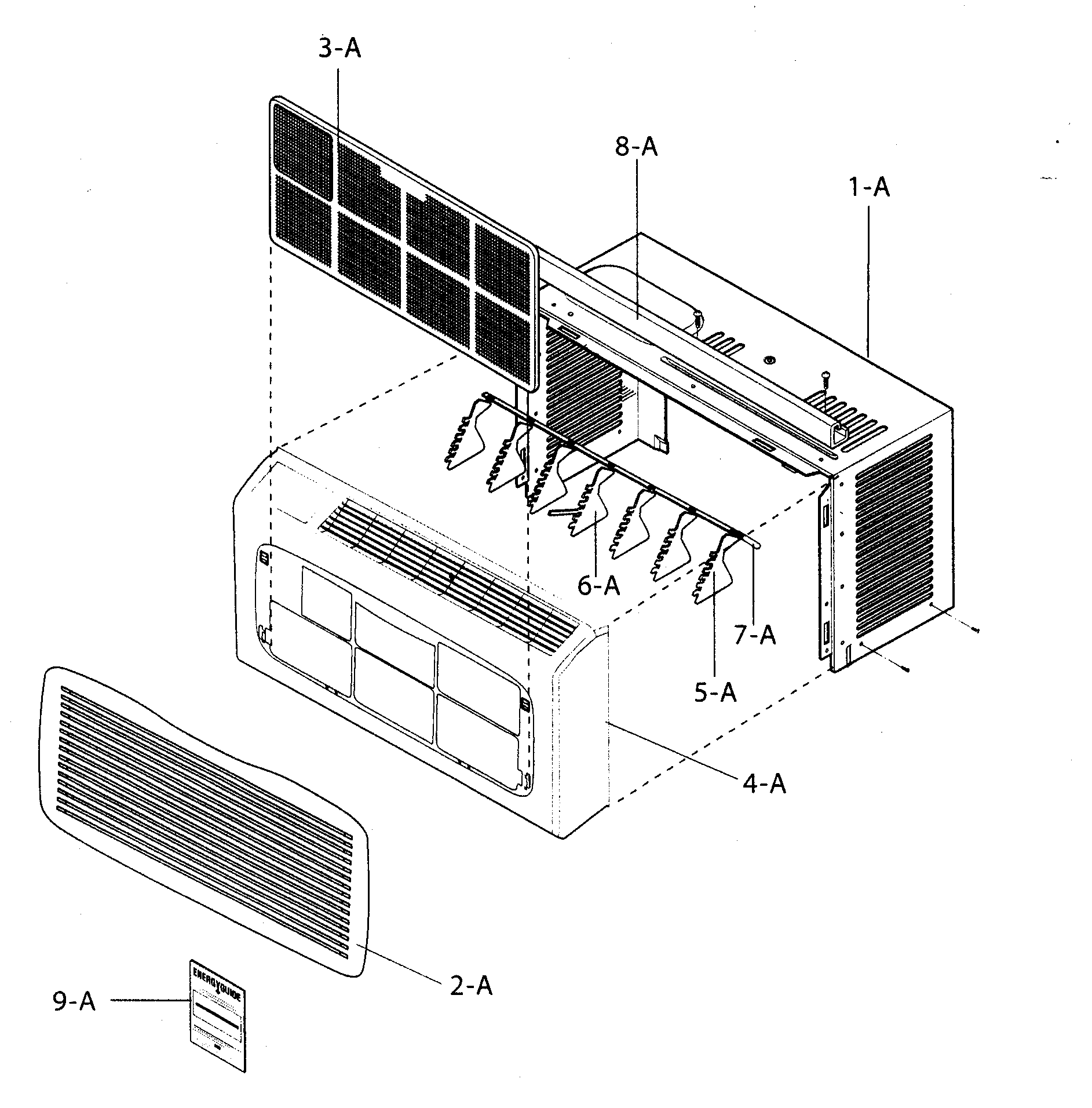

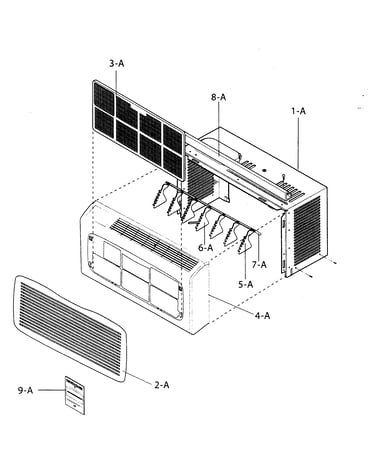

Cabinet/front grille assy diagram

Room air conditioner accordion rail, upper (replaces 4974a30066a)

Part #4974A30066B

This item is not returnable
$14.54
In Stock
Vane 4758A30041B
#6-A

Cabinet/front grille assy diagram

Vane

Part #4758A30041B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Goldstar Bracket 4810AR4155C
#8-D

Compressor parts diagram

Goldstar bracket

Part #4810AR4155C

This item is not returnable
$4.51
In Stock
Room Air Conditioner Screw 1TTG0402618
#5-E

Installation kit assy diagram

Room air conditioner screw

Part #1TTG0402618

This item is not returnable
$4.51
In Stock
Hex Nut 1NHA0801206
#7-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
