Delta
Jointer/Planer

Model # 37-285 Official Delta 6" jointer

Here are the diagrams and repair parts for Official Delta 37-285 6" jointer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

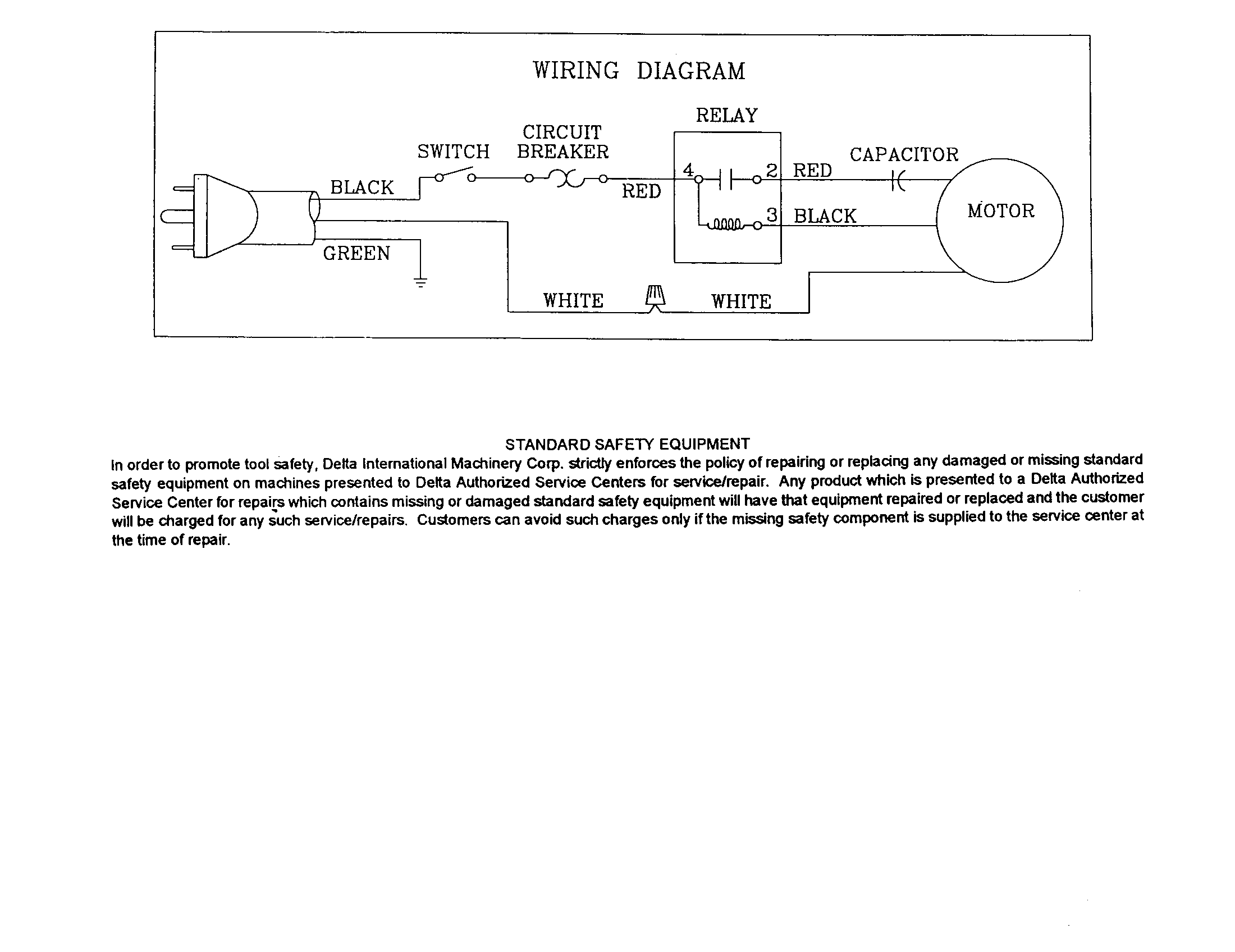

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

Carriage Bolt 901-11-023-1476
#206

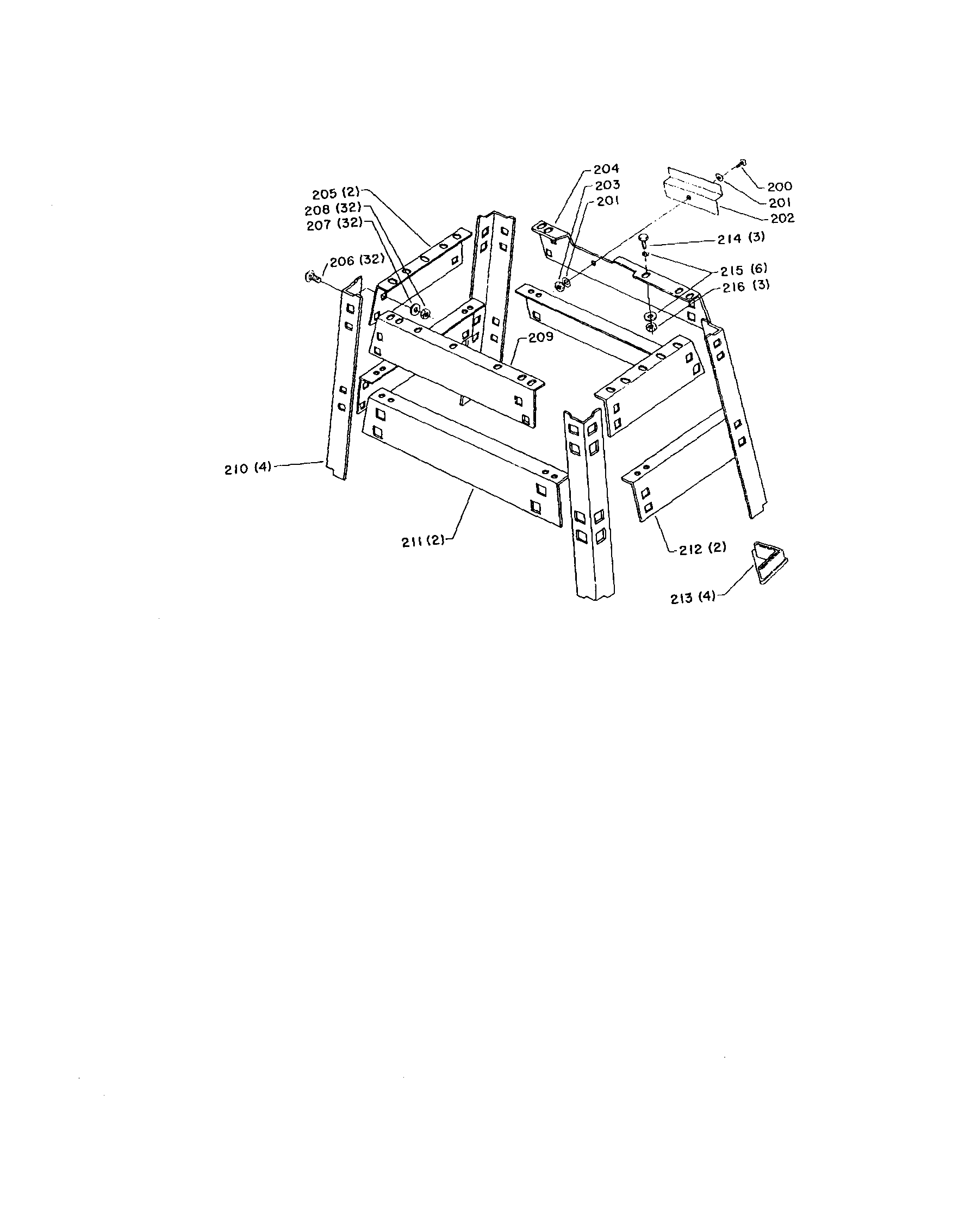

Stand assembly diagram

Carriage bolt

Part #901-11-023-1476

The manufacturer no longer makes this part, and there's no substitute part

Delta Nut 1330112
#10A

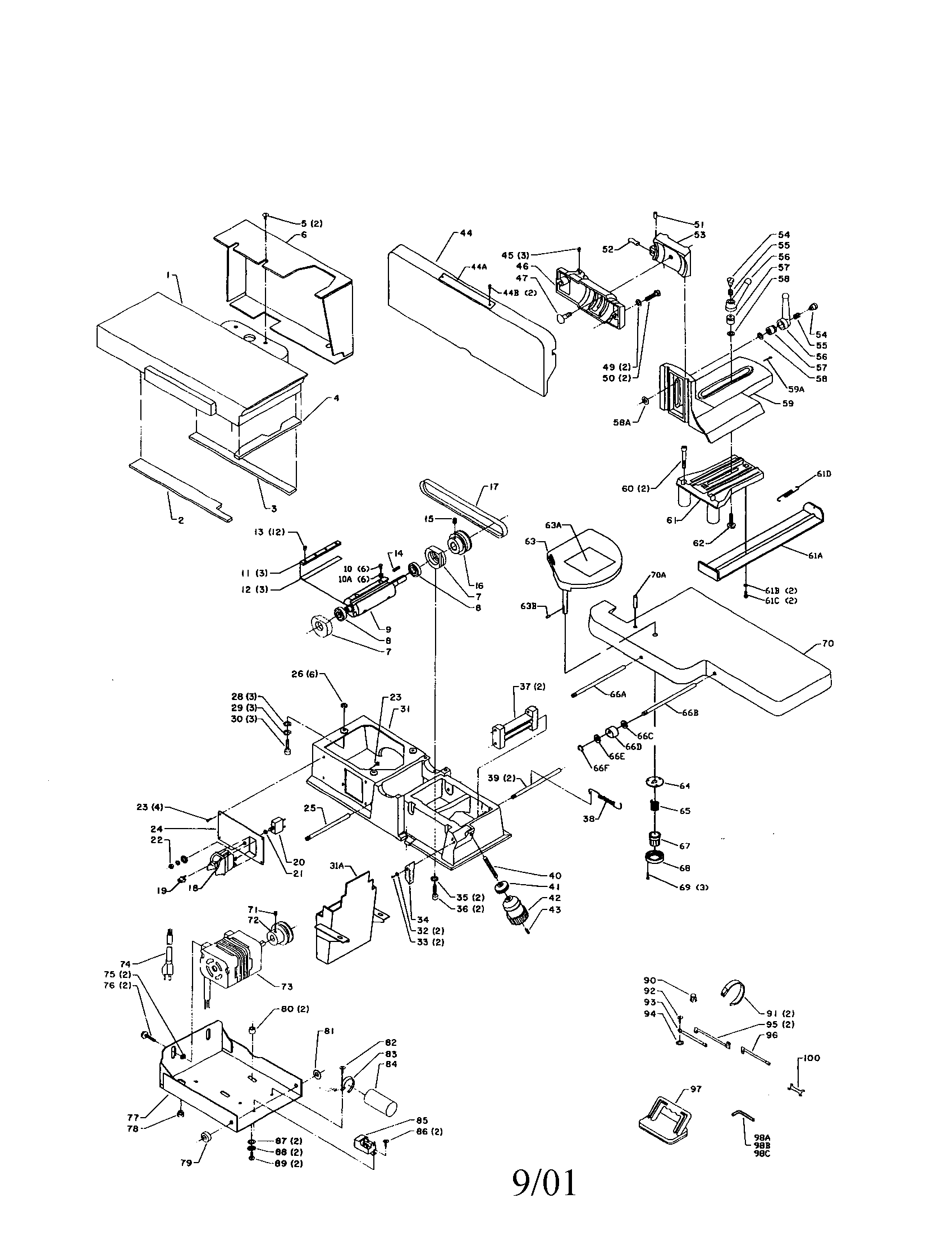

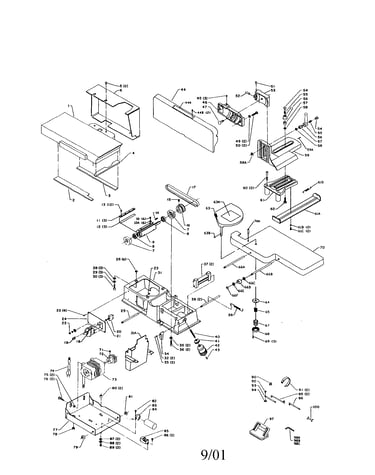

6" jointer diagram

Delta nut

Part #1330112

The manufacturer no longer makes this part, and there's no substitute part

Delta Plate 1342382
#20

6" jointer diagram

Delta plate

Part #1342382

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1246008
Set screw

Part #1246008

The manufacturer no longer makes this part, and there's no substitute part

Pin 1243300
#70A

6" jointer diagram

Pin

Part #1243300

The manufacturer no longer makes this part, and there's no substitute part

Screw 1310006
#89

6" jointer diagram

Screw

Part #1310006

The manufacturer no longer makes this part, and there's no substitute part

Planer Knife Set 37-658
#12

6" jointer diagram

Planer knife set

Part #37-658

The manufacturer no longer makes this part, and there's no substitute part

Delta Screw 1231279
#76

6" jointer diagram

Delta screw

Part #1231279

The manufacturer no longer makes this part, and there's no substitute part

Delta Key 1342349
#14

6" jointer diagram

Delta key

Part #1342349

The manufacturer no longer makes this part, and there's no substitute part

Washer 904-03-030-1795
Washer

Part #904-03-030-1795

The manufacturer no longer makes this part, and there's no substitute part
