Gas Walk-Behind Mower

Model # 917374111 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374111 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |
Drive Pawl 404845
#37

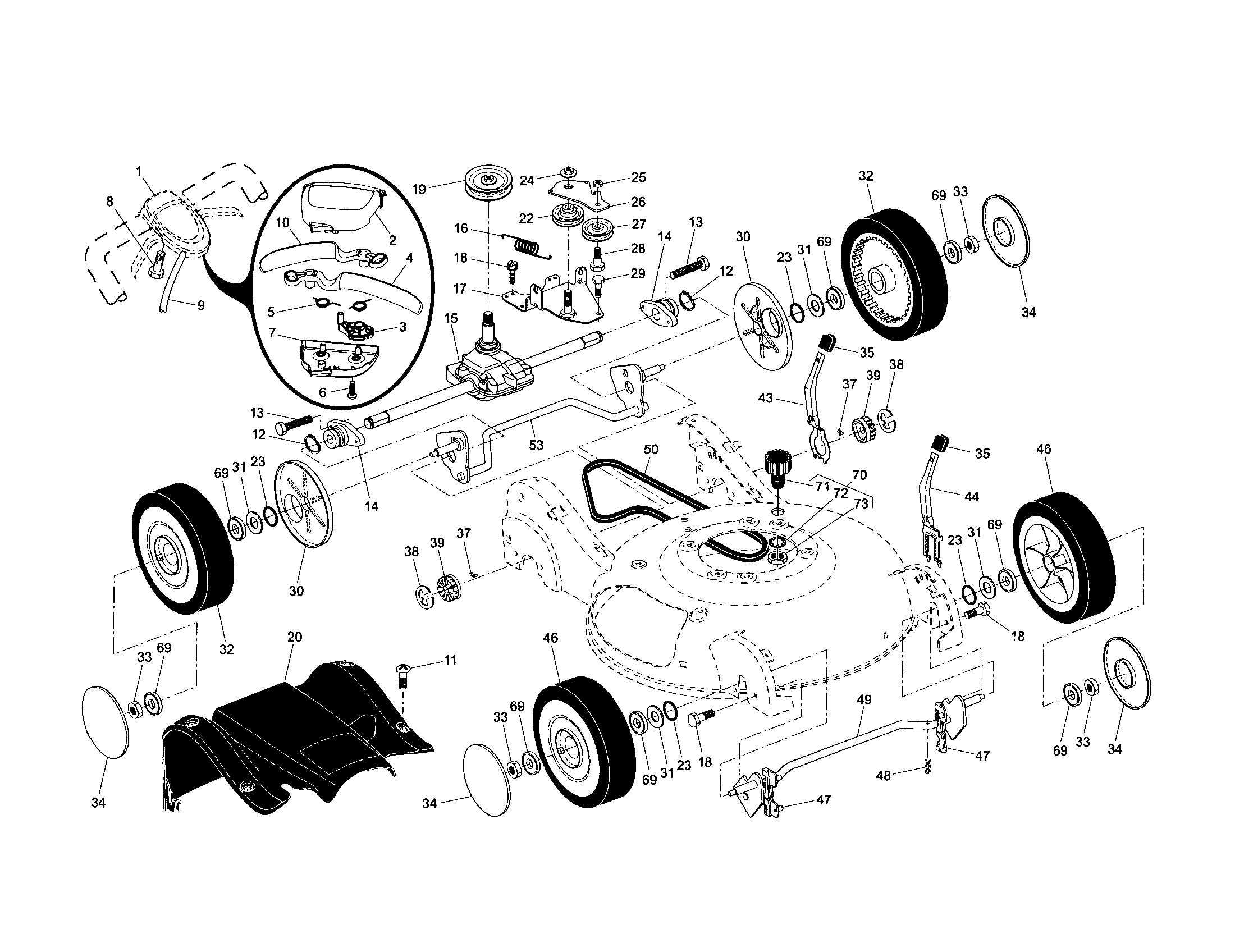

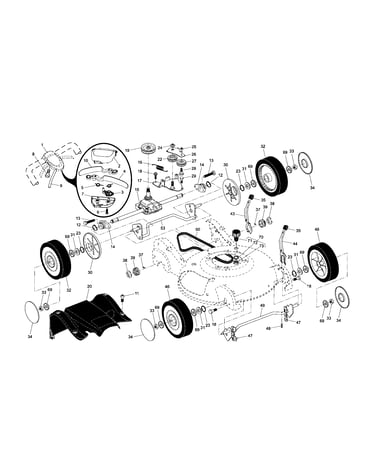

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Husqvarna Lawn Mower 21-in Deck Mulching Blade (replaces 187183, 33273, 33364, 532159267) 159267
#16

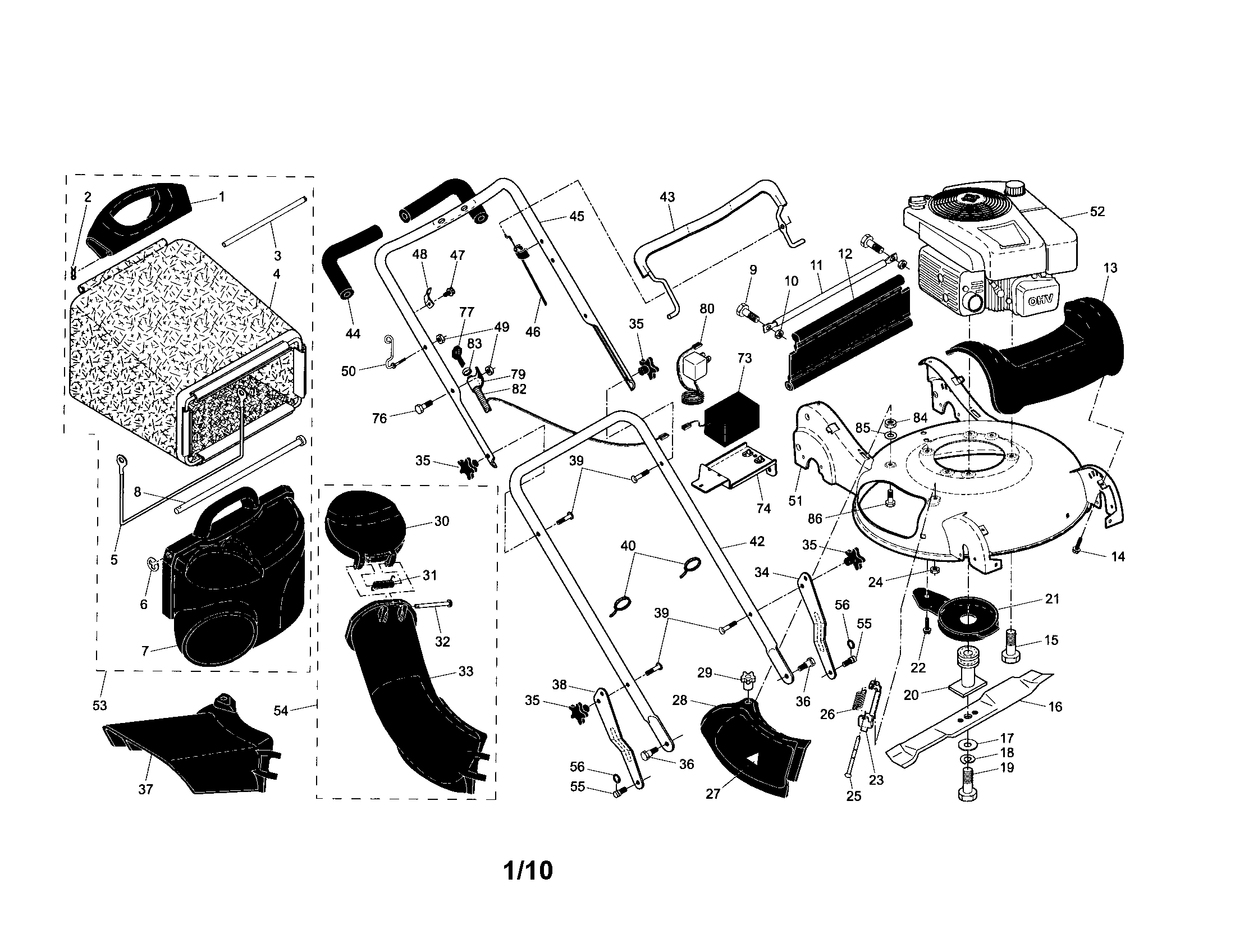

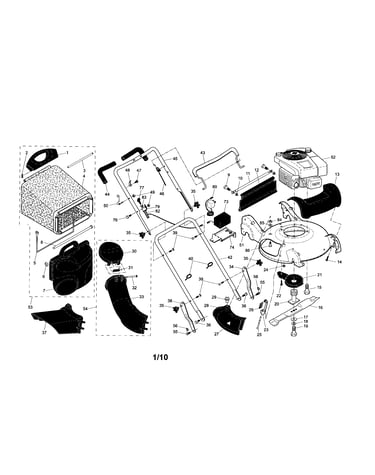

Engine/housing/handle diagram

Husqvarna lawn mower 21-in deck mulching blade (replaces 187183, 33273, 33364, 532159267)

Part #159267

BEST SELLER

Get free shipping with Automatic Reorder

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#10

Engine/housing/handle diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#49

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Handle Knob 182398
#35

Engine/housing/handle diagram

Handle knob

Part #182398

Replaced by #532182398

?
Manufacturer substitution
This part replaces 182398. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#13

Drive control/gear case/wheels diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Chute 188498X428
#7

Engine/housing/handle diagram

Chute

Part #188498X428

Replaced by #583708701

?
Manufacturer substitution
This part replaces 188498X428. Substitute parts can look different from the original.
$37.98 |
14% OFF Phone Price : $43.98
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Screw.10-16 178848
#8

Drive control/gear case/wheels diagram

Screw.10-16

Part #178848

Replaced by #532178848

?
Manufacturer substitution
This part replaces 178848. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bolt 72140405
#9

Engine/housing/handle diagram

Bolt

Part #72140405

Replaced by #872140405

?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
