Model # MC-E583 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-E583 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

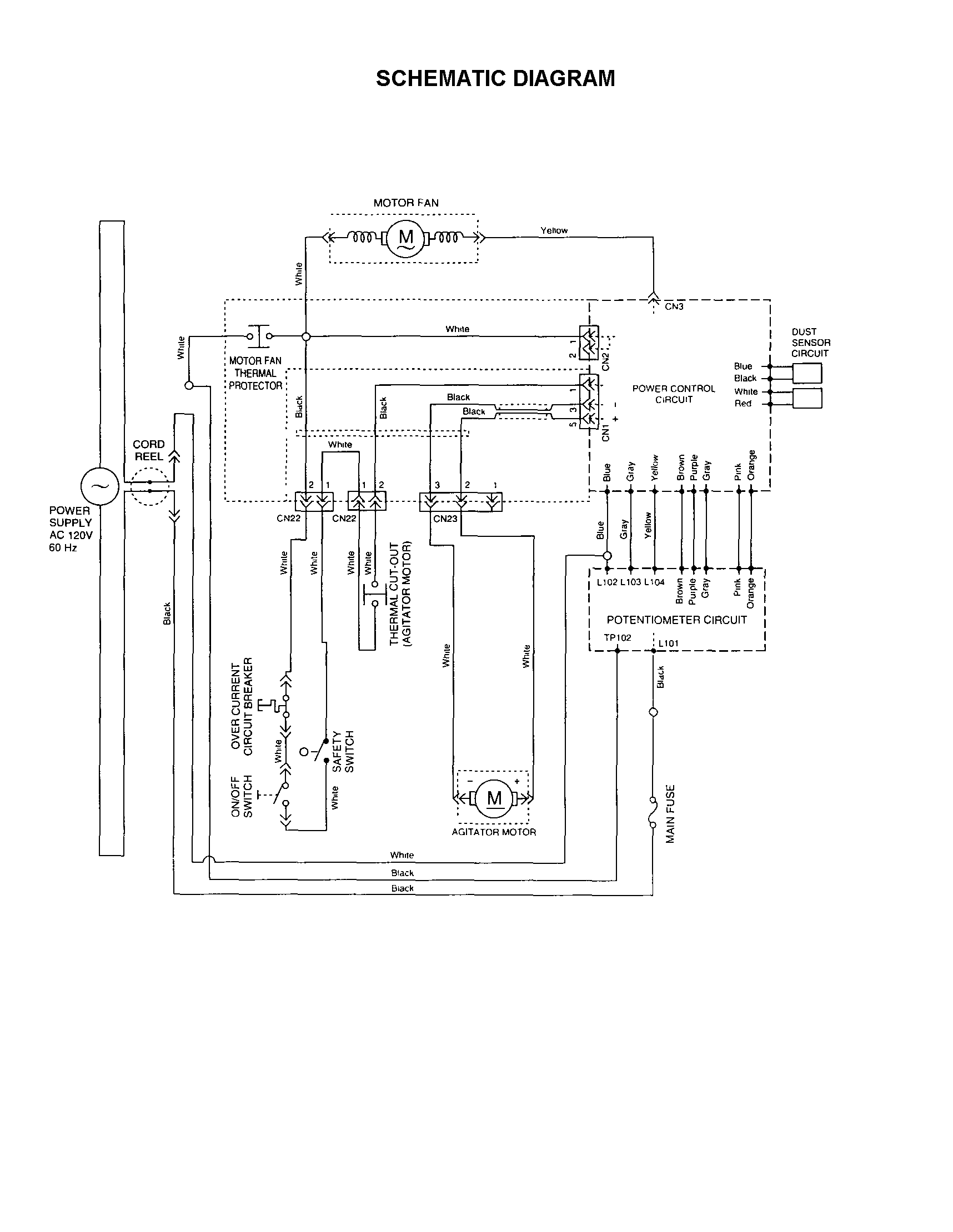

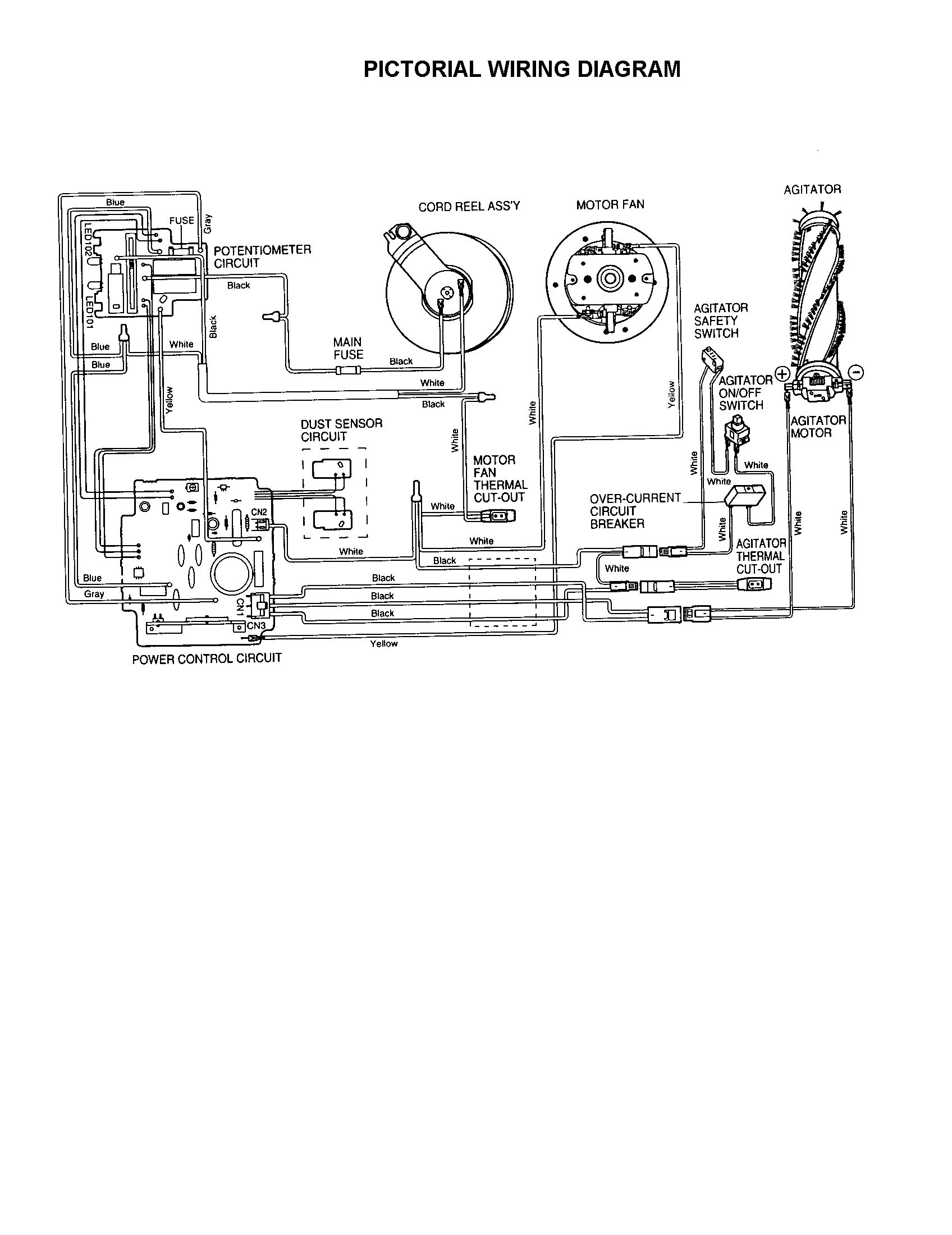

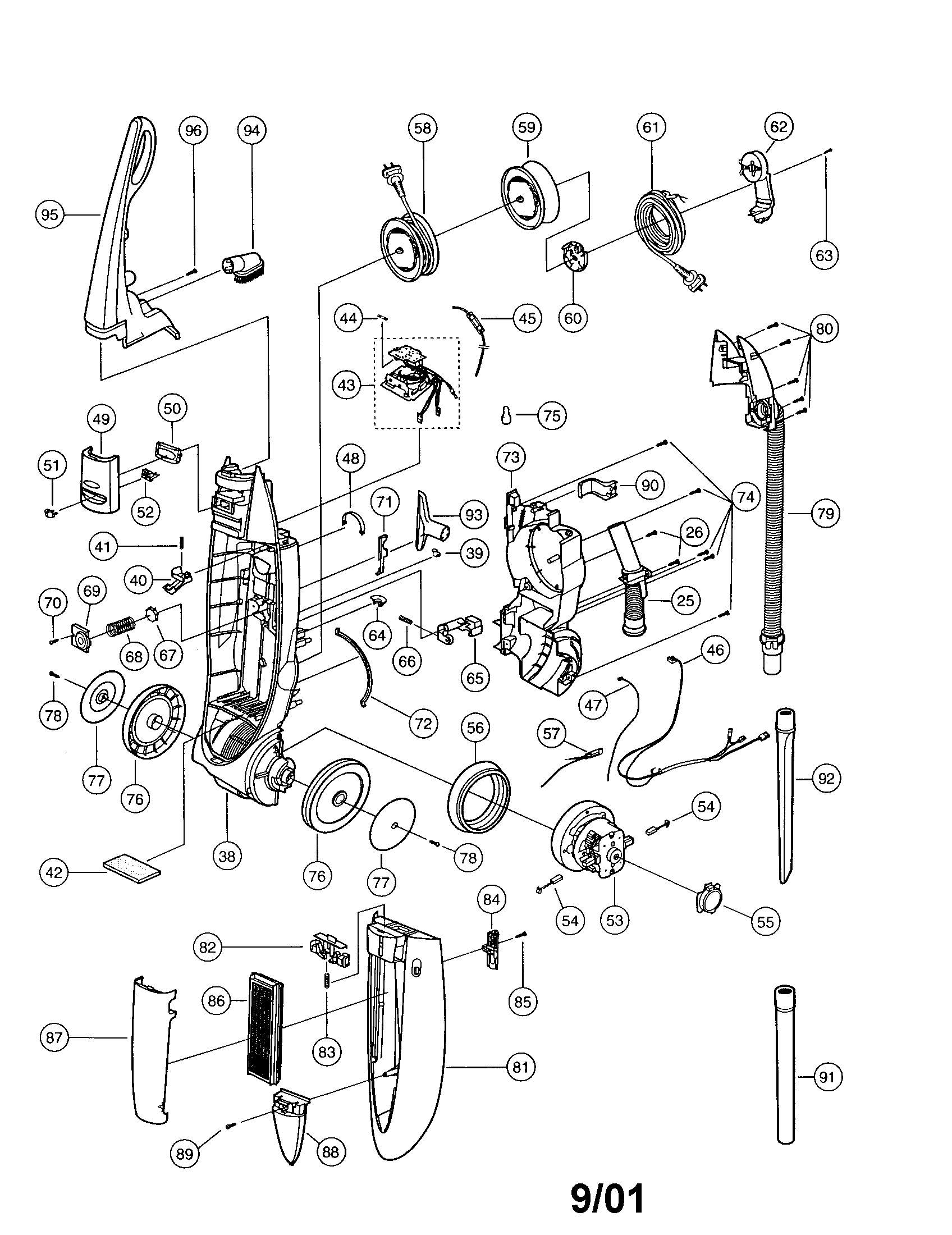

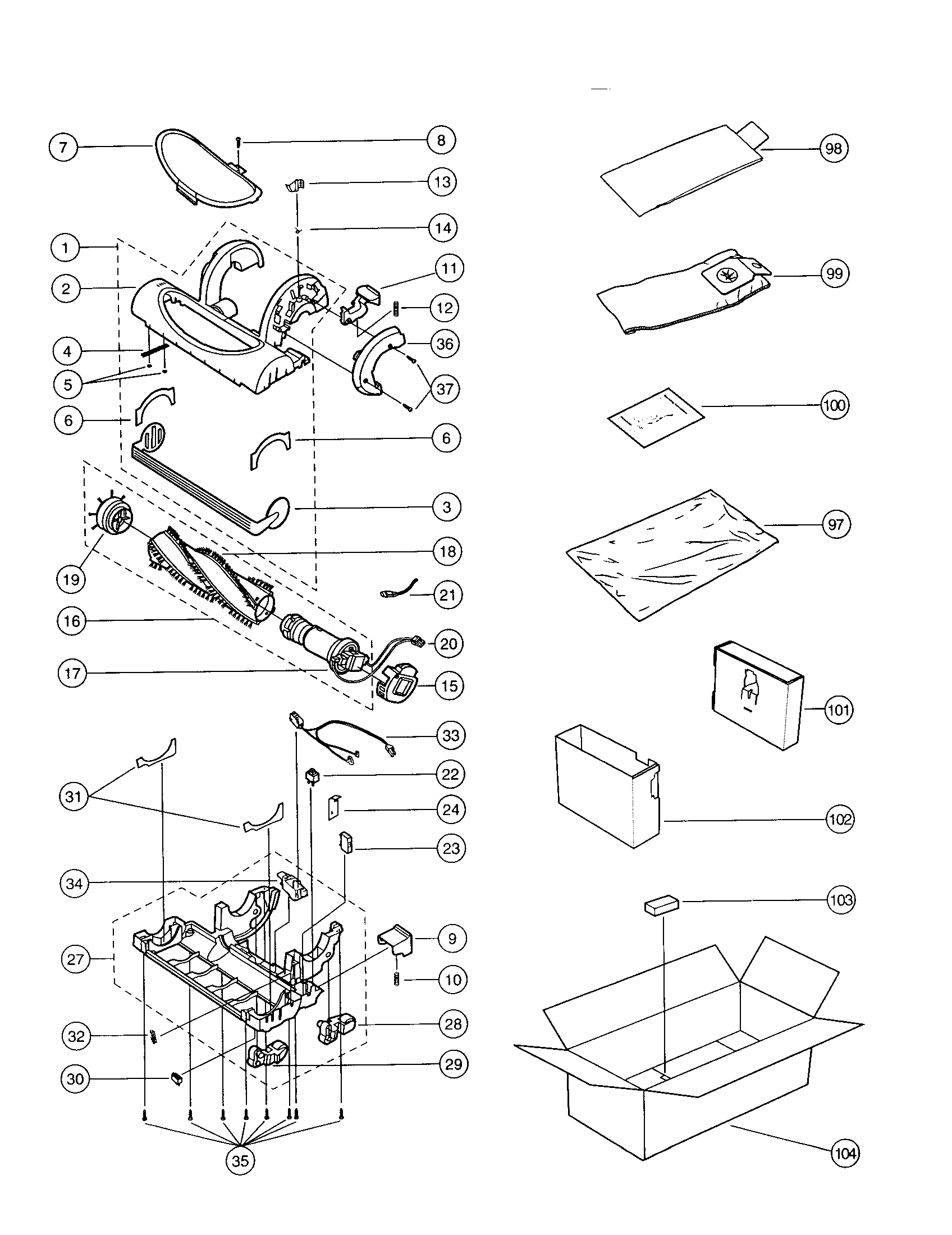

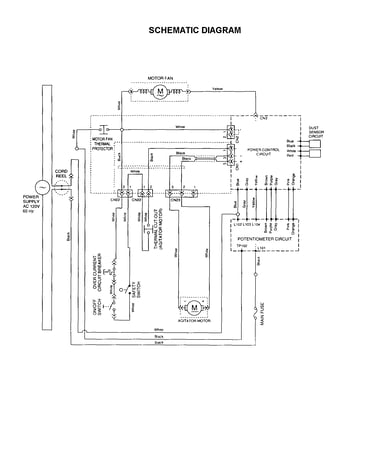

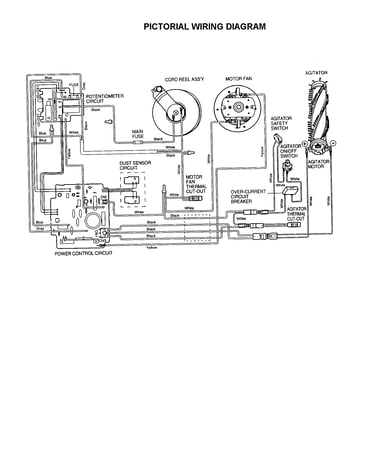

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Fuse T6,3a/125v (time Lag) AMC8B42W8000

#44

All parts diagram

Fuse t6,3a/125v (time lag)

Part #AMC8B42W8000

The manufacturer no longer makes this part, and there's no substitute part

Insulating Plate AMC8E22W8000

#24

All parts diagram

Insulating plate

Part #AMC8E22W8000

The manufacturer no longer makes this part, and there's no substitute part

Agitator Side Brush AMC8R96W1000

#19

All parts diagram

Agitator side brush

Part #AMC8R96W1000

The manufacturer no longer makes this part, and there's no substitute part

Motor Unit Sds-1101p AMC81SB01P00

#53

All parts diagram

Motor unit sds-1101p

Part #AMC81SB01P00

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire A AMC8W81W8000

#20

All parts diagram

Lead wire a

Part #AMC8W81W8000

The manufacturer no longer makes this part, and there's no substitute part

Operating Instructions (language: English) AMC8Z07W8090

#100

All parts diagram

Operating instructions (language: english)

Part #AMC8Z07W8090

The manufacturer no longer makes this part, and there's no substitute part

Dusting Brush AMC8A97G1036

#94

All parts diagram

Dusting brush

Part #AMC8A97G1036

The manufacturer no longer makes this part, and there's no substitute part

Upper Body AMC8C01W1061

#73

All parts diagram

Upper body

Part #AMC8C01W1061

The manufacturer no longer makes this part, and there's no substitute part

Fuse Unit 15a/125v AMC8B82W8000

#45

All parts diagram

Fuse unit 15a/125v

Part #AMC8B82W8000

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cut Out (agitator) AMC8E92W8000

#21

All parts diagram

Thermal cut out (agitator)

Part #AMC8E92W8000

The manufacturer no longer makes this part, and there's no substitute part
