Kenmore
Mechanical Sewing Machine

Model # 1581792181 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 1581792181 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

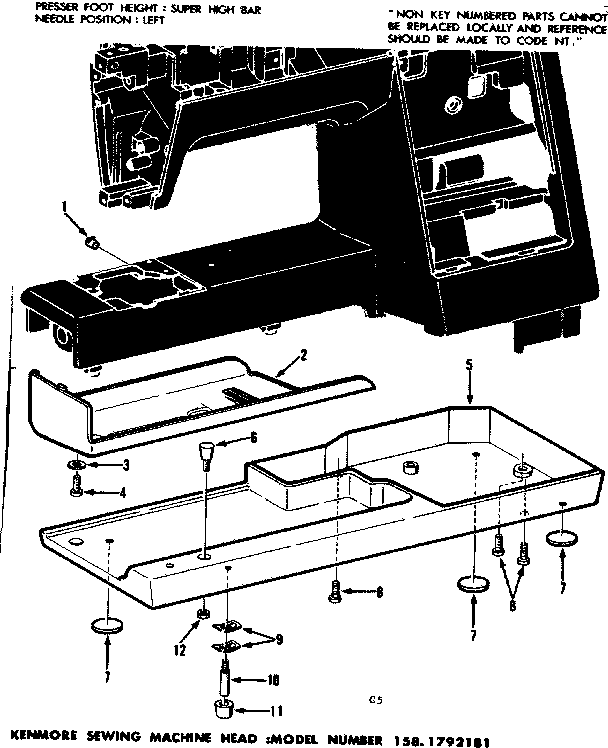

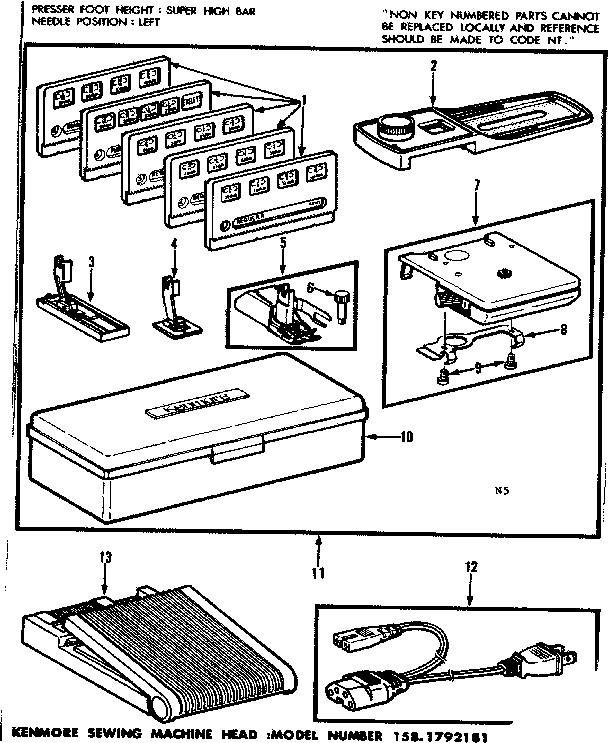

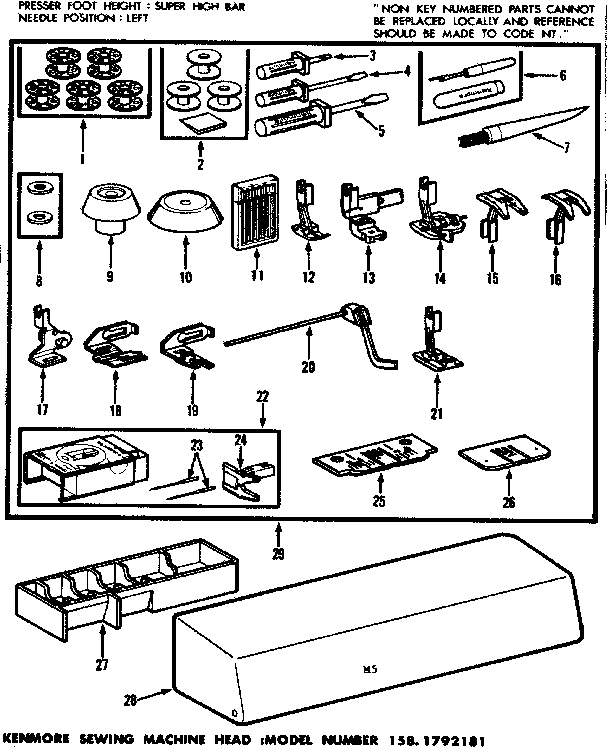

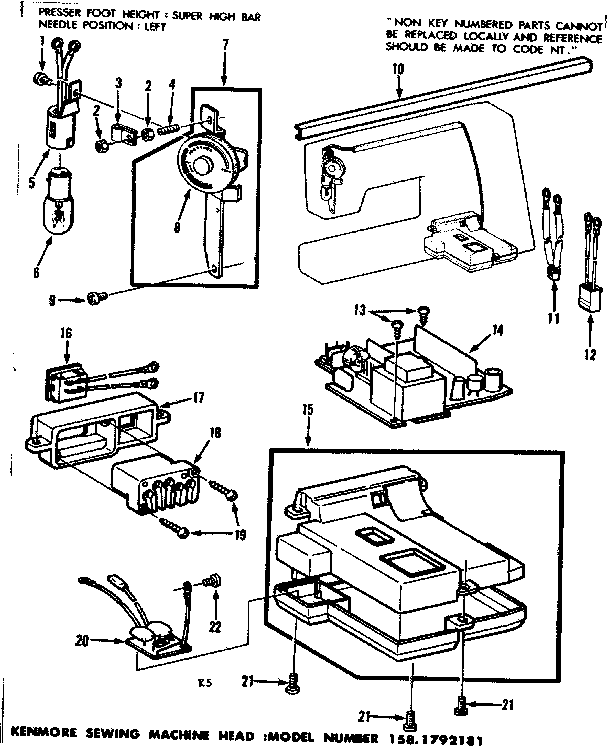

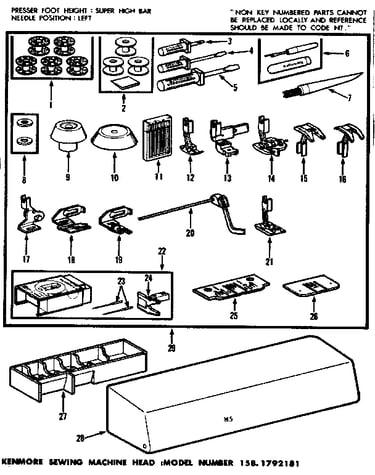

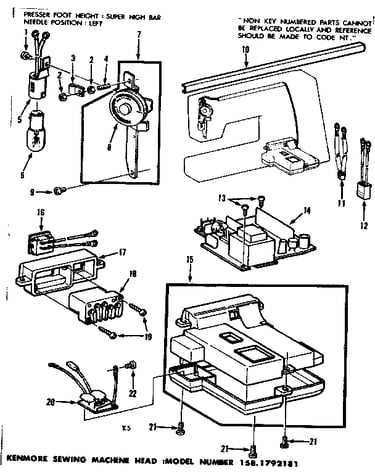

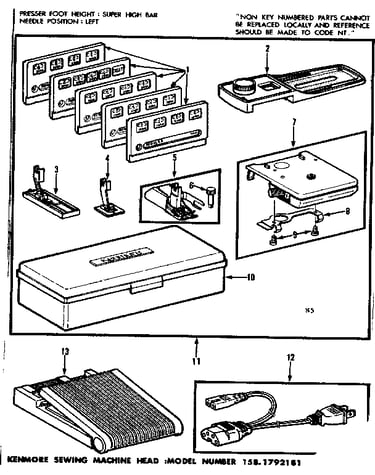

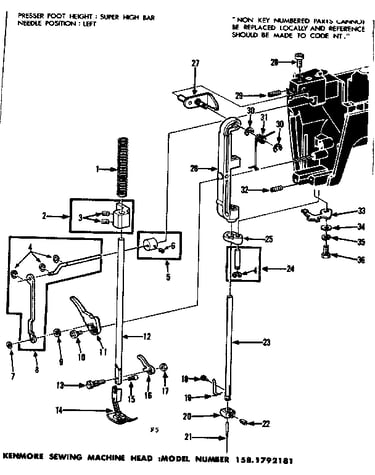

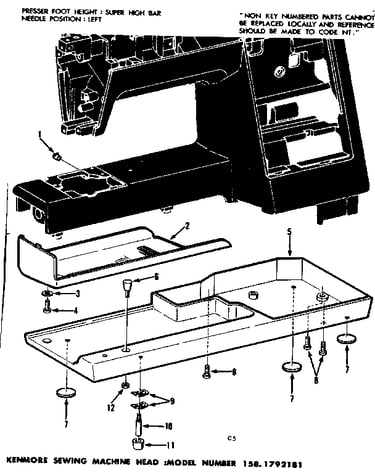

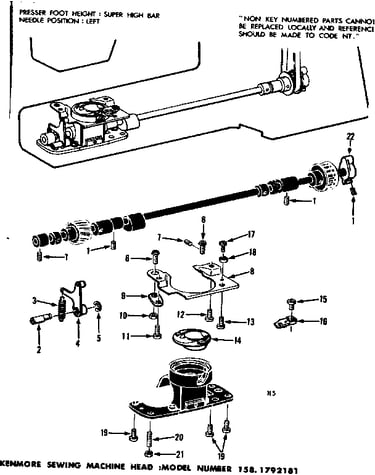

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 282 parts  |
Spring Plate 57578
#5

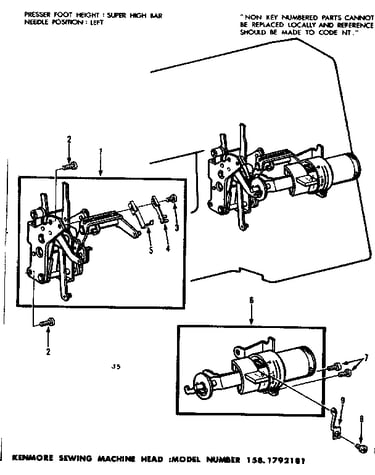

Stitch modifier assembly diagram

Spring plate

Part #57578

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 59218
#26

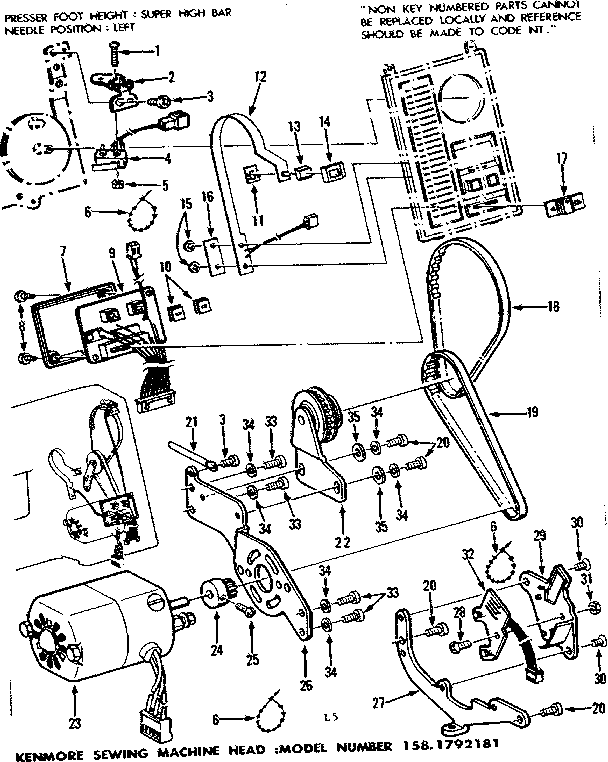

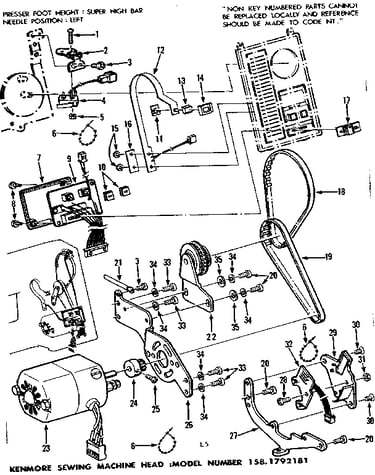

Motor assembly diagram

Motor bracket

Part #59218

The manufacturer no longer makes this part, and there's no substitute part

Led Filter 57693
#13

Motor assembly diagram

Led filter

Part #57693

The manufacturer no longer makes this part, and there's no substitute part

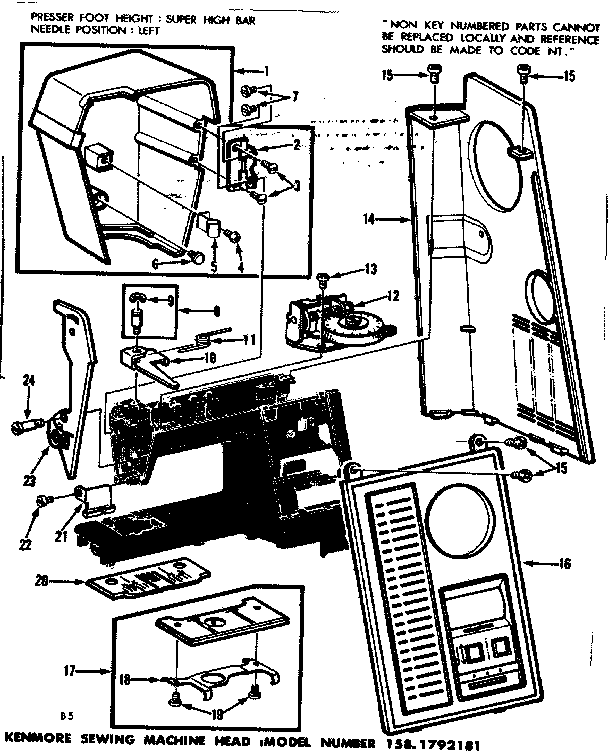

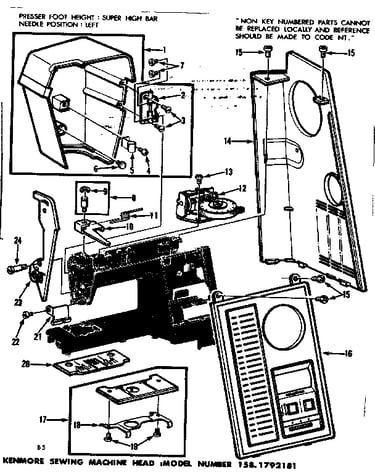

Control Panel 57711
#13

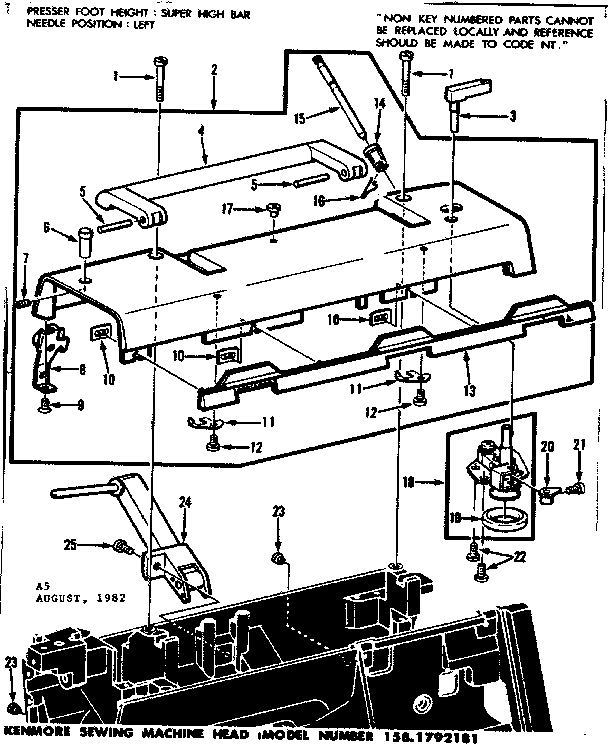

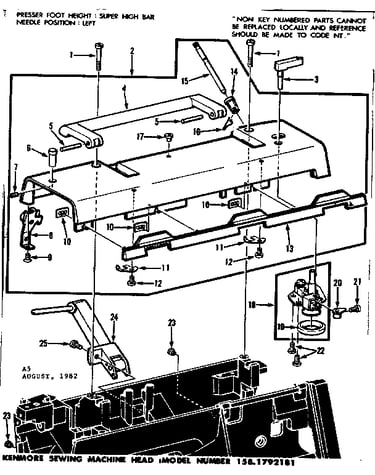

Bobbin winder and top cover diagram

Control panel

Part #57711

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 57255
#25

Motor assembly diagram

Set screw

Part #57255

The manufacturer no longer makes this part, and there's no substitute part

Spring 57751
#9

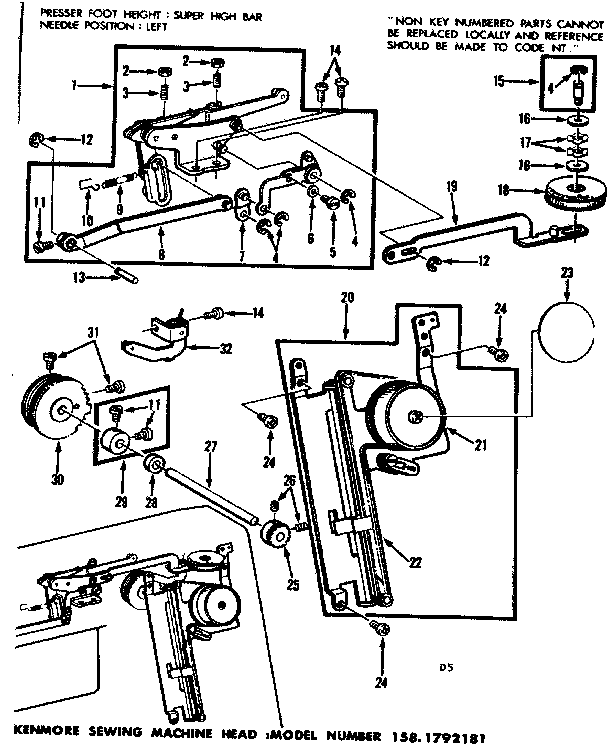

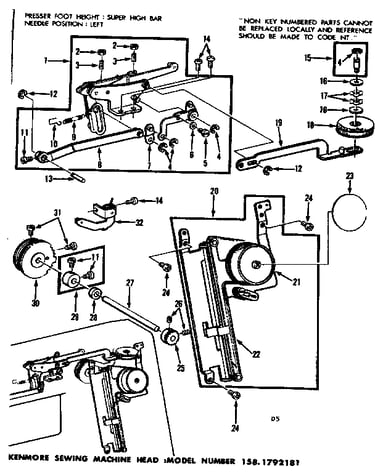

Zigzag guide assembly diagram

Spring

Part #57751

The manufacturer no longer makes this part, and there's no substitute part

Shaft 57574
#17

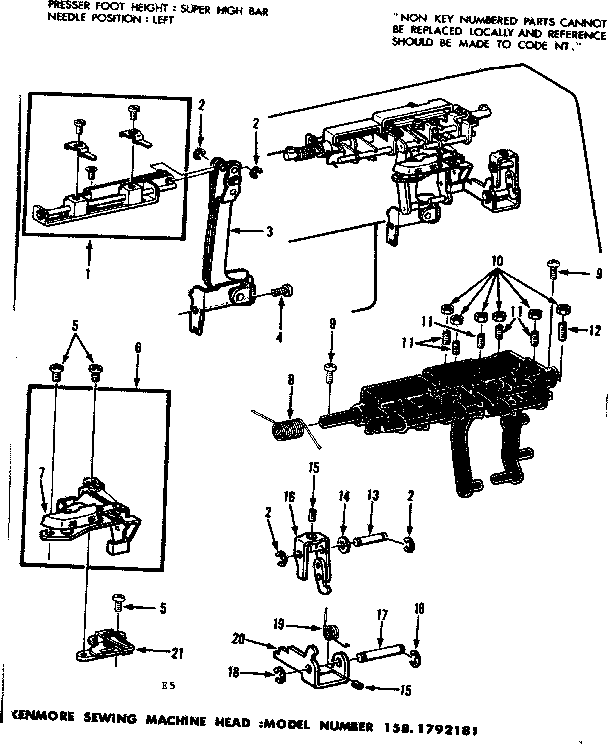

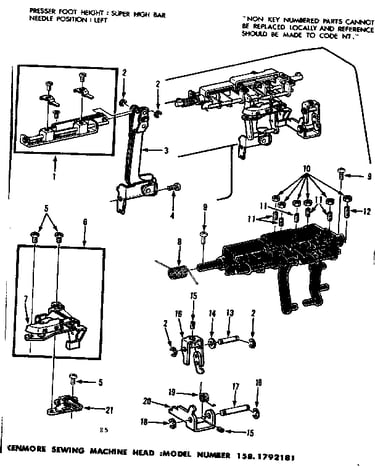

Buttonhole control assembly diagram

Shaft

Part #57574

The manufacturer no longer makes this part, and there's no substitute part

Belt Guide 49961
#19

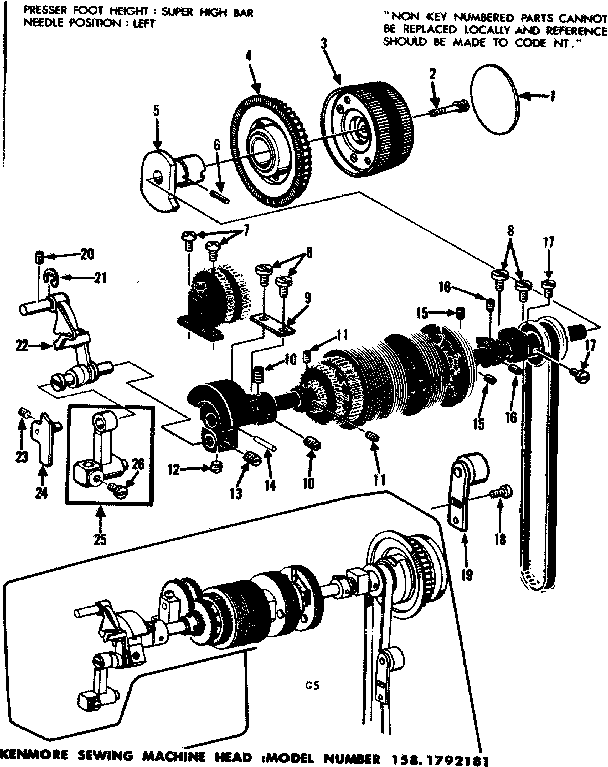

Clutch wheel assembly diagram

Belt guide

Part #49961

The manufacturer no longer makes this part, and there's no substitute part

Shaft 57611
#27

Zigzag guide assembly diagram

Shaft

Part #57611

The manufacturer no longer makes this part, and there's no substitute part

Rocker Shaft 57655
#8

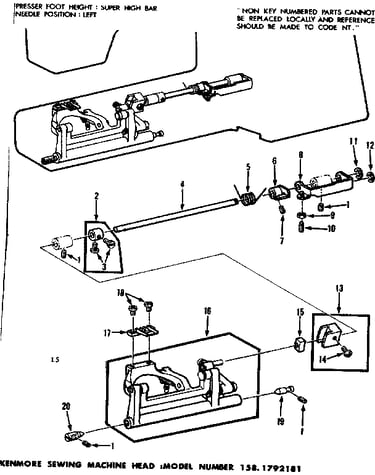

Feed regulator assembly diagram

Rocker shaft

Part #57655

The manufacturer no longer makes this part, and there's no substitute part
