Craftsman
Air Compressor

Model # 106172440 Official Craftsman single-cylinder tank-type compressor

Here are the diagrams and repair parts for Official Craftsman 106172440 single-cylinder tank-type compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Drain Cock STD-301
#37

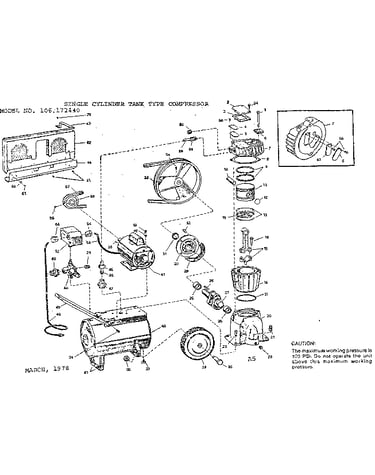

Unit diagram

Drain cock

Part #STD-301

The manufacturer no longer makes this part, and there's no substitute part

Handle VS-10
#49

Unit diagram

Handle

Part #VS-10

The manufacturer no longer makes this part, and there's no substitute part

Motor MC-56
#41

Unit diagram

Motor

Part #MC-56

The manufacturer no longer makes this part, and there's no substitute part

Axle Bolt STD-334
#35

Unit diagram

Axle bolt

Part #STD-334

The manufacturer no longer makes this part, and there's no substitute part

Stick Screw ST-203-1
#66

Unit diagram

Stick screw

Part #ST-203-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-72
#3

Unit diagram

Gasket

Part #XA-72

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard BG-124
#62

Unit diagram

Belt guard

Part #BG-124

The manufacturer no longer makes this part, and there's no substitute part

Pulley PU-49
#33

Unit diagram

Pulley

Part #PU-49

The manufacturer no longer makes this part, and there's no substitute part

Piston VT-55
#11

Unit diagram

Piston

Part #VT-55

The manufacturer no longer makes this part, and there's no substitute part

Filter VT-130-2
#6

Unit diagram

Filter

Part #VT-130-2

The manufacturer no longer makes this part, and there's no substitute part
