Kenmore
Gas Cooktop

Model # 79032404901 Official Kenmore gas counter unit

Here are the diagrams and repair parts for Official Kenmore 79032404901 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Cooktop Wire Harness 318232604
#3

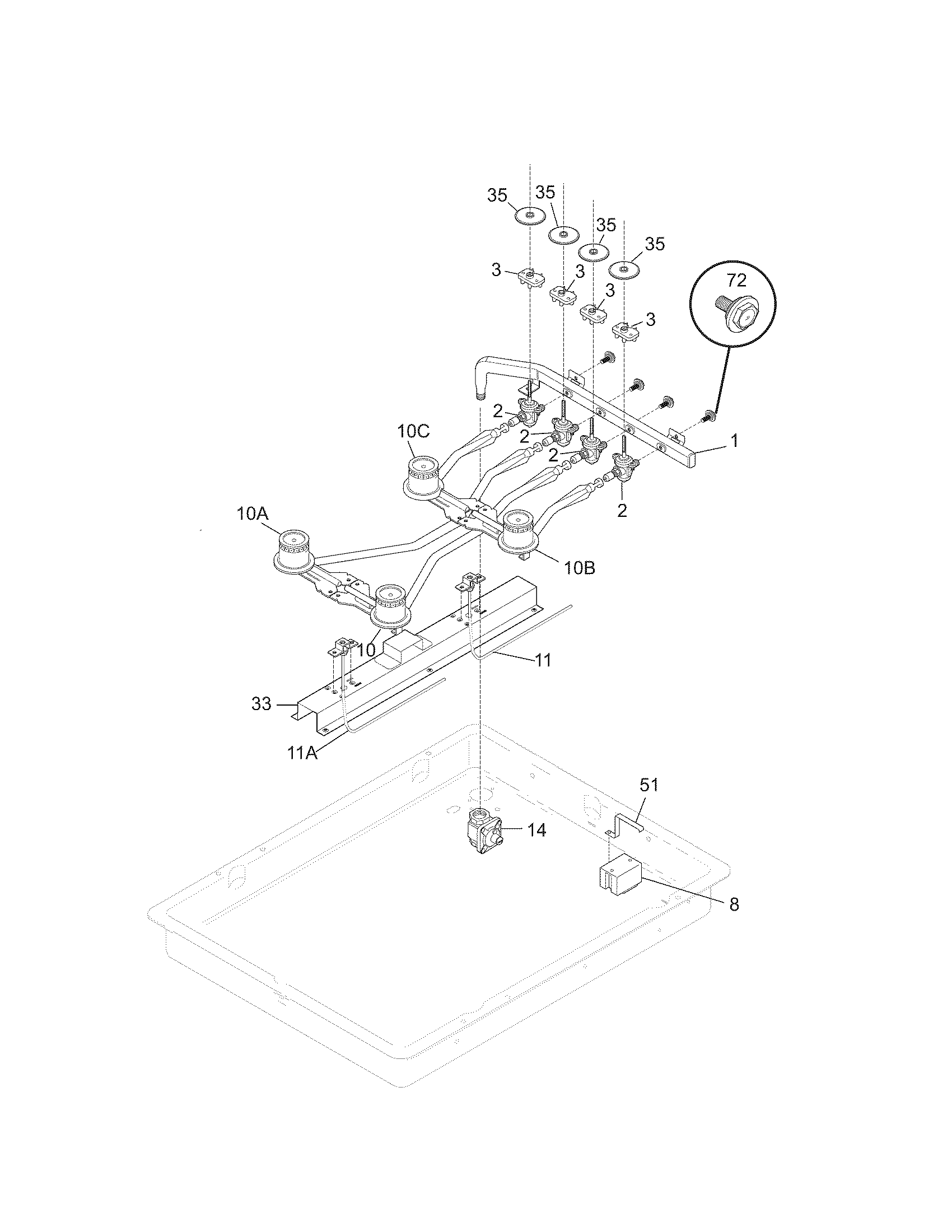

Burner diagram

Cooktop wire harness

Part #318232604

$179.68 |
6% OFF Phone Price : $191.68
In Stock
Range Screw, #10-24 X 0.375-in 08011955
#NI

Burner diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Cooktop Burner, Right Rear 3201435
#10C

Burner diagram

Cooktop burner, right rear

Part #3201435

$249.65
In Stock
Range Screw 5303323140
#NI

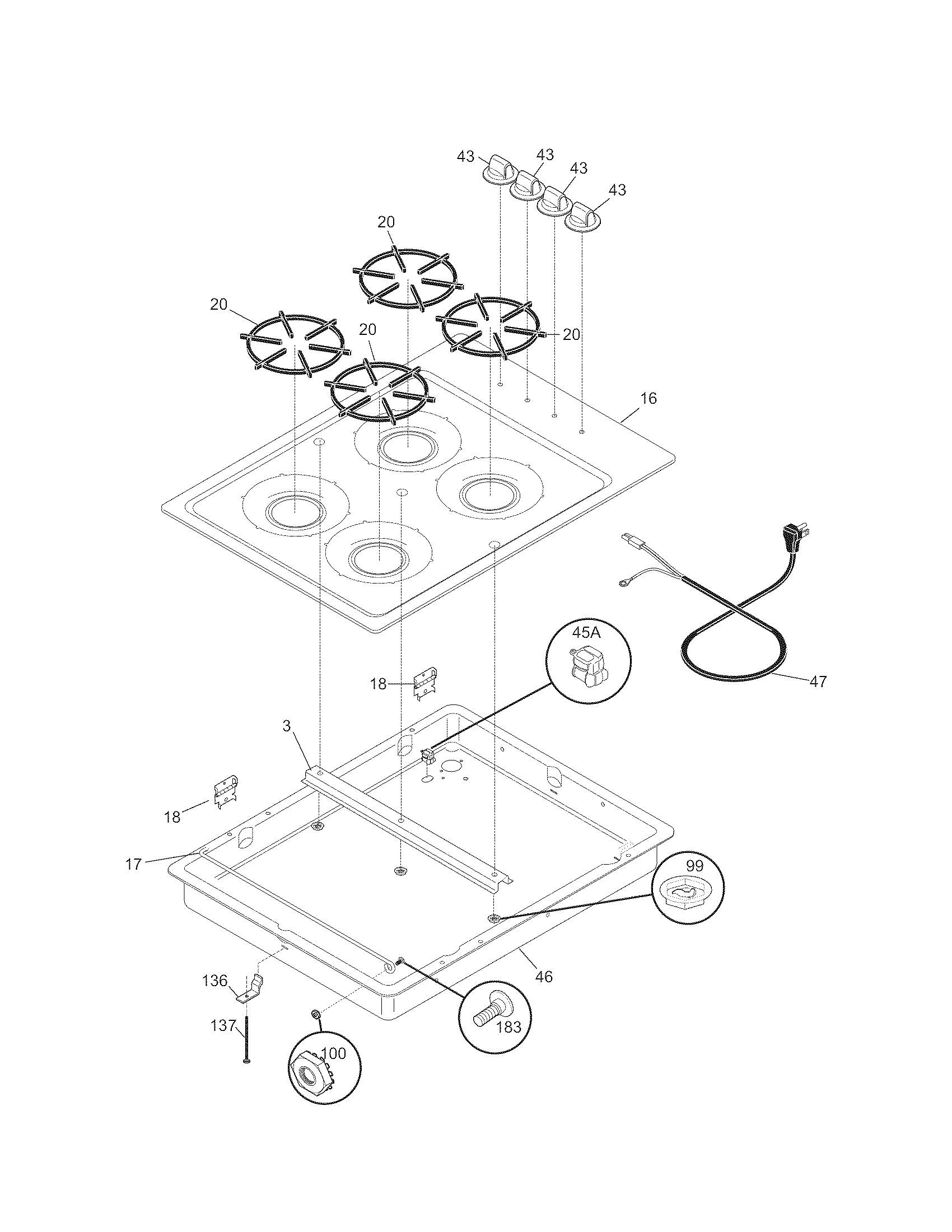

Maintop diagram

Range screw

Part #5303323140

$11.17
In Stock
Cooktop Firebox Support 318264301
#136

Maintop diagram

Cooktop firebox support

Part #318264301

$36.11 |
14% OFF Phone Price : $42.11
In Stock
Cooktop Owner's Manual 318203663
#NI

Maintop diagram

Cooktop owner's manual

Part #318203663

This item is not returnable
$5.80
In Stock
Instructions 318201484
#NI

Maintop diagram

Instructions

Part #318201484

This item is not returnable
$4.14
In Stock
Screw 5303311306
Screw

Part #5303311306

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303311306. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Cooking Appliance Power Cord Strain Relief 3201437
#45A

Maintop diagram

Cooking appliance power cord strain relief

Part #3201437

Replaced by #5304513507

?
Manufacturer substitution
This part replaces 3201437. Substitute parts can look different from the original.
$9.97
In Stock
Regulator 318122712
#14

Burner diagram

Regulator

Part #318122712

Replaced by #318122707

?
Manufacturer substitution
This part replaces 318122712. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
