York
Heating & Cooling Combined Unit

Model # D2CG180N24025A Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D2CG180N24025A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Circuit Board 031-00652-700

#10

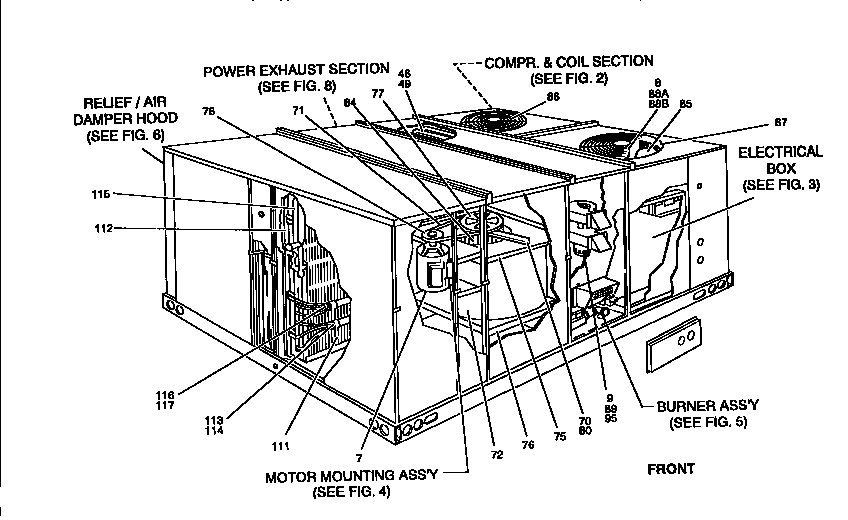

All parts diagram

Circuit board

Part #031-00652-700

The manufacturer no longer makes this part, and there's no substitute part

Guard, Fan (2-req'd) 063-94820-000
Guard, fan (2-req'd)

Part #063-94820-000

The manufacturer no longer makes this part, and there's no substitute part

Coil, Evap (coil Contains Sys 1 And 2)(includes Headers,txv's, Distributor Valves And Tubes) 373-06227-000

#111

All parts diagram

Coil, evap (coil contains sys 1 and 2)(includes headers,txv's, distributor valves and tubes)

Part #373-06227-000

The manufacturer no longer makes this part, and there's no substitute part

Mount, Fan Motor (wirefoam) (2-req'd) 026-25551-000

#88A

All parts diagram

Mount, fan motor (wirefoam) (2-req'd)

Part #026-25551-000

The manufacturer no longer makes this part, and there's no substitute part

Connector, Plug (3 Circuit) 025-19671-000
#17

Power exhaust styles a,b,c,&d diagram

Connector, plug (3 circuit)

Part #025-19671-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Bottom And Sides Flue Box 063-93849-000

#57

All parts diagram

Panel, bottom and sides flue box

Part #063-93849-000

The manufacturer no longer makes this part, and there's no substitute part

Connector , Cap (3-circuit) Pwr. Exhaust 025-21193-000
#15

Power exhaust styles a,b,c,&d diagram

Connector , cap (3-circuit) pwr. exhaust

Part #025-21193-000

The manufacturer no longer makes this part, and there's no substitute part

Housing Vent 063-90041-000

#90

All parts diagram

Housing vent

Part #063-90041-000

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (blower) 373-06208-280

#135

All parts diagram

Panel access (blower)

Part #373-06208-280

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (cond End) 073-10757-700

#152

All parts diagram

Rail, base (cond end)

Part #073-10757-700

The manufacturer no longer makes this part, and there's no substitute part
