Kenmore
Refrigerator

Model # 1268916080 Official Kenmore compact refrigerator

Here are the diagrams and repair parts for Official Kenmore 1268916080 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Refrigerator Dryer 40
#20

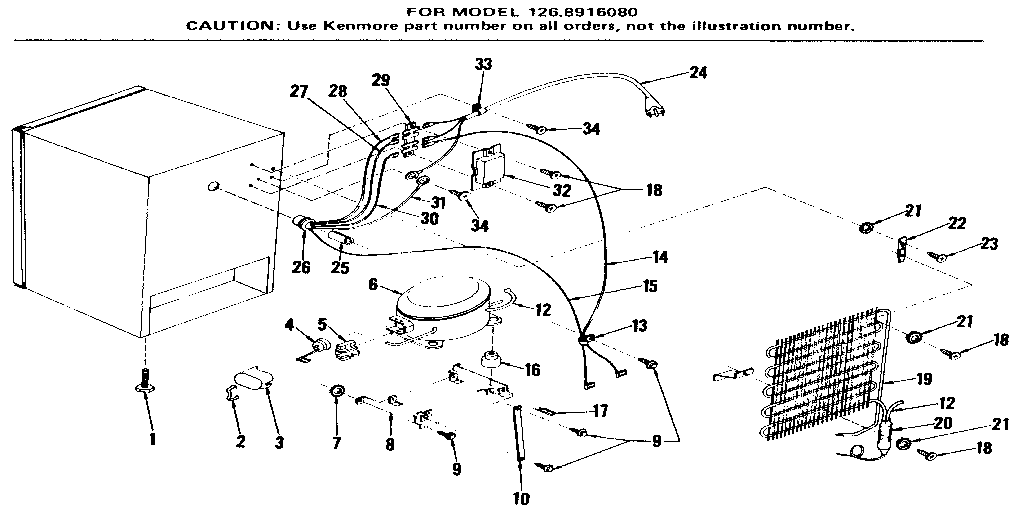

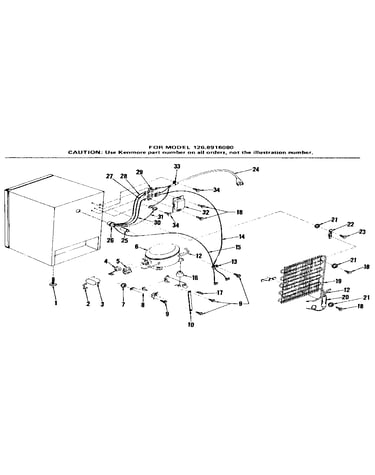

Unit parts diagram

Refrigerator dryer

Part #40

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Bulb 989
#12

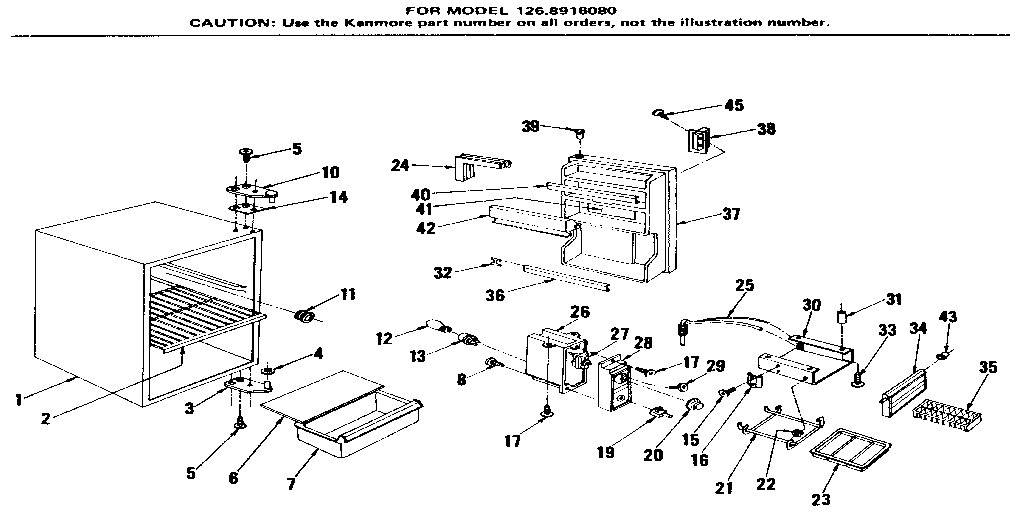

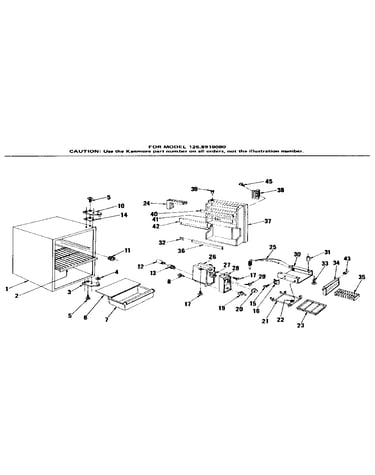

Cabinet parts diagram

Refrigerator light bulb

Part #989

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Retainer 795
#26

Unit parts diagram

Refrigerator retainer

Part #795

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Handle 3691-3
#38

Cabinet parts diagram

Refrigerator handle

Part #3691-3

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, #8, 8-pack STD551208
#7

Unit parts diagram

Lock washer, #8, 8-pack

Part #STD551208

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Foot 3419
#1

Unit parts diagram

Refrigerator foot

Part #3419

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Housing 889-2
#28

Cabinet parts diagram

Refrigerator housing

Part #889-2

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf 911
#21

Cabinet parts diagram

Refrigerator shelf

Part #911

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Base 3057
#8

Unit parts diagram

Refrigerator base

Part #3057

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 3599
#6

Unit parts diagram

Refrigerator compressor

Part #3599

The manufacturer no longer makes this part, and there's no substitute part
