Kenmore
Central Air Conditioner

Model # 2538740960 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538740960 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

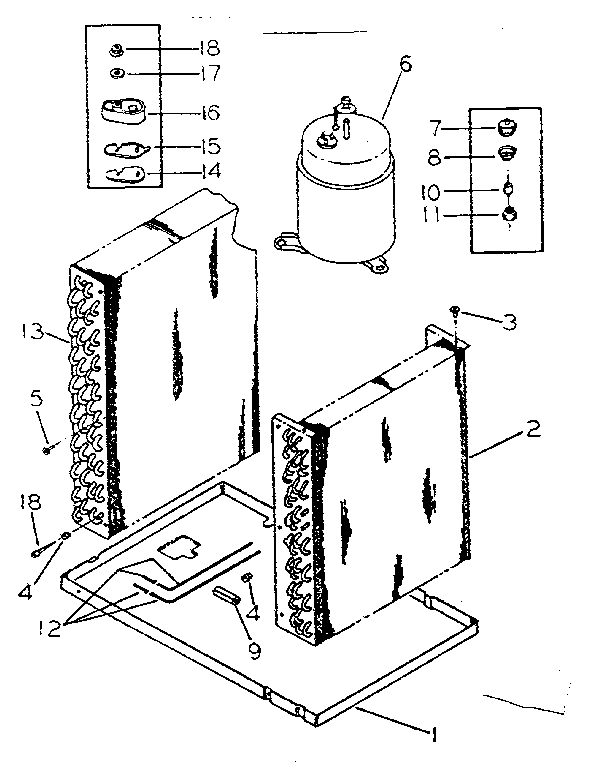

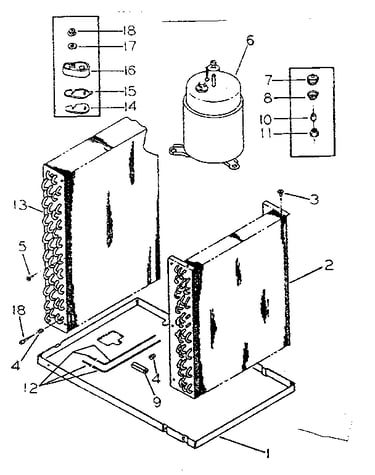

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Screw 516353
#7

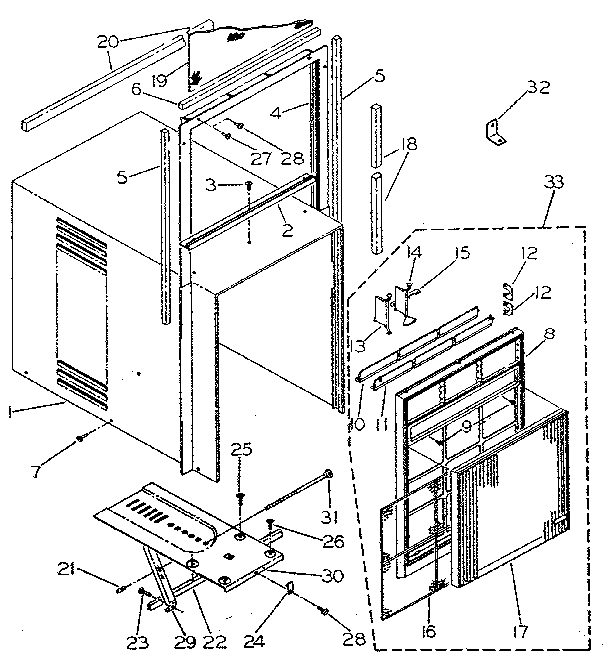

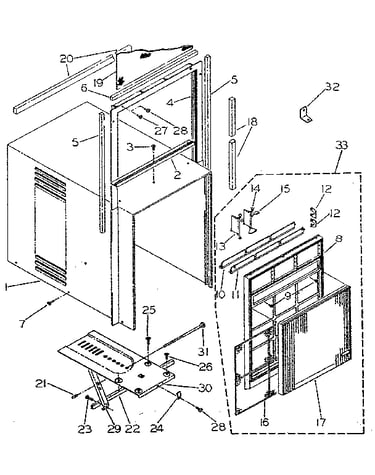

Cabinet and front panel parts diagram

Screw

Part #516353

Replaced by #154419403

?
Manufacturer substitution
This part replaces 516353. Substitute parts can look different from the original.
$12.69
In Stock
Screw 516359
Screw

Part #516359

Replaced by #154419403

?
Manufacturer substitution
This part replaces 516359. Substitute parts can look different from the original.
$12.69
In Stock
Installation Instructions 507263

#NI

All parts diagram

Installation instructions

Part #507263

Replaced by #5300507263

?
Manufacturer substitution
This part replaces 507263. Substitute parts can look different from the original.
This item is not returnable
$2.36
In Stock
Clamp 27669
#26

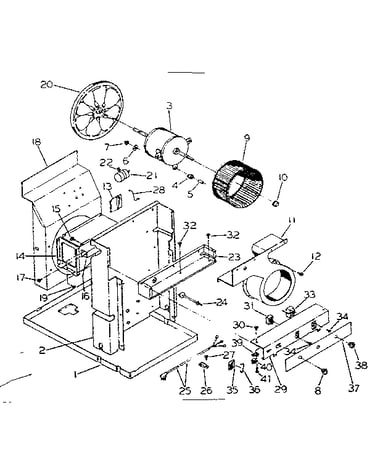

Electrical system and air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Filter 91550
#16

Cabinet and front panel parts diagram

Filter

Part #91550

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 519966
#33

Electrical system and air handling parts diagram

Thermostat

Part #519966

The manufacturer no longer makes this part, and there's no substitute part

Window Panel 160203
#19

Cabinet and front panel parts diagram

Window panel

Part #160203

The manufacturer no longer makes this part, and there's no substitute part

Pad Base 502049-17

#NI

All parts diagram

Pad base

Part #502049-17

The manufacturer no longer makes this part, and there's no substitute part

Control 514524-02
#39

Electrical system and air handling parts diagram

Control

Part #514524-02

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 519417-04
#21

Electrical system and air handling parts diagram

Capacitor

Part #519417-04

The manufacturer no longer makes this part, and there's no substitute part
