Model # JD750DF2BB Official GE electric range
Here are the diagrams and repair parts for Official GE JD750DF2BB electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

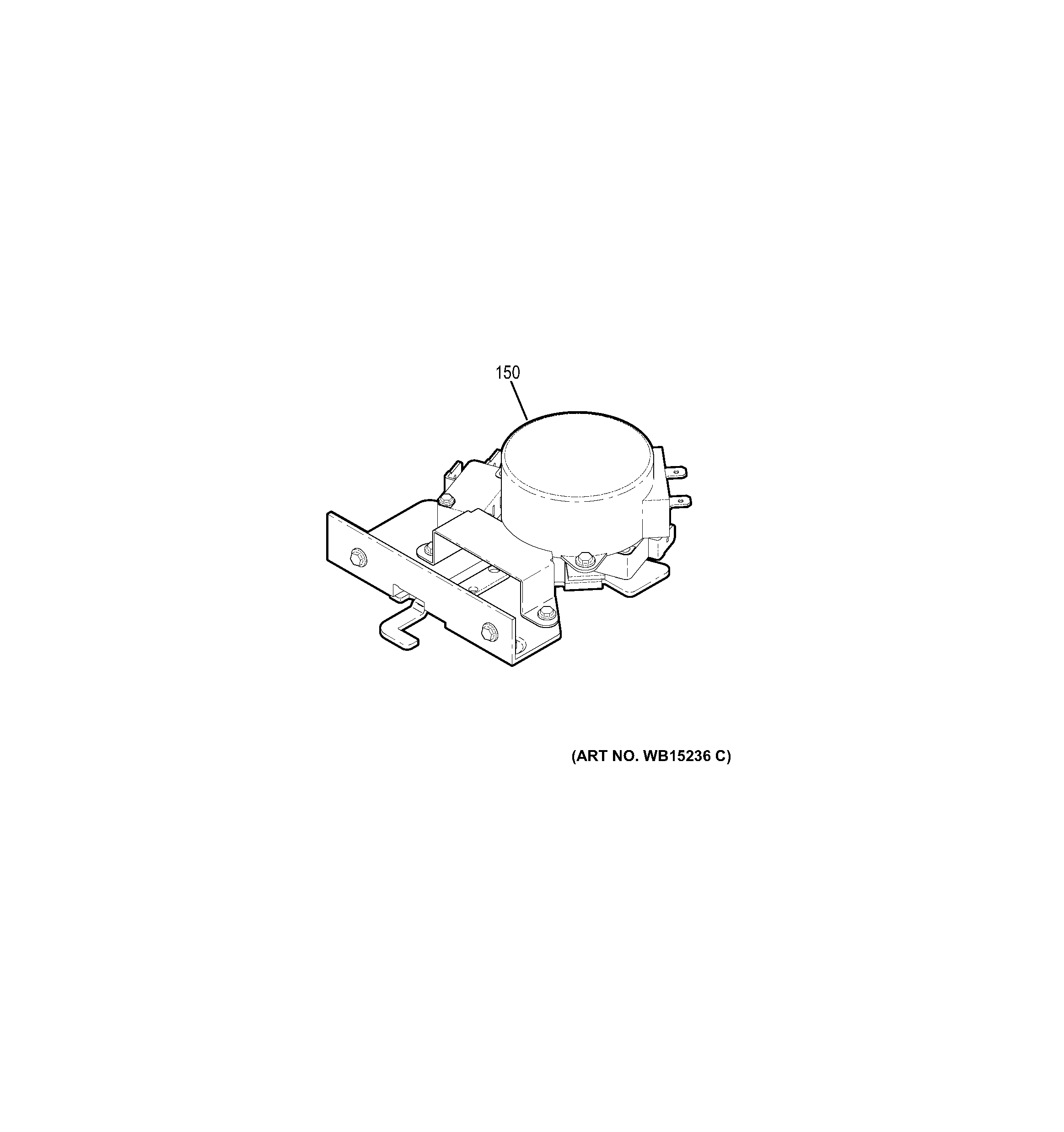

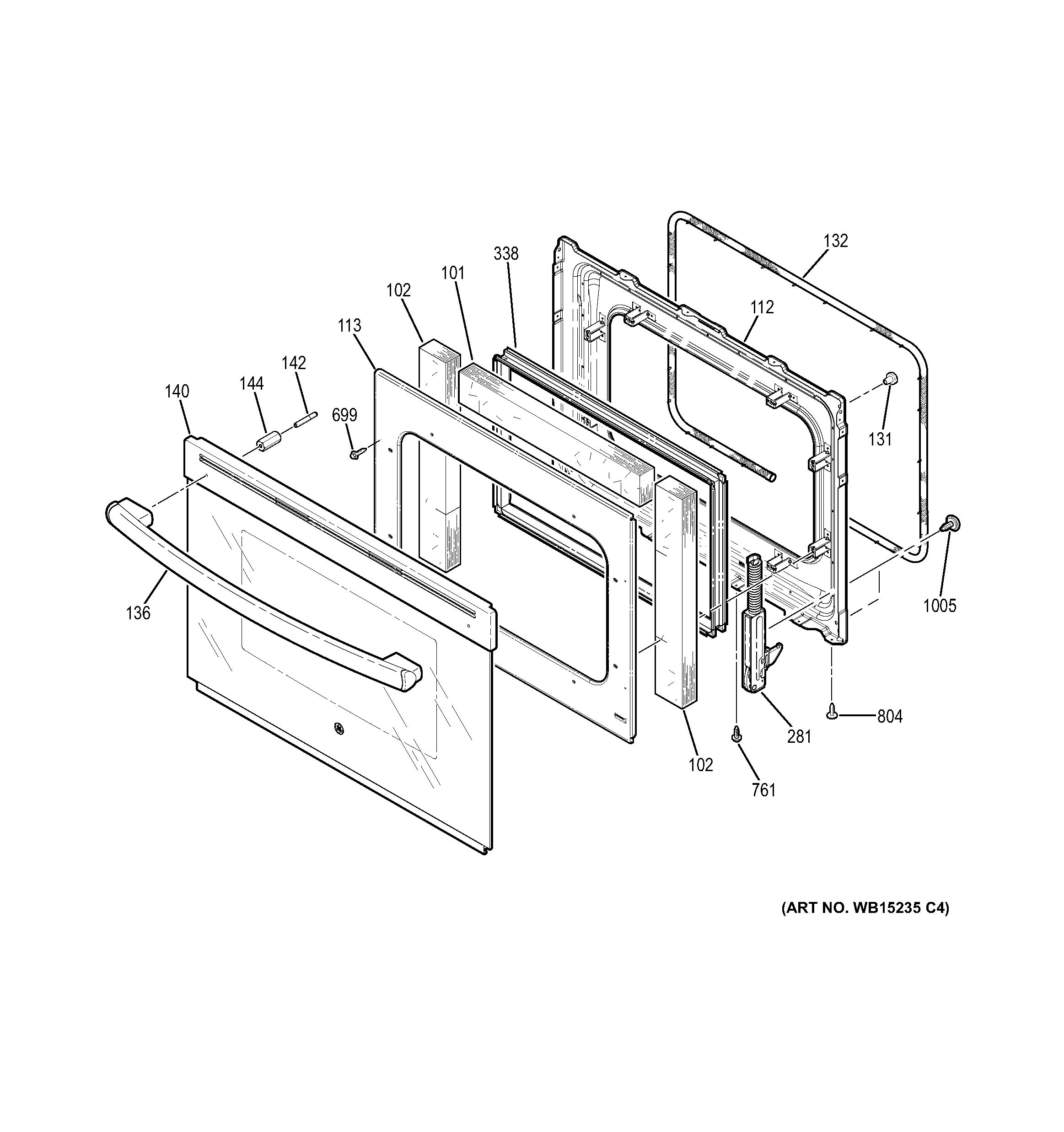

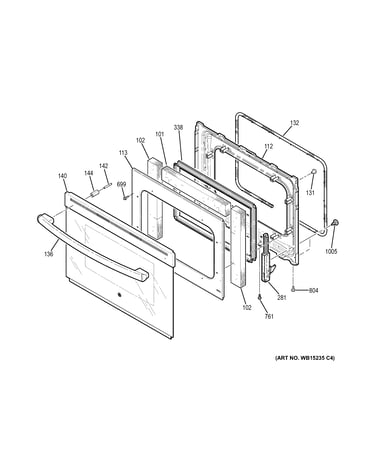

SELECT DIAGRAM
Browse Parts forJD750DF2BB Ranges
- #56

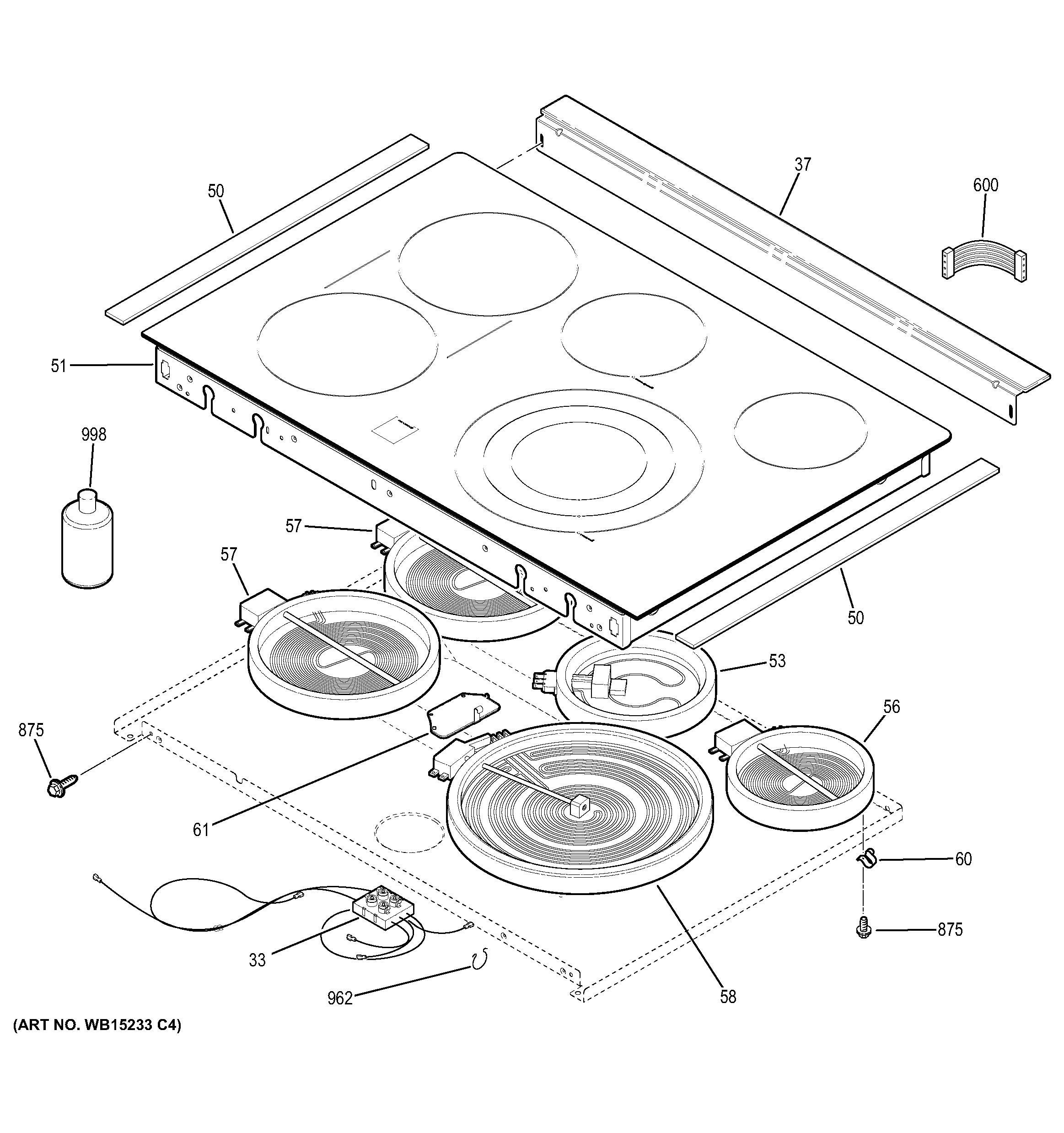

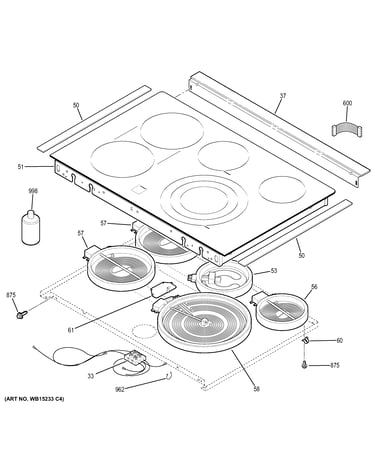

Cooktop diagram
Range radiant surface element, 5-1/2-inPart #WB30T10145
$97.53 |11% OFF Phone Price : $109.53In Stock - #58
Cooktop diagram
G.e. range triple radiant surface elementPart #WB30T10155
$171.76 |7% OFF Phone Price : $183.76In Stock - #253

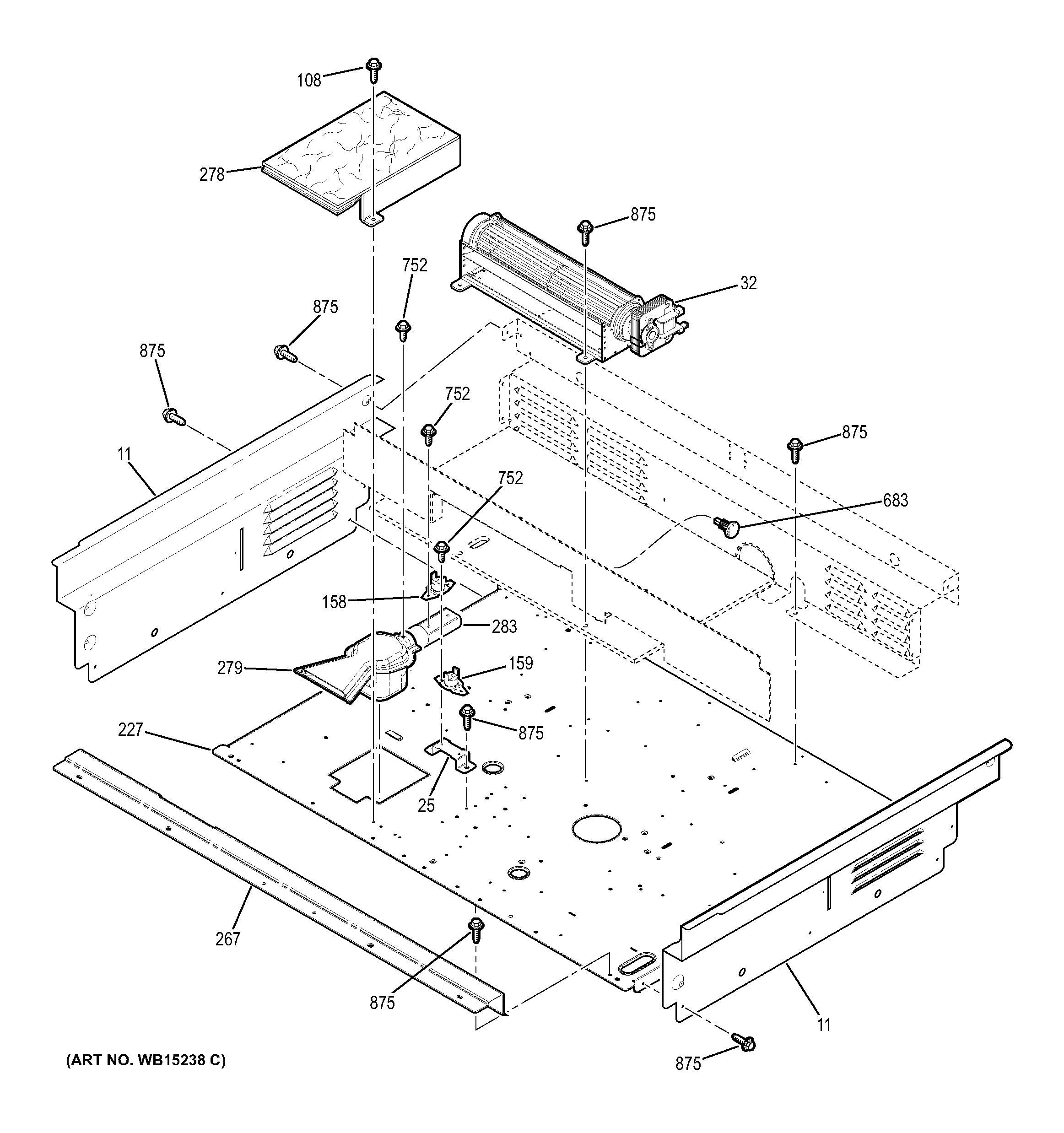

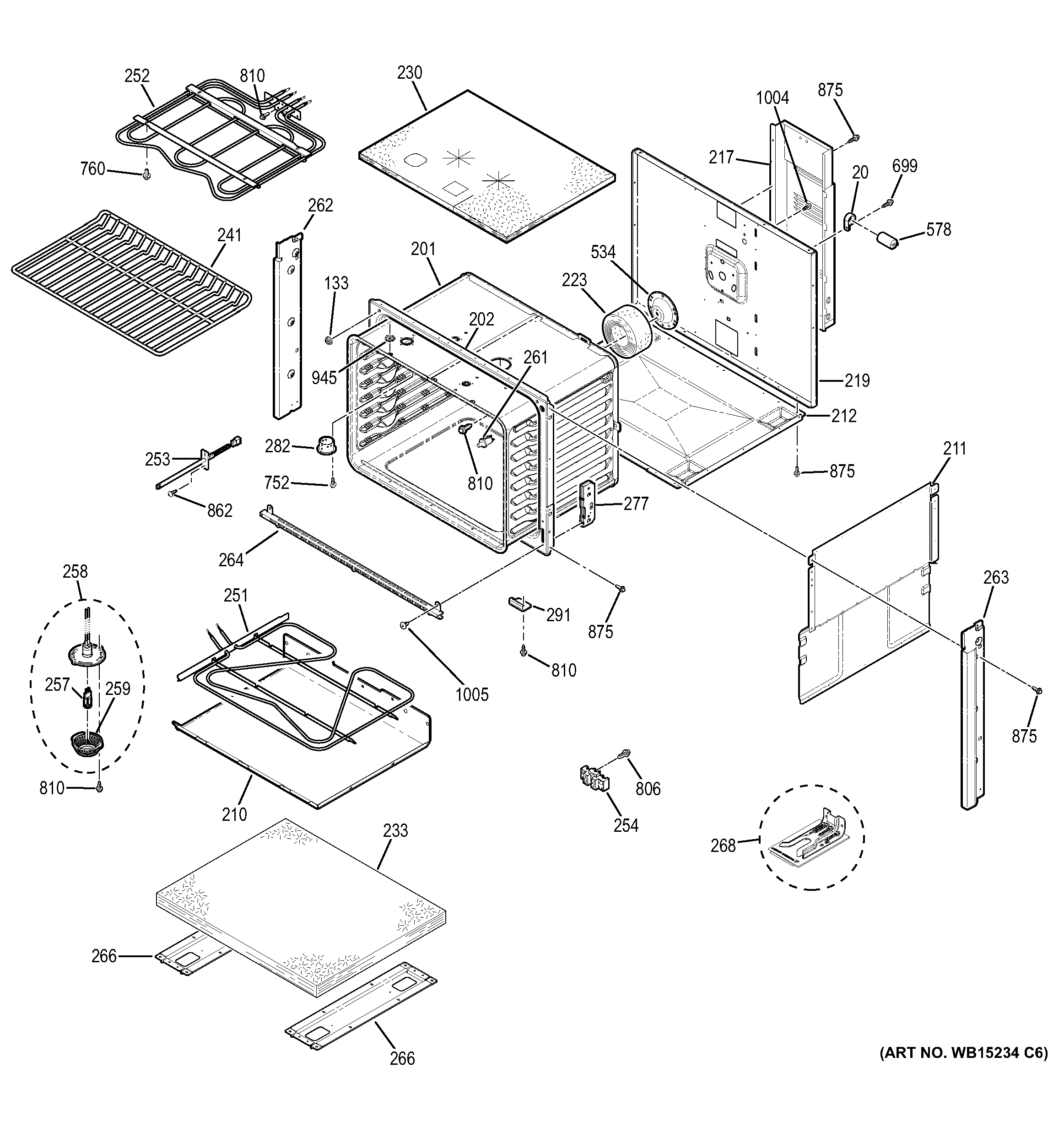

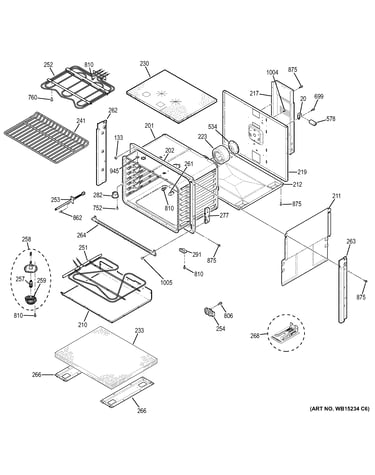

Body parts diagram
Wall oven temperature sensorPart #WB23T10015
$31.05 |16% OFF Phone Price : $37.05In Stock - #159

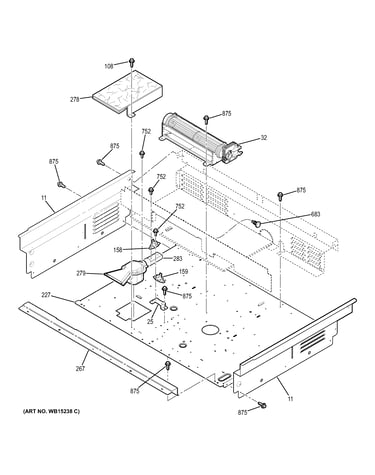

Cooling fan diagram
Wall oven safety thermostatPart #WB24T10060
This item is not returnable$12.89 |13% OFF Phone Price : $14.89In Stock - #977

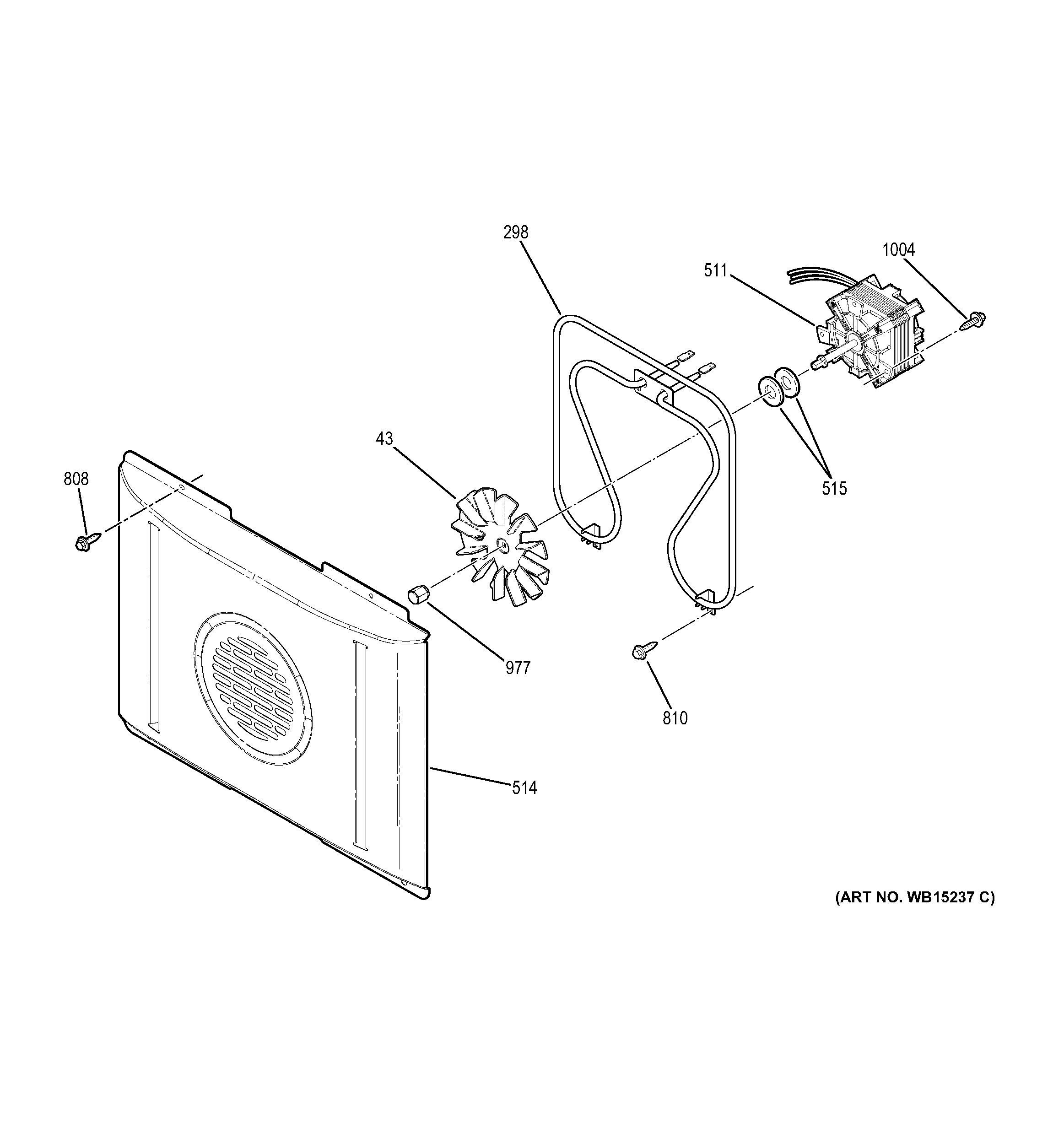

Convection fan diagram
NutPart #WB02T10017
This item is not returnable$11.04 |15% OFF Phone Price : $13.04In Stock - #43
Convection fan diagram
Range convection fan bladePart #WB02T10289
This item is not returnable$25.09 |19% OFF Phone Price : $31.09In Stock - #33
Cooktop diagram
Indicator modulePart #WB18T10349
$25.27 |19% OFF Phone Price : $31.27In Stock - #53
Cooktop diagram
Range warmer zone surface elementPart #WB30T10124
$78.52 |7% OFF Phone Price : $84.52In Stock - #34

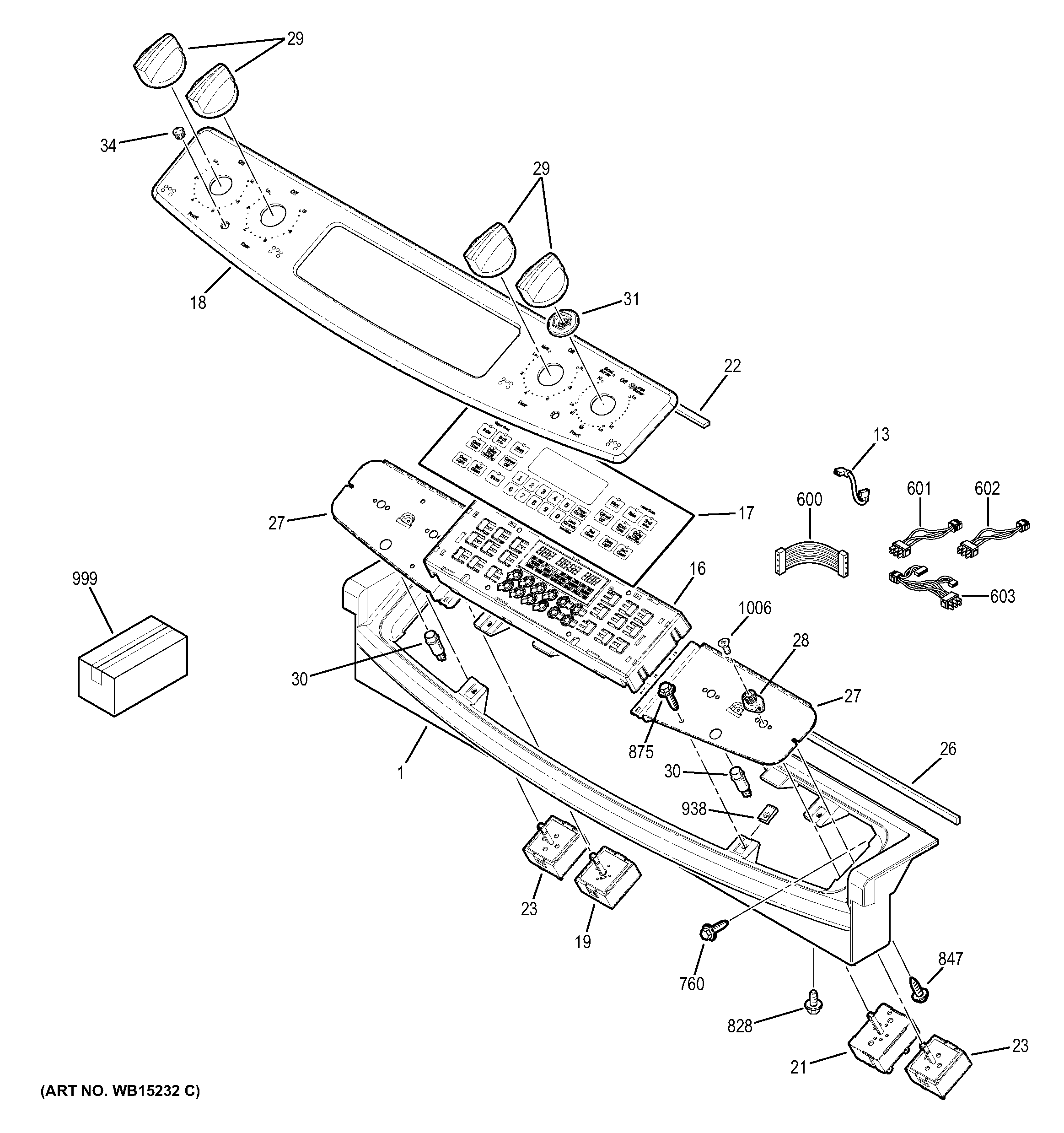

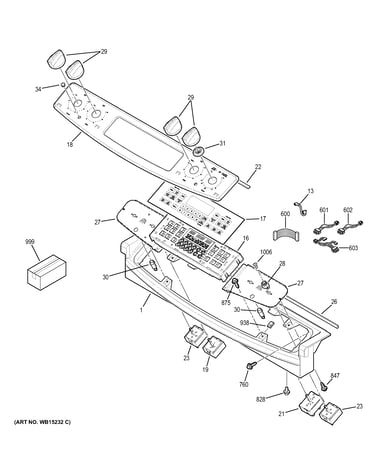

Control panel diagram
Range indicator light lensPart #WB25T10022
This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #511
Convection fan diagram
Wall oven convection fan motorPart #WB26T10043
$188.34 |6% OFF Phone Price : $200.34In Stock
