Here are the diagrams and repair parts for Official Whirlpool RH2724XDQ0 range hoods & vent, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts forRH2724XDQ0 Range Hoods & Vent

#5

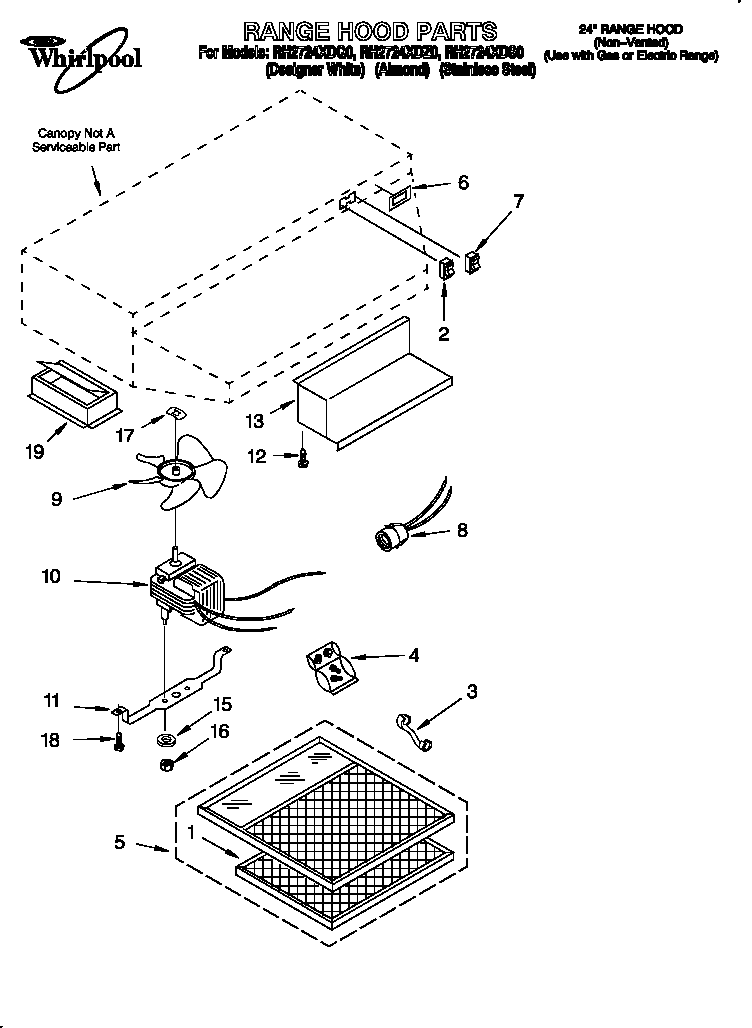

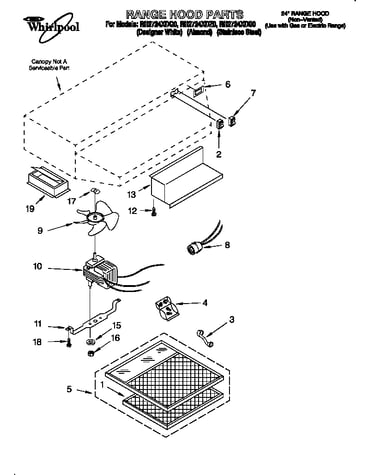

Range hood diagram
Filtr-comb
Part #883149
Replaced by #WP8190232
?
Manufacturer substitution
This part replaces 883149. Substitute parts can look different from the original.
2.7 (3)
$79.80 |
7% OFF Phone Price : $85.80
In Stock
Qty
#2B
Range hood diagram
Switch rocker (black)
Part #883203
Replaced by #W10673703
?
Manufacturer substitution
This part replaces 883203. Substitute parts can look different from the original.
$68.87
In Stock
Qty
#7A
Range hood diagram
Switch rocker (white)
Part #883182
Replaced by #W10673703
?
Manufacturer substitution
This part replaces 883182. Substitute parts can look different from the original.
$68.87
In Stock
Qty
#1
Range hood diagram
Range hood charcoal pad, 3-pack
Part #883151
Replaced by #WP883151
?
Manufacturer substitution
This part replaces 883151. Substitute parts can look different from the original.
$35.62 |
14% OFF Phone Price : $41.62
In Stock
Qty
#12
Range hood diagram
Screw
Part #830465
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 830465. Substitute parts can look different from the original.
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#2C
Range hood diagram
Rocker switch
Part #883335
The manufacturer no longer makes this part, and there's no substitute part
#6C
Range hood diagram
Range hood nameplate
Part #883308
The manufacturer no longer makes this part, and there's no substitute part
#18
Range hood diagram
Screw
Part #830767
The manufacturer no longer makes this part, and there's no substitute part
#7B
Range hood diagram
Switch rocker (black)
Part #830769
The manufacturer no longer makes this part, and there's no substitute part
#10
Range hood diagram
Fan motor
Part #830757
The manufacturer no longer makes this part, and there's no substitute part
