Model # ACS3350AW0 Official Amana gas self-cleaning slide-in range
Here are the diagrams and repair parts for Official Amana ACS3350AW0 gas self-cleaning slide-in range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

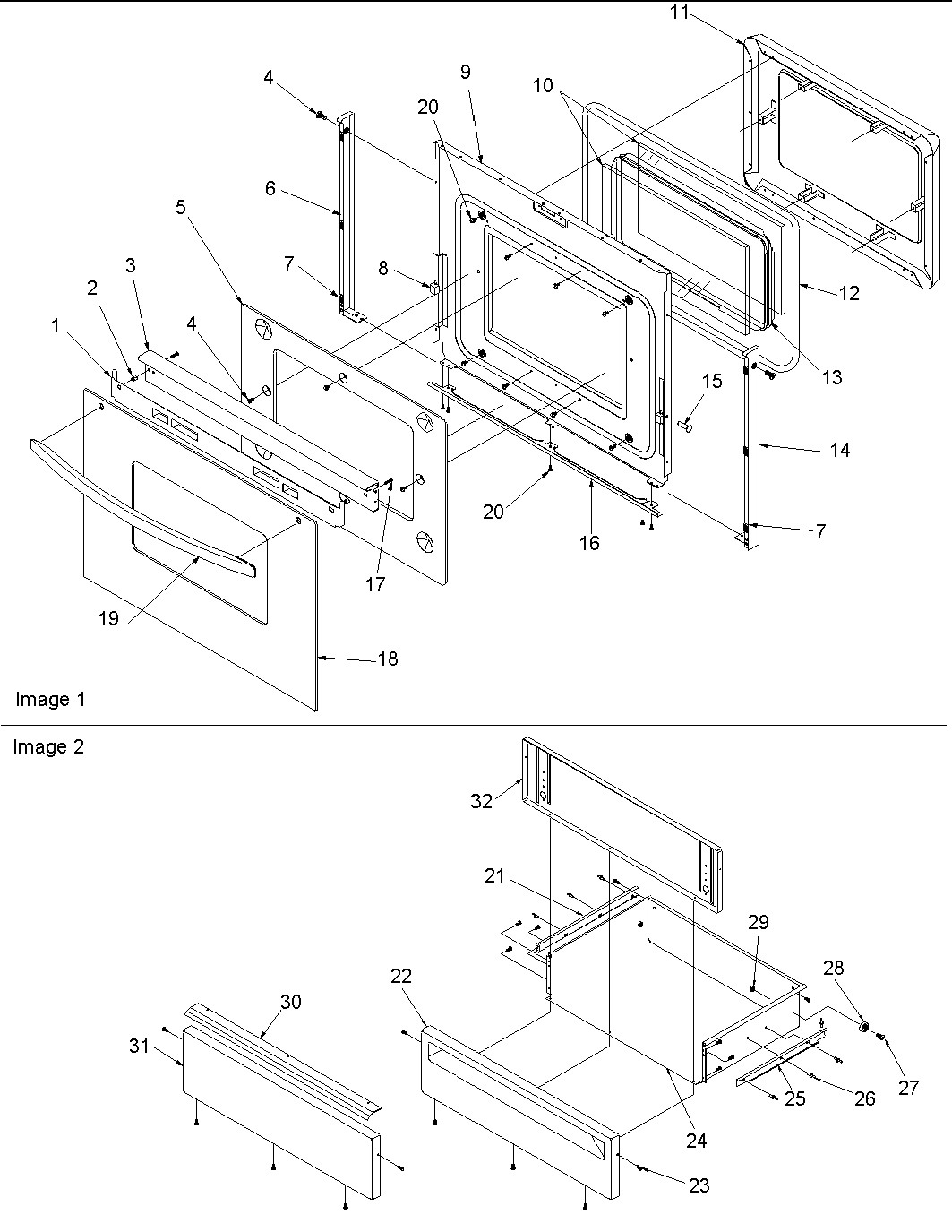

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 160 parts |
#35

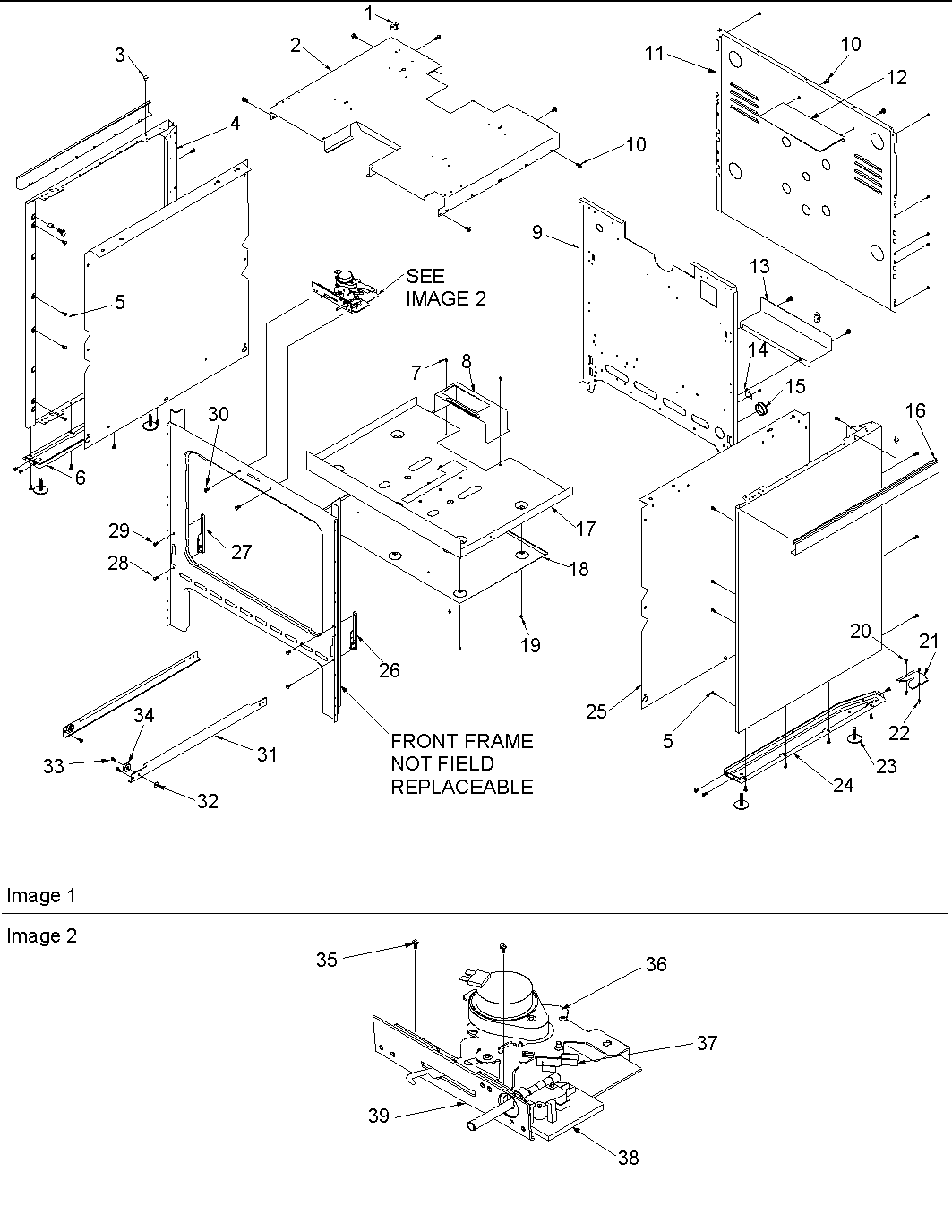

Cabinet diagram
Screw
Part #31750432
Replaced by #WP693995
?
Manufacturer substitution
This part replaces 31750432. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#14

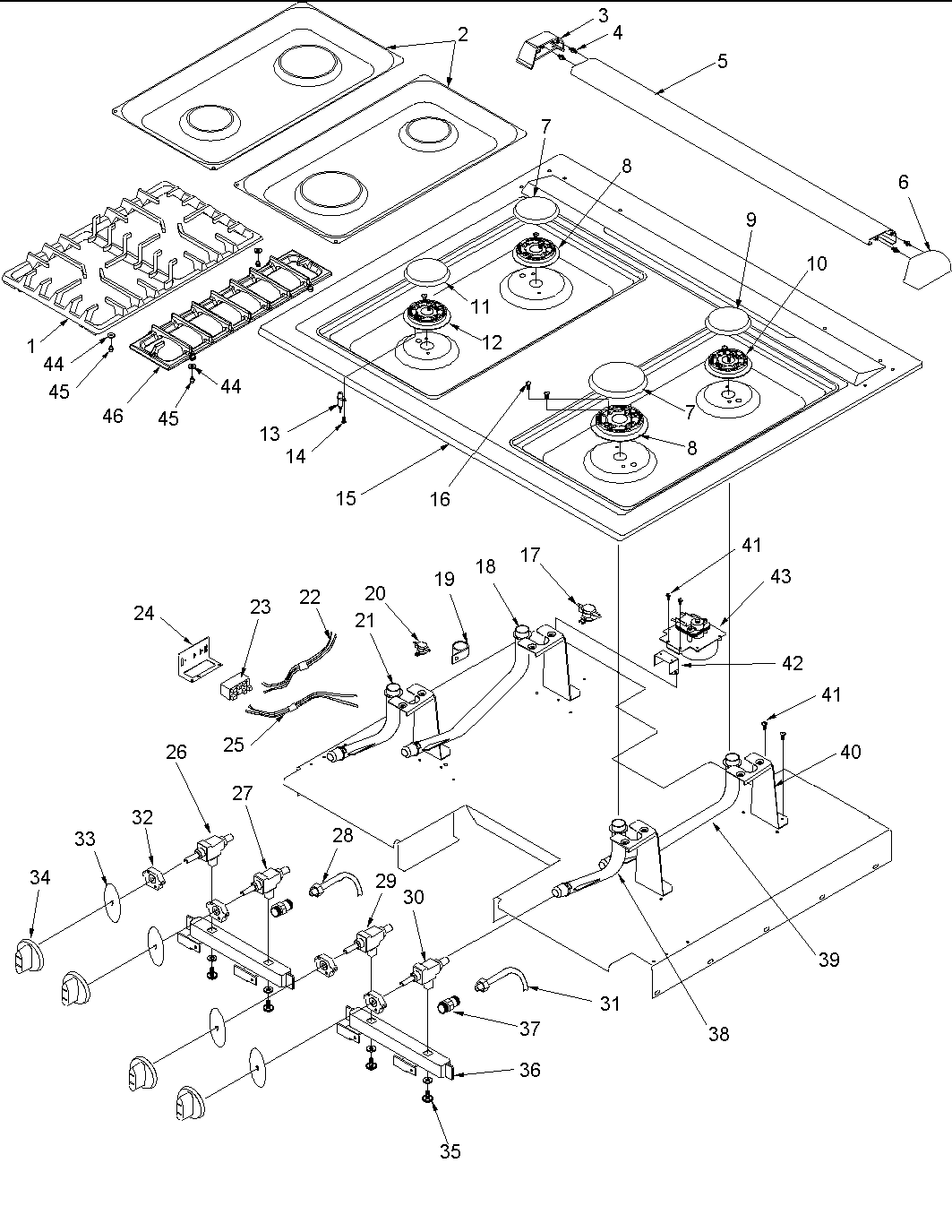

Main top diagram
Screw
Part #31750409
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 31750409. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#14

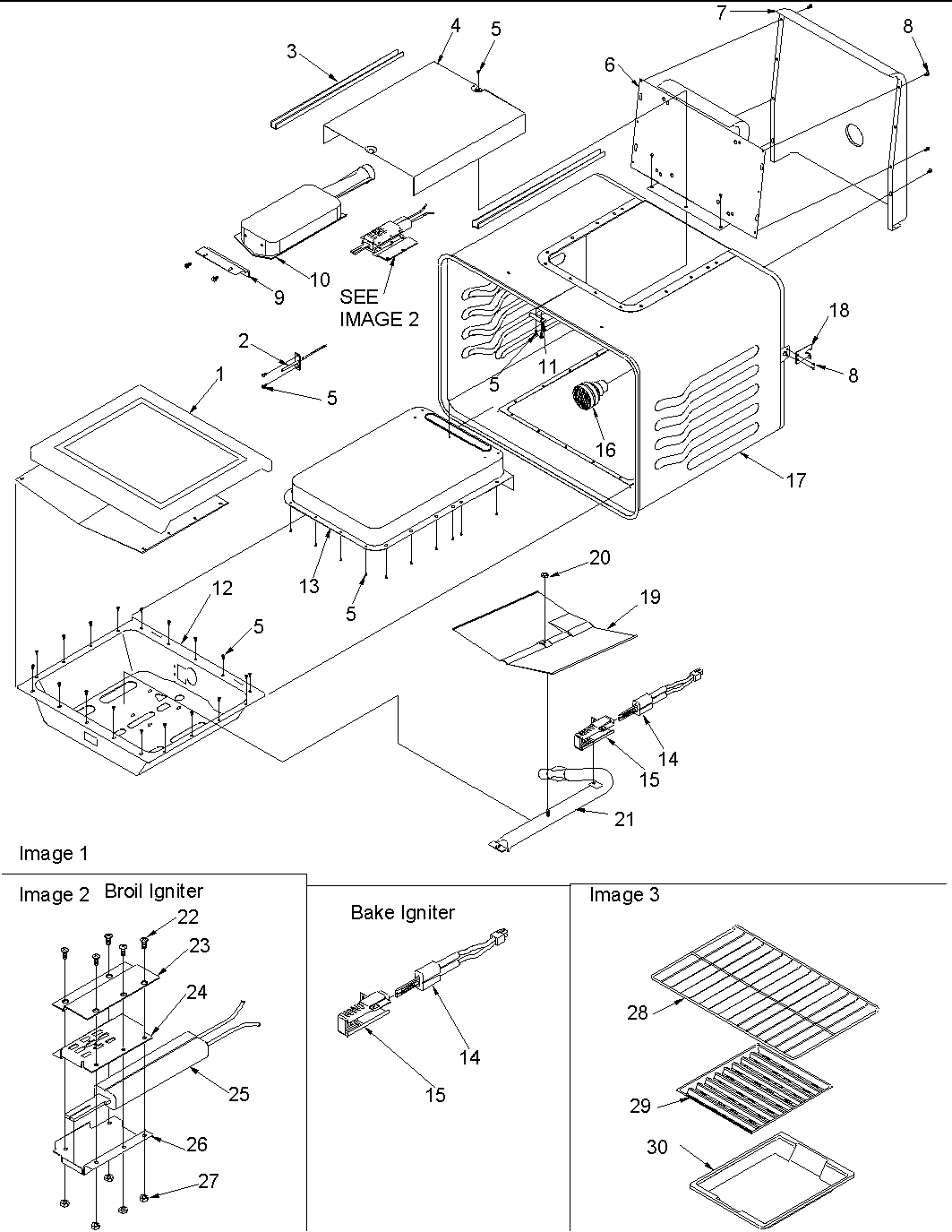

Cavity diagram
Range oven bake igniter
Part #31940001
Replaced by #WP31940001
?
Manufacturer substitution
This part replaces 31940001. Substitute parts can look different from the original.
$81.64 |
7% OFF Phone Price : $87.64
In Stock
#13
Main top diagram
Igniter
Part #0316773
Replaced by #WPY0316773
?
Manufacturer substitution
This part replaces 0316773. Substitute parts can look different from the original.
$32.72 |
15% OFF Phone Price : $38.72
In Stock
#30
Cavity diagram
Broiler pan
Part #314175CG
Replaced by #4396923
?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
#29
Cavity diagram
Grid, broile
Part #304451CG
Replaced by #4396923
?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
#38
Cabinet diagram
Switch
Part #31933601
$28.09
In Stock
#8

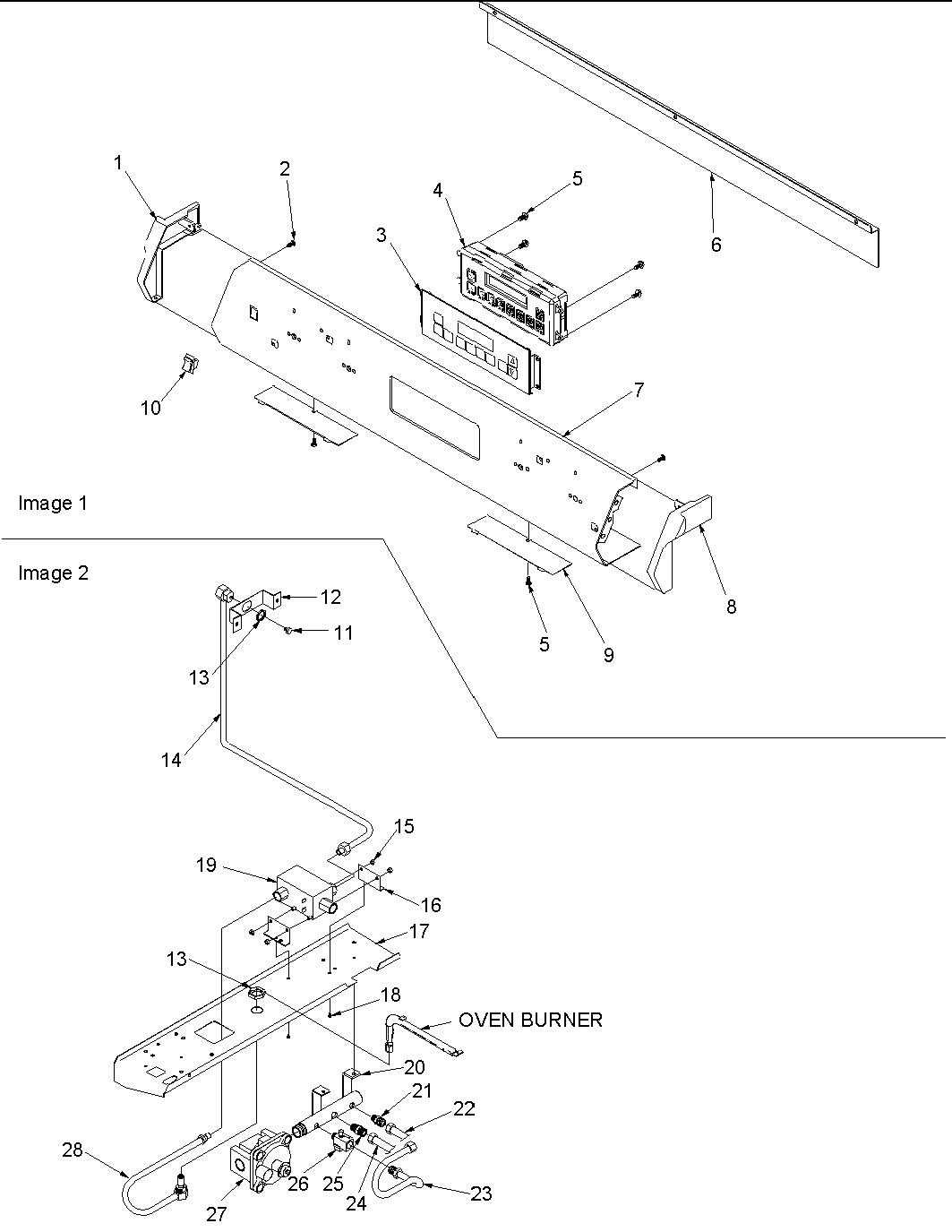

Control panel and gas supply diagram
End cap
Part #31742705W
$19.62
In Stock
#35
Main top diagram
Valve screw
Part #31750712
Replaced by #WP8273096
?
Manufacturer substitution
This part replaces 31750712. Substitute parts can look different from the original.
This item is not returnable
$4.23
In Stock
#32
Main top diagram
Switch
Part #0316572
Replaced by #WPY0316572
?
Manufacturer substitution
This part replaces 0316572. Substitute parts can look different from the original.
$51.09 |
11% OFF Phone Price : $57.09
In Stock
