Kenmore
Canister Vacuum

Model # 1165501290 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 1165501290 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Rear Axle (2) 7472006
#25

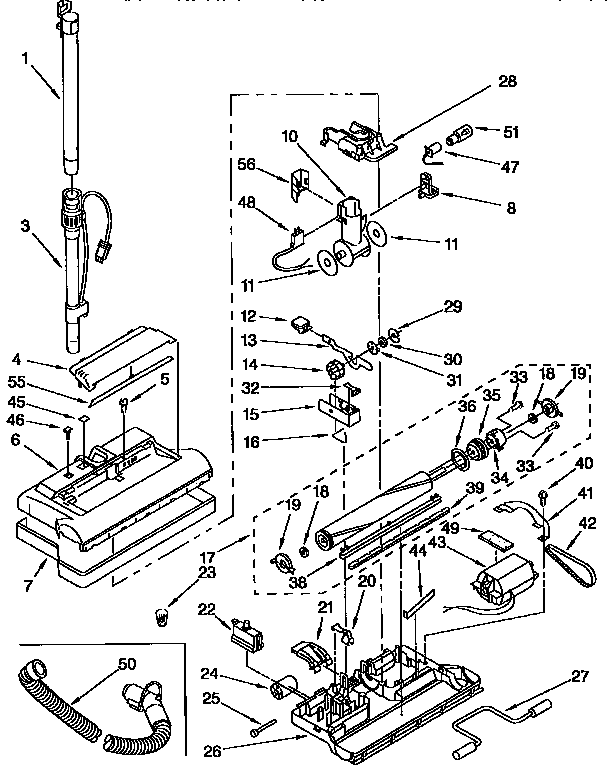

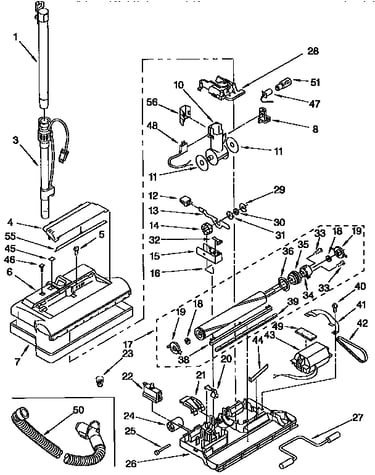

Power mate diagram

Rear axle (2)

Part #7472006

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#47

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Brush 742454
#17

Power mate diagram

Brush

Part #742454

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 4369471
#28

Power mate diagram

Swivel cap

Part #4369471

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 747286
#55

Power mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4155355
#46

Power mate diagram

Extension button

Part #4155355

The manufacturer no longer makes this part, and there's no substitute part

Screw 681550
#5

Power mate diagram

Screw

Part #681550

The manufacturer no longer makes this part, and there's no substitute part

Bar 742029
#39

Power mate diagram

Bar

Part #742029

The manufacturer no longer makes this part, and there's no substitute part
