Model # A3100PPW Official Admiral gas freestanding range

Here are the diagrams and repair parts for Official Admiral A3100PPW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Clamp Screw 7101P080-60
#13

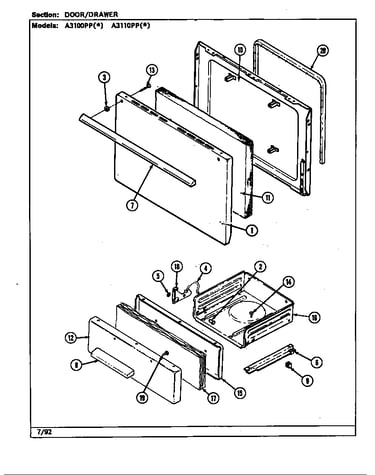

Door/drawer diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
"bracket, Ant" 3801F218-51
#17

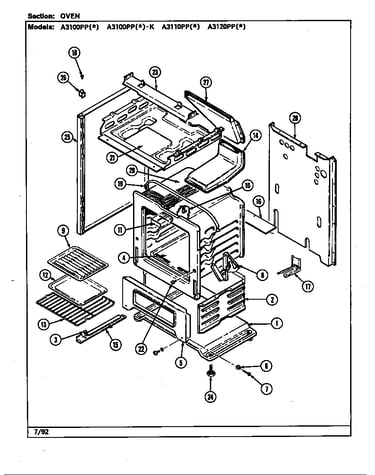

Oven diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Thermostat Knob 7731P079-60
#8

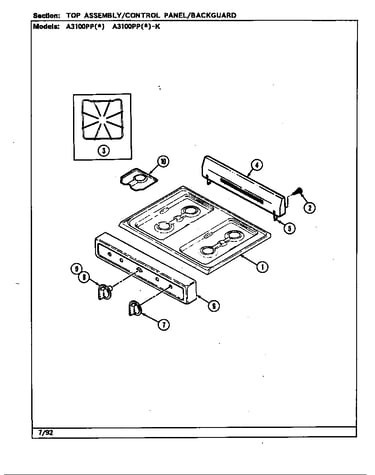

Top /control panel diagram

Thermostat knob

Part #7731P079-60

Replaced by #WP74002419

?
Manufacturer substitution
This part replaces 7731P079-60. Substitute parts can look different from the original.
This item is not returnable
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Screw 7101P300-60
#7

Oven diagram

Screw

Part #7101P300-60

Replaced by #7101P345-60

?
Manufacturer substitution
This part replaces 7101P300-60. Substitute parts can look different from the original.
$12.49
In Stock
Valve Knob 7733P062-60
#7

Top /control panel diagram

Valve knob

Part #7733P062-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7733P062-60. Substitute parts can look different from the original.
This item is not returnable
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Thermostat Clip 7112P004-60
#10

Oven diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Pressure Regulator 7510P050-60
#14

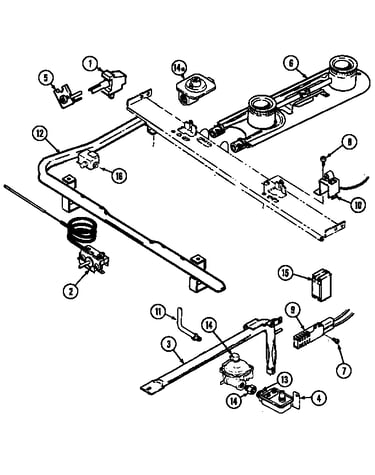

Gas controls diagram

Pressure regulator

Part #7510P050-60

Replaced by #WP74006429

?
Manufacturer substitution
This part replaces 7510P050-60. Substitute parts can look different from the original.
$145.61 |
8% OFF Phone Price : $157.61
In Stock
Hinge Drawer 3418F080-51
#18A

Door/drawer diagram

Hinge drawer

Part #3418F080-51

This item is not returnable
$3.29
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Bracket Screw 7101P289-60
#17A

Oven diagram

Bracket screw

Part #7101P289-60

Replaced by #WP7101P485-60

?
Manufacturer substitution
This part replaces 7101P289-60. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
