Model # PES3759BCB Official Maytag electric slide-in range
Here are the diagrams and repair parts for Official Maytag PES3759BCB electric slide-in range, as well as links to manuals and error code tables, if available.

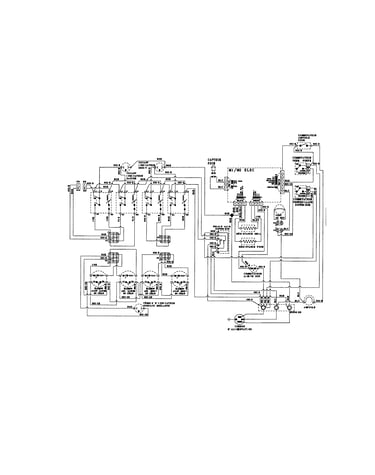

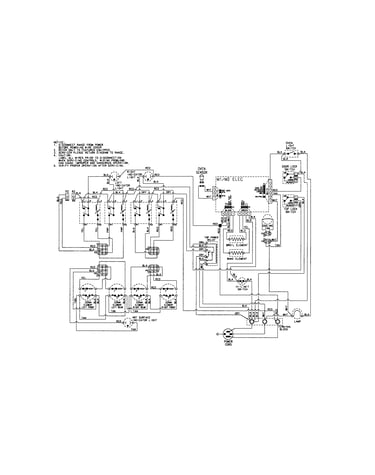

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forPES3759BCB Ranges
- #16

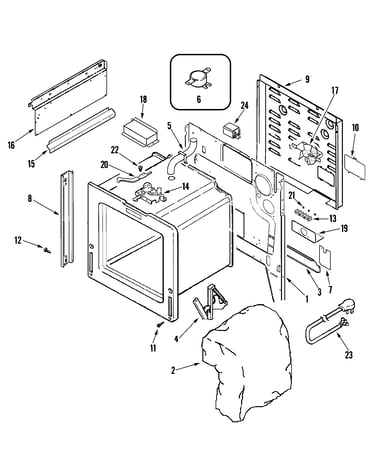

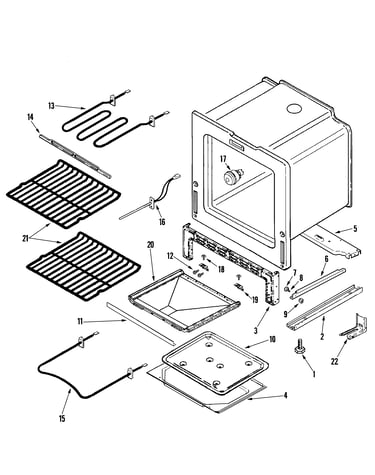

Oven/base diagram
Oven sensorPart #74004943
Replaced by #12001656
?Manufacturer substitutionThis part replaces 74004943. Substitute parts can look different from the original.$31.38 |16% OFF Phone Price : $37.38In Stock - #2

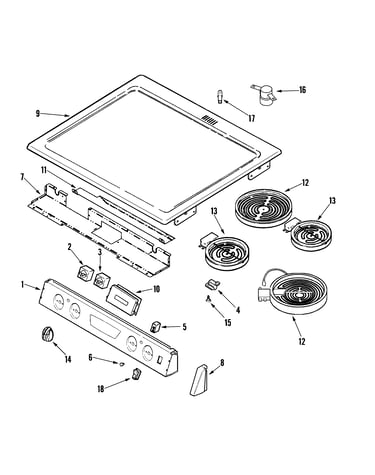

Control panel/top asy diagram
Range surface element control switchPart #7403P238-60
Replaced by #WP7403P238-60
?Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.$47.87 |11% OFF Phone Price : $53.87In Stock - #13
Control panel/top asy diagram
Element (120Part #74008568
Replaced by #W10823711
?Manufacturer substitutionThis part replaces 74008568. Substitute parts can look different from the original.$119.38 |9% OFF Phone Price : $131.38In Stock - #15
Oven/base diagram
Bake elementPart #74010883
Replaced by #WPW10310274
?Manufacturer substitutionThis part replaces 74010883. Substitute parts can look different from the original.$69.55 |8% OFF Phone Price : $75.55In Stock - #4

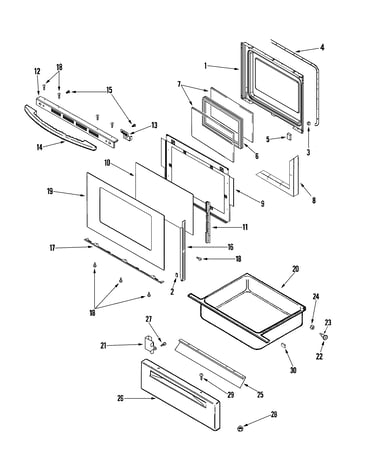

Door/drawer diagram
Door gasketPart #7201P046-60
Replaced by #WPW10162384
?Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.$61.16 |9% OFF Phone Price : $67.16In Stock - #7
Door/drawer diagram
Range oven door inner glassPart #74003645
$102.92 |10% OFF Phone Price : $114.92In Stock - Screw
Part #74009537
Replaced by #WP98008545
?Manufacturer substitutionThis part replaces 74009537. Substitute parts can look different from the original.This item is not returnable$4.67 |18% OFF Phone Price : $5.67In Stock - #12
Control panel/top asy diagram
Element (250Part #74009034
Replaced by #W10823696
?Manufacturer substitutionThis part replaces 74009034. Substitute parts can look different from the original.$108.98 |10% OFF Phone Price : $120.98In Stock - #17A
Oven/base diagram
Oven bulbPart #7407P103-60
Replaced by #8009
?Manufacturer substitutionThis part replaces 7407P103-60. Substitute parts can look different from the original.This item is not returnable$9.69 |9% OFF Phone Price : $10.69In Stock - #21
Oven/base diagram
Oven rackPart #74001757
Replaced by #WPW10282492
?Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.$56.89 |10% OFF Phone Price : $62.89In Stock
