Model # FDBC45BAS2 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDBC45BAS2 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

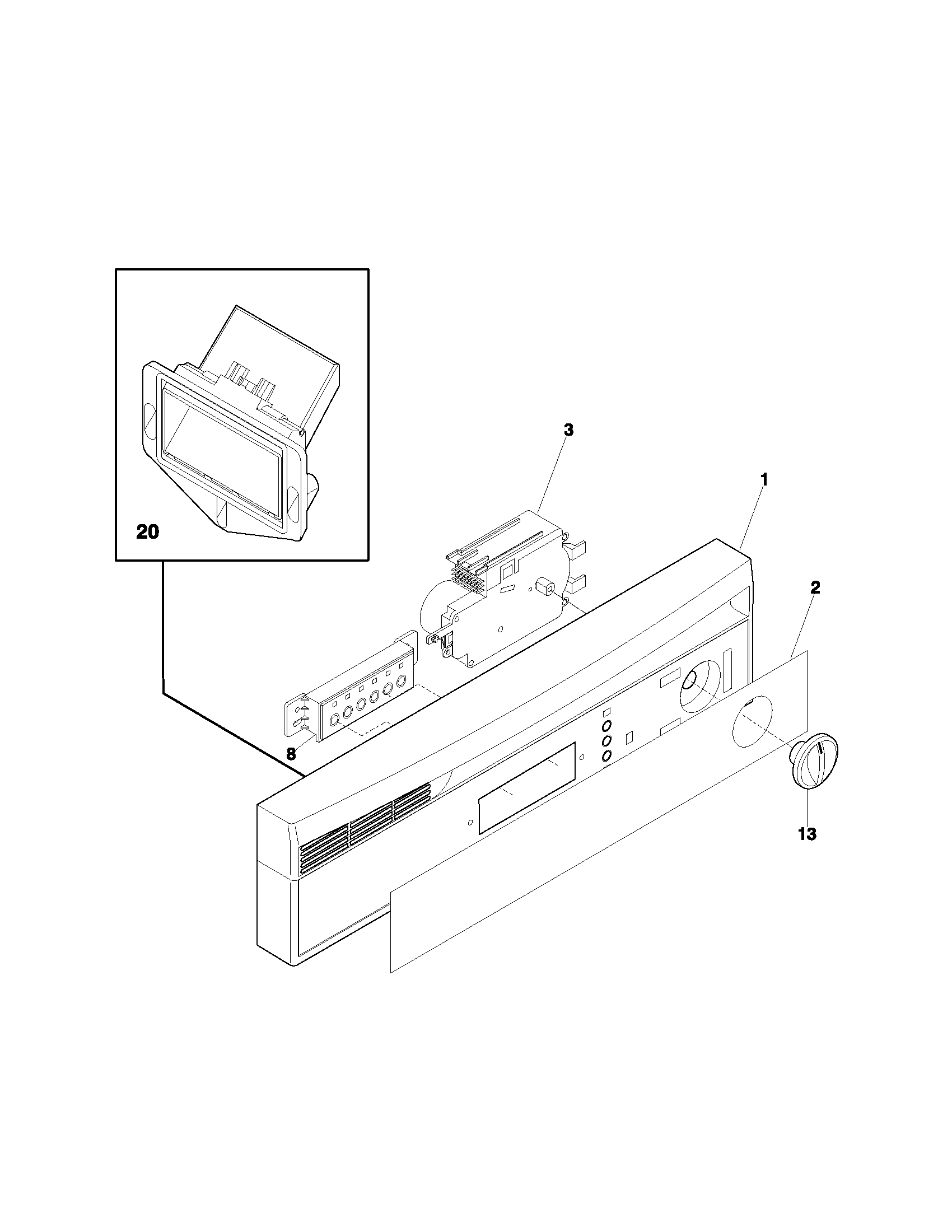

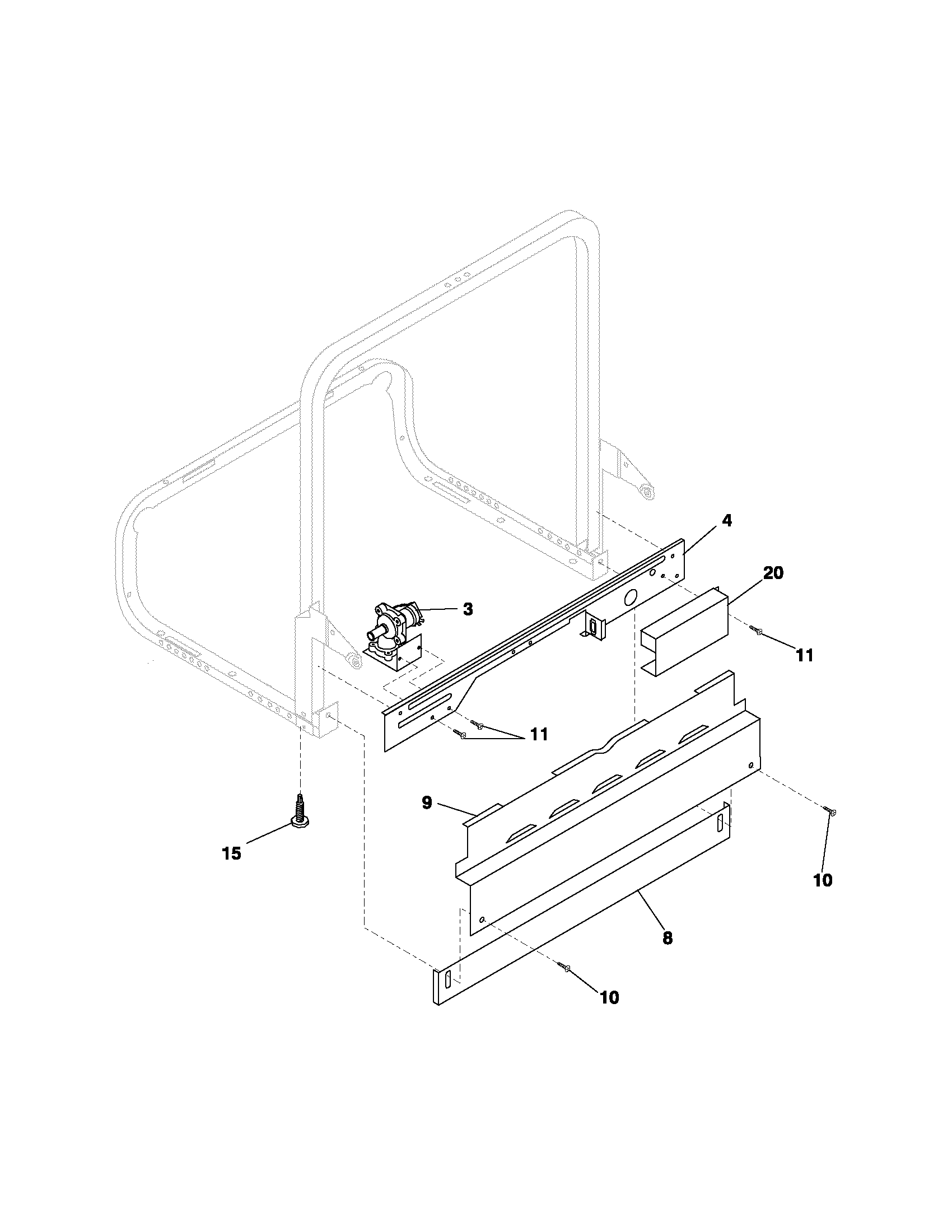

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FDBC45BAS2 Dishwasher
Gasket 154211801
#3

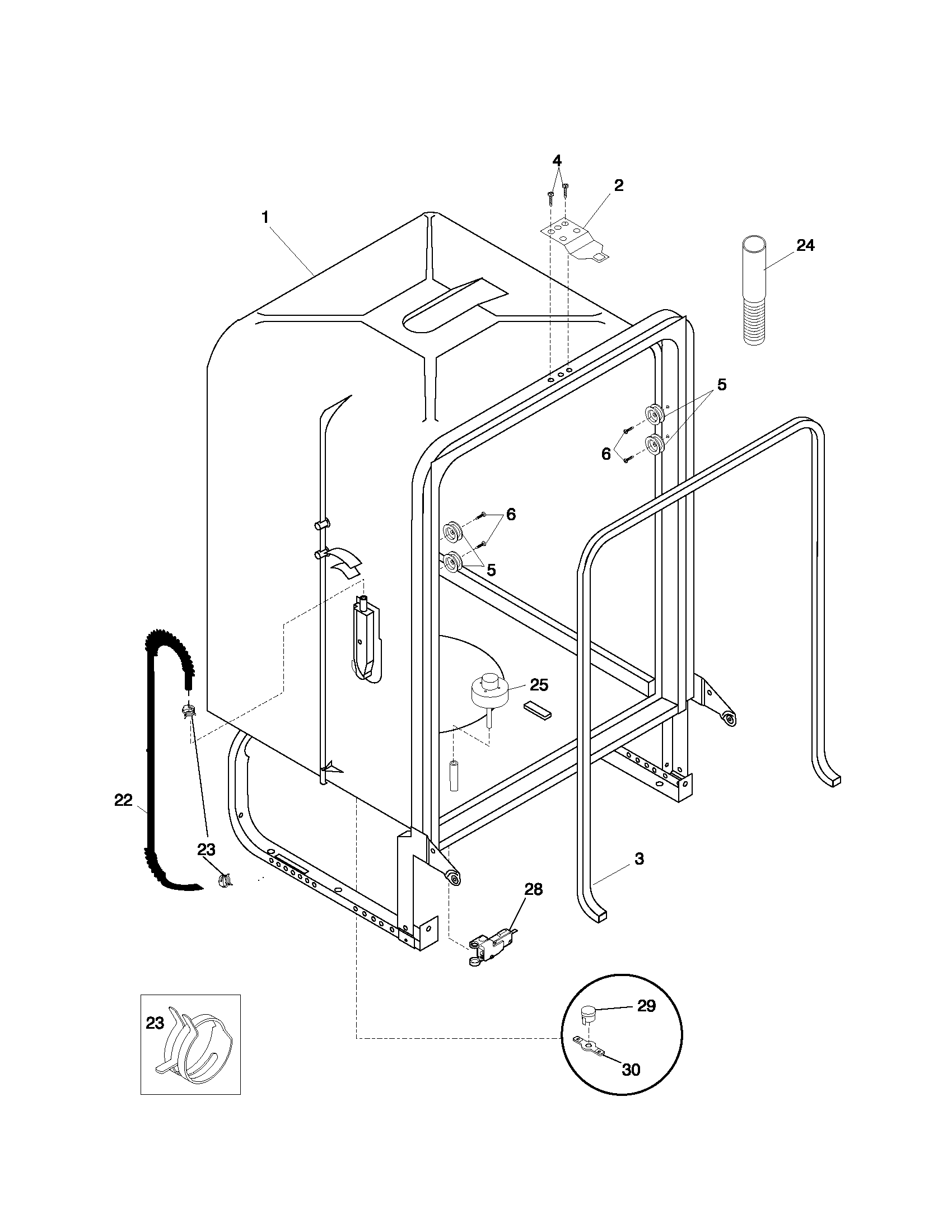

Tub diagram

Gasket

Part #154211801

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154211801. Substitute parts can look different from the original.
4.46 (37)
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Dishwasher Spray Arm 154414101
#24

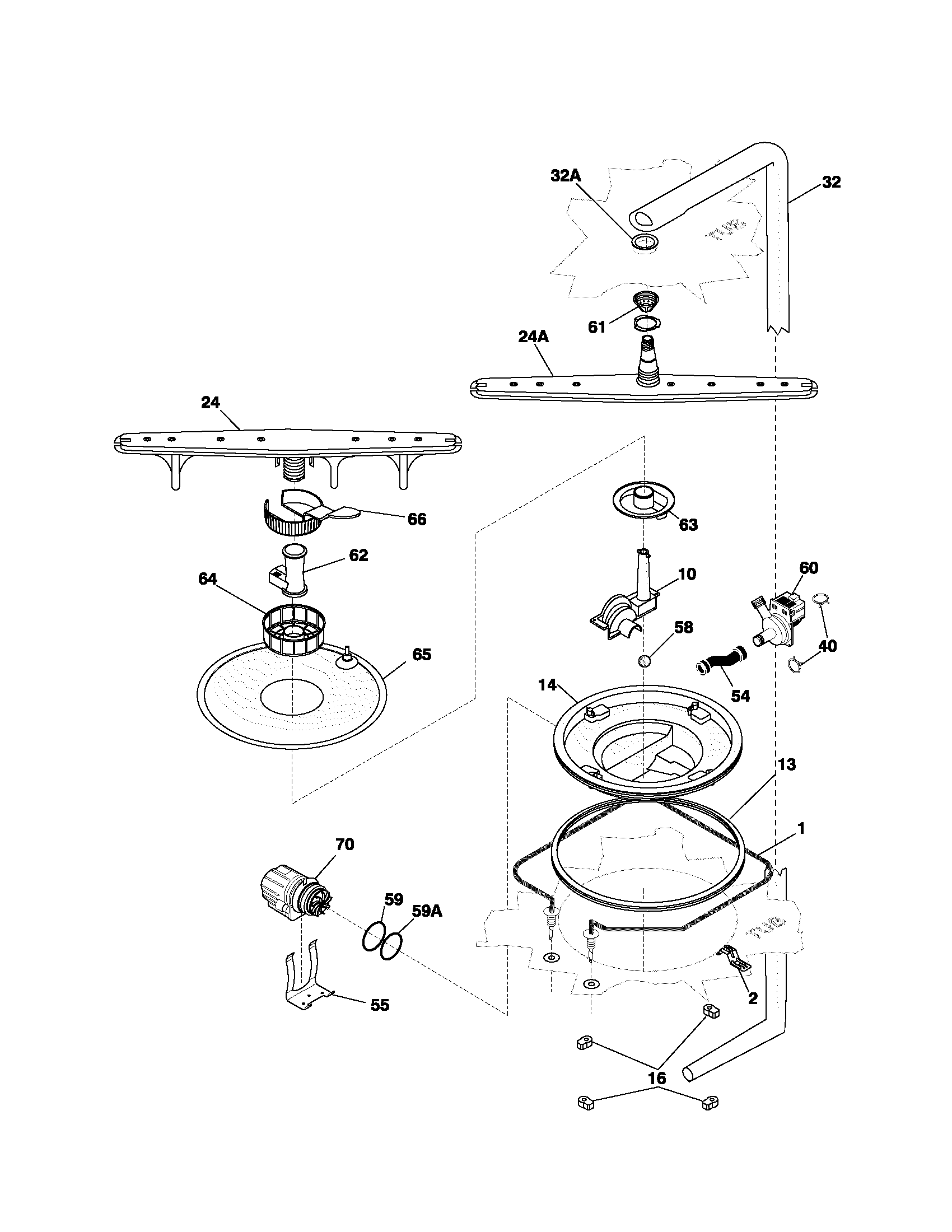

Motor & pump diagram

Dishwasher spray arm

Part #154414101

Replaced by #5304517203

?
Manufacturer substitution
This part replaces 154414101. Substitute parts can look different from the original.
4.52 (27)
BEST SELLER
$35.64 |
14% OFF Phone Price : $41.64
In Stock
Gasket 154297603
#49

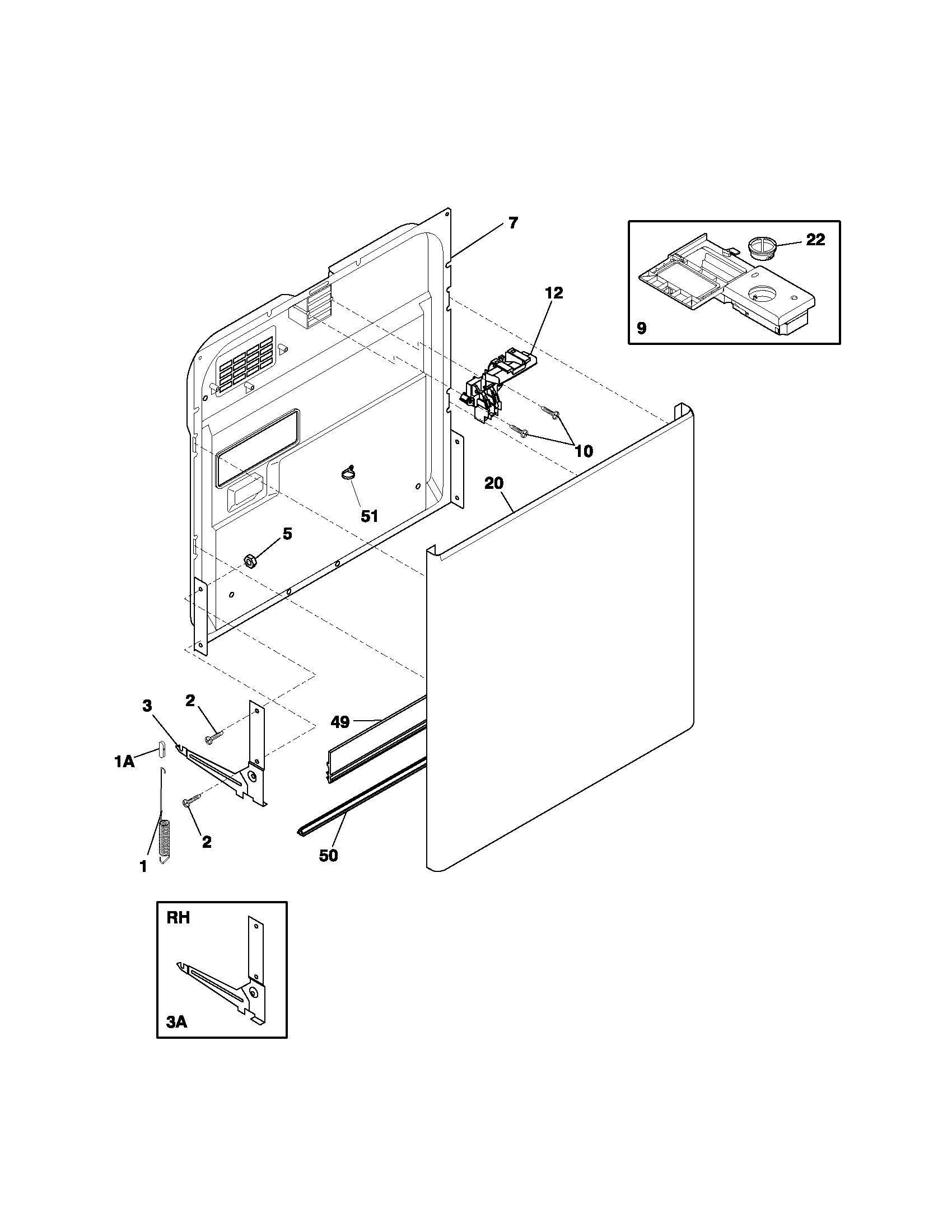

Door diagram

Gasket

Part #154297603

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154297603. Substitute parts can look different from the original.
4.64 (25)
BEST SELLER
$23.62 |
20% OFF Phone Price : $29.62
In Stock
Dishwasher Lower Spray Arm Support 154294101
#62

Motor & pump diagram

Dishwasher lower spray arm support

Part #154294101

Replaced by #5304518968

?
Manufacturer substitution
This part replaces 154294101. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Dishwasher Pump O-ring, Rear 154246901
#59

Motor & pump diagram

Dishwasher pump o-ring, rear

Part #154246901

1 (1)
BEST SELLER
$38.32 |
14% OFF Phone Price : $44.32
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.32 |
14% OFF Phone Price : $44.32
In Stock
Dishwasher Wheel 154174501
#7

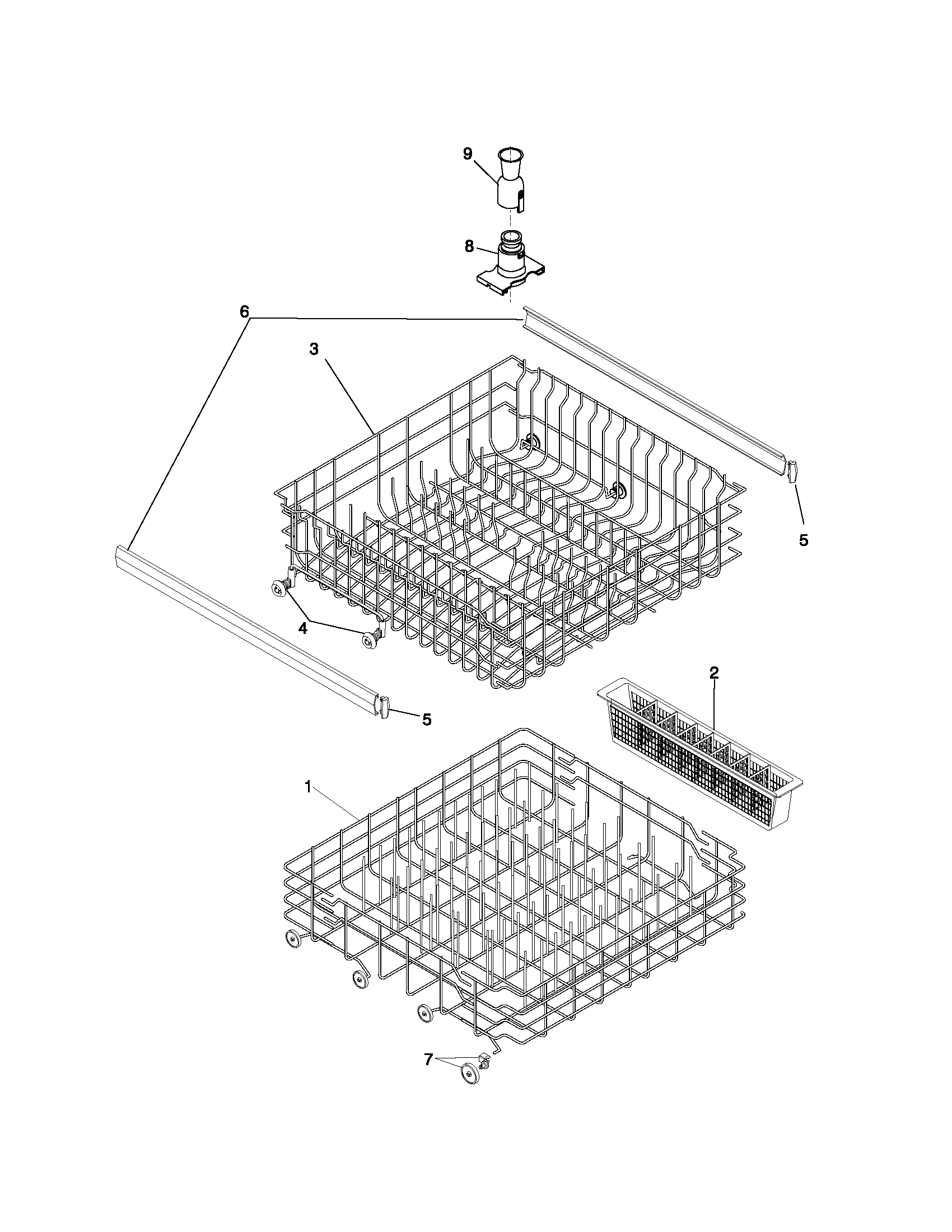

Racks diagram

Dishwasher wheel

Part #154174501

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.18 |
16% OFF Phone Price : $6.18
In Stock
Dishwasher Filter 154252401
#65

Motor & pump diagram

Dishwasher filter

Part #154252401

Replaced by #5304506525

?
Manufacturer substitution
This part replaces 154252401. Substitute parts can look different from the original.
4.67 (3)
BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Latch Handle 154361203
#12

Door diagram

Latch handle

Part #154361203

Replaced by #5304442175

?
Manufacturer substitution
This part replaces 154361203. Substitute parts can look different from the original.
4 (4)
BEST SELLER
$60.77 |
9% OFF Phone Price : $66.77
In Stock
Latch Handle 154361201
#12

Door diagram

Latch handle

Part #154361201

Replaced by #5304442175

?
Manufacturer substitution
This part replaces 154361201. Substitute parts can look different from the original.
4 (4)
BEST SELLER
$60.77 |
9% OFF Phone Price : $66.77
In Stock
