Model # 315CR2600 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 315CR2600 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |

Charger 140351001
#(NI)

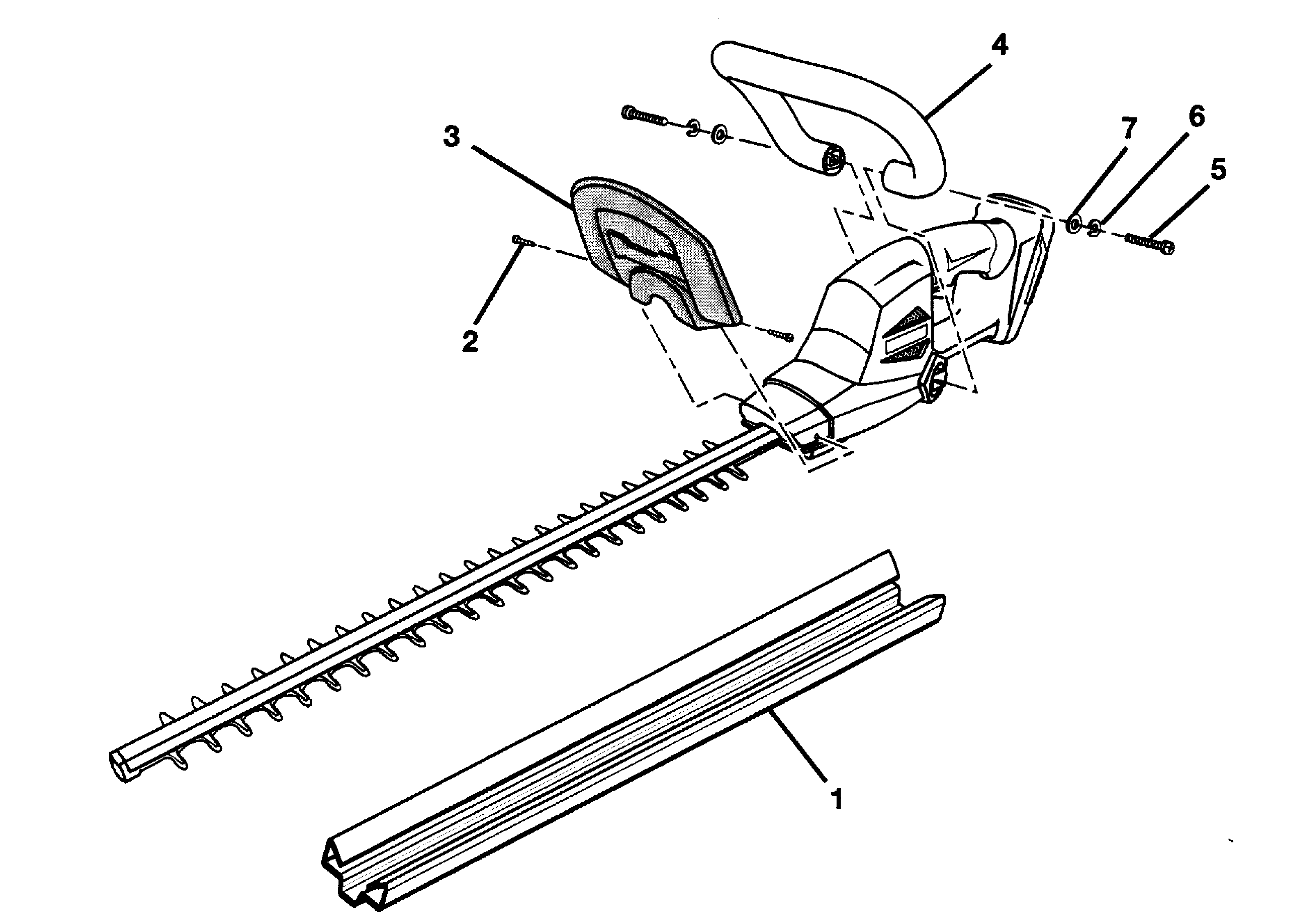

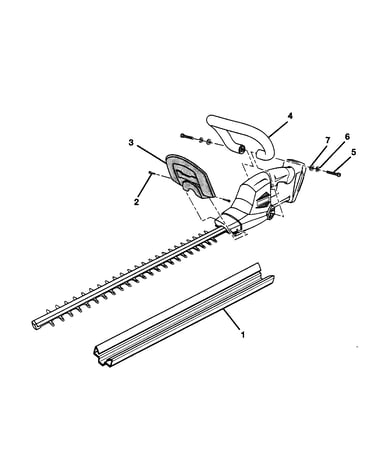

Trimmer diagram

Charger

Part #140351001

The manufacturer no longer makes this part, and there's no substitute part

Nicd Battery 130279008
#(NI)

Trimmer diagram

Nicd battery

Part #130279008

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Blade Guard 34105450G
#1

Trimmer diagram

Hedge trimmer blade guard

Part #34105450G

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Screw 3220203G
#2

Trimmer diagram

Hedge trimmer screw

Part #3220203G

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Washer 3290186G
#7

Trimmer diagram

Hedge trimmer washer

Part #3290186G

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Lock Washer 3290675G
#6

Trimmer diagram

Hedge trimmer lock washer

Part #3290675G

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Handle, Front 31305450G
#4

Trimmer diagram

Hedge trimmer handle, front

Part #31305450G

The manufacturer no longer makes this part, and there's no substitute part

Battery 130285003
#(NI)

Trimmer diagram

Battery

Part #130285003

The manufacturer no longer makes this part, and there's no substitute part

Charger 1425301
#(NI)

Trimmer diagram

Charger

Part #1425301

The manufacturer no longer makes this part, and there's no substitute part

Battery 130279007
#(NI)

Trimmer diagram

Battery

Part #130279007

The manufacturer no longer makes this part, and there's no substitute part
