GE
Dishwasher

Model # GLDT690T00BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLDT690T00BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

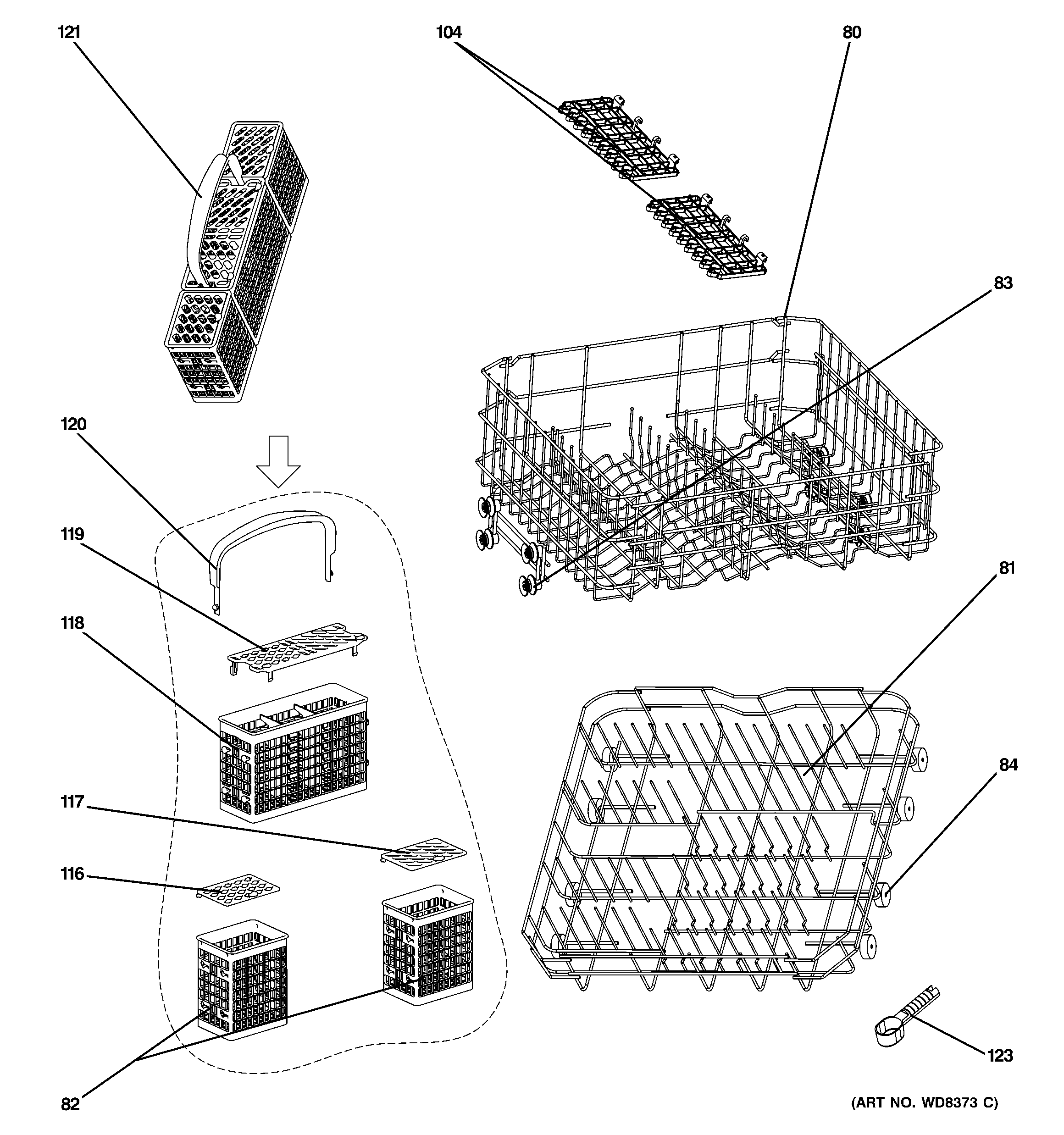

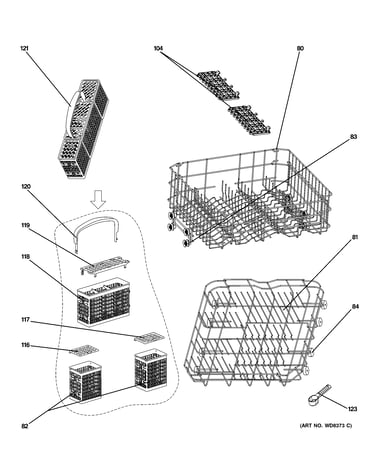

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Haier Dishwasher Rinse-aid Dispenser Cap (replaces Wd12x10102) WD12X10122
#50

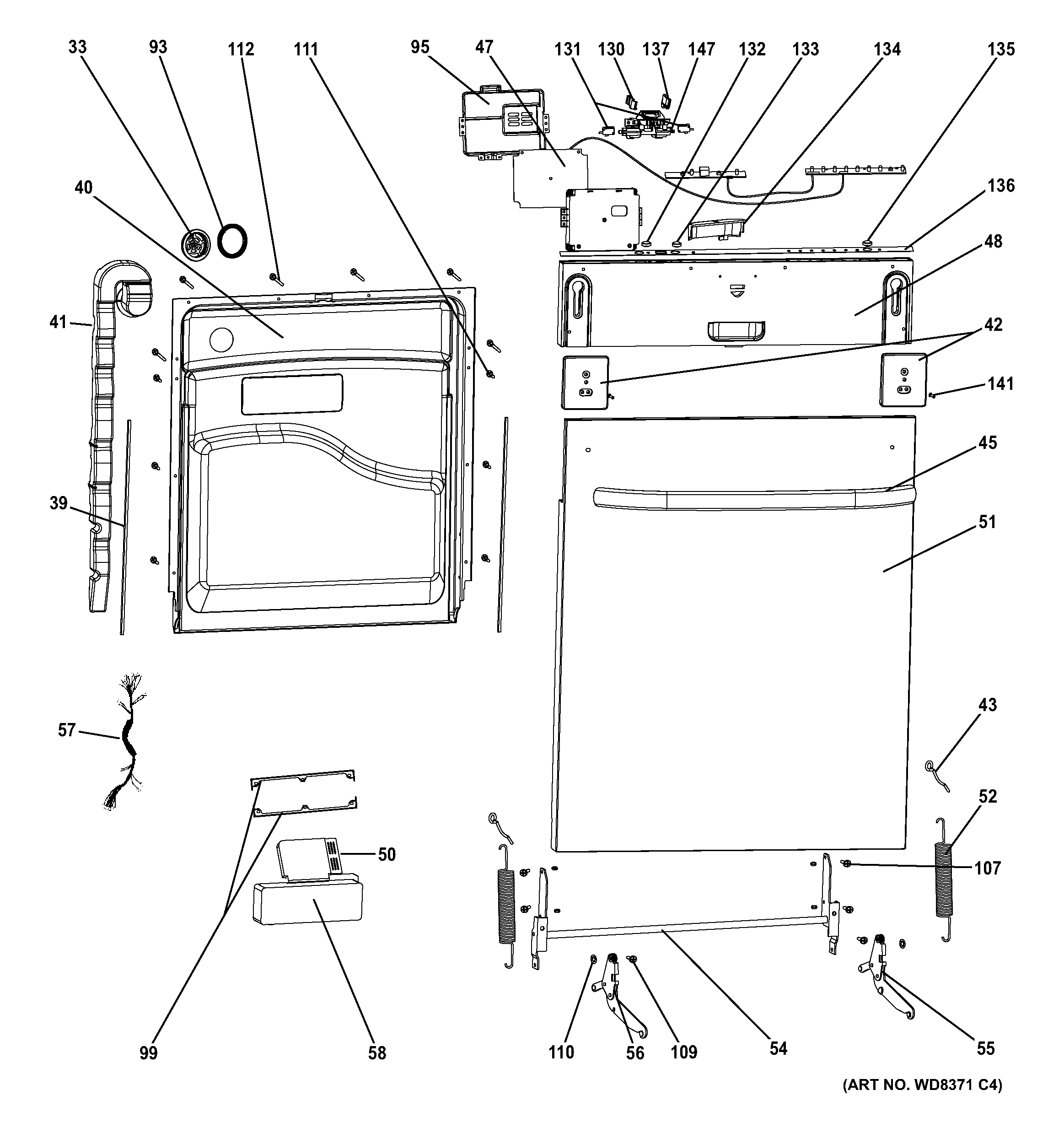

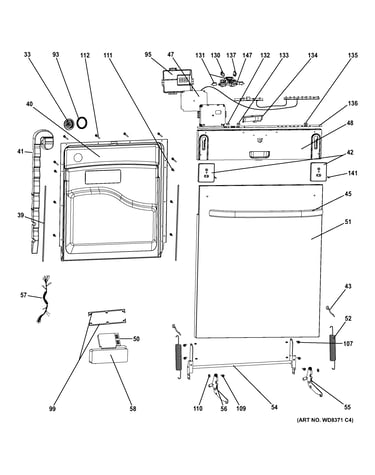

Escutcheon & door assembly diagram

Haier dishwasher rinse-aid dispenser cap (replaces wd12x10102)

Part #WD12X10122

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Tub Gasket WD08X10063
#66

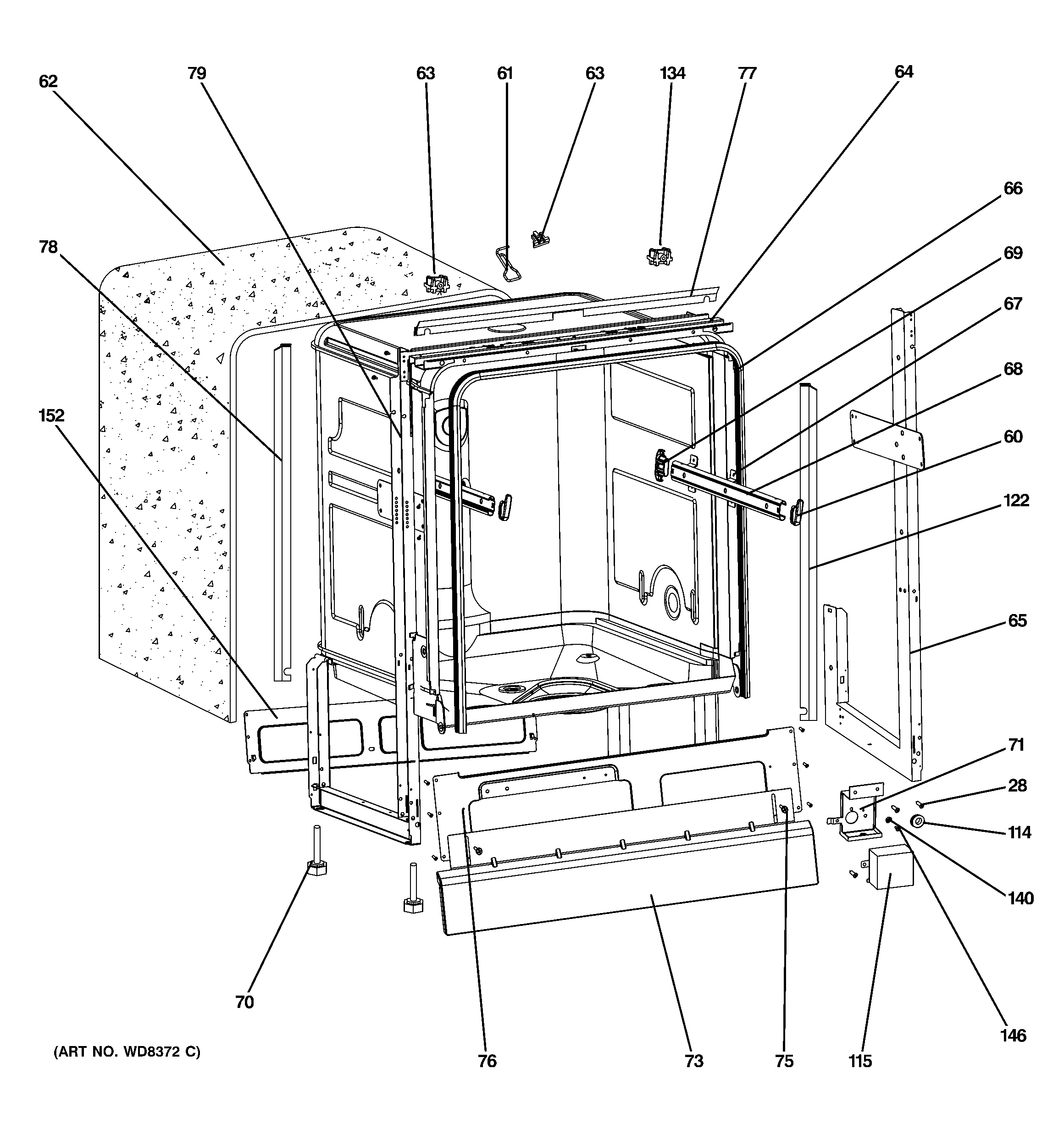

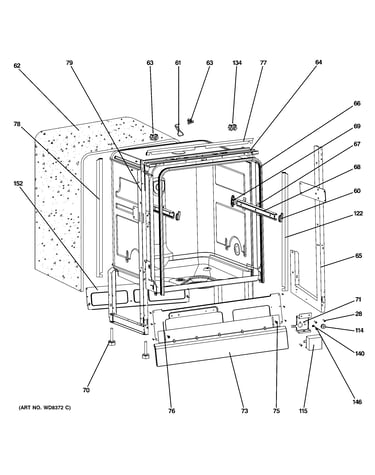

Body parts diagram

Dishwasher tub gasket

Part #WD08X10063

$27.07 |
18% OFF Phone Price : $33.07
In Stock
Dishwasher Spray Arm, Upper WD22X10081
#7

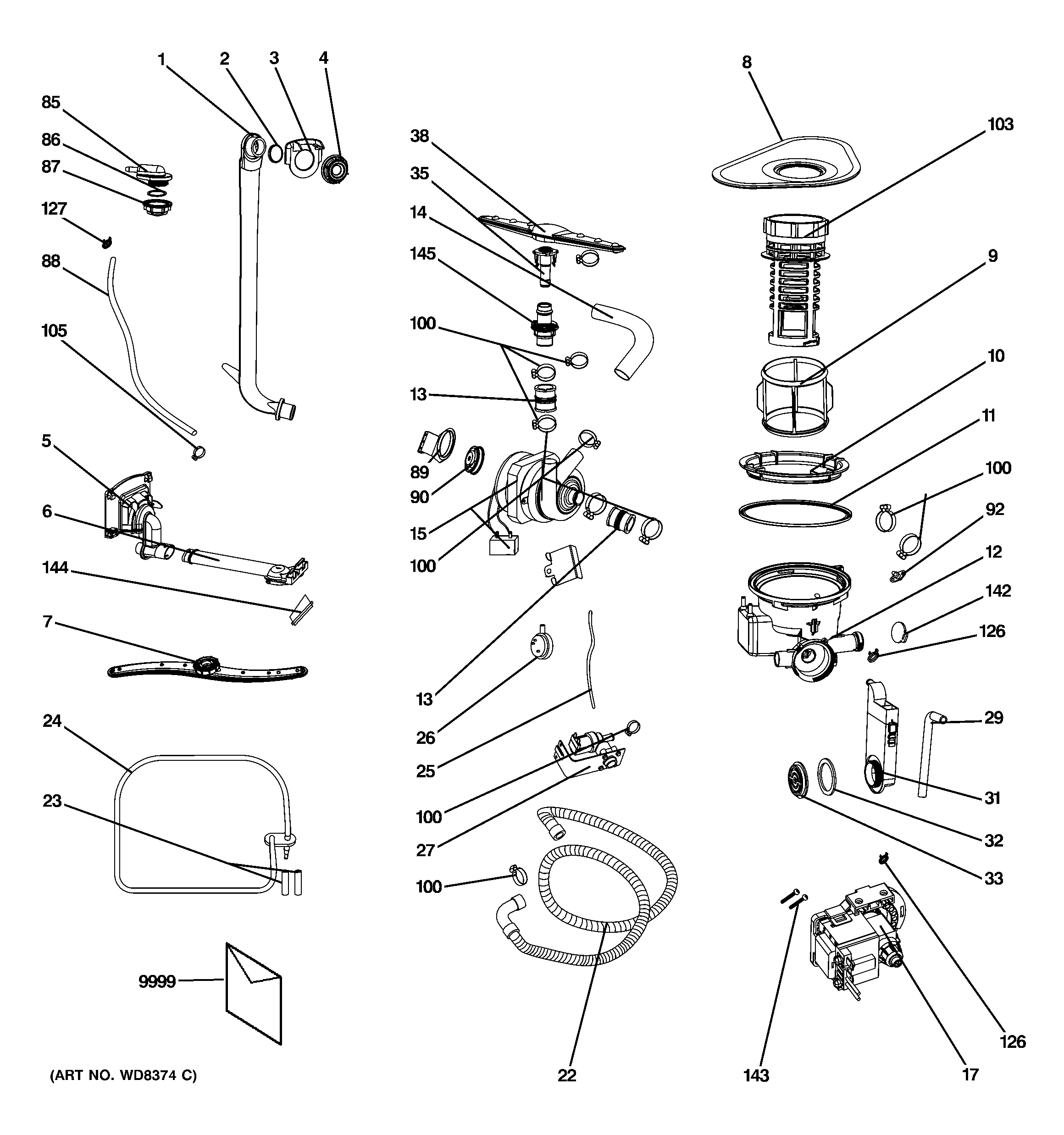

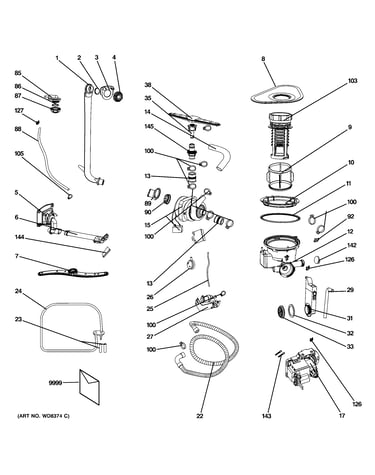

Motor-pump mechanism diagram

Dishwasher spray arm, upper

Part #WD22X10081

$27.53 |
18% OFF Phone Price : $33.53
In Stock
Dishwasher Dishrack Slide Rail Stop, Rear WD12X10315
#69

Body parts diagram

Dishwasher dishrack slide rail stop, rear

Part #WD12X10315

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Spray Arm Su WD01X10436
#144

Motor-pump mechanism diagram

Spray arm su

Part #WD01X10436

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Connecting D WD18X10036
#13

Motor-pump mechanism diagram

Connecting d

Part #WD18X10036

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Switch WD21X10391
#130

Escutcheon & door assembly diagram

Switch

Part #WD21X10391

$8.11
In Stock
Switch WD21X10393
#137

Escutcheon & door assembly diagram

Switch

Part #WD21X10393

$8.11
In Stock
Conduit Main WD12X10216
#5

Motor-pump mechanism diagram

Conduit main

Part #WD12X10216

Replaced by #WD12X23662

?
Manufacturer substitution
This part replaces WD12X10216. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
O-ring WD01X10317
#86

Motor-pump mechanism diagram

O-ring

Part #WD01X10317

Replaced by #WD08X23648

?
Manufacturer substitution
This part replaces WD01X10317. Substitute parts can look different from the original.
$7.71
In Stock
