Frigidaire
Room Air Conditioner

Model # FAC084K7A4 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAC084K7A4 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

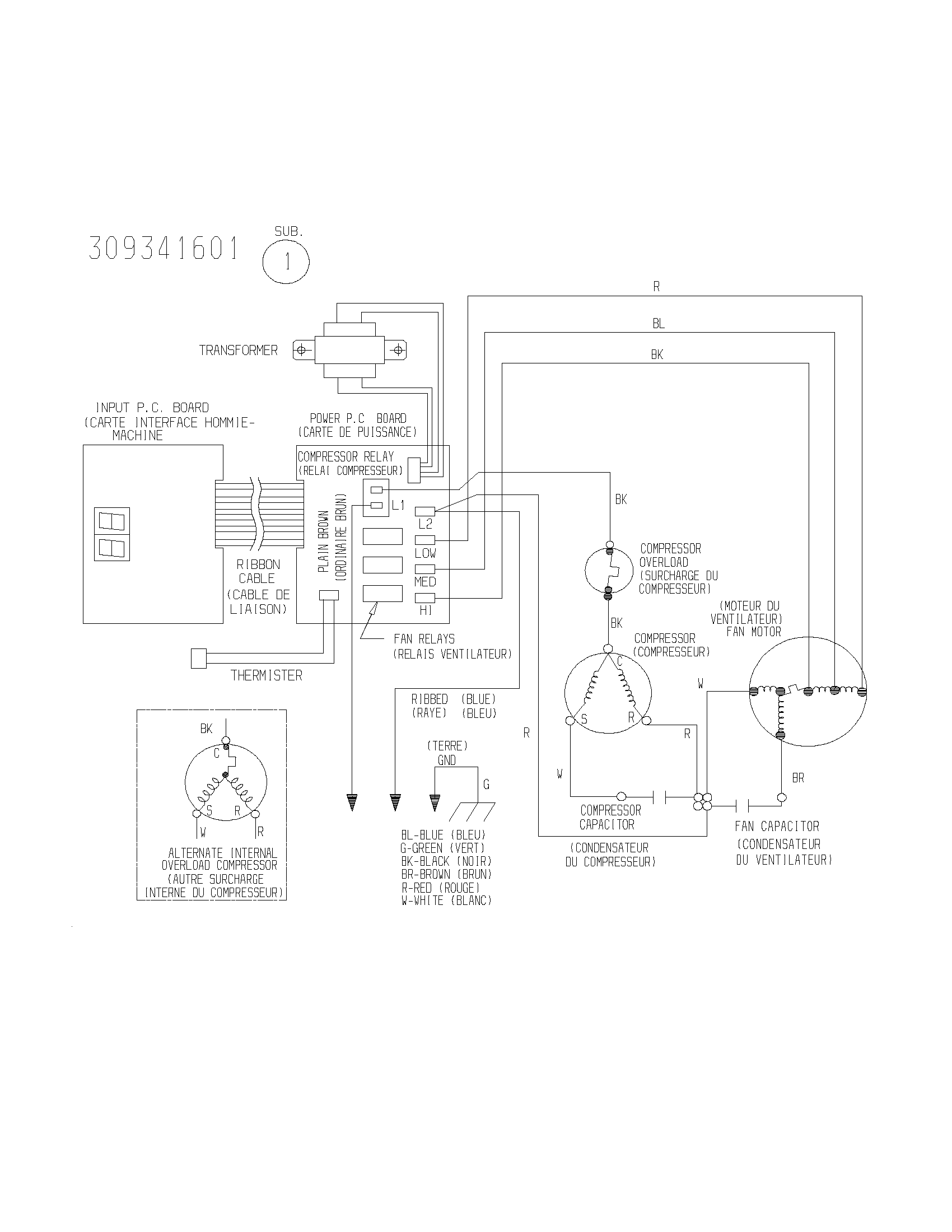

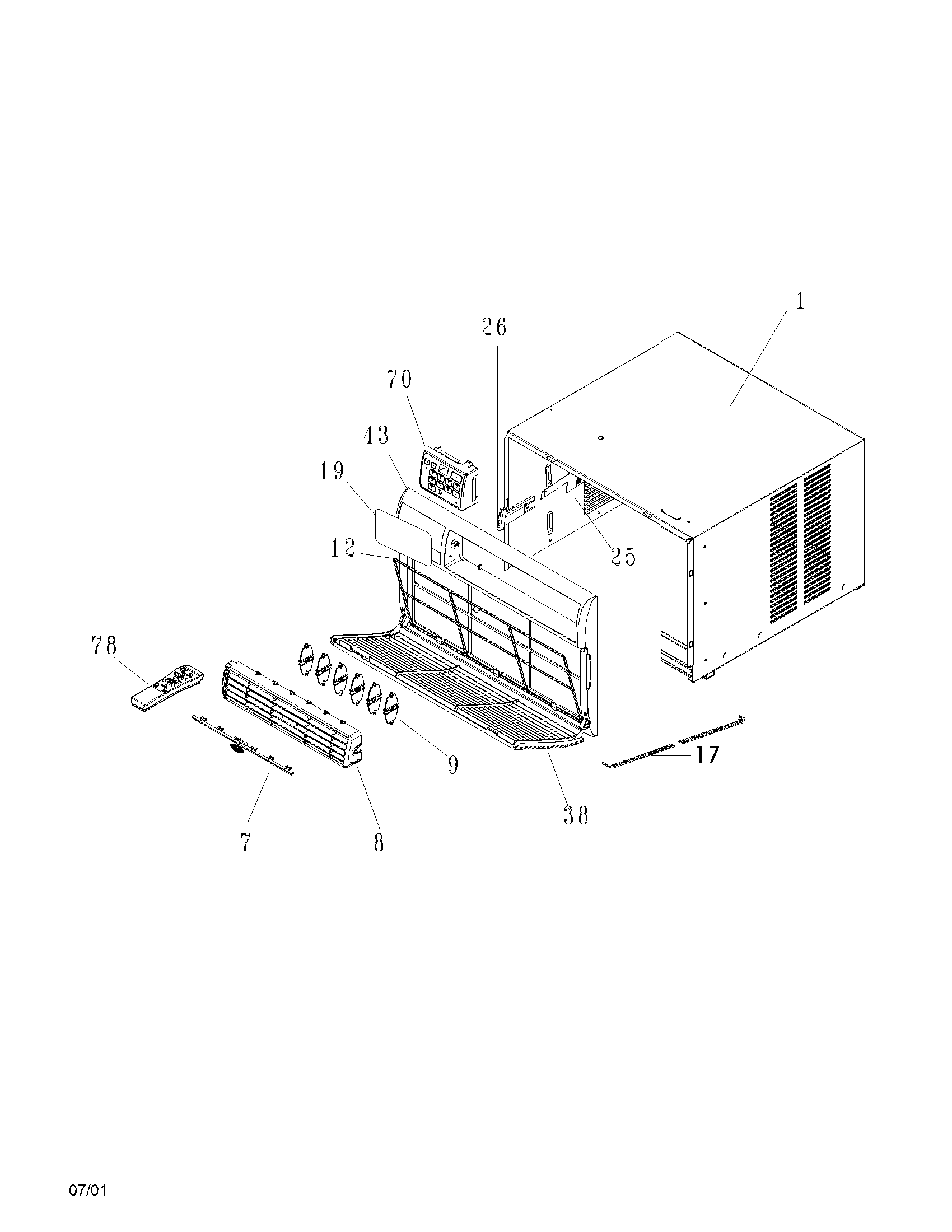

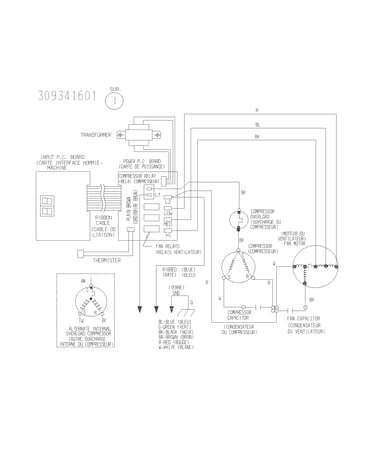

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Bracket Screw 3015312
#14

Controls diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5303303691
#18

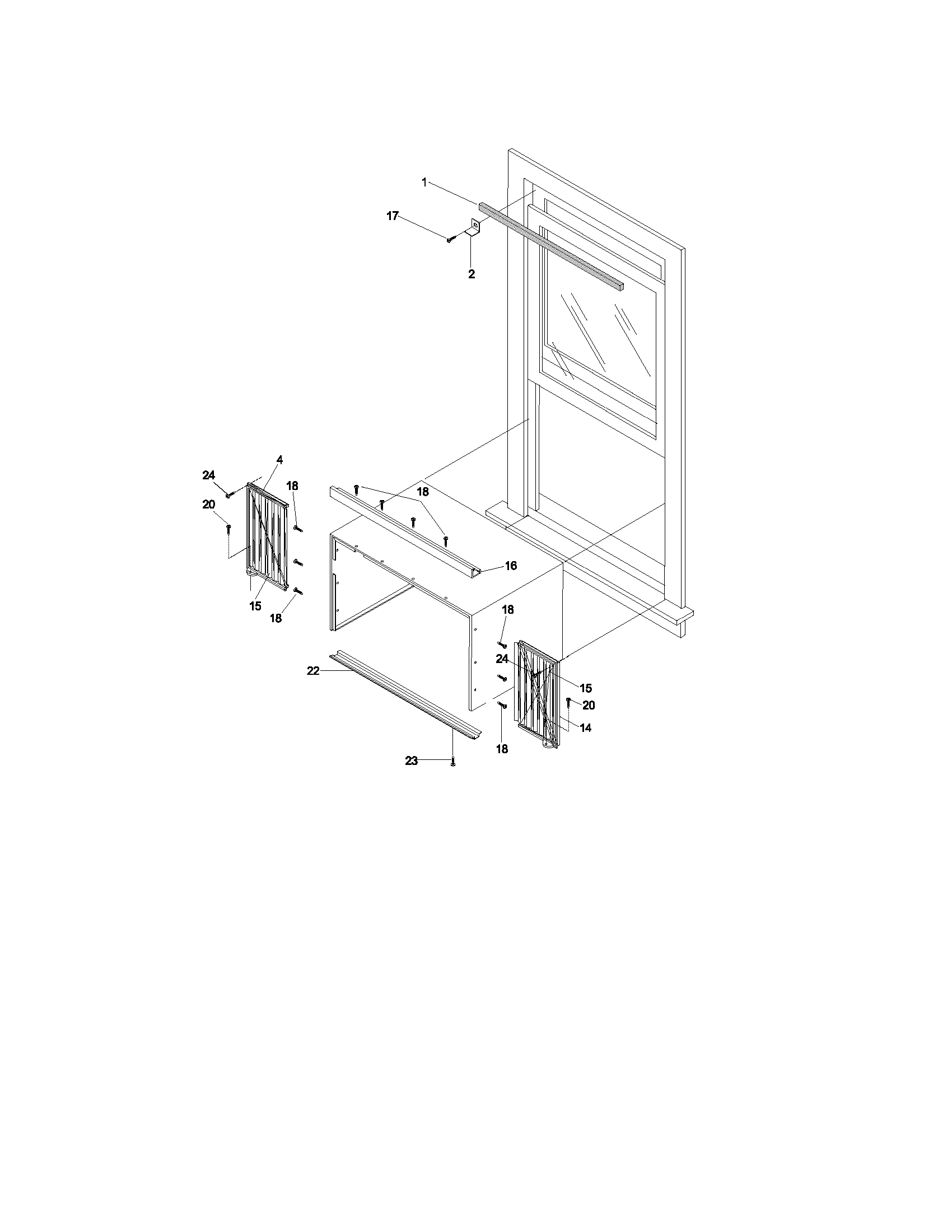

Window mounting diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Complete Bulkhead 309602404
Complete bulkhead

Part #309602404

In Stock
Cover Capacitor 5303302855
#NI

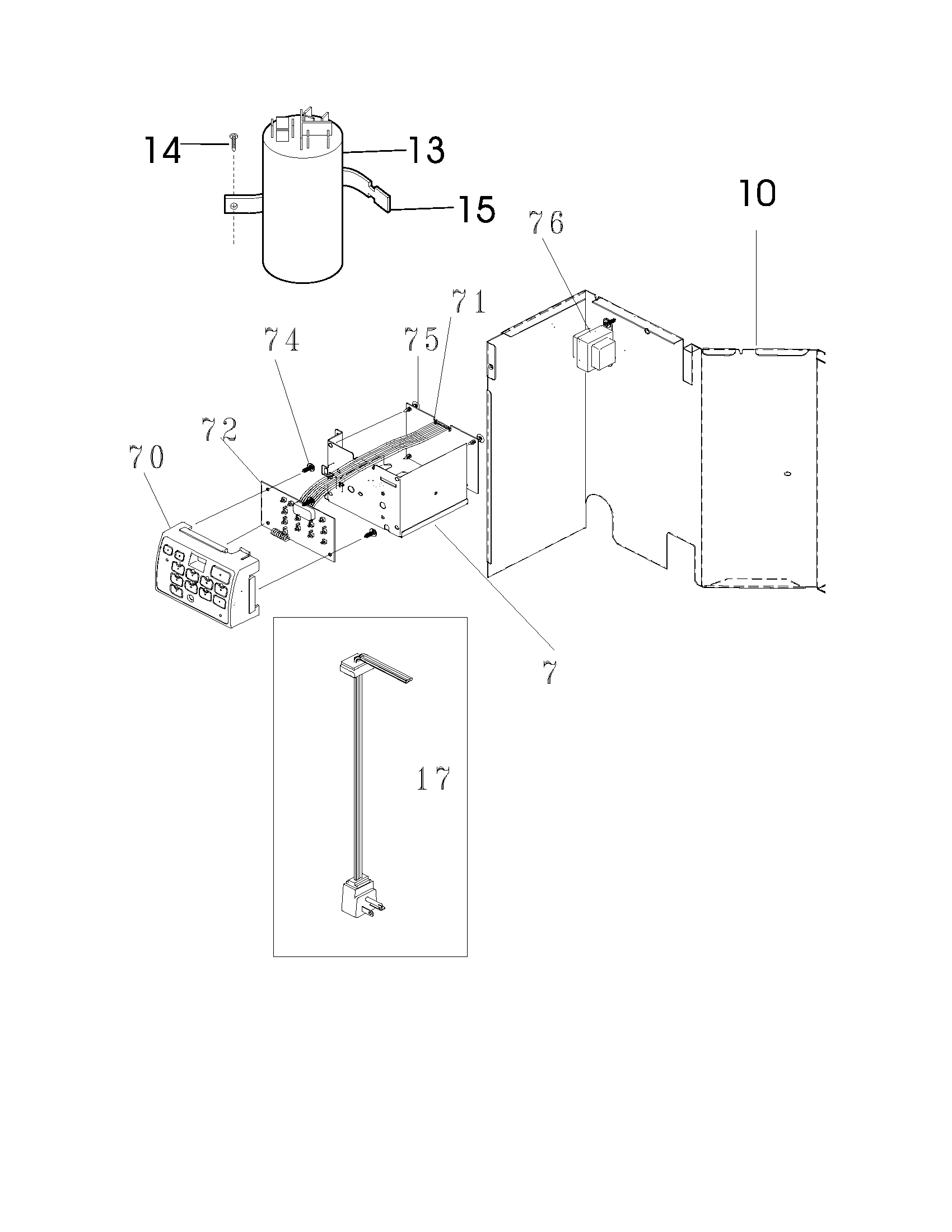

Controls diagram

Cover capacitor

Part #5303302855

In Stock
Kenmore Overload 5304420271
#8

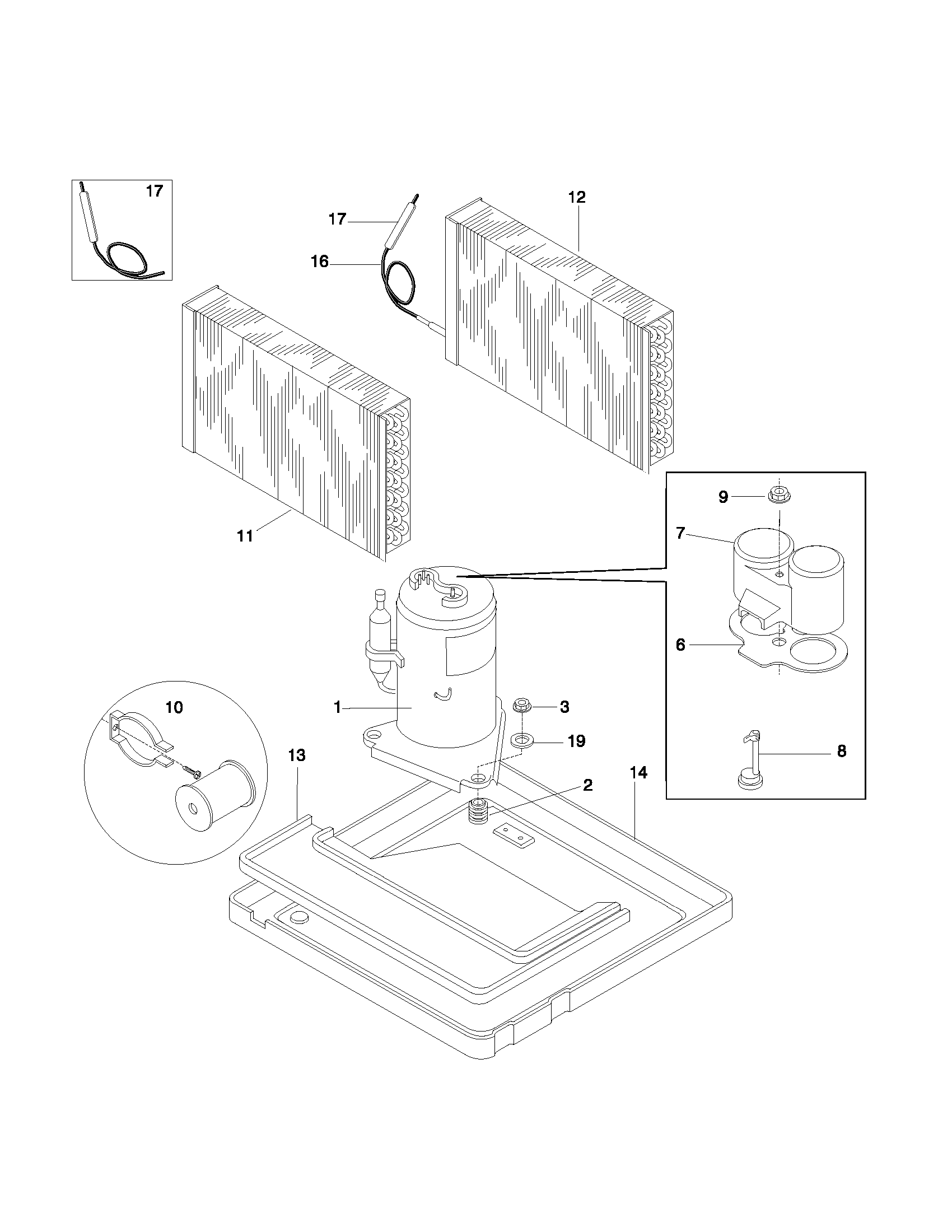

System diagram

Kenmore overload

Part #5304420271

In Stock
Bracket Screw 5303301590
#74

Controls diagram

Bracket screw

Part #5303301590

This item is not returnable
In Stock
Foam Strip 5304407729
#1

Window mounting diagram

Foam strip

Part #5304407729

In Stock
Capacitor 5303318963
#13

Controls diagram

Capacitor

Part #5303318963

Replaced by #5303291523

?
Manufacturer substitution
This part replaces 5303318963. Substitute parts can look different from the original.
In Stock
Screw 3202975
#2

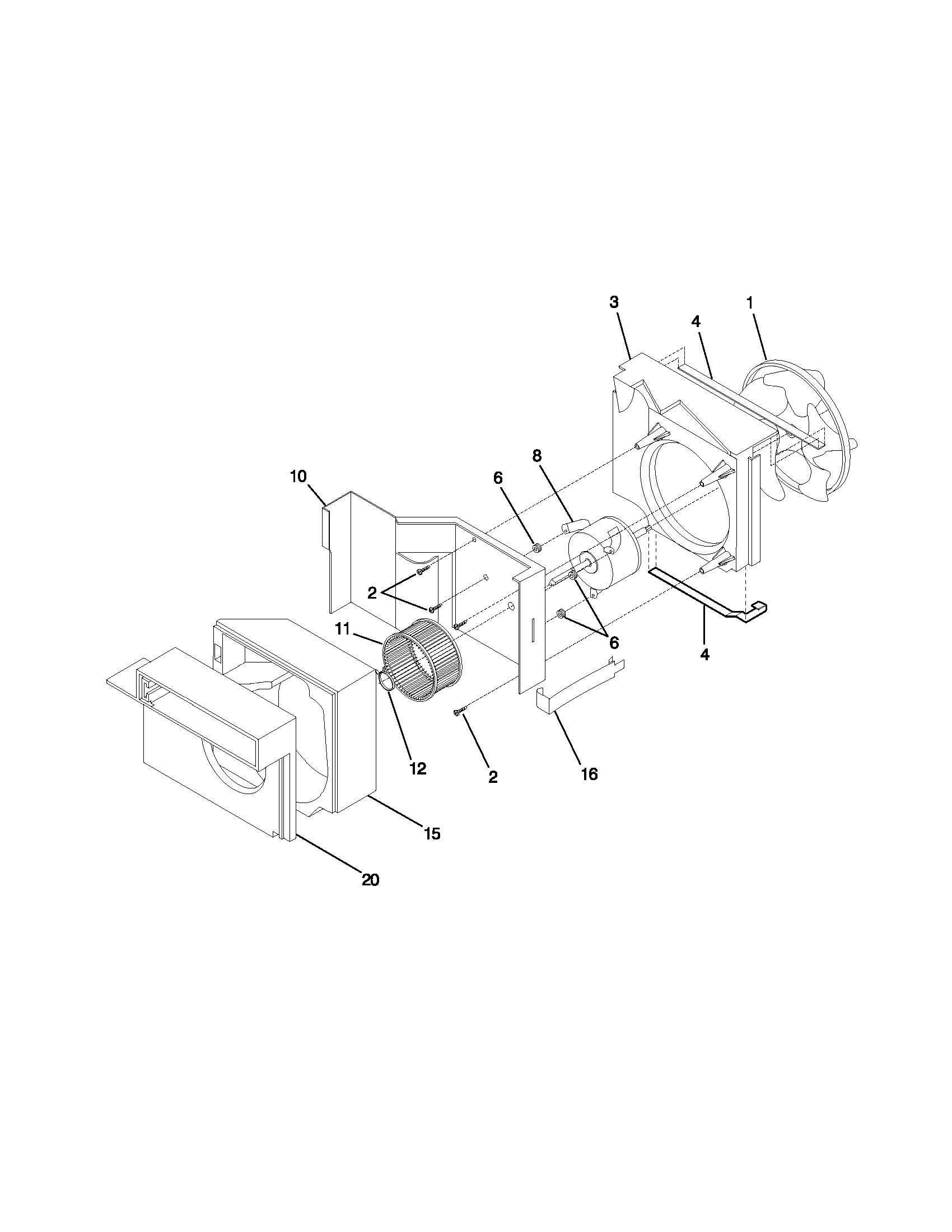

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Accordion Closure 309626504
#15

Window mounting diagram

Accordion closure

Part #309626504

The manufacturer no longer makes this part, and there's no substitute part
