Whirlpool
Countertop Microwave

Model # MT3090XAQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT3090XAQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

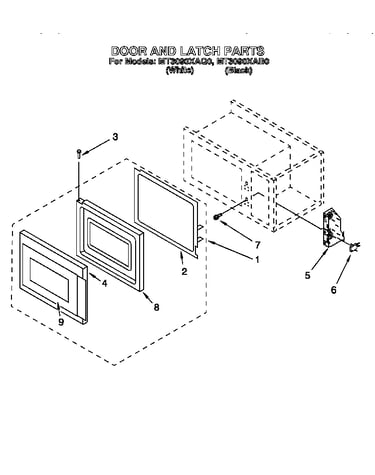

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Microwave Magnetron Thermostat 4375079
#5

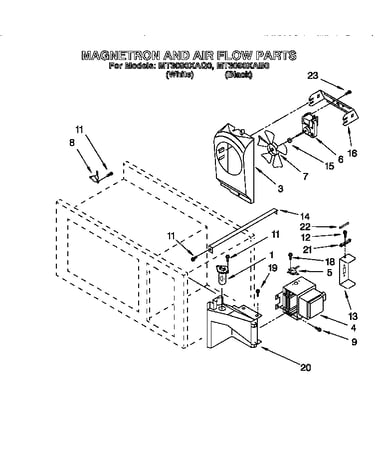

Magnetron and airflow diagram

Microwave magnetron thermostat

Part #4375079

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375079. Substitute parts can look different from the original.
$35.31 |
15% OFF Phone Price : $41.31
In Stock
Screw 4375035
Screw

Part #4375035

Replaced by #8206180

?
Manufacturer substitution
This part replaces 4375035. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Magnetron 4375072
#4

Magnetron and airflow diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Capacitor 4375020
#4

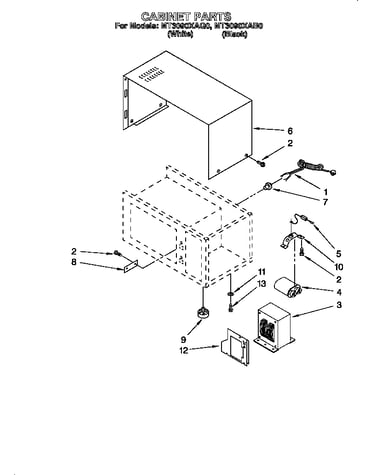

Cabinet diagram

Microwave high-voltage capacitor

Part #4375020

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Fuse (black) 4375321
#22

Magnetron and airflow diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Cook Guide Label LIT4375007

#NI

All parts diagram

Cook guide label

Part #LIT4375007

The manufacturer no longer makes this part, and there's no substitute part

Shift Gasket 4375037
#11

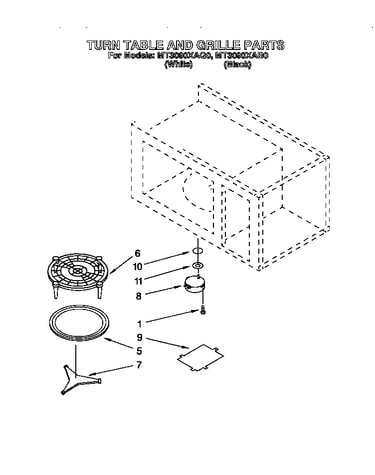

Turn table and grille diagram

Shift gasket

Part #4375037

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 4375046
#3

Magnetron and airflow diagram

Fan cover

Part #4375046

The manufacturer no longer makes this part, and there's no substitute part

Clip 4375043
#15

Magnetron and airflow diagram

Clip

Part #4375043

The manufacturer no longer makes this part, and there's no substitute part

Spring 4375034
#4

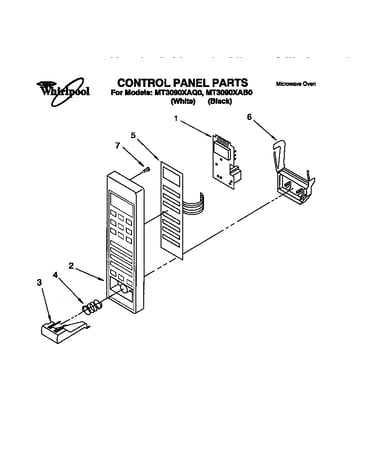

Control panel diagram

Spring

Part #4375034

The manufacturer no longer makes this part, and there's no substitute part
