Kenmore
Carpet Cleaner

Model # 10088502 Official Kenmore rug shampooer & floor polisher

Here are the diagrams and repair parts for Official Kenmore 10088502 rug shampooer & floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Container 939011G3
#15

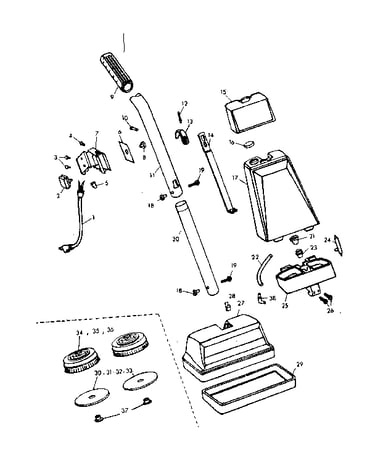

External machine parts diagram

Container

Part #939011G3

The manufacturer no longer makes this part, and there's no substitute part

Spindle Gear 937138G2
#29

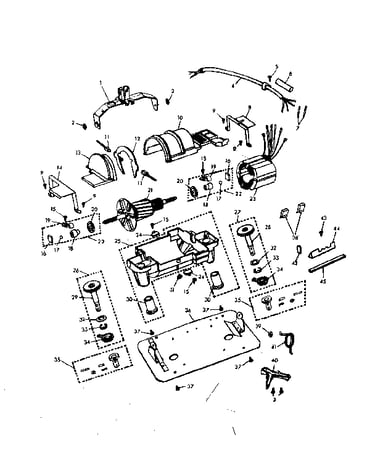

Internal machine parts diagram

Spindle gear

Part #937138G2

The manufacturer no longer makes this part, and there's no substitute part

Spin Kit Cap 937125G3
#35

Internal machine parts diagram

Spin kit cap

Part #937125G3

The manufacturer no longer makes this part, and there's no substitute part

Retain Butns 39066P1175
#37

External machine parts diagram

Retain butns

Part #39066P1175

The manufacturer no longer makes this part, and there's no substitute part

Switch Knob 39009P1046
#8

External machine parts diagram

Switch knob

Part #39009P1046

The manufacturer no longer makes this part, and there's no substitute part

Spindle Gear 937138G1
#28

Internal machine parts diagram

Spindle gear

Part #937138G1

The manufacturer no longer makes this part, and there's no substitute part

Spring 39245P1
#41

Internal machine parts diagram

Spring

Part #39245P1

The manufacturer no longer makes this part, and there's no substitute part

Pad 905301
#31

External machine parts diagram

Pad

Part #905301

The manufacturer no longer makes this part, and there's no substitute part

Container Connector 37209P2175
#24

External machine parts diagram

Container connector

Part #37209P2175

The manufacturer no longer makes this part, and there's no substitute part

Spring 39038P1
#12

External machine parts diagram

Spring

Part #39038P1

The manufacturer no longer makes this part, and there's no substitute part
