Majestic
Washer

Model # MJ9200W Official Majestic washer

Here are the diagrams and repair parts for Official Majestic MJ9200W washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Retaining Ring 17-1336
#16

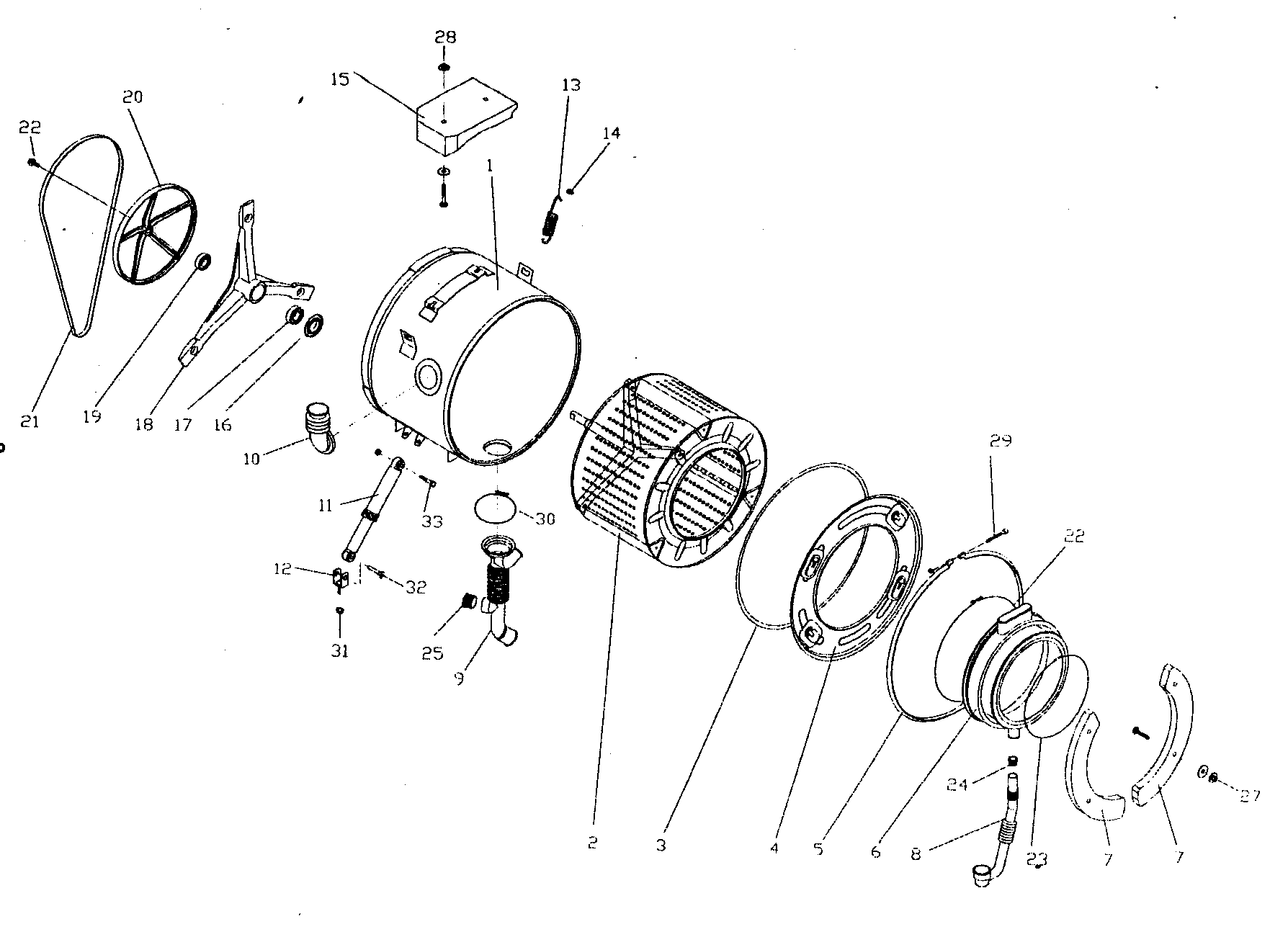

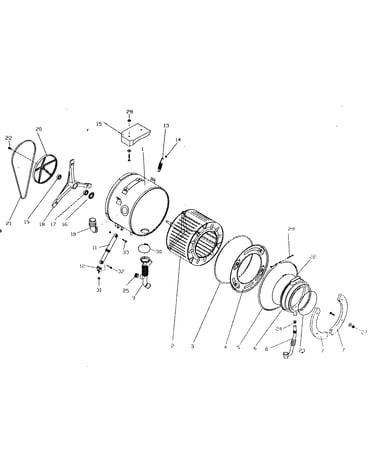

Tub/drum asy diagram

Retaining ring

Part #17-1336

The manufacturer no longer makes this part, and there's no substitute part

Bolt 17-1349
#31

Tub/drum asy diagram

Bolt

Part #17-1349

The manufacturer no longer makes this part, and there's no substitute part

Connection 17-1344
#25

Tub/drum asy diagram

Connection

Part #17-1344

The manufacturer no longer makes this part, and there's no substitute part

Catch 17-1301
#12

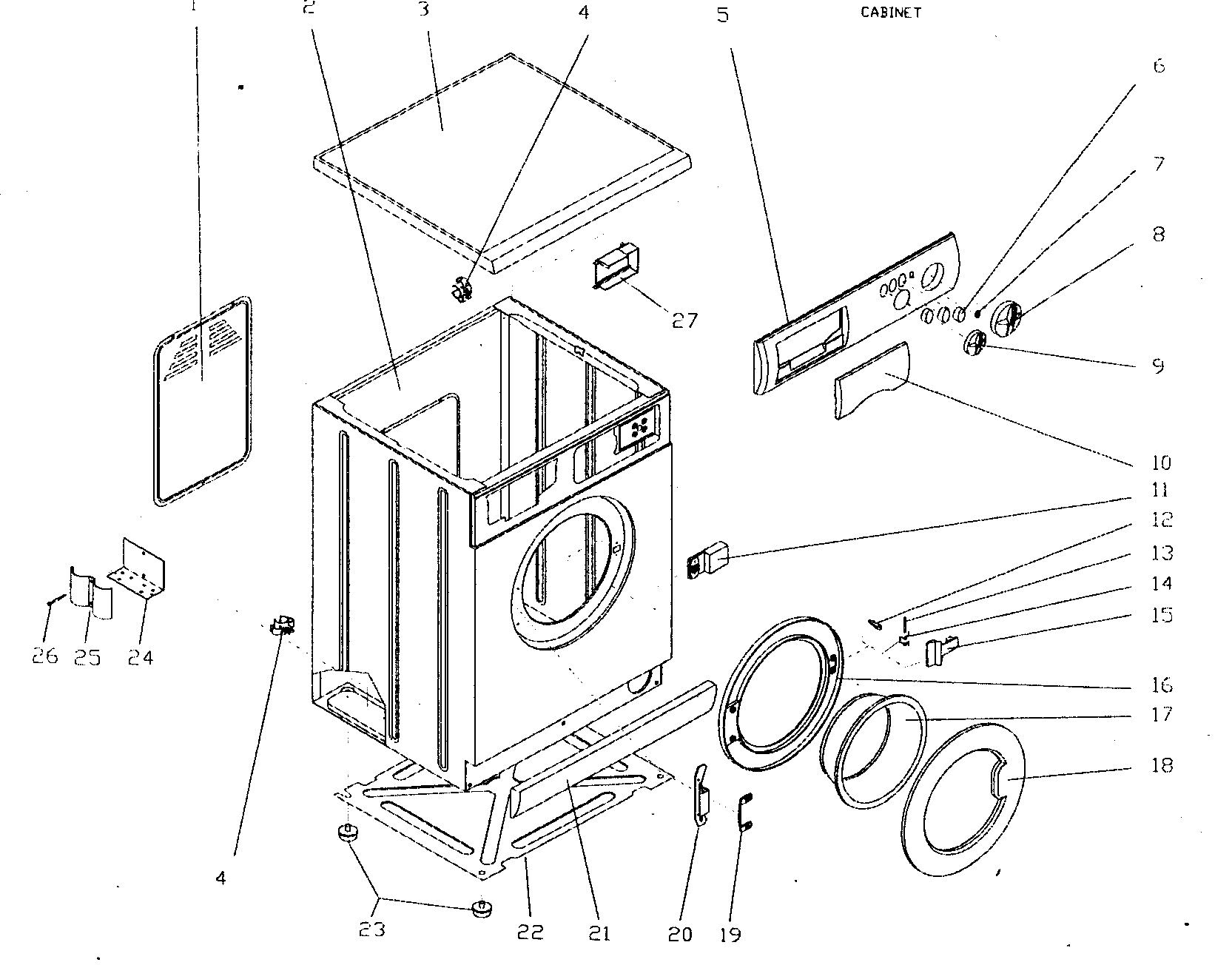

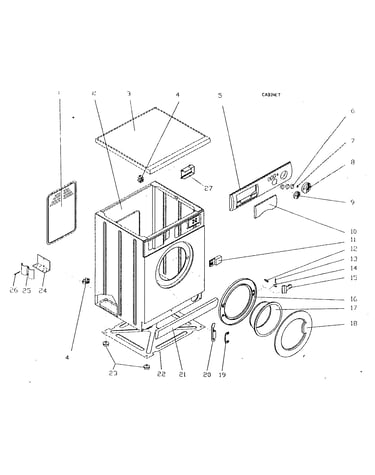

Cabinet parts diagram

Catch

Part #17-1301

The manufacturer no longer makes this part, and there's no substitute part

Spacer 17-1373
#18

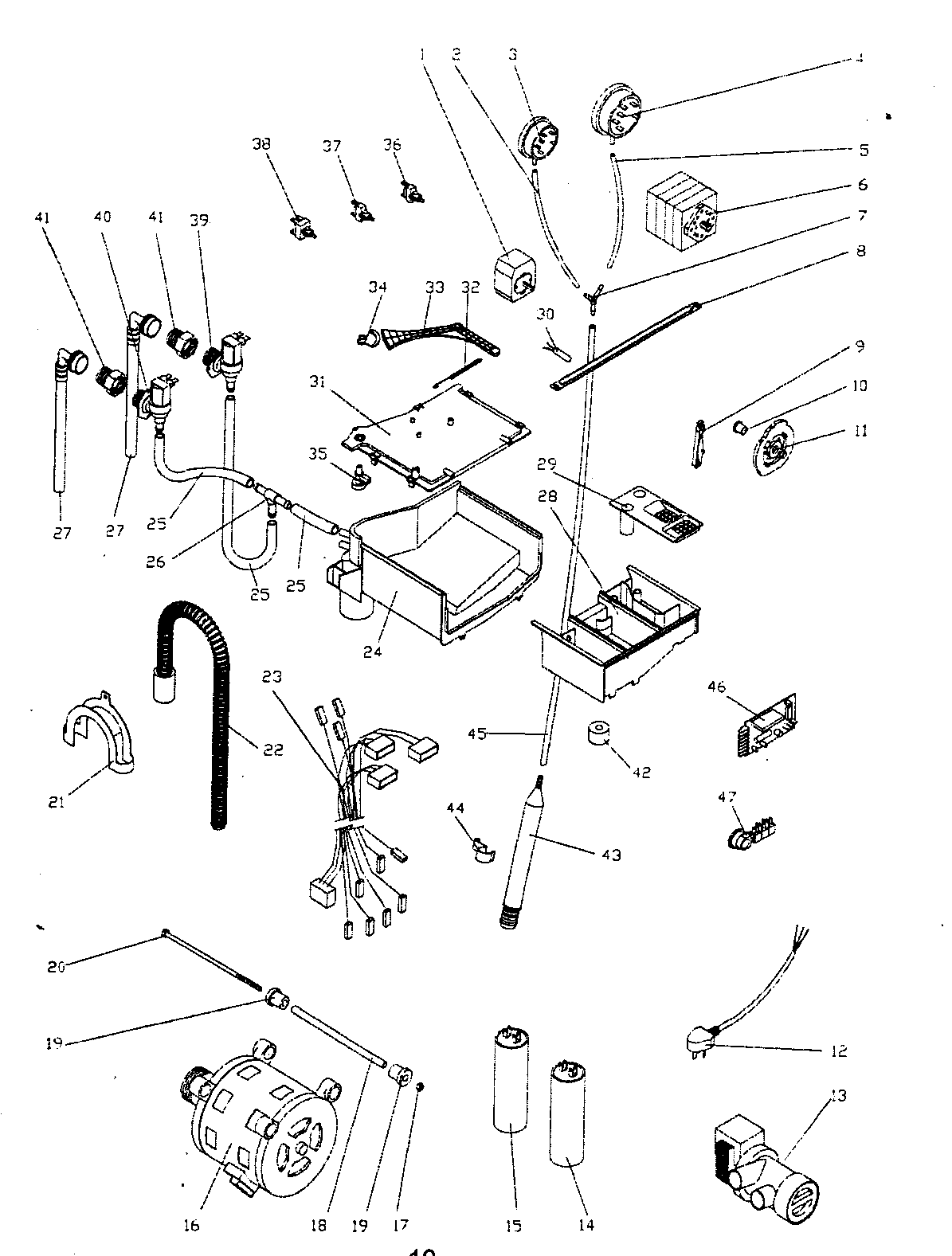

Electric parts diagram

Spacer

Part #17-1373

The manufacturer no longer makes this part, and there's no substitute part

Panel 17-1187
#3

Cabinet parts diagram

Panel

Part #17-1187

The manufacturer no longer makes this part, and there's no substitute part

Switch 17-1393
#38

Electric parts diagram

Switch

Part #17-1393

The manufacturer no longer makes this part, and there's no substitute part

Bracket 17-1314
#25

Cabinet parts diagram

Bracket

Part #17-1314

The manufacturer no longer makes this part, and there's no substitute part

Pump 17-1368
#13

Electric parts diagram

Pump

Part #17-1368

The manufacturer no longer makes this part, and there's no substitute part

Hose 17-1358
#45

Electric parts diagram

Hose

Part #17-1358

The manufacturer no longer makes this part, and there's no substitute part
