Model # 217586330 Official Craftsman 15.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586330 15.0-hp outboard motor, as well as links to manuals and error code tables, if available.

By Schematic

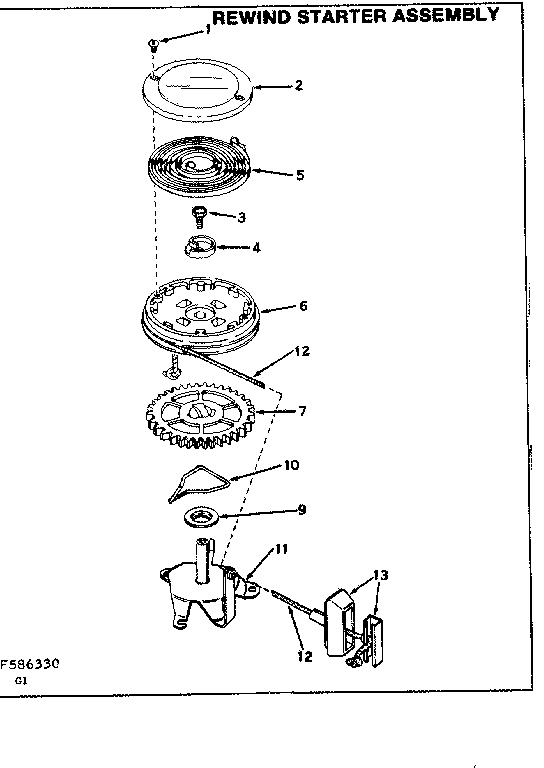

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
217586330 15.0-HP Outboard Motor
Clip 631022
#13

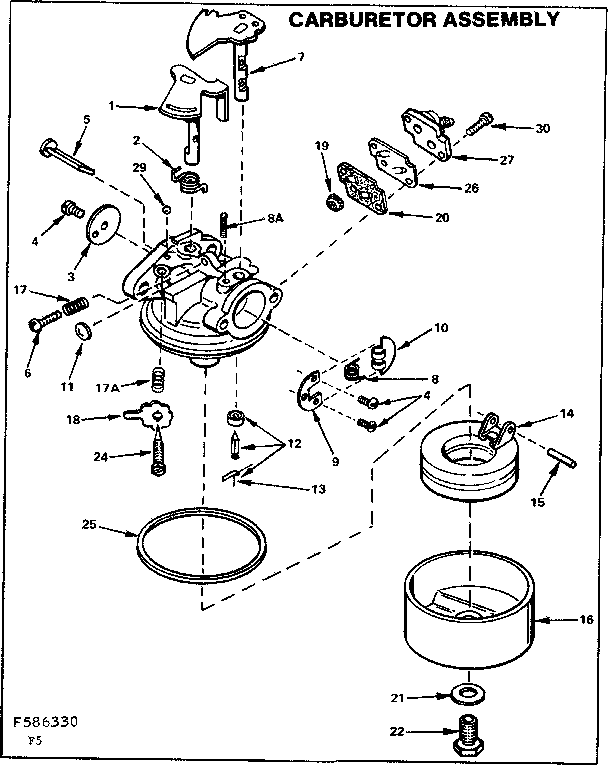

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631334
#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#17

Carburetor assembly diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Screw 650576
#27

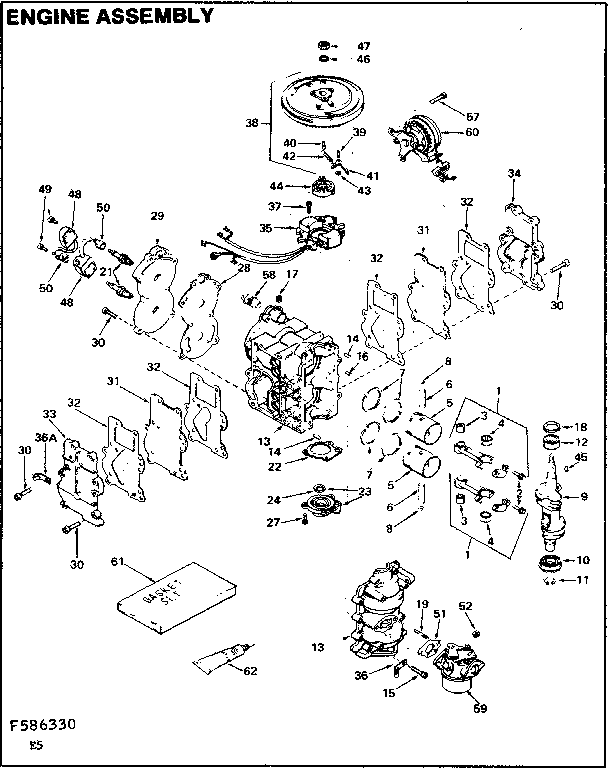

Engine assembly diagram

Screw

Part #650576

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Washer 5631
#49

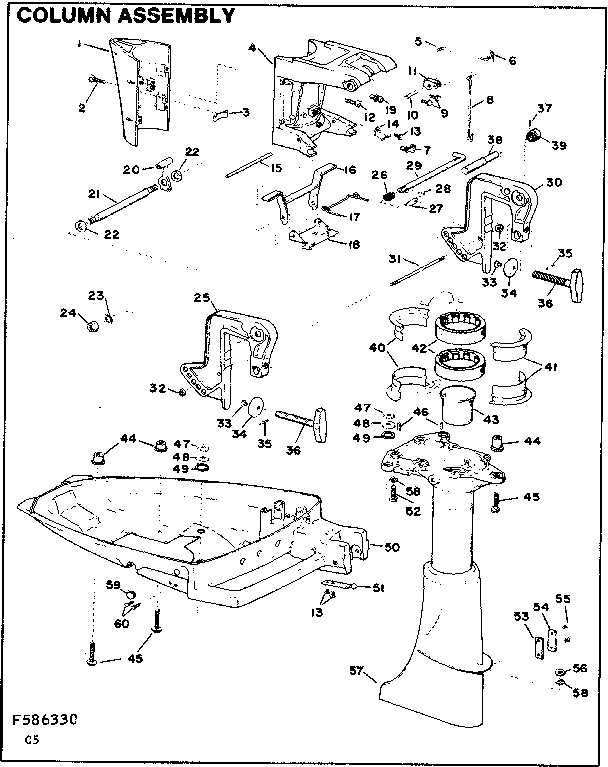

Column assembly diagram

Boat motor washer

Part #5631

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96516
#56

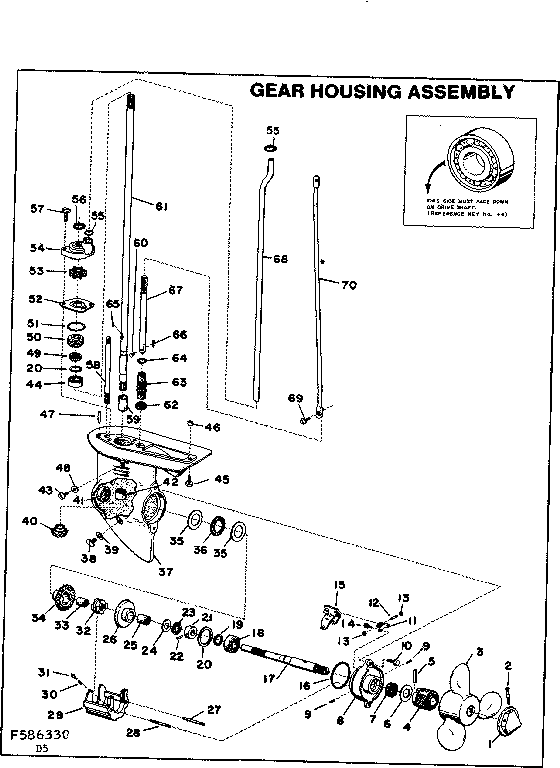

Gear housing assembly diagram

Preway boat motor oil seal

Part #96516

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Bearing 26314
#23

Gear housing assembly diagram

Tecumseh bearing

Part #26314

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#21

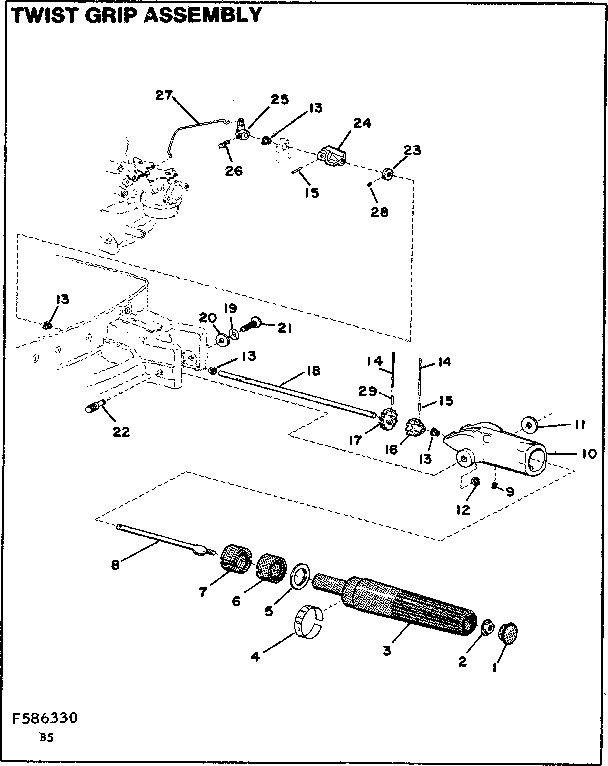

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Boat Motor 3-blade Propeller 190011
#3

Gear housing assembly diagram

Tecumseh boat motor 3-blade propeller

Part #190011

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Screw 276
#14

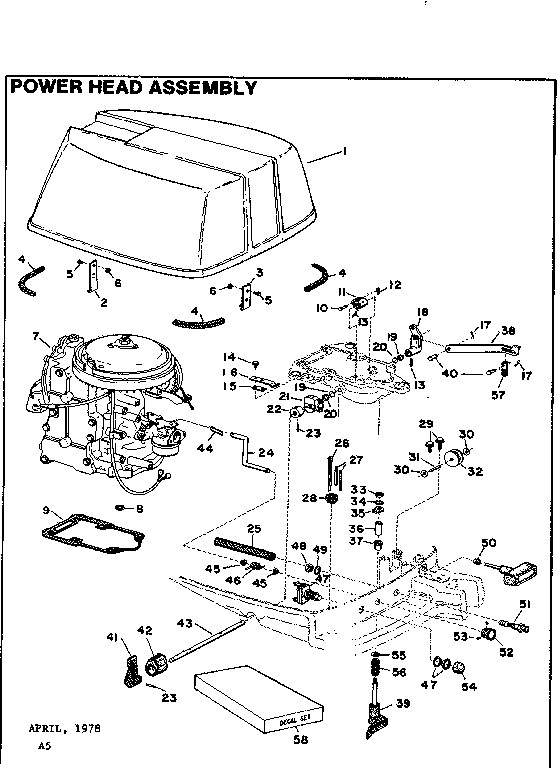

Power head assembly diagram

Boat motor screw

Part #276

The manufacturer no longer makes this part, and there's no substitute part
