Model # WS136WW Official Broan range hood

Here are the diagrams and repair parts for Official Broan WS136WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Range Hood Vent Damper R680508
#1

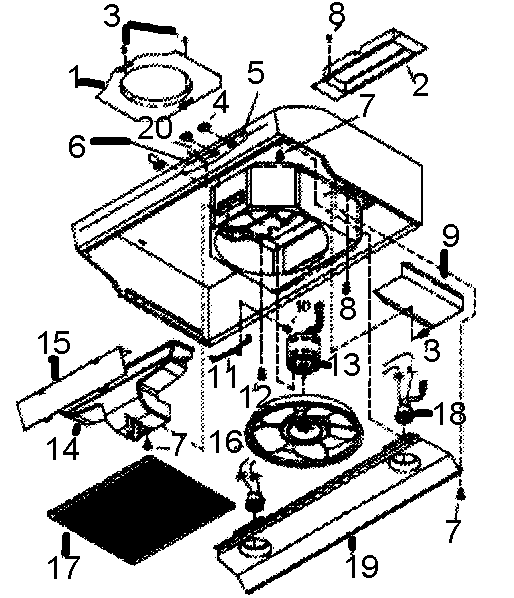

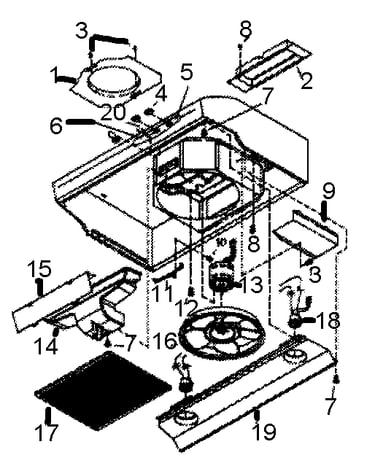

Range hood diagram

Range hood vent damper

Part #R680508

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Grease Filter, 2-pack 99010300
#17

Range hood diagram

Range hood grease filter, 2-pack

Part #99010300

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Motor Assembly R99080535
#13

Range hood diagram

Range hood fan motor assembly

Part #R99080535

Replaced by #SR99080535

?
Manufacturer substitution
This part replaces R99080535. Substitute parts can look different from the original.
$78.92 |
7% OFF Phone Price : $84.92
Back Order
Range Hood Charcoal Filter Kit, 2-pack (replaces 50192) 99010309
#17A

Range hood diagram

Range hood charcoal filter kit, 2-pack (replaces 50192)

Part #99010309

$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Hood Fan Switch R561116
#4

Range hood diagram

Range hood fan switch

Part #R561116

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Diode R169010
#21

Range hood diagram

Range hood light diode

Part #R169010

Replaced by #SR169010

?
Manufacturer substitution
This part replaces R169010. Substitute parts can look different from the original.
$18.79
In Stock
Lens R607657
#6

Range hood diagram

Lens

Part #R607657

Replaced by #SR607657

?
Manufacturer substitution
This part replaces R607657. Substitute parts can look different from the original.
$12.57
In Stock
Range Hood Vent Duct, 6-in 406
#NI

Range hood diagram

Range hood vent duct, 6-in

Part #406

$21.44
In Stock
Instruction Manual 626976D
#NI

Range hood diagram

Instruction manual

Part #626976D

This item is not returnable
$2.16
In Stock
Range Hood Screw R602017
#3

Range hood diagram

Range hood screw

Part #R602017

This item is not returnable
$4.88
In Stock
