Craftsman
Front-Tine Tiller

Model # 917299012 Official Craftsman tiller

Here are the diagrams and repair parts for Official Craftsman 917299012 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

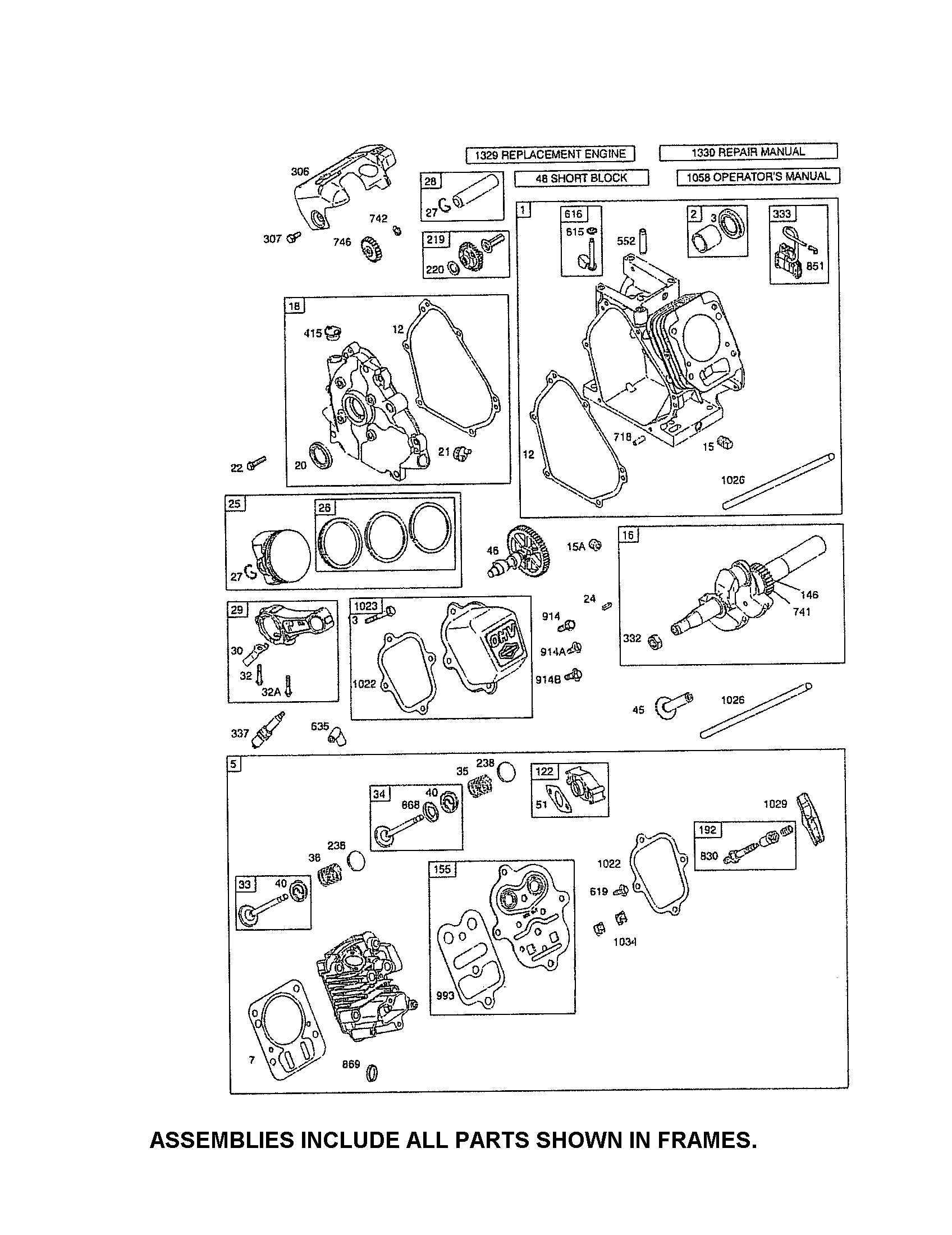

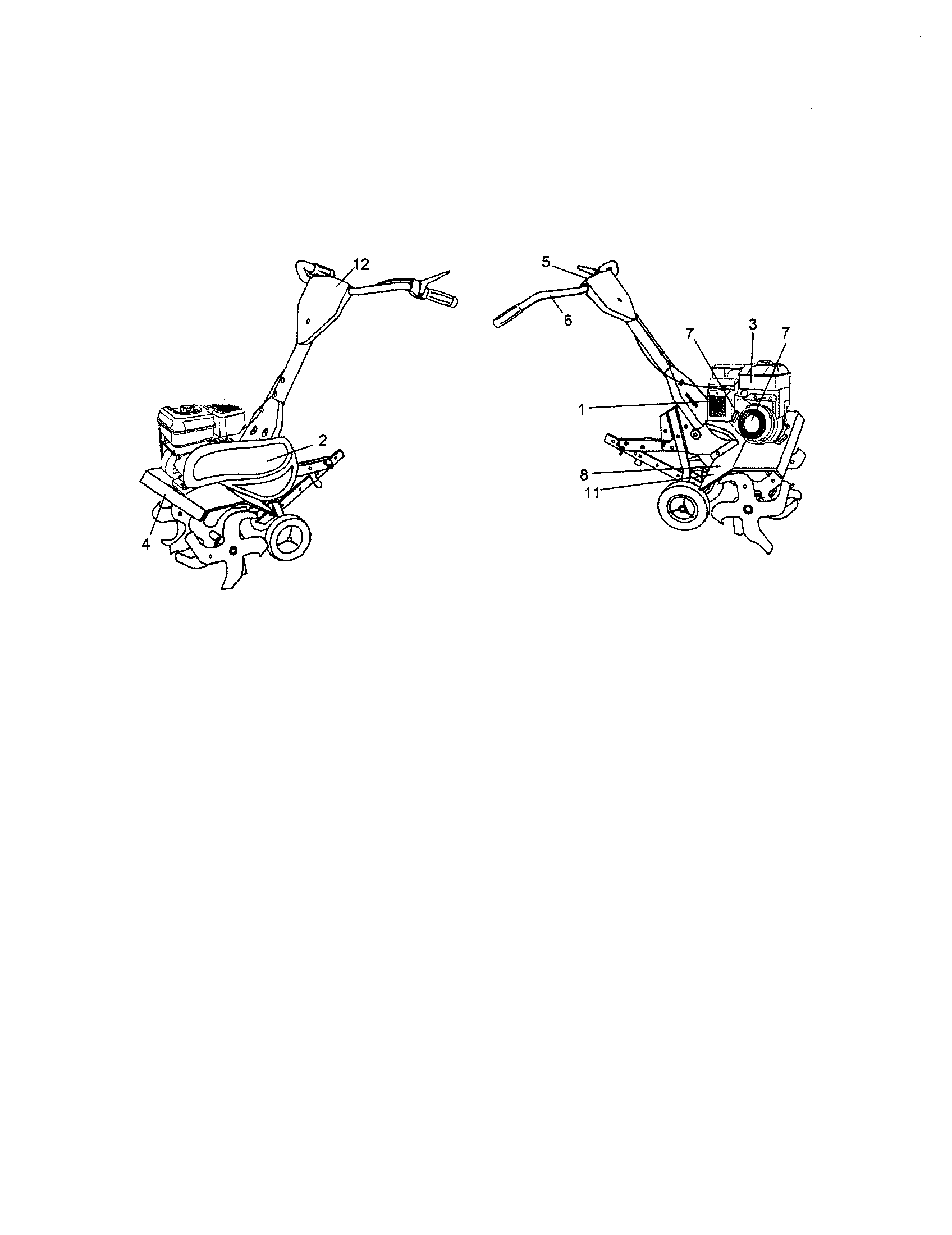

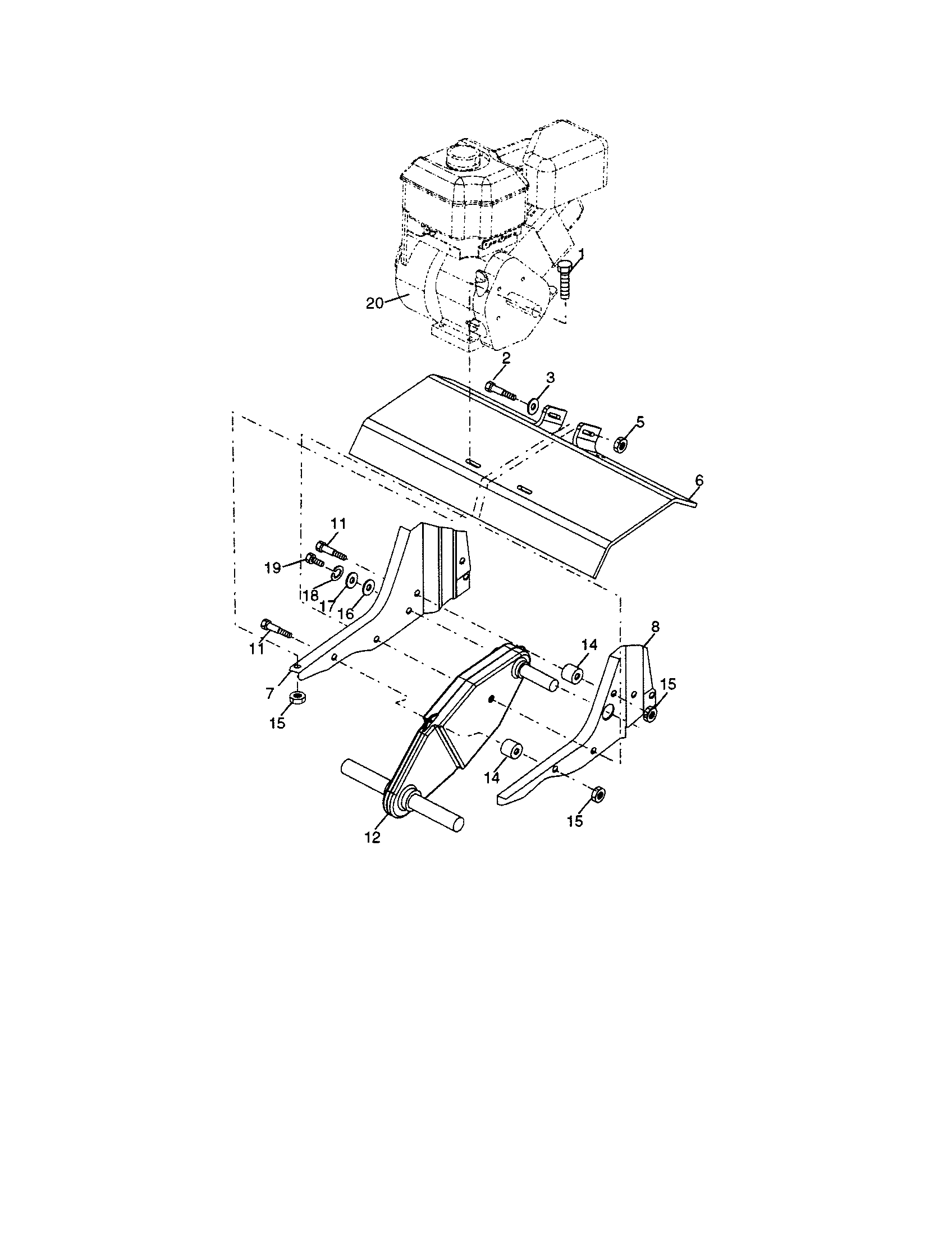

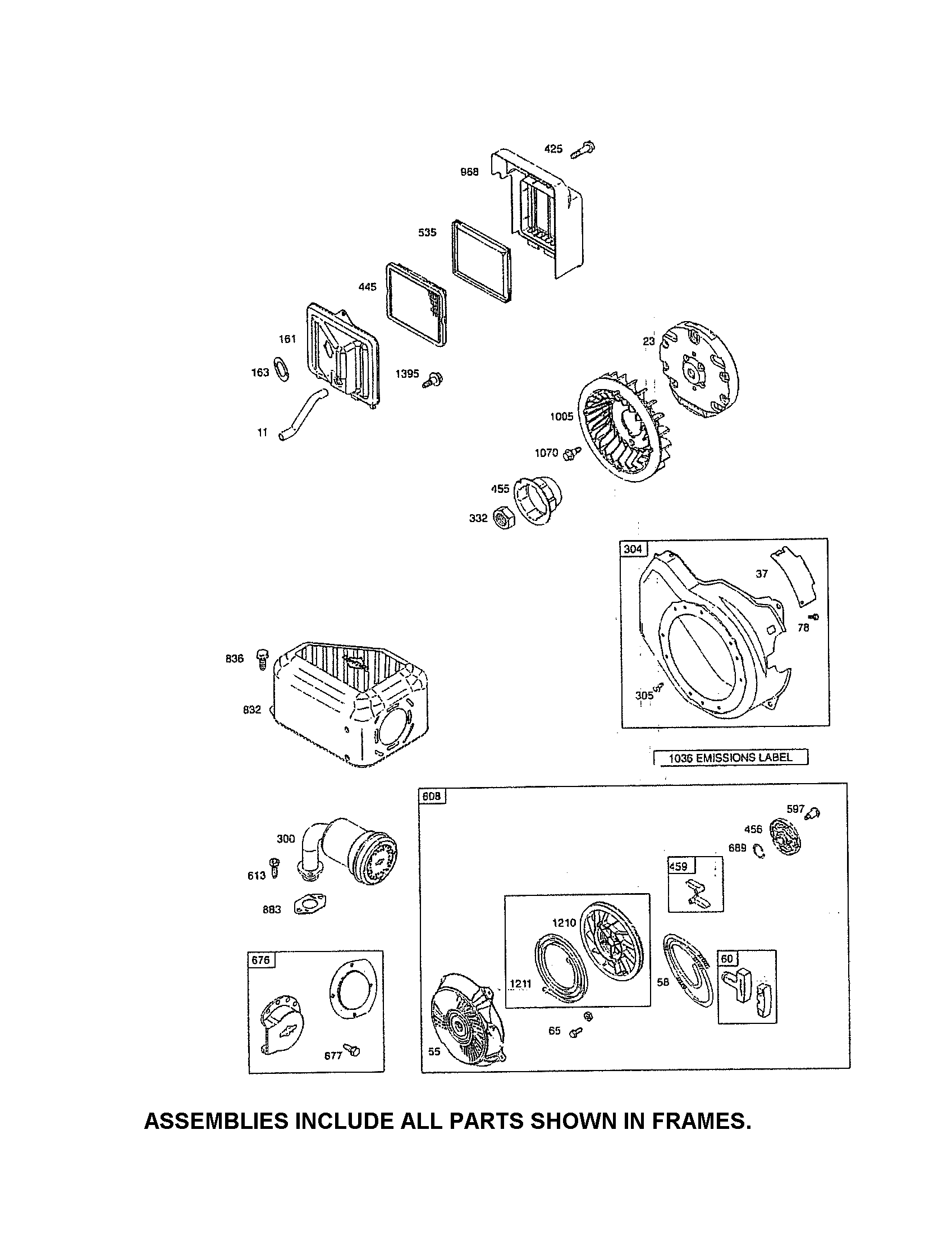

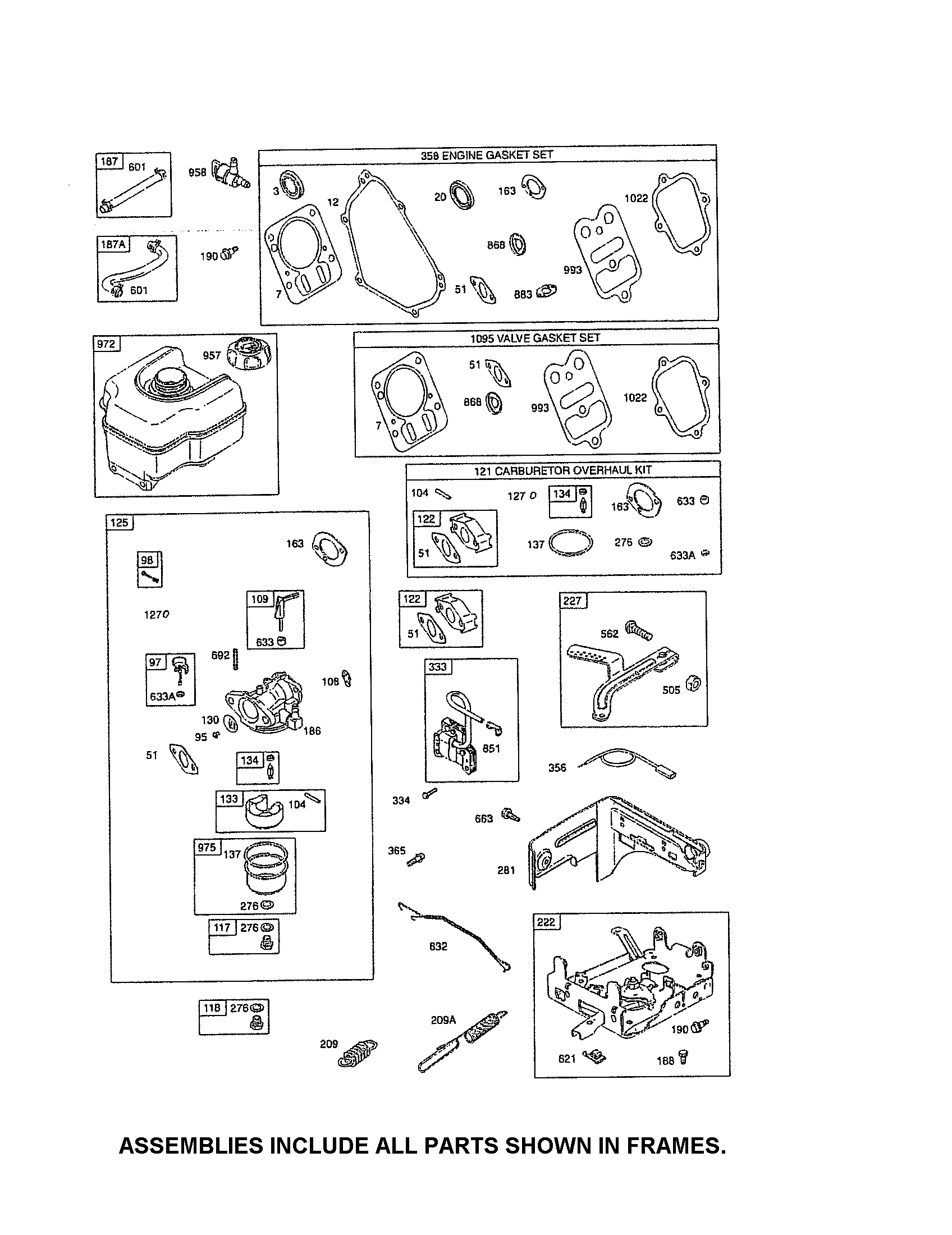

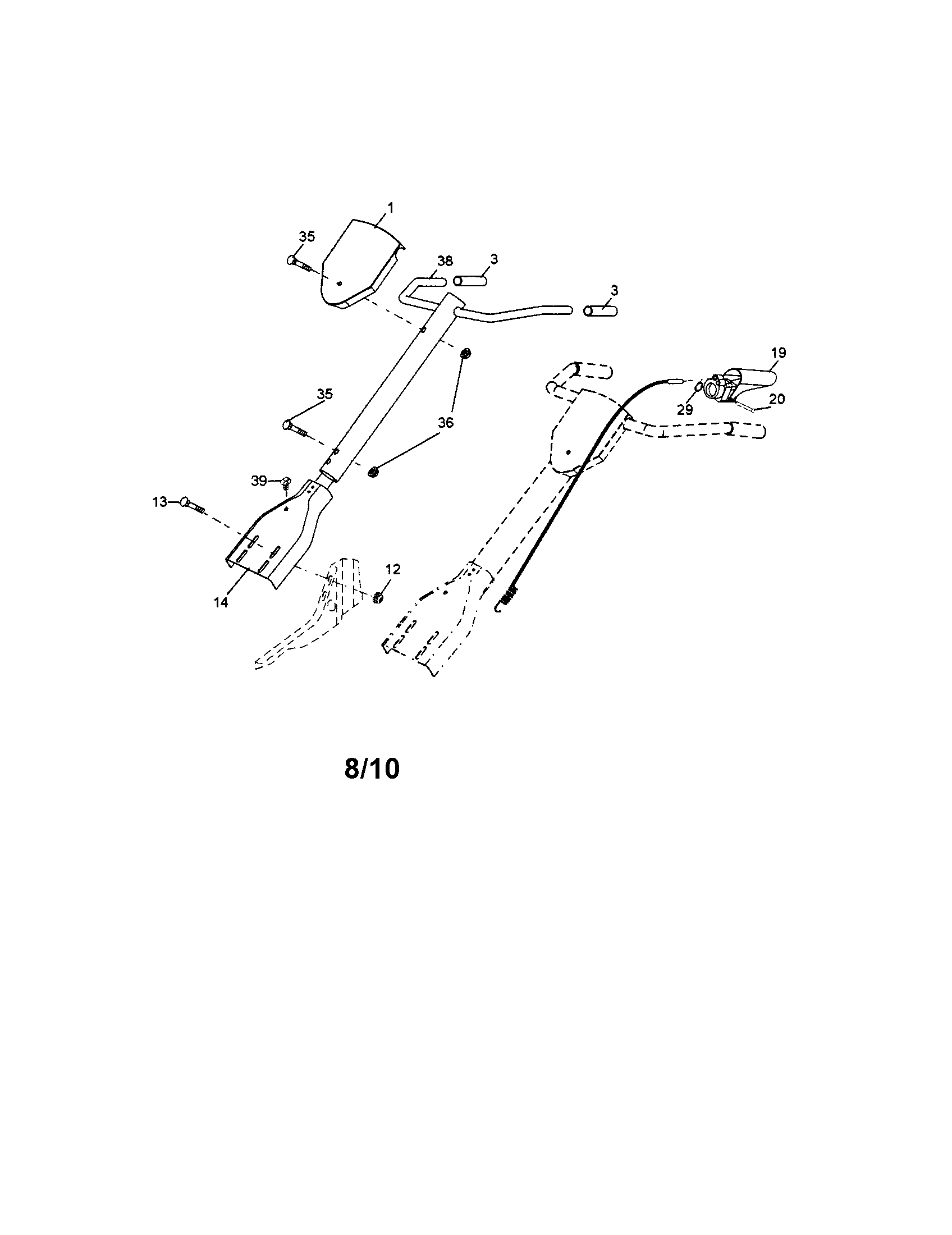

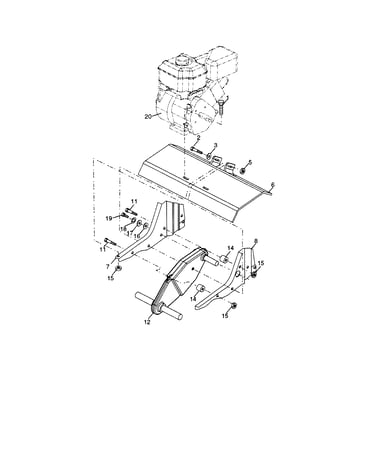

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Spring Retainer 3146R
#2

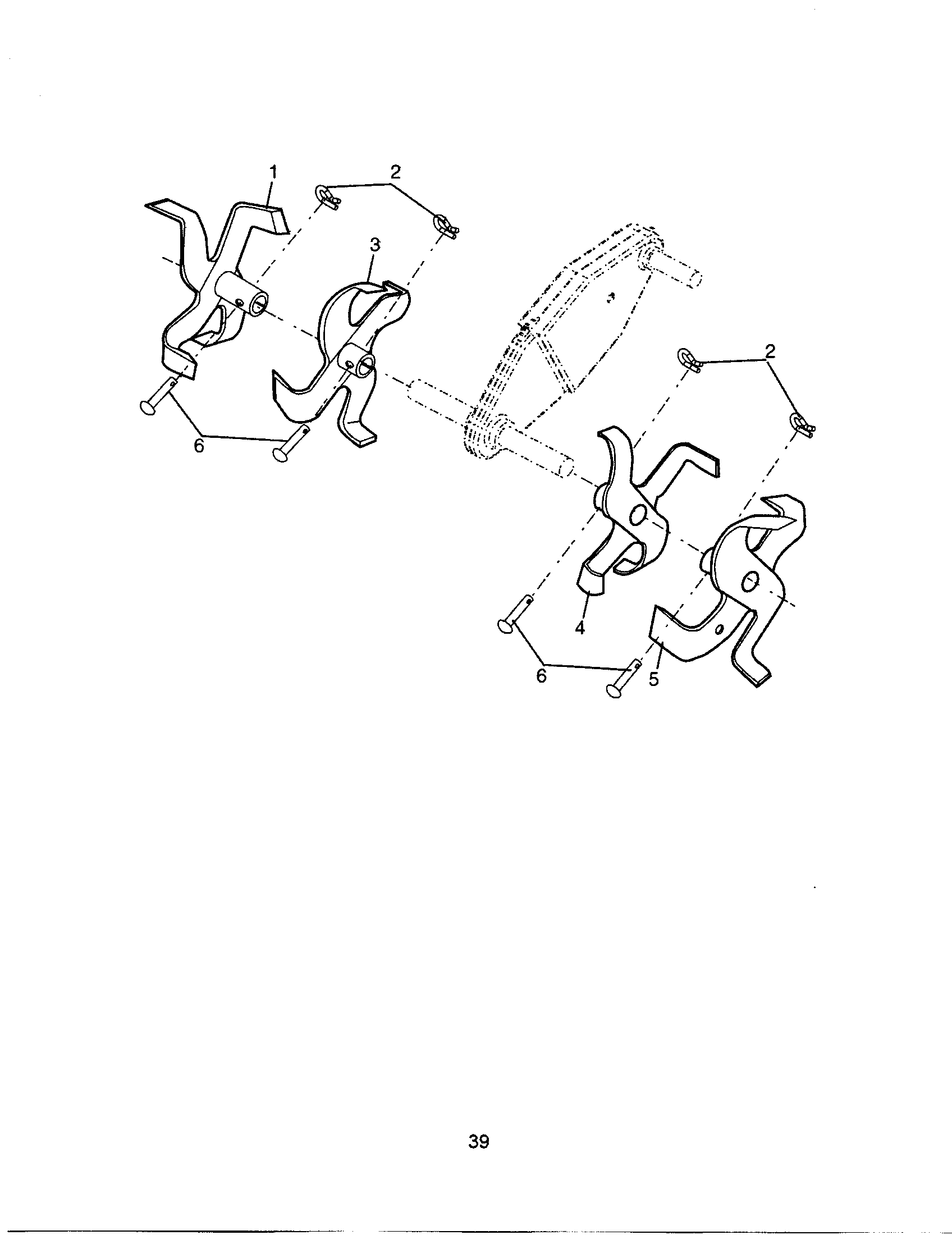

Tine diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lock Nut 73970500
Lock nut

Part #73970500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73970500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Keps Nut STD541431
#22

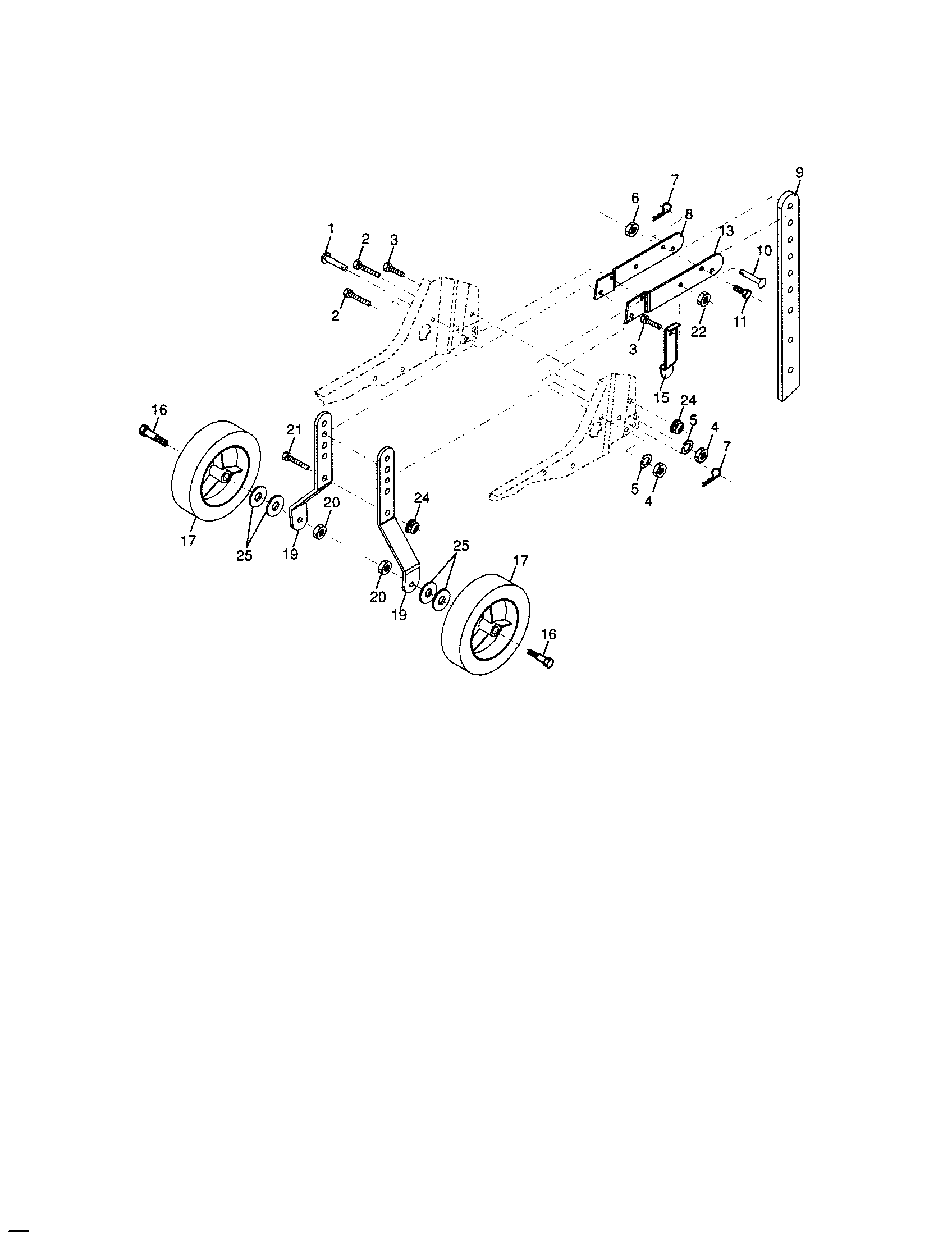

Wheel and depth stake diagram

Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Tiller Wheel 193851X613
#17

Wheel and depth stake diagram

Tiller wheel

Part #193851X613

Replaced by #532427026

?
Manufacturer substitution
This part replaces 193851X613. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Tiller Shoulder Bolt 121117X
#16

Wheel and depth stake diagram

Tiller shoulder bolt

Part #121117X

Replaced by #532121117

?
Manufacturer substitution
This part replaces 121117X. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Idler Pulley 161806
#18

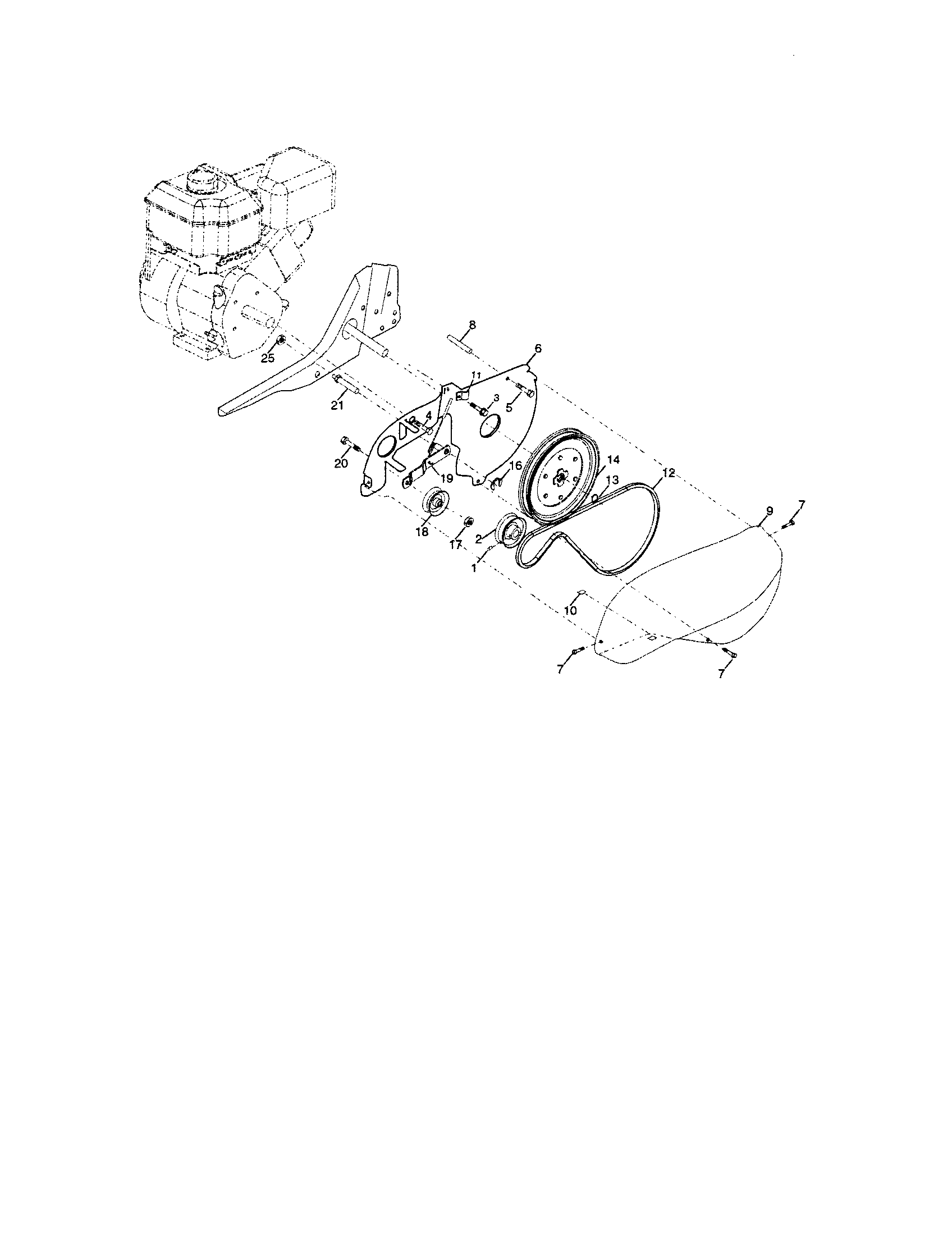

Belt guard/pulley diagram

Idler pulley

Part #161806

Replaced by #532161806

?
Manufacturer substitution
This part replaces 161806. Substitute parts can look different from the original.
$23.98
In Stock
Tiller Drive Belt, 1/2 X 41-11/16-in 9180R
#12

Belt guard/pulley diagram

Tiller drive belt, 1/2 x 41-11/16-in

Part #9180R

Replaced by #532009180

?
Manufacturer substitution
This part replaces 9180R. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$33.31 |
15% OFF Phone Price : $39.31
In Stock
Depth Stake 122233X
#9

Wheel and depth stake diagram

Depth stake

Part #122233X

Replaced by #532446066

?
Manufacturer substitution
This part replaces 122233X. Substitute parts can look different from the original.
$39.98
In Stock
Retainer Ring 12000028
#13

Belt guard/pulley diagram

Retainer ring

Part #12000028

Replaced by #812000028

?
Manufacturer substitution
This part replaces 12000028. Substitute parts can look different from the original.
This item is not returnable
$5.00 |
17% OFF Phone Price : $6.00
In Stock
Shaft 106968X
#21

Belt guard/pulley diagram

Shaft

Part #106968X

Replaced by #532106968

?
Manufacturer substitution
This part replaces 106968X. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
