Model # F+RP042N06 Official York evaporator coil
Here are the diagrams and repair parts for Official York F+RP042N06 evaporator coil, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic

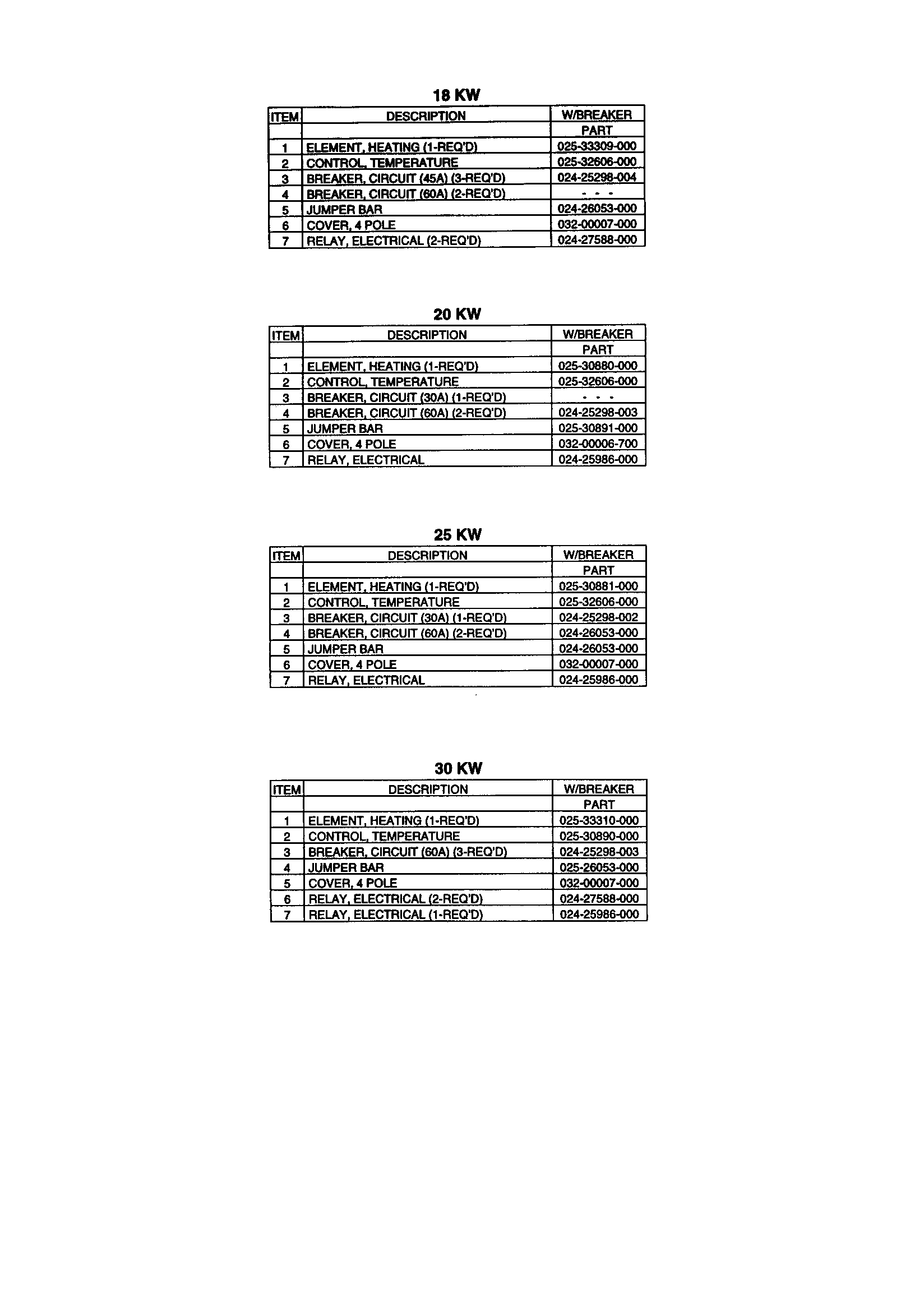

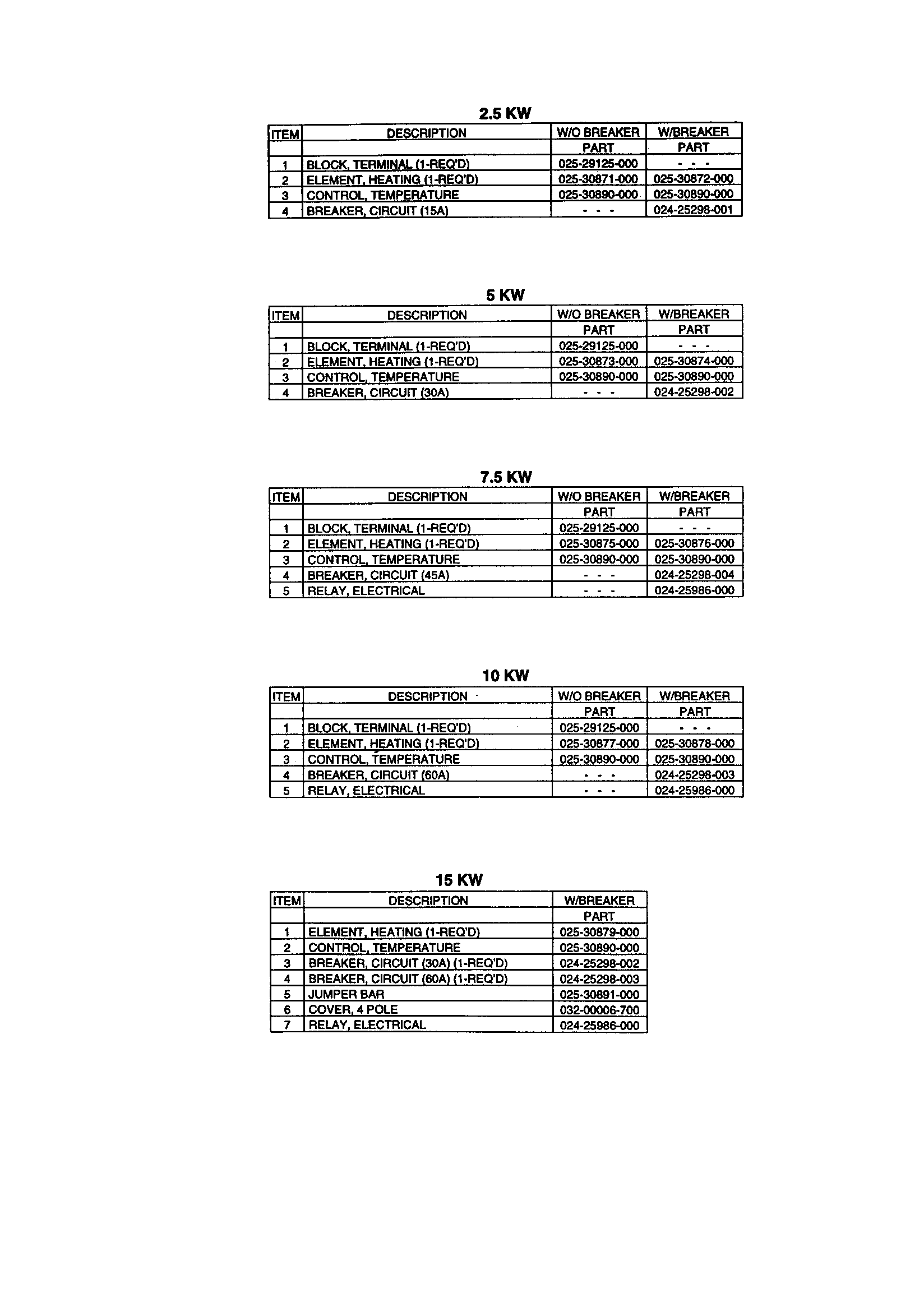

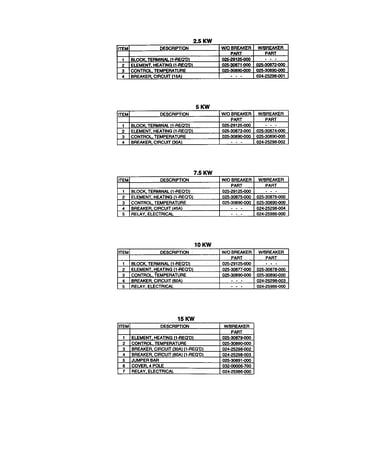

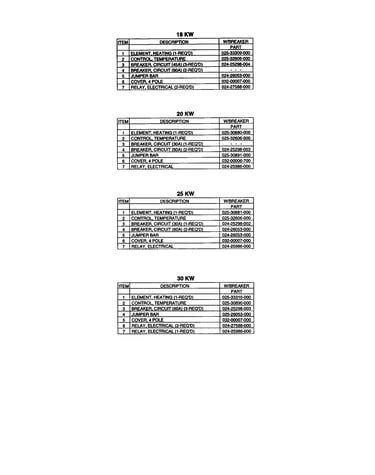

SELECT DIAGRAM
Browse Parts for
F+RP042N06 Evaporator Coil
#4

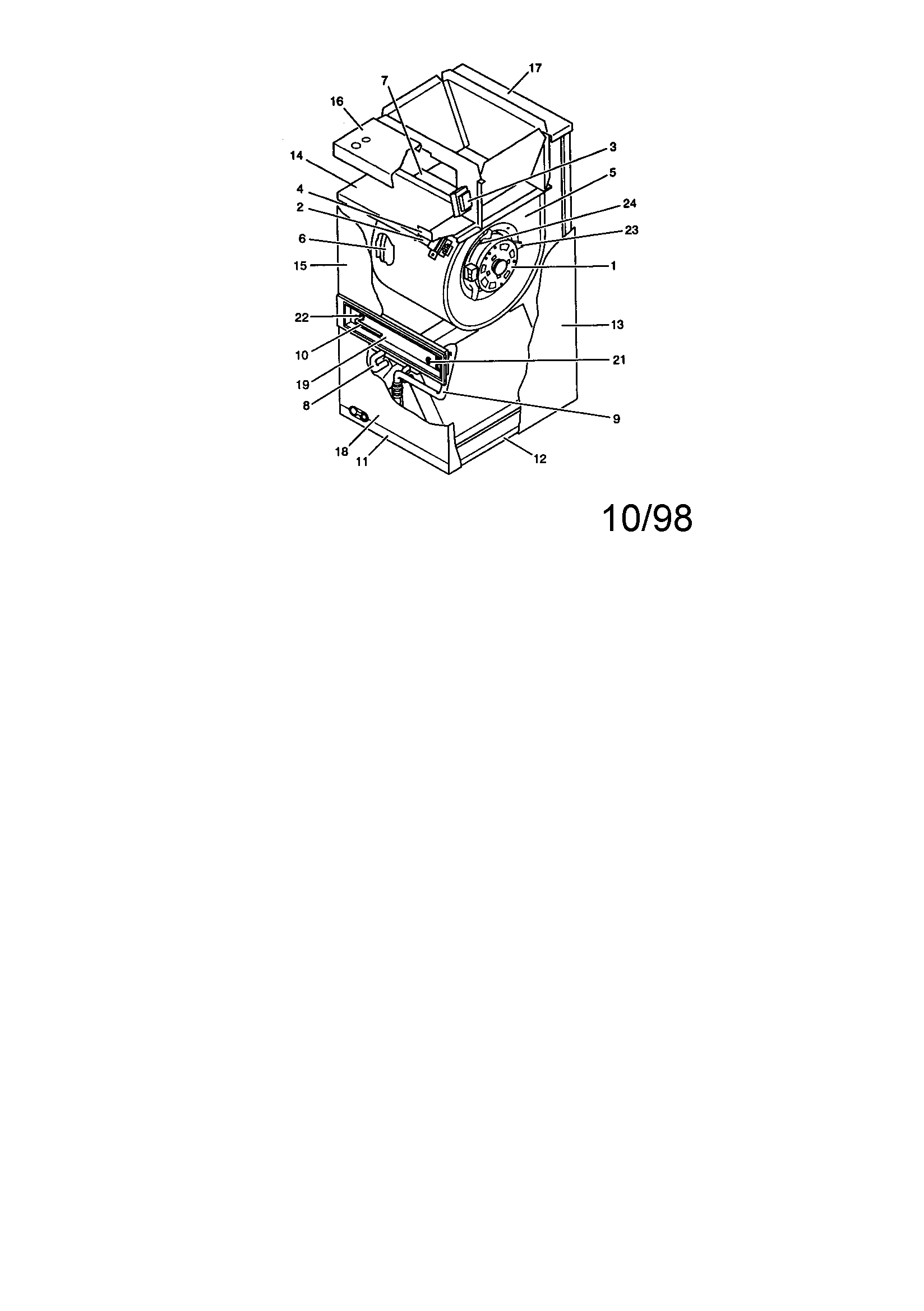

Blower evaporator coil diagram
Central air conditioner electronic control board
Part #031-01264-002
The manufacturer no longer makes this part, and there's no substitute part
#9
Blower evaporator coil diagram
Distributor w/orifice
Part #022-08974-078
The manufacturer no longer makes this part, and there's no substitute part
#2
Blower evaporator coil diagram
Capacitor, cap (blower) (note: style "b" models are the same as style "a" except for the following parts:)
Part #024-25899-000
The manufacturer no longer makes this part, and there's no substitute part
#1
Blower evaporator coil diagram
Motor, direct drive blower
Part #024-25985-000
The manufacturer no longer makes this part, and there's no substitute part
#23
Blower evaporator coil diagram
Motor mount (arm ) (3-req'd)
Part #026-34006-000
The manufacturer no longer makes this part, and there's no substitute part
#7
Blower evaporator coil diagram
Cut-off plate, blower
Part #073-14494-000
The manufacturer no longer makes this part, and there's no substitute part
#10
Blower evaporator coil diagram
Manifold
Part #373-17539-001
The manufacturer no longer makes this part, and there's no substitute part
#19
Blower evaporator coil diagram
Panel, recessed
Part #032-00148-002
The manufacturer no longer makes this part, and there's no substitute part
#11
Blower evaporator coil diagram
Filter door
Part #073-14696-000
The manufacturer no longer makes this part, and there's no substitute part
#8
Blower evaporator coil diagram
Coil evaporator
Part #373-18112-001
The manufacturer no longer makes this part, and there's no substitute part
